Modular Instrument

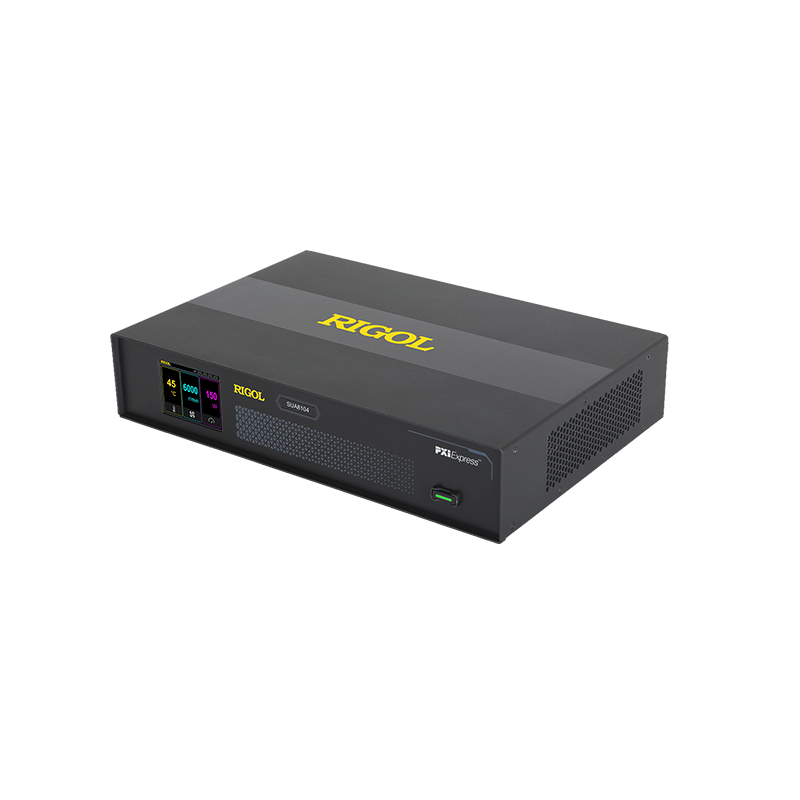

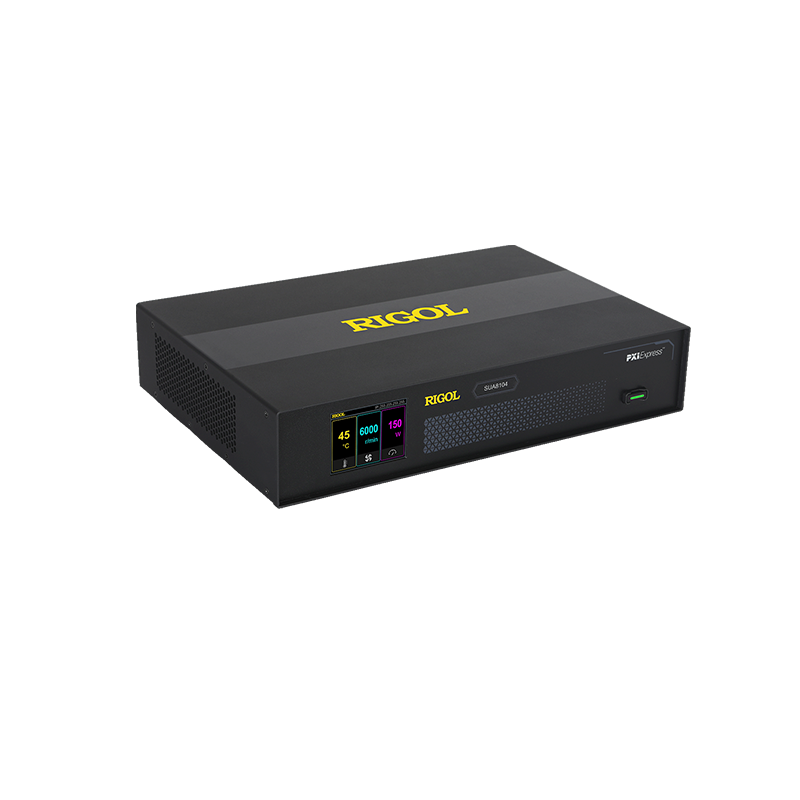

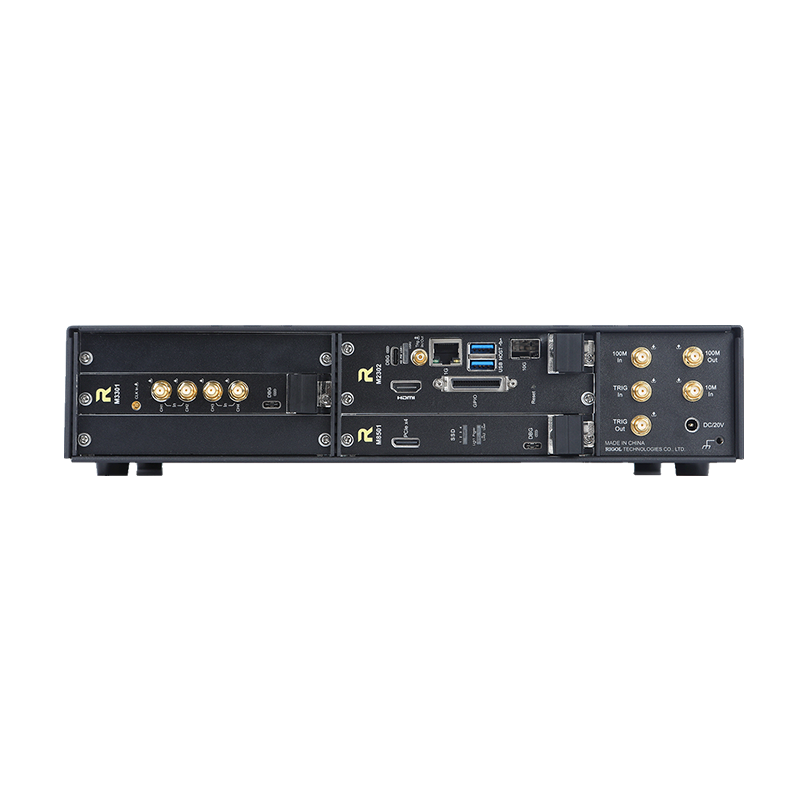

SUA8000 Series Digital Transceivers
Main Controller
GPU AI
Analog Bandwidth
3.5GHz
Maximum Buffer Depth
1Gpts
Analog Channels T|R
2|2
Sample Rate T|R
8GSa/s | -
Downloads
Select Model
Explore the SUA8000 Digital Transceiver
Long - time synchronous operation of multiple devices
The SUA8000 Series supports synchronized operation of more than 100 instruments with exceptional long-term stability: intra-device channel-to-channel delay stays within 1 ps, while inter-device channel synchronization holds within 10 ps—reliable enough for 24/7 array transceiver systems. Such outstanding timing performance sharply boosts system coherence, delivering robust technical support for large-scale distributed transceiver applications.
Master control dual selection
The SUA8000 Series offers two master-control options to suit different application needs: a CPU control module built around a high-performance V2000 processor for superior computation and task scheduling, and a GPU-AI control module based on the powerful Orin AGX platform, optimized for AI and deep-learning workloads to handle complex data analytics and intelligent processing.
Arrayed console
The SUA8000 Series adopts the web-based UltraArray control platform, enabling local and remote device management with true plug-and-play convenience. A comprehensive library of built-in APIs simplifies secondary development: users may operate the instruments directly through the interface or tap the APIs to quickly build and deploy customized systems, execute complex tasks, and meet diverse application needs.
Highly integrated with a compact body
Compact SUA8000 units slip easily into existing systems, custom benches, or tight nested setups. A 1.5-U chassis holds up to eight channels, so a 32-U rack can host 128—maximizing space and simplifying layouts in labs, production lines, and other centralized test sites.
Multi-industry solution applications
From radio-astronomy asteroid hunts and power-grid partial-discharge monitoring to automotive-radar IF tests, engineers rely on the SUA8000. Its precise generate/capture paths and smart processing yield accurate, efficient results across demanding research, industrial, and commercial tasks.
SUA8000 Series Digital Transceivers
Model
Main Controller
Analog Bandwidth
Maximum Buffer Depth
Analog Channels T|R
Sample Rate T|R
Price
SUA8104
CPU
3.5GHz
1Gpts
4|0
8GSa/s | -
SUA8204
CPU
1.5GHz
1Gpts
0|4
- | 4GSa/s
SUA8208
CPU
1.5GHz
512Mpts
0|8
- | 4GSa/s
SUA8304
CPU
1.5GHz
1Gpts
2|2
4GSa/s | 4GSa/s
SUA8104G
GPU AI
3.5GHz
1Gpts
4|0
8GSa/s | -
SUA8204G
GPU AI
1.5GHz
1Gpts
0|4
- | 4GSa/s
SUA8208G
GPU AI
1.5GHz
512Mpts
0|8
- | 4GSa/s
SUA8304G
GPU AI
1.5GHz
1Gpts
2|2
4GSa/s | 4GSa/s
Optinal Accessories
| Model | Description |
|---|---|
| M8501-H16 | 16TB Waveform Recording Extension |
| M8501 | 16TB Waveform Recording Extension |
| SUA8000-SQ | AWG Advanced Sequence Mode |
Host computer Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| Ultra Acquire Pro | PC full-function software | ₹ 102,600 | ₹ 121,068 |
Quick Guide
| Name | Version | Release Time | Download |
|---|---|---|---|
| 📄 SUA8000 QuickGuide | QGK01000-1110 | 2025-06-05 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 SUA8000 DataSheet | DSK01100-1110 | 2025-06-05 |
