Waveform Generators

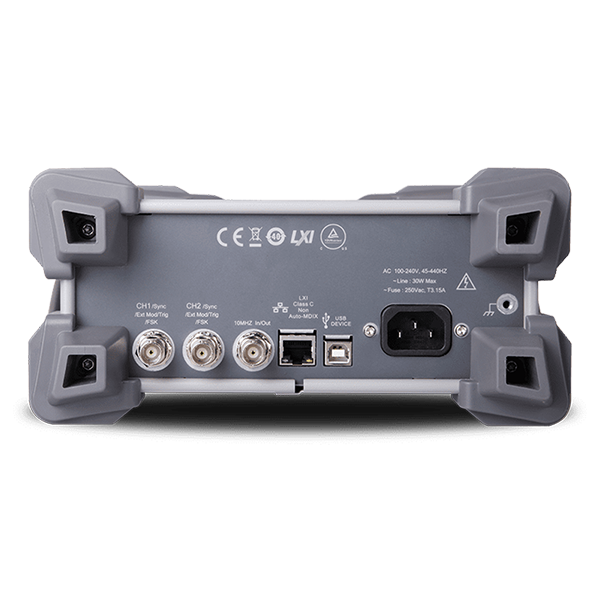

DG1000Z
Maximum Output Frequency
60MHz
Sample Rate
200Msa/s
Vertical Resolution
14bits
Number of Channels
2CH
Arbitrary Waveform Length
8M(16M opt.)
Square Wave Frequency
-
Downloads
Downloads
Select Model

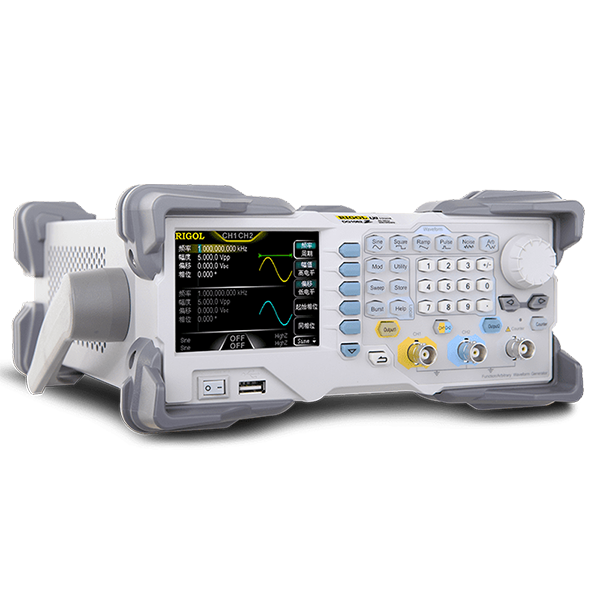

Explore the DG1000Z Series Function/Arbitrary Waveform Generator
SiFi Technology

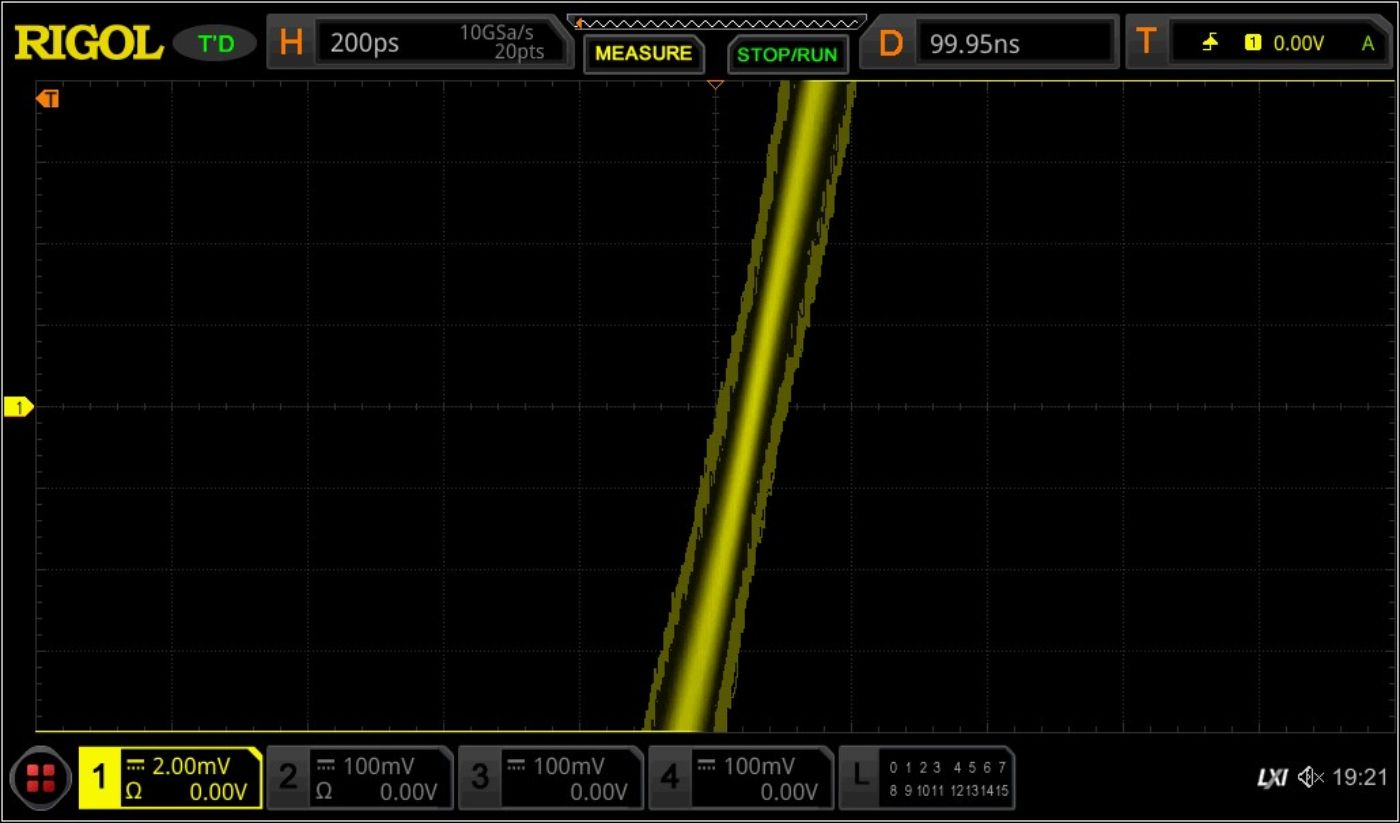

RIGOL’s innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and adjustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.
Built-in 160 arbitrary waves

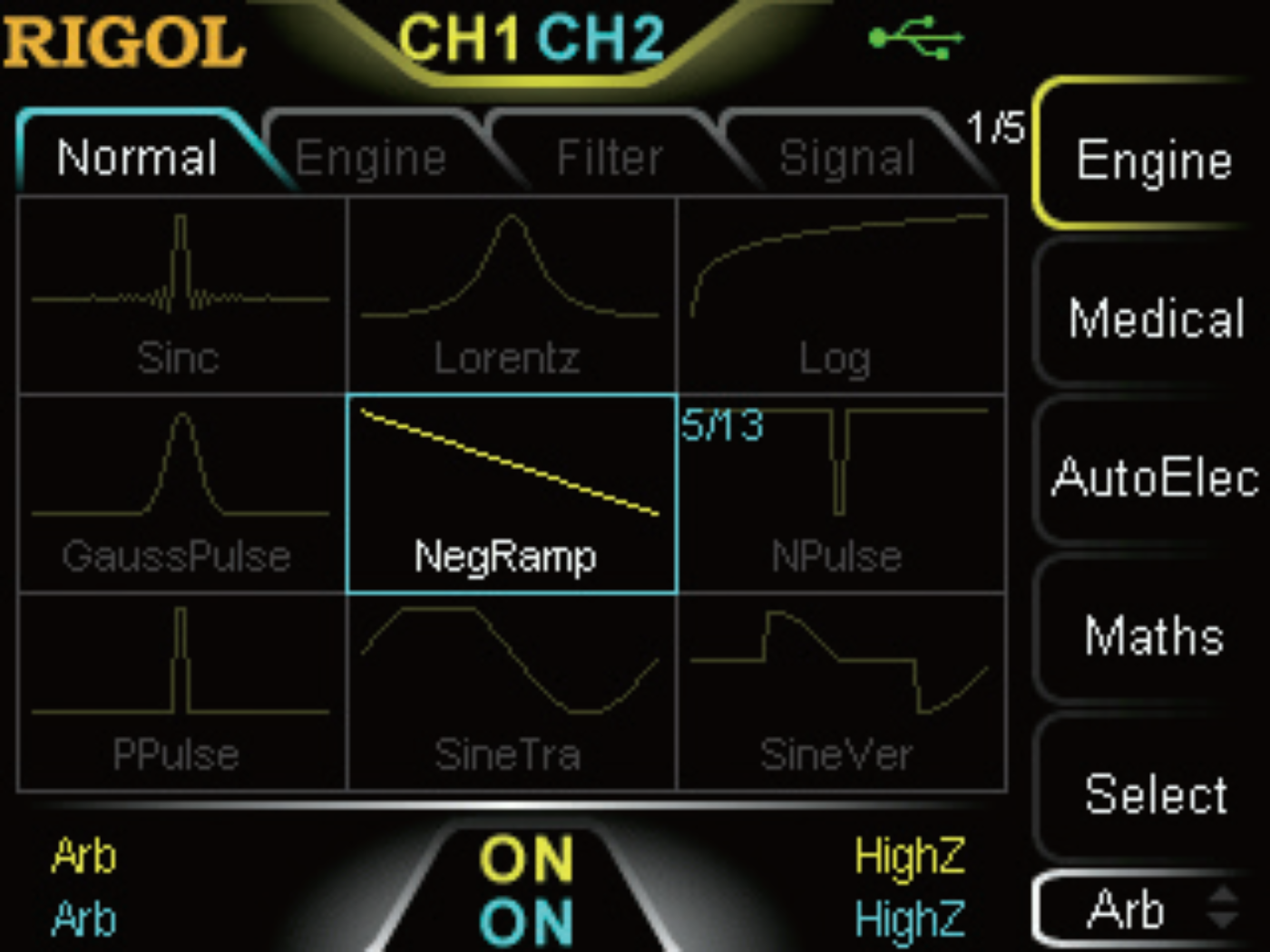

As we all know, RIGOL’s waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.

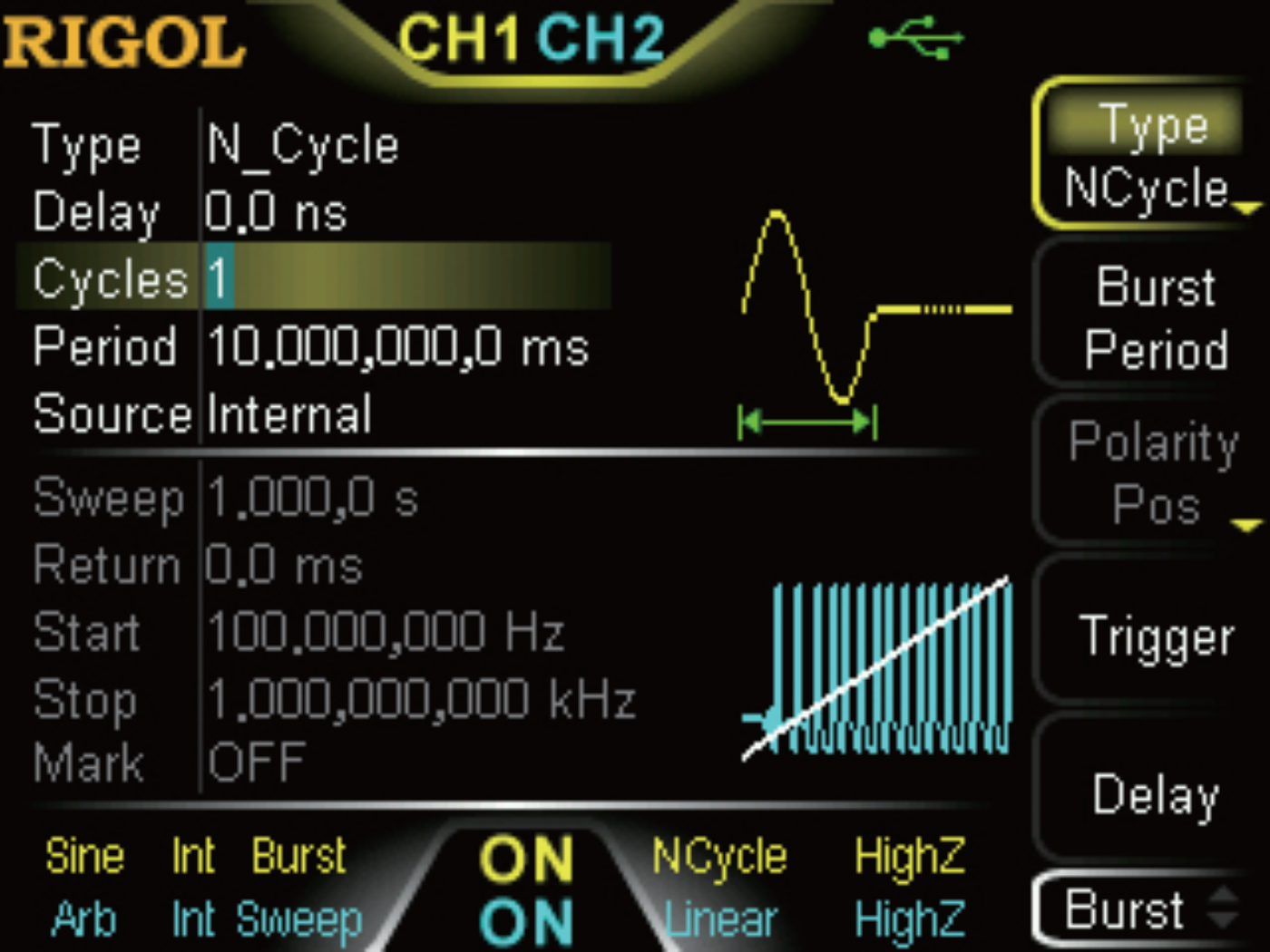

Sweep function & burst mode
It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the “mark” frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.
Multiple analog & digital modulation

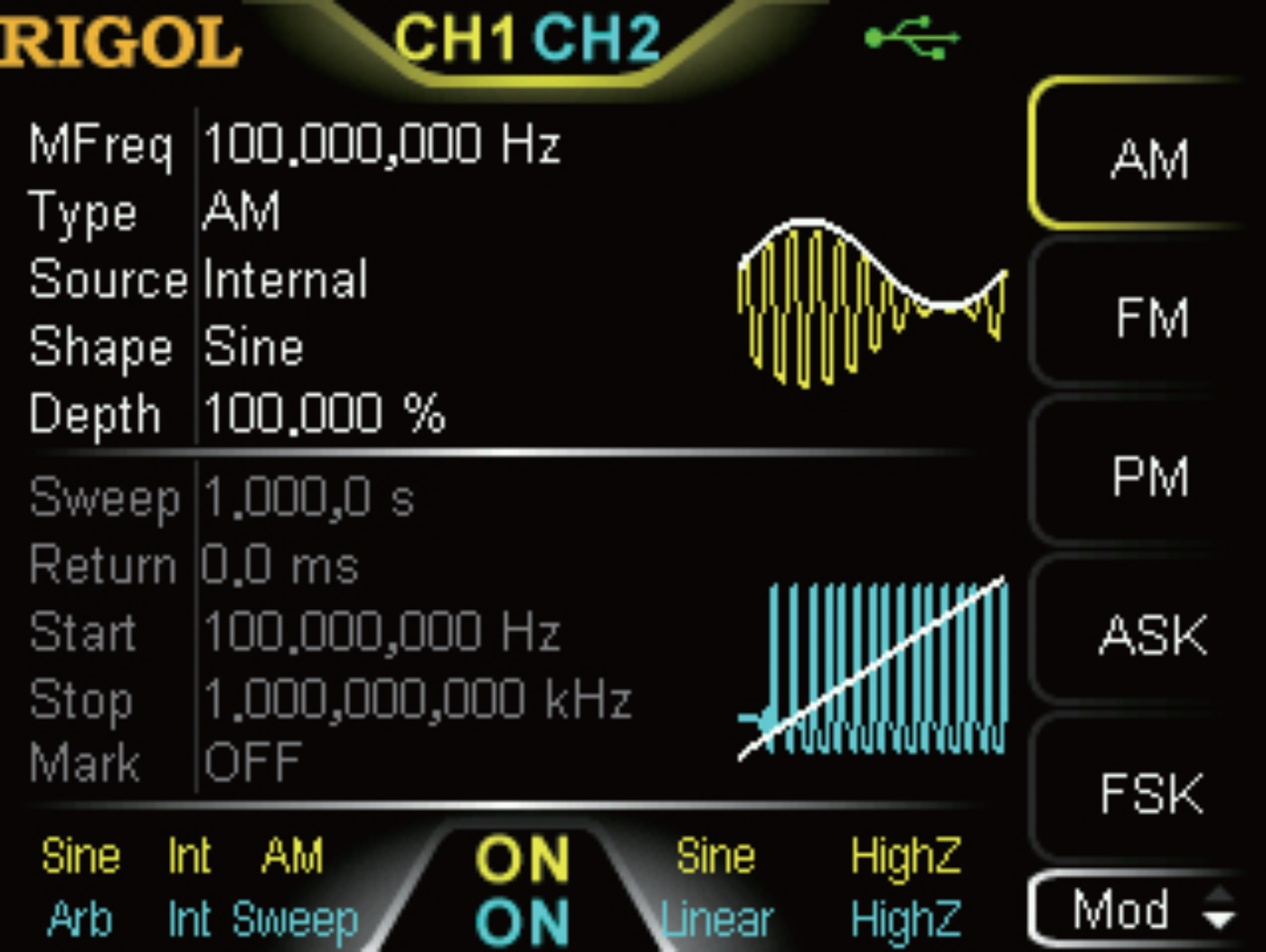

Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.
Harmonic generator

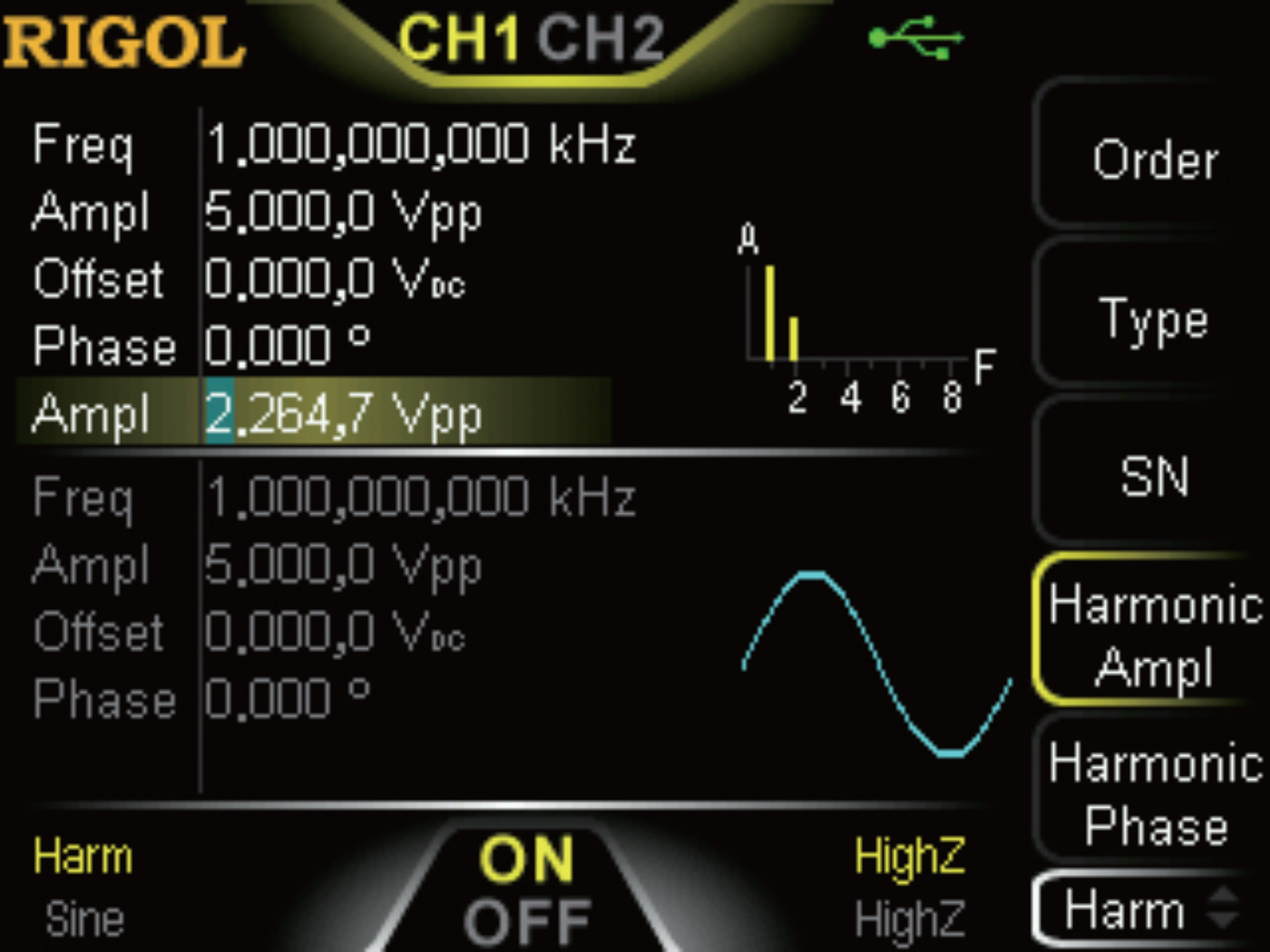

Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.
Waveform Overlay & Channel Tracking

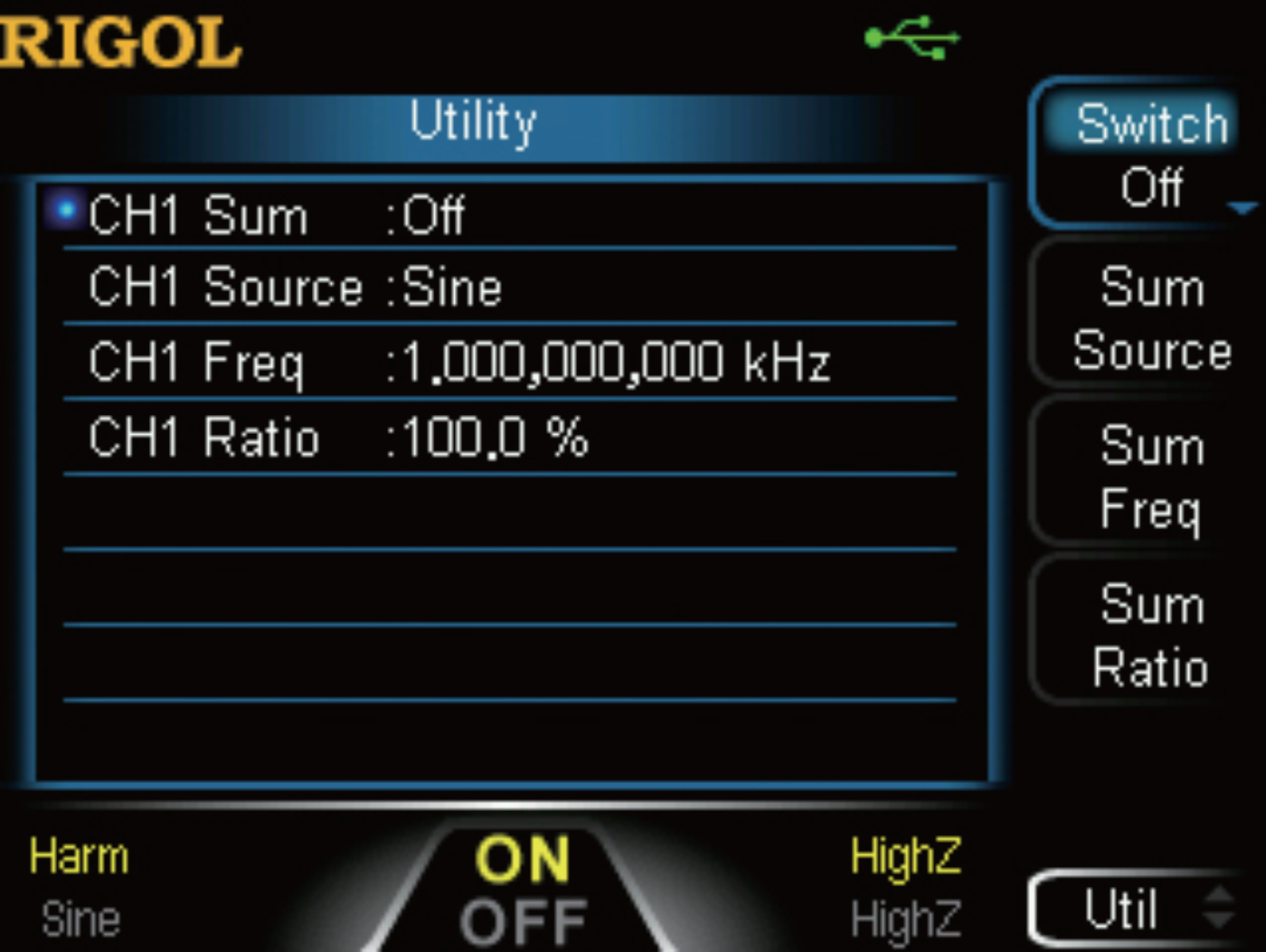

It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user’s configuration at the same time
Built-in 7-bit frequency meter

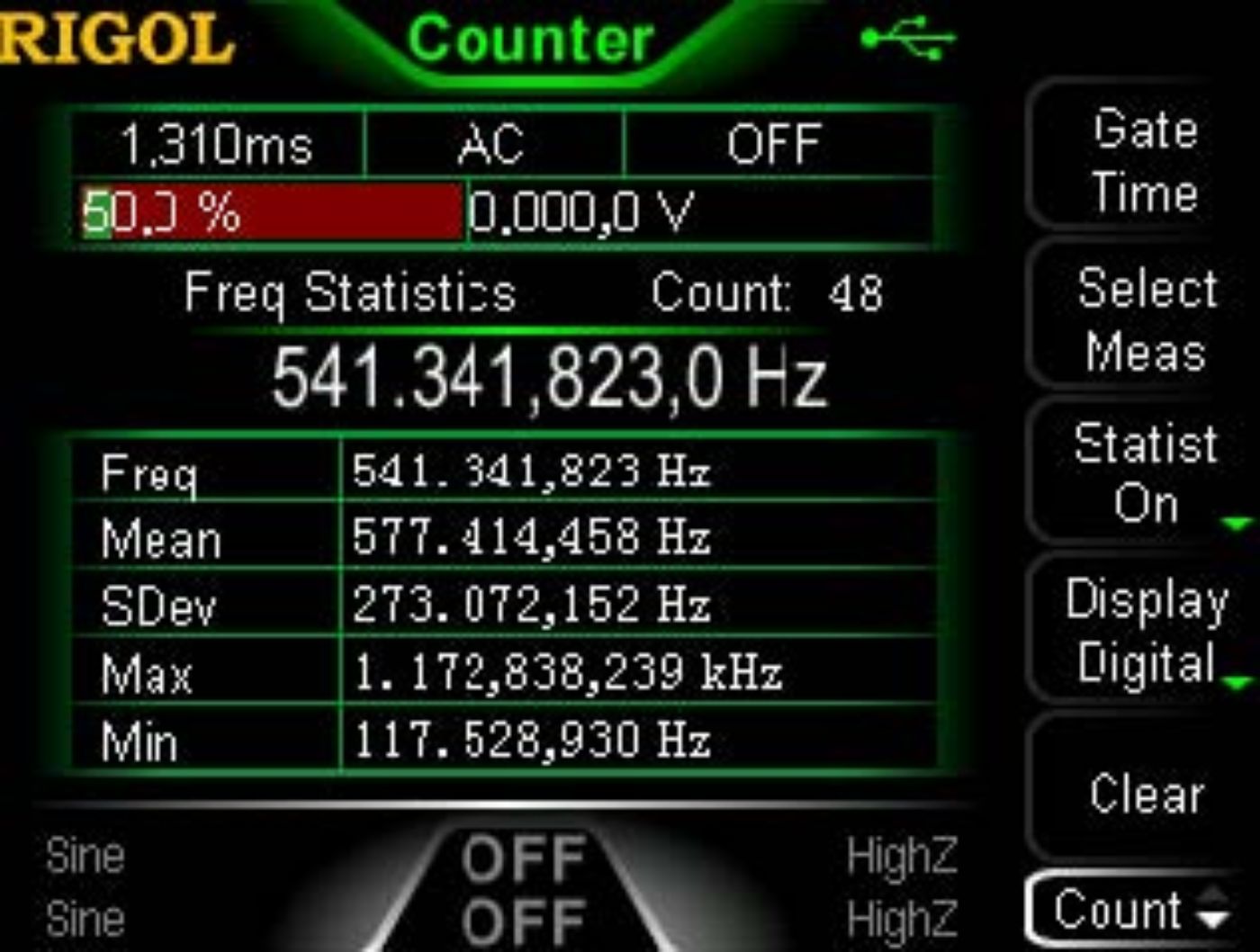

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.
DG1000Z
Model
Maximum Output Frequency
Sample Rate
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Price
DG1062Z
60MHz
200Msa/s
14bits
2CH
8M(16M opt.)
DG1032Z
30MHz
200Msa/s
14bits
2CH
8M(16M opt.)
DG1022Z
25MHz
200Msa/s
14bits
2CH
2M(16M opt.)
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| Arb16M-DG1000Z | 16M Memory upgrade option | ₹ 19,650 | ₹ 23,187 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| BAG-G1 | Common Instrument package(DSA800/DG4000/DS2000) | ₹ 16,350 | ₹ 19,293 |
| RM-2-DG1000Z | 2-machine rack kit | ₹ 11,100 | ₹ 13,098 |
| RM-1-DG1000Z | Stand-alone rack kit | ₹ 8,400 | ₹ 9,912 |
| USB-GPIB | USB-GPIB adapter | ₹ 39,900 | ₹ 46,020 |
| CB-BNC-AC-100-L | BNC to Alligator clip Adapter | ₹ 1,950 | ₹ 2,301 |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| RA5040K | 40dBAttenuator(50ohm，1W) | ₹ 4,800 | ₹ 5,664 |
| PA1011 | 10WPower amplifier module | ₹ 48,900 | ₹ 57,702 |
Software
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| Ultra Station-adv | Ultra Station Advanced function options | ₹ 12,300 | ₹ 14,514 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG1000Z DataSheet | DSB09103-1110-202511 | 2025-12-16 |
User Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG1000Z UserGuide | UGB09109-1110 | 2021-10-26 | |
| 📄 DG1000Z RackmountKit EN | 2021-12-03 | 2021-12-03 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG1000Z QuickGuide | QGB09106-1110 | 2021-12-03 |
Programming Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG1000Z ProgrammingGuide | PGB09106-1110 | 2021-10-26 |
