Waveform Generators
DG2000
Maximum Output Frequency
100MHz
Sample Rate
250Msa/s
Vertical Resolution
16bits
Number of Channels
2CH
Arbitrary Waveform Length
16M
Square Wave Frequency
-
Downloads
Downloads
Select Model

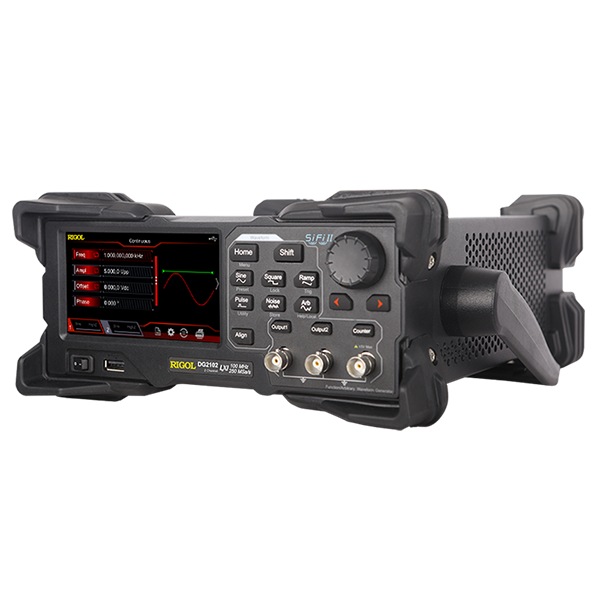

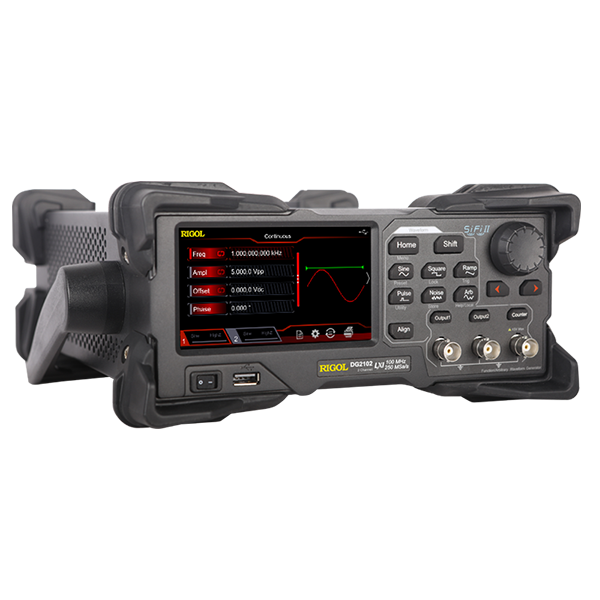

Explore the DG2000 Series Function/Arbitrary Waveform Generator

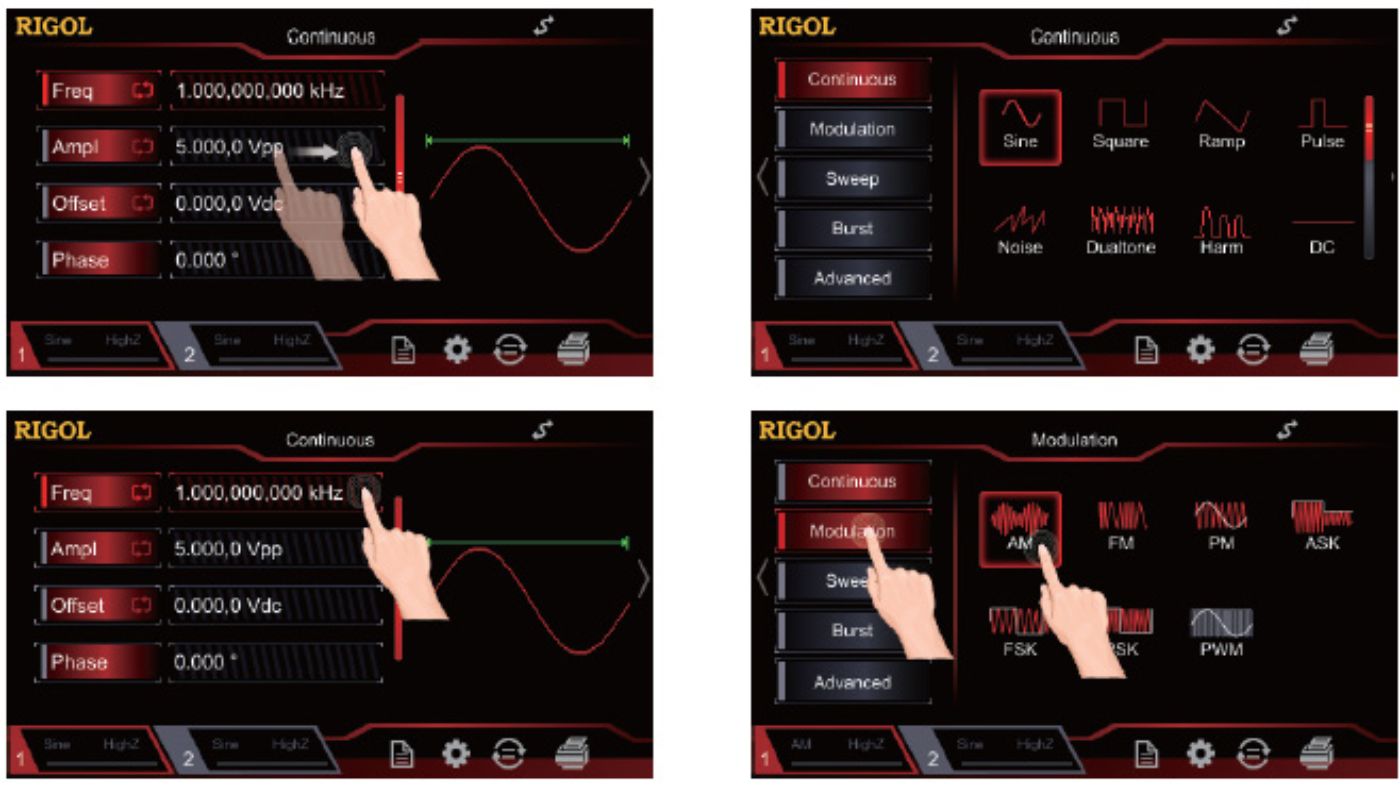

4.3 Inch Touch Screen
The combination of touch screen control with click and slide and multi-function knob makes it easy to find and update waveform settings; switch between channels, configure each channel, and easily load standard functions or arbitrary waves.

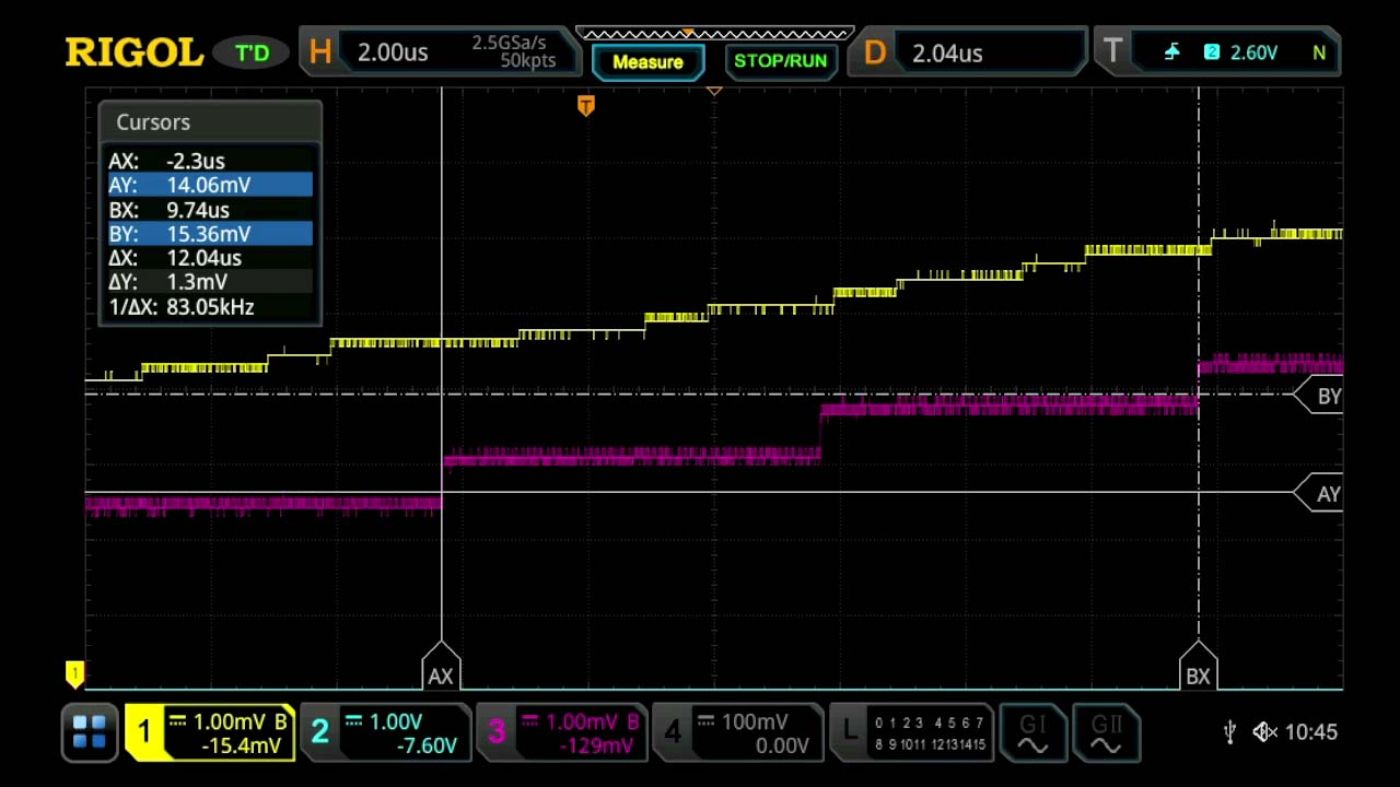

16bit Vertical Resolution
DG2000 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG2000 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

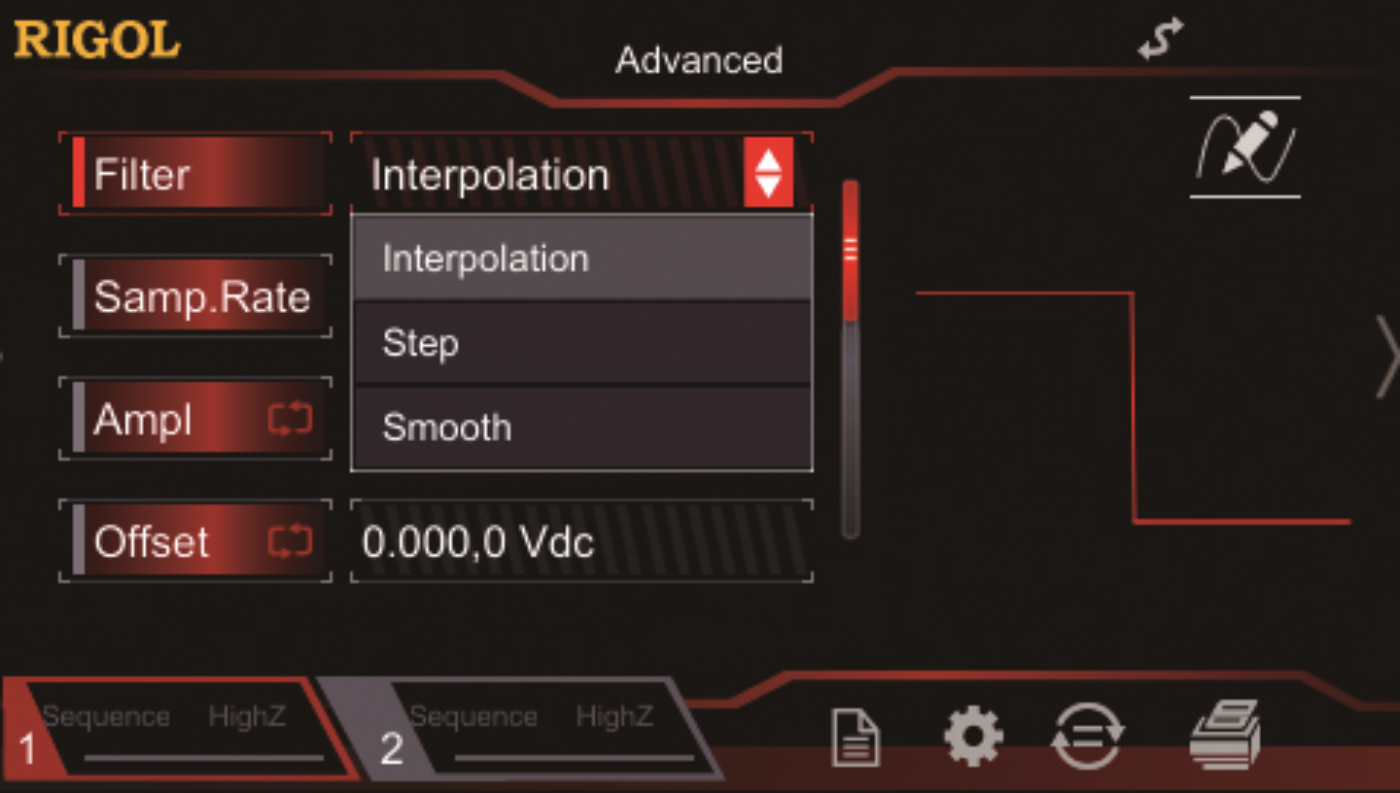

SiFi II Technology
Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

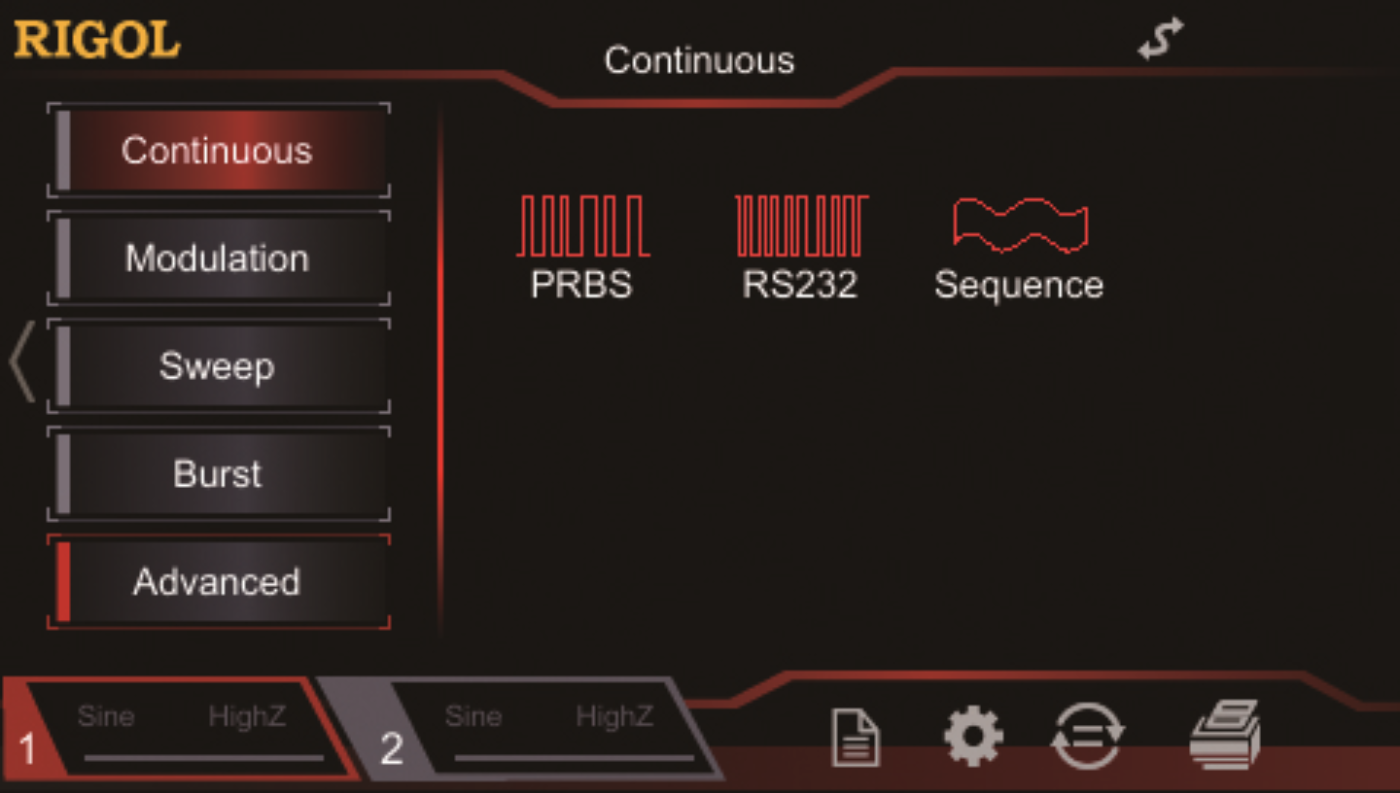

Support Multiple Signal Outputs
Create and combine complex signal sequences, simulate or analyze faults through finger touch. A wide range of test signals are simulated by combining different waveform types, including dual tone, arbitrary wave and noise DG2000 also has the function of generating RS232 sequence and PRBS, which can be used in test sequence of advanced application.

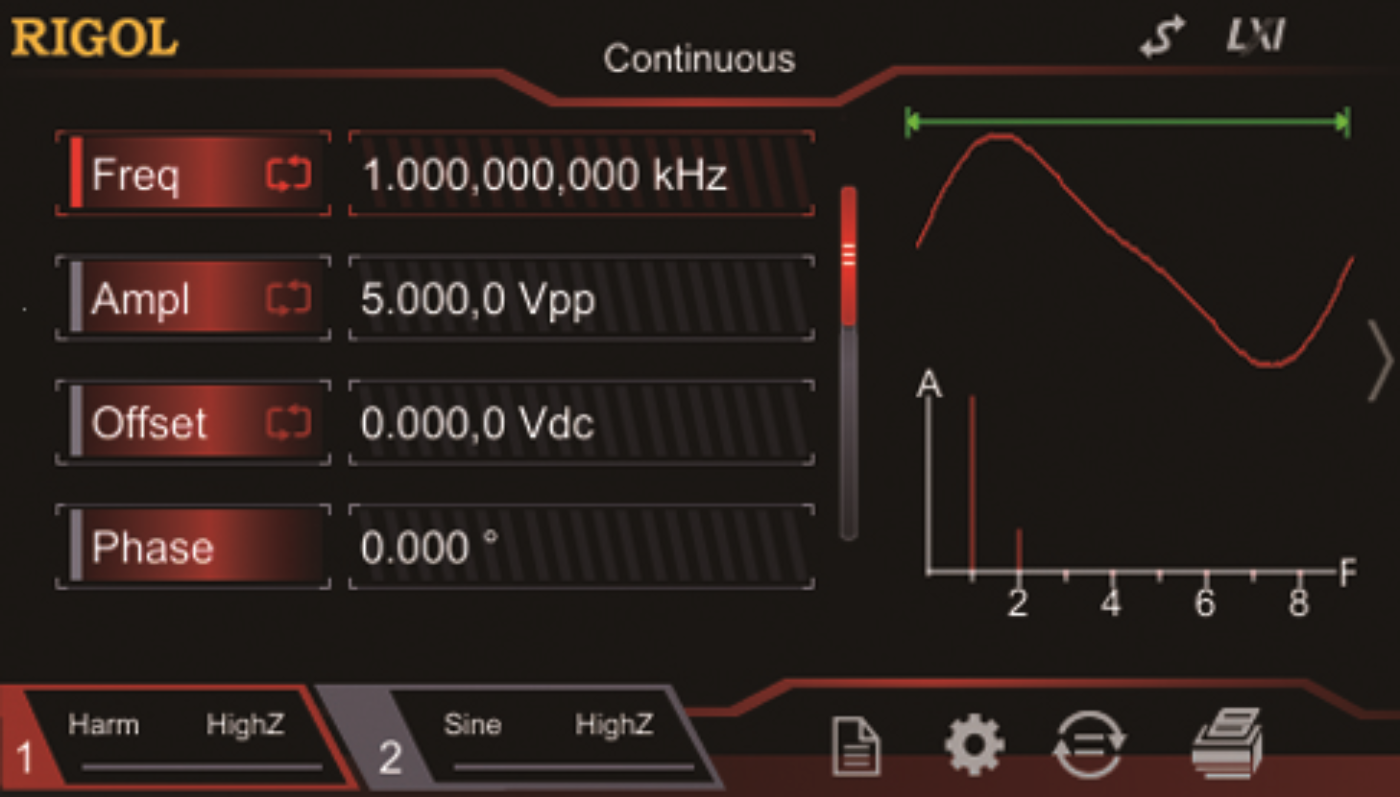

Harmonic Generator
DG2000 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.
Fanless silent design
It adopts a fanless design structure and operates without noise interference.

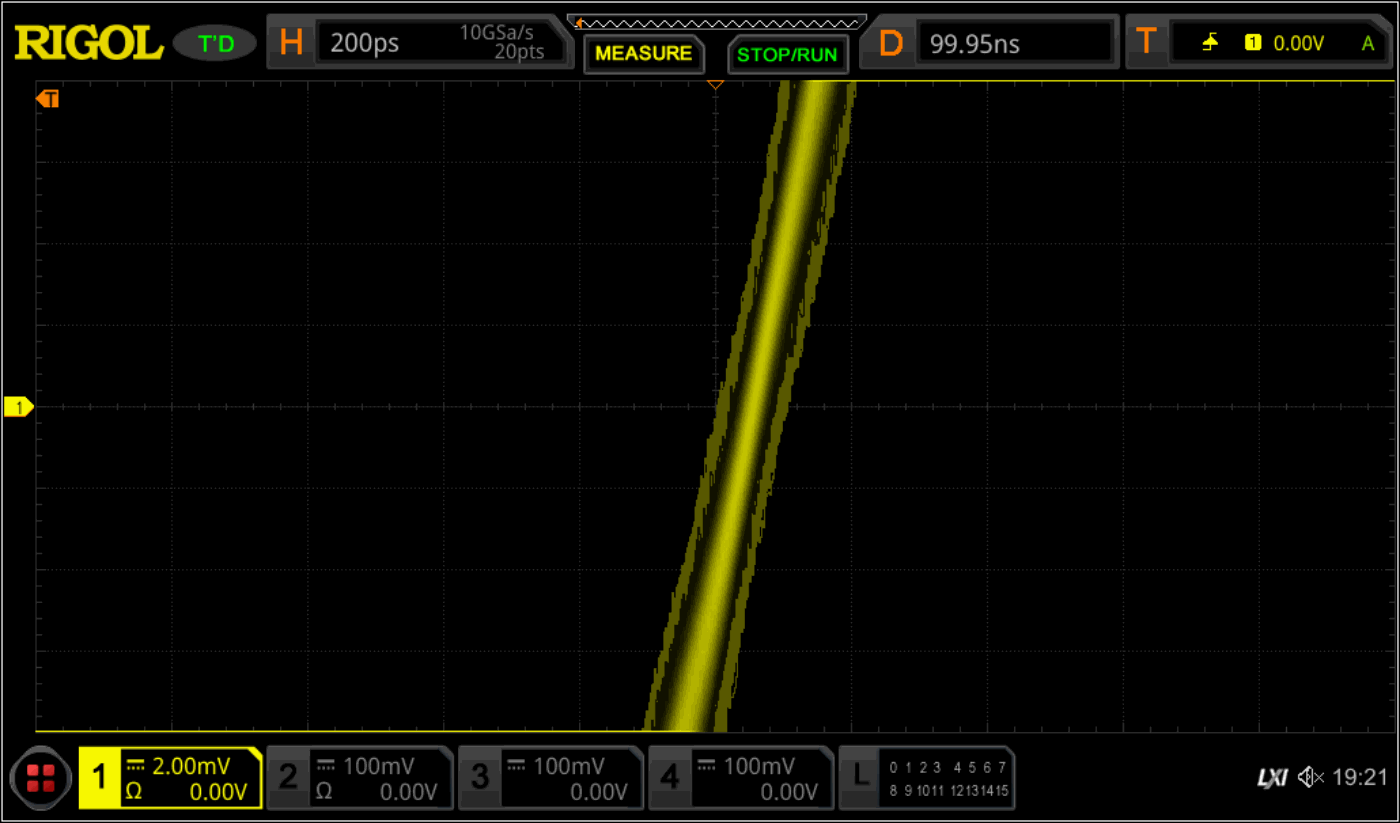

Signal Jitter As Low As 200ps
DG2000 series function / arbitrary waveform generator is based on SIFI II technology created by RIGOL. It can generate arbitrary wave point by point and restore signal without distortion. The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.
DG2000
Model
Maximum Output Frequency
Sample Rate
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Price
DG2102
100MHz
250Msa/s
16bits
2CH
16M
DG2072
70MHz
250Msa/s
16bits
2CH
16M
DG2052
50MHz
250Msa/s
16bits
2CH
16M
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM-2-DG1000Z | 2-machine rack kit | ₹ 11,100 | ₹ 13,098 |
| RM-1-DG1000Z | Stand-alone rack kit | ₹ 8,400 | ₹ 9,912 |
| USB-GPIB | USB-GPIB adapter | ₹ 39,000 | ₹ 46,020 |
| CB-BNC-AC-100-L | BNC to Alligator clip Adapter | ₹ 1,950 | ₹ 2,301 |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| RA5040K | 40dBAttenuator(50ohm，1W) | ₹ 4,800 | ₹ 5,664 |
Software
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| Ultra Station-adv | Ultra Station Advanced function options | ₹ 12,300 | ₹ 14,514 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG2000 datasheet | V1.0 | 2021-10-26 |
User Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG2000 UserGuide | UGB12101-1110 | 2021-10-26 |
Programming Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG5000Pro ProgrammingGuide | PGB18101-1110 | 2025-07-17 |
Open Source Acknowledgment
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG2000OpenSourceAcknowledgment | 202512 | 2025-12-23 |
