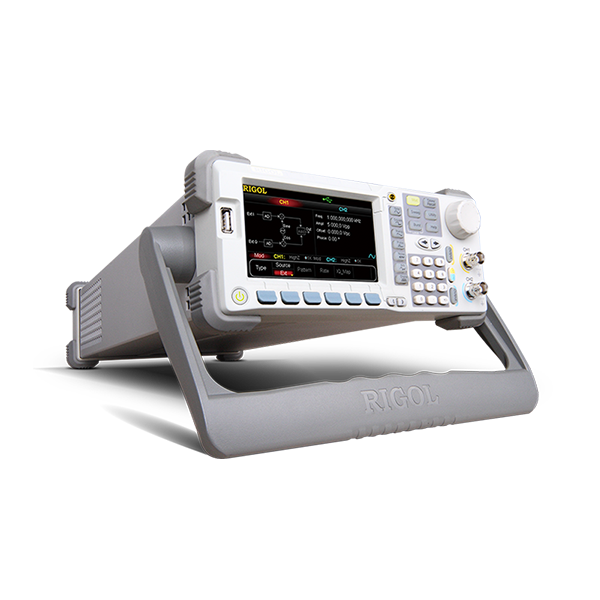

DG5000

Waveform Generators

DG5000 series has 6 functions, including any waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator and function generator. The series includes single and dual channel models. The functions of the two channels are completely equal, and the phase between channels is precisely adjustable.

Maximum Output Frequency

350MHz

Sample Rate

1Gsa/s

Vertical Resolution

14bits

Number of Channels

2CH

Arbitrary Waveform Length

128M

Square Wave Frequency

-

Downloads

UserGuide

Downloads

DataSheet

Select Model

Models

Clear

Qty:

Explore the DG5000 Series Function/Arbitrary Waveform Generator

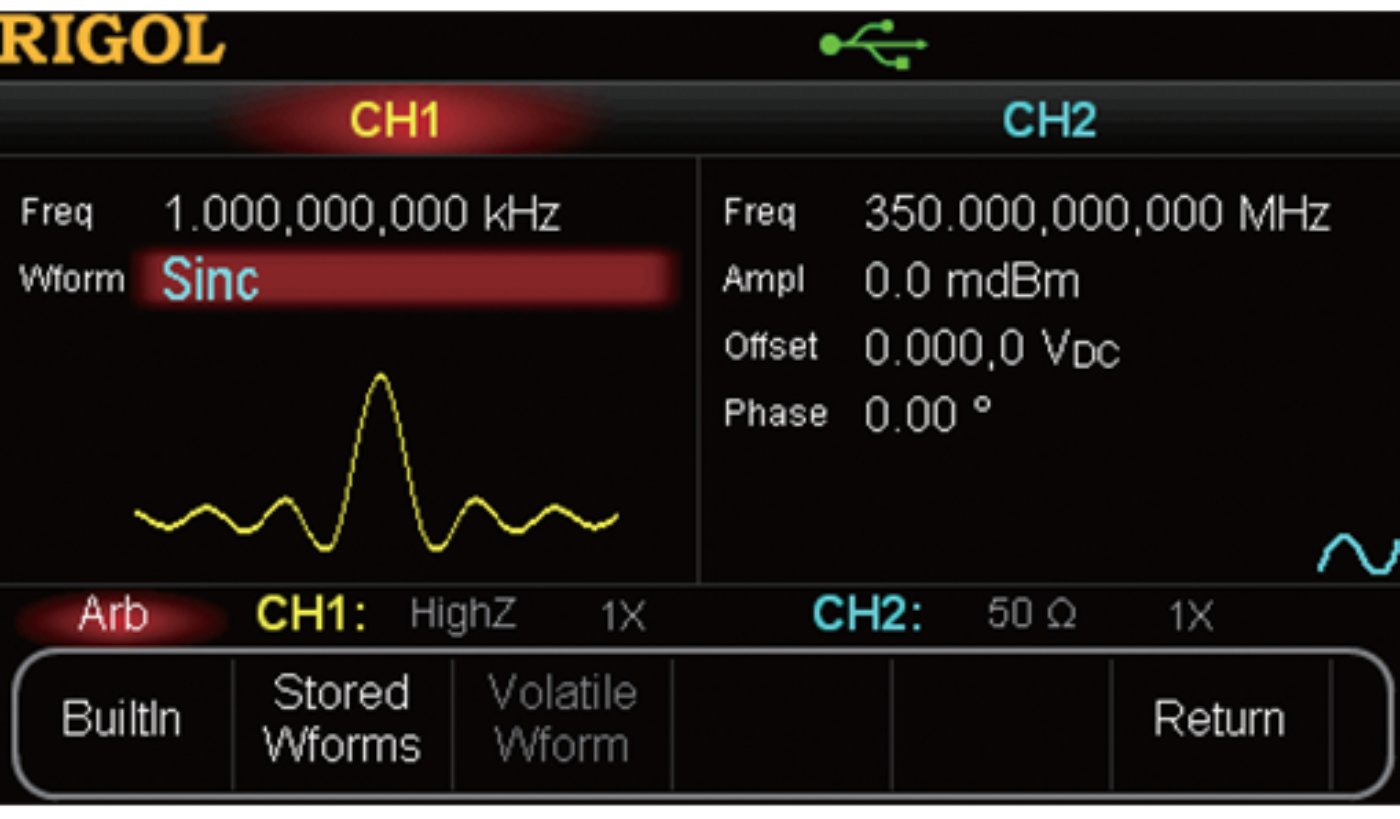

1GSa/s Sampling Rate, 14Bits Vertical Resolution

The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.

Rich Sweep Function

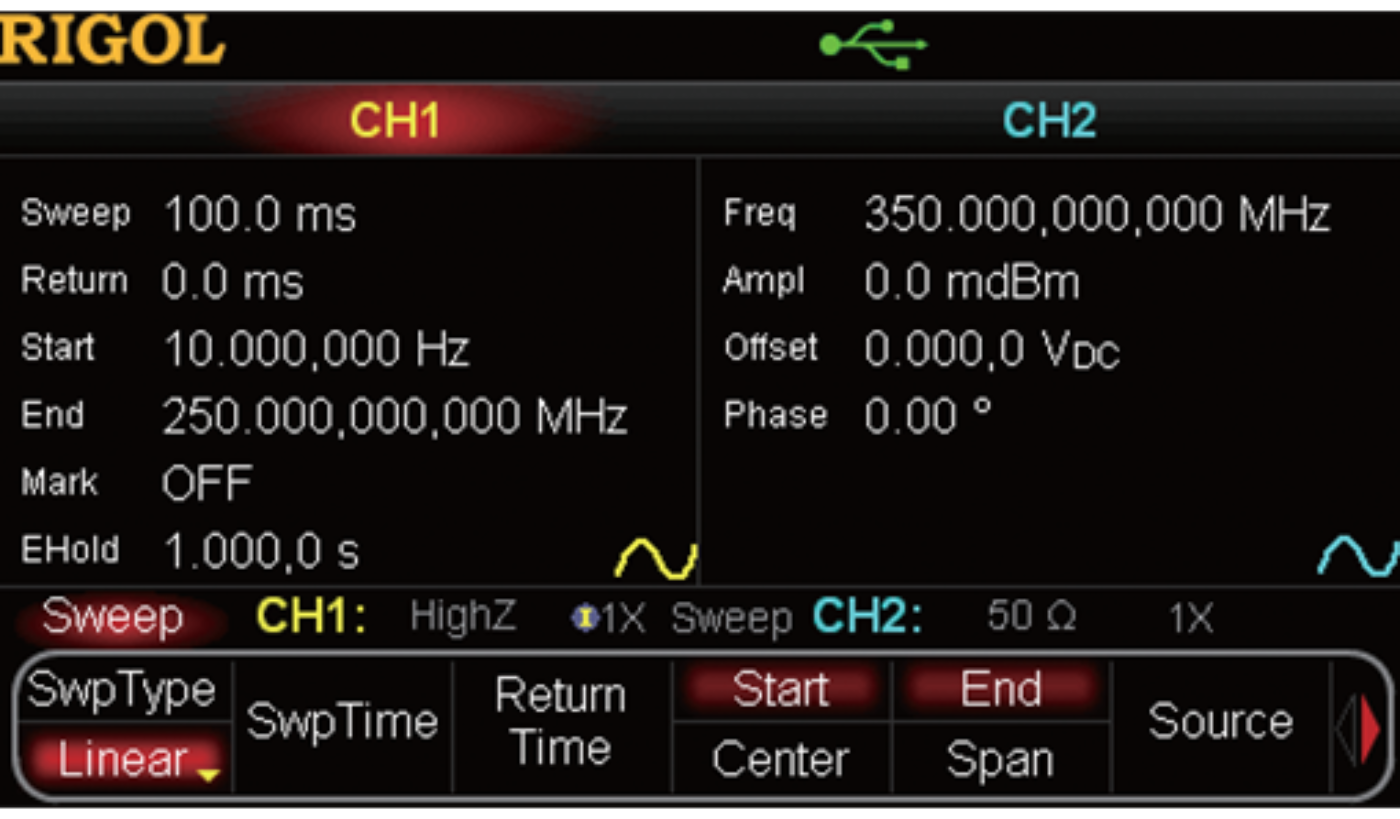

DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the “mark” frequency to meet the needs of more amplitude frequency test applications.

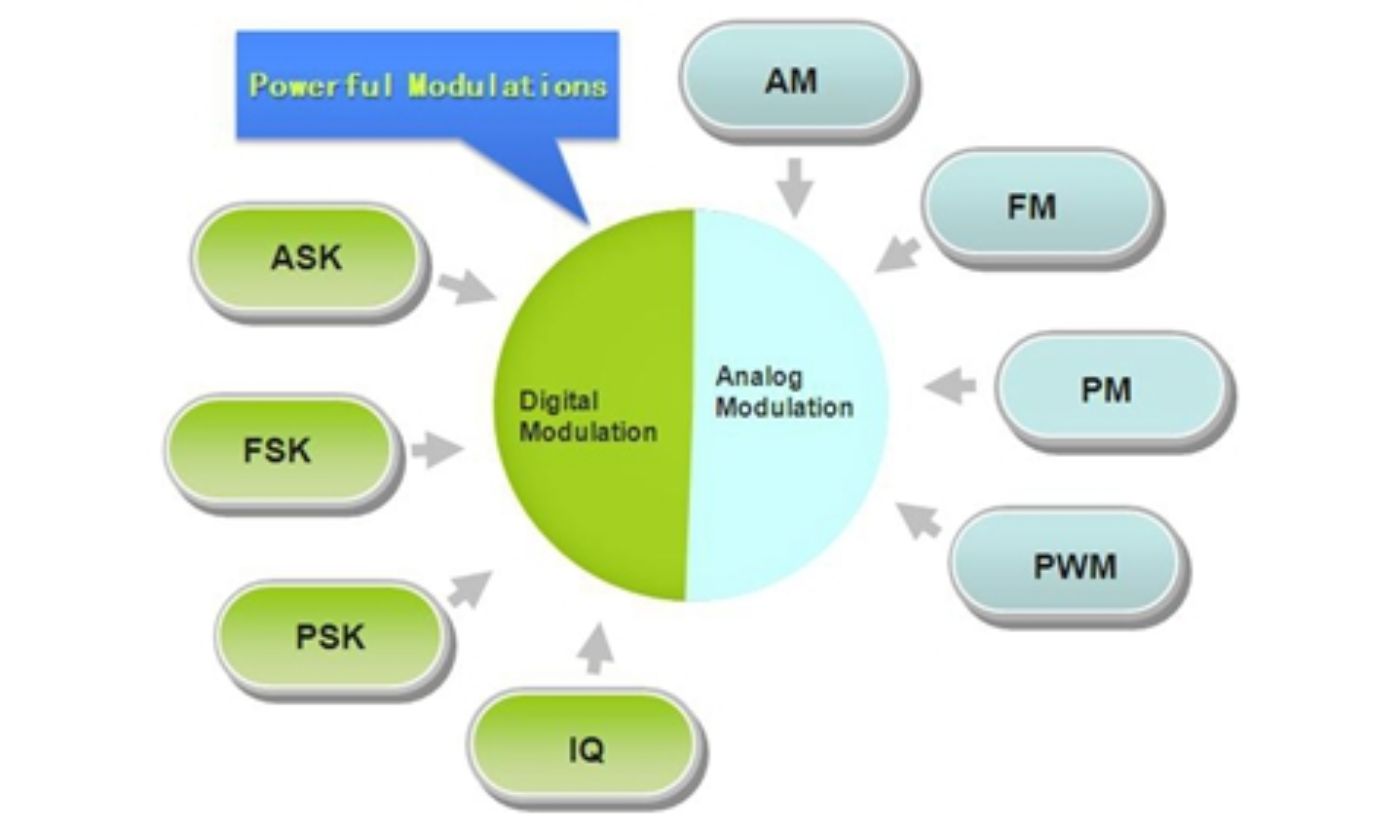

Rich Analog / Digital Modulation Functions

Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

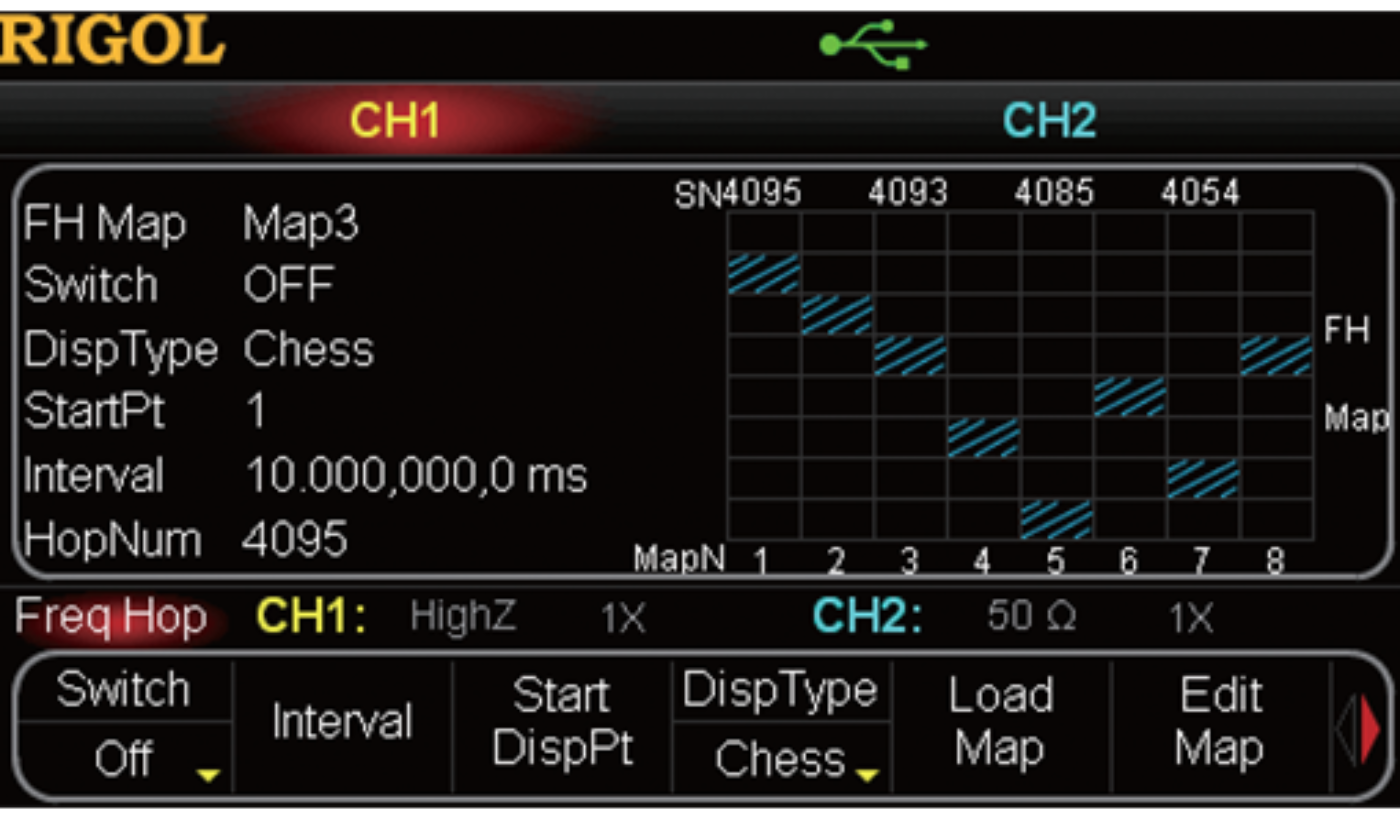

Support Frequency Hopping Function

The minimum frequency hopping interval is 80ns, and 4096 frequency hopping points can be edited at most. It can meet the common needs of FH communication teaching and related tests.

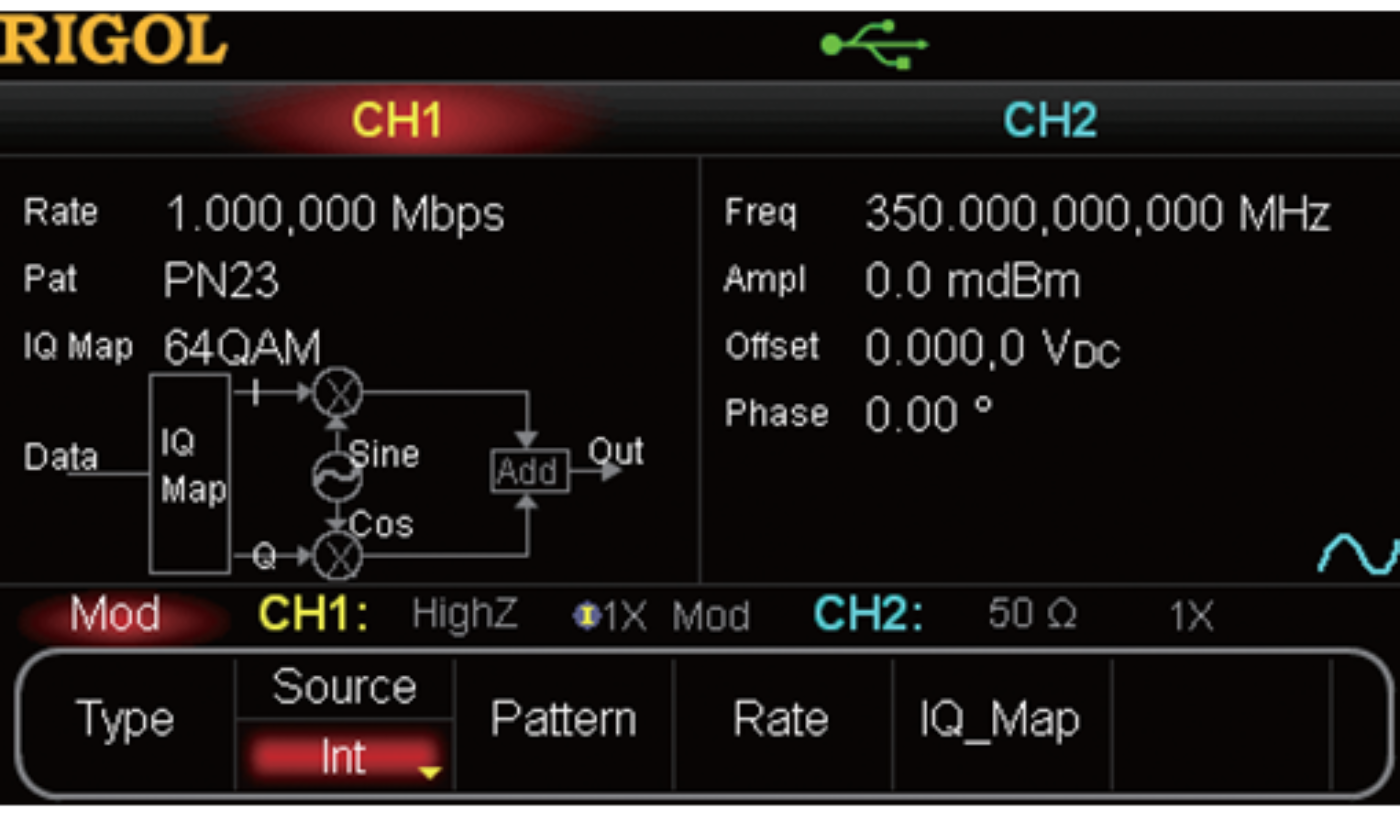

Support Internal And External IQ Modulation Function

The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.

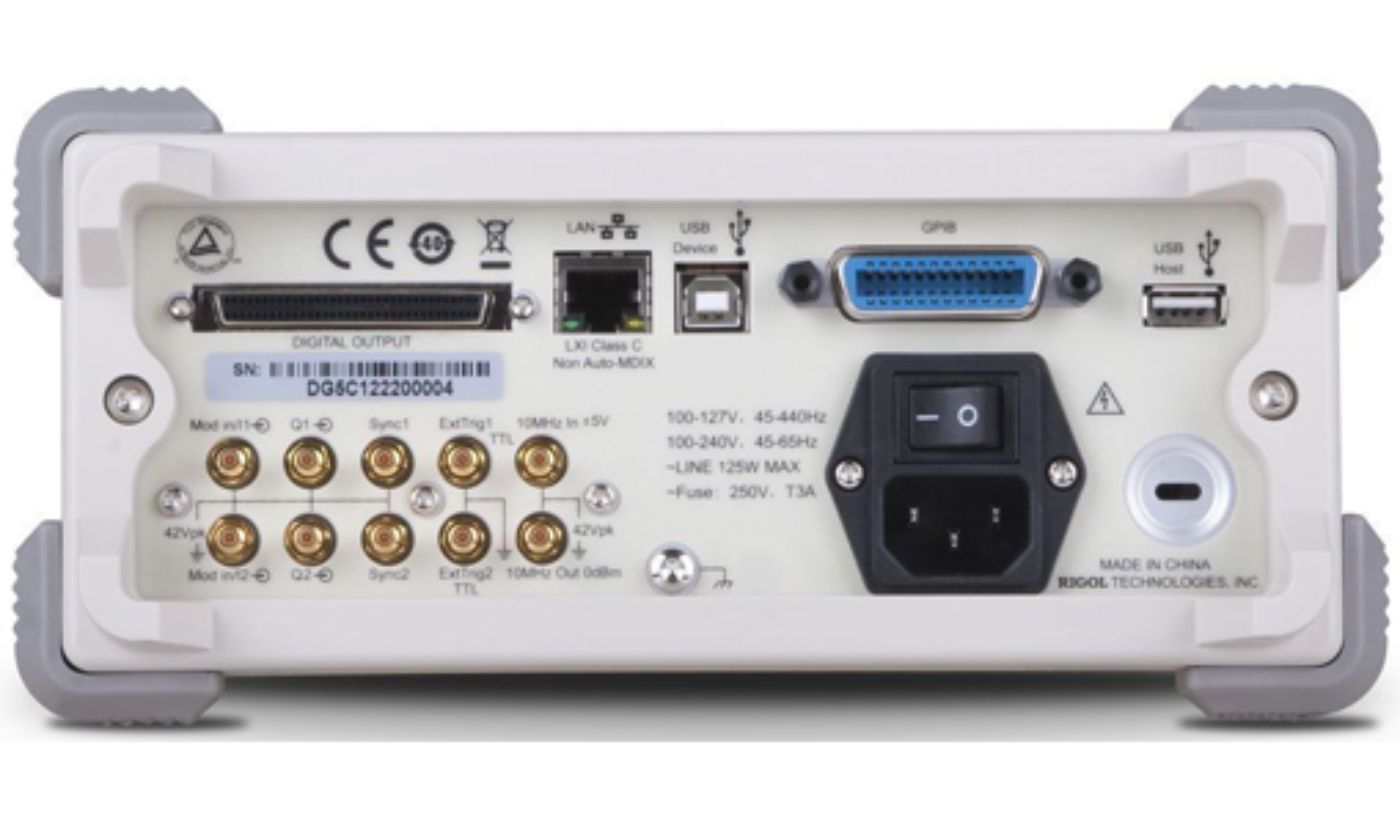

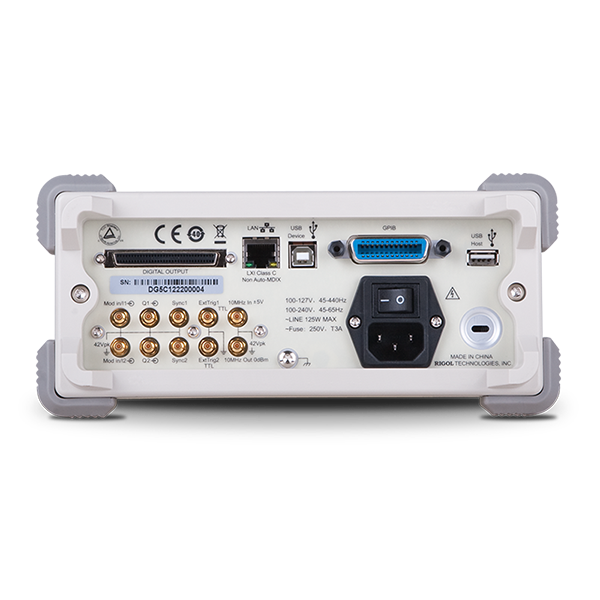

Rich Interfaces

It provides standard USB, GPIB, LAN (LXI) remote communication interface and adopts standard visa driver, which is convenient for system integration customer’s test requirements. 16 channels of digital signals can be output by selecting digital logic output module dg-pod-a to realize the function of analog mixed signal generator.

DG5000

Model

Maximum Output Frequency

Sample Rate

Vertical Resolution

Number of Channels

Arbitrary Waveform Length

Price

DG5352

350MHz

1Gsa/s

14bits

2CH

128M

DG5351

350MHz

1Gsa/s

14bits

1CH

128M

DG5252

250MHz

1Gsa/s

14bits

2CH

128M

DG5251

250MHz

1Gsa/s

14bits

1CH

128M

DG5102

100MHz

1Gsa/s

14bits

2CH

128M

DG5101

100MHz

1Gsa/s

14bits

1CH

128M

DG5072

70MHz

1Gsa/s

14bits

2CH

128M

DG5071

70MHz

1Gsa/s

14bits

1CH

128M

Datasheet

Model	Description	INR List Price	INR (Inclusive of GST)
FH-DG5000	Frequency hopping option	₹ 228,000	₹ 269,040

Universal optional accessories

Model	Description	INR List Price	INR (Inclusive of GST)
RM-DG5000	Rack mount kit	₹ 22,800	₹ 26,904
CB-BNC-BNC-MM-100	BNC Coaxial line，100cm	₹ 2,100	₹ 2,478
CB-SMB-SMB-FF-100	SMB(F)-SMB(F)Cable(1m)	₹ 6,150	₹ 7,257
CB-SMB-BNC-FF-100	SMB(F)-BNC(F)Cable(1m)	₹ 6,150	₹ 7,257
CB-SMB-BNC-FM-100	SMB(F)-BNC(M)Cable(1m)	₹ 6,150	₹ 7,257
RA5040K	40dBAttenuator(50ohm，1W)	₹ 4,800	₹ 5,664
PA1011	10WPower amplifier module	₹48,900	₹ 57,702

Datasheet

Name	Version	Release time	Download
📄 DG5000 DataSheet	V2.0	2021-10-25

User Manual

Name	Version	Release time	Download
📄 DG5000 UserGuide	UGB07112-1110	2021-10-25
📄 DG5000_RackmountKit_EN_tcm7-2812	V1.0	2021-11-23

Quick Guide

Name	Version	Release time	Download
📄 DG5000 QuickGuide	V1.0	2021-11-23

Programming Manual

Name	Version	Release time	Download
📄 DG5000 ProgrammingGuide	📄 v1.0	📄 2021-10-26
