Waveform Generators

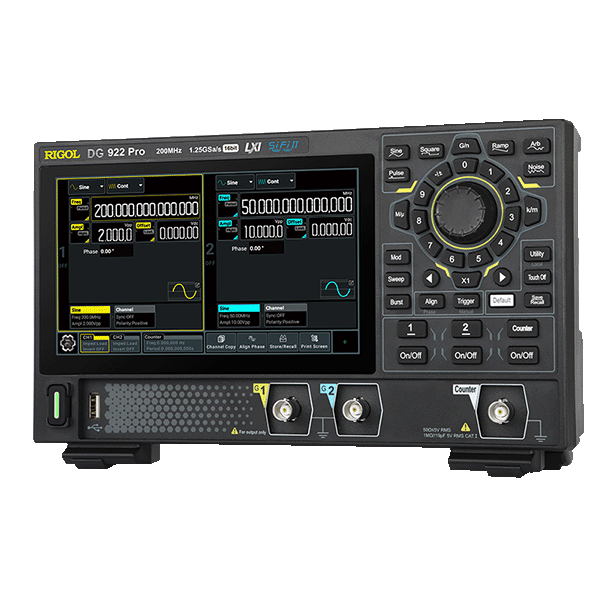

DG900 Pro
Maximum Output Frequency
200MHz
Sample Rate
1.25Gsa/s
Vertical Resolution
16bits
Number of Channels
2CH
Arbitrary Waveform Length
16M(32M opt.)
Square Wave Frequency
-
Downloads
Downloads
Select Model
Explore the DG900 Pro Series Function/Arbitrary Waveform Generator

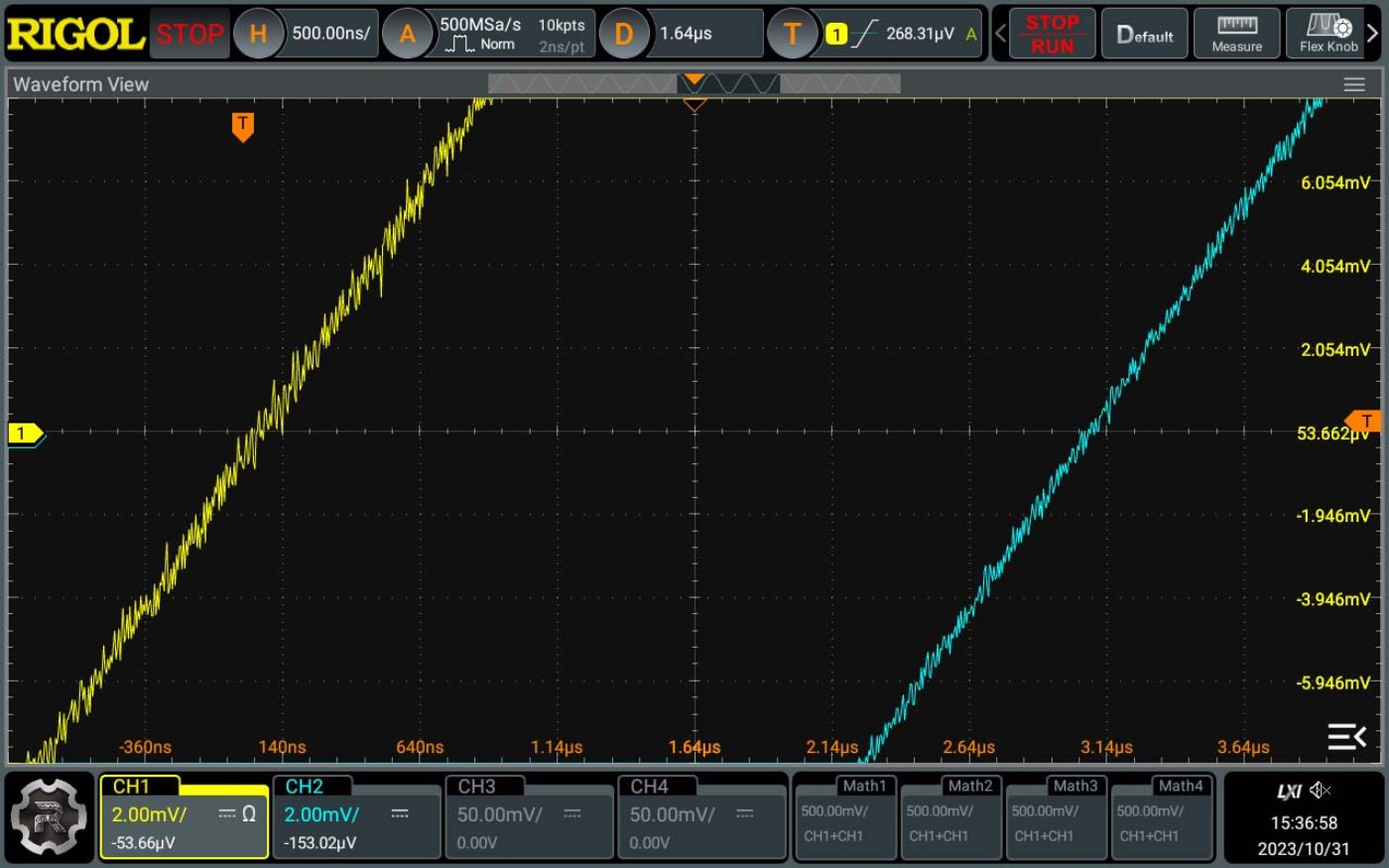

Outstanding accuracy
1.25GSa/s sampling rate, 16-bit vertical resolution, easy creation of high fidelity signals

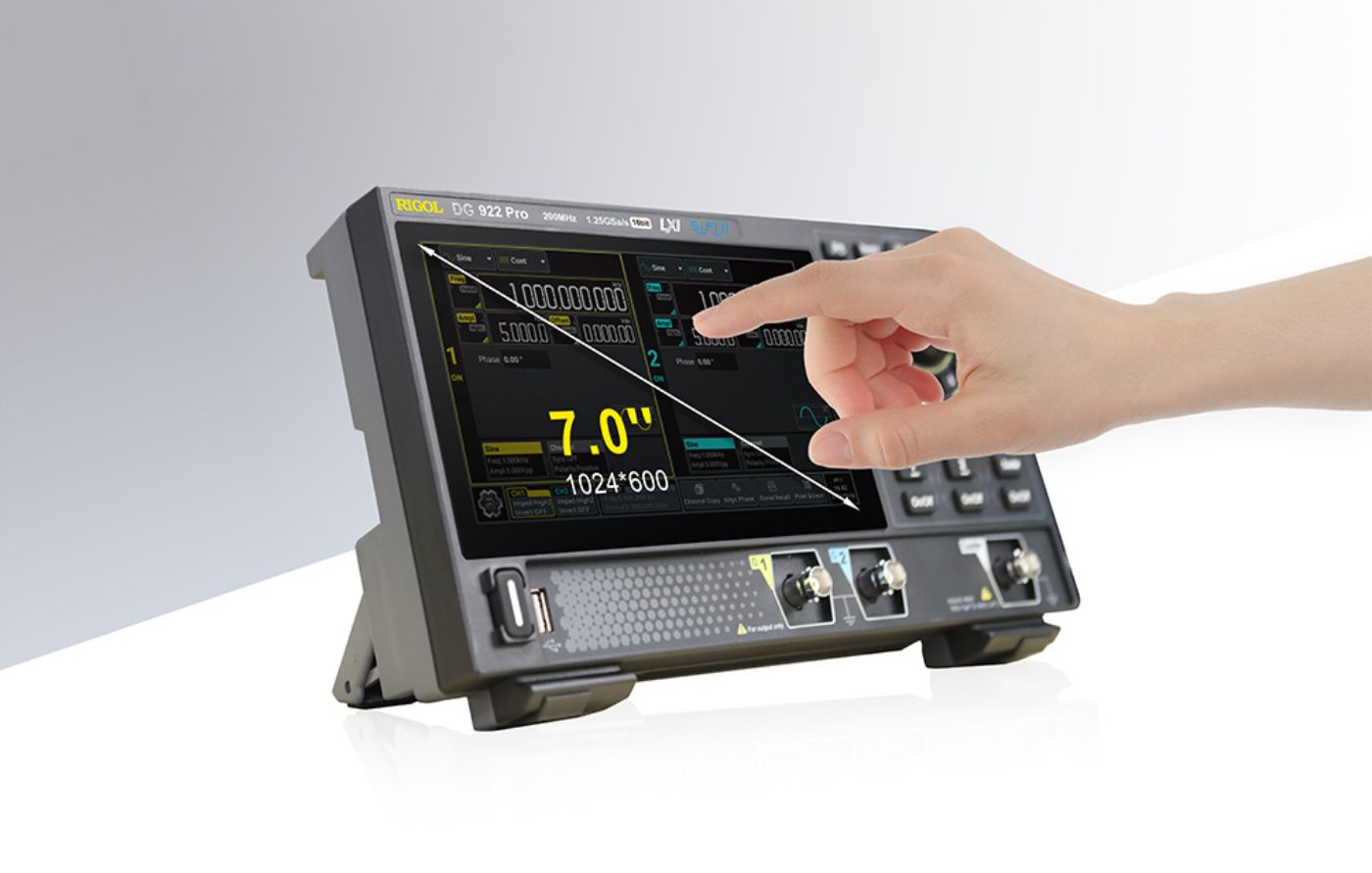

7-inch color touch screen display
7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

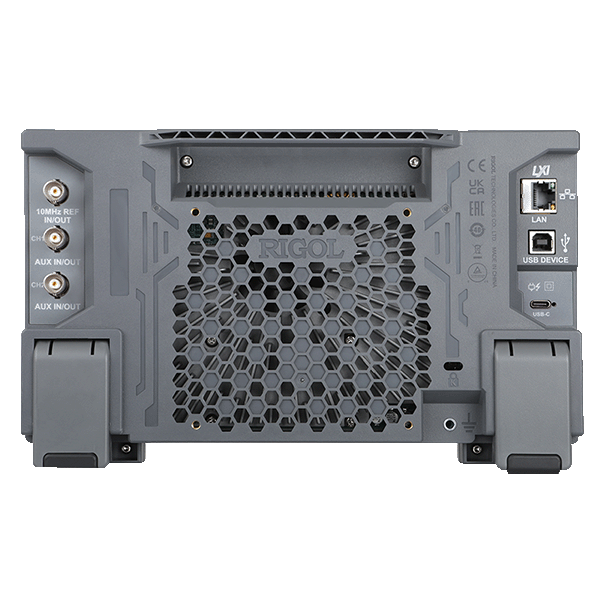

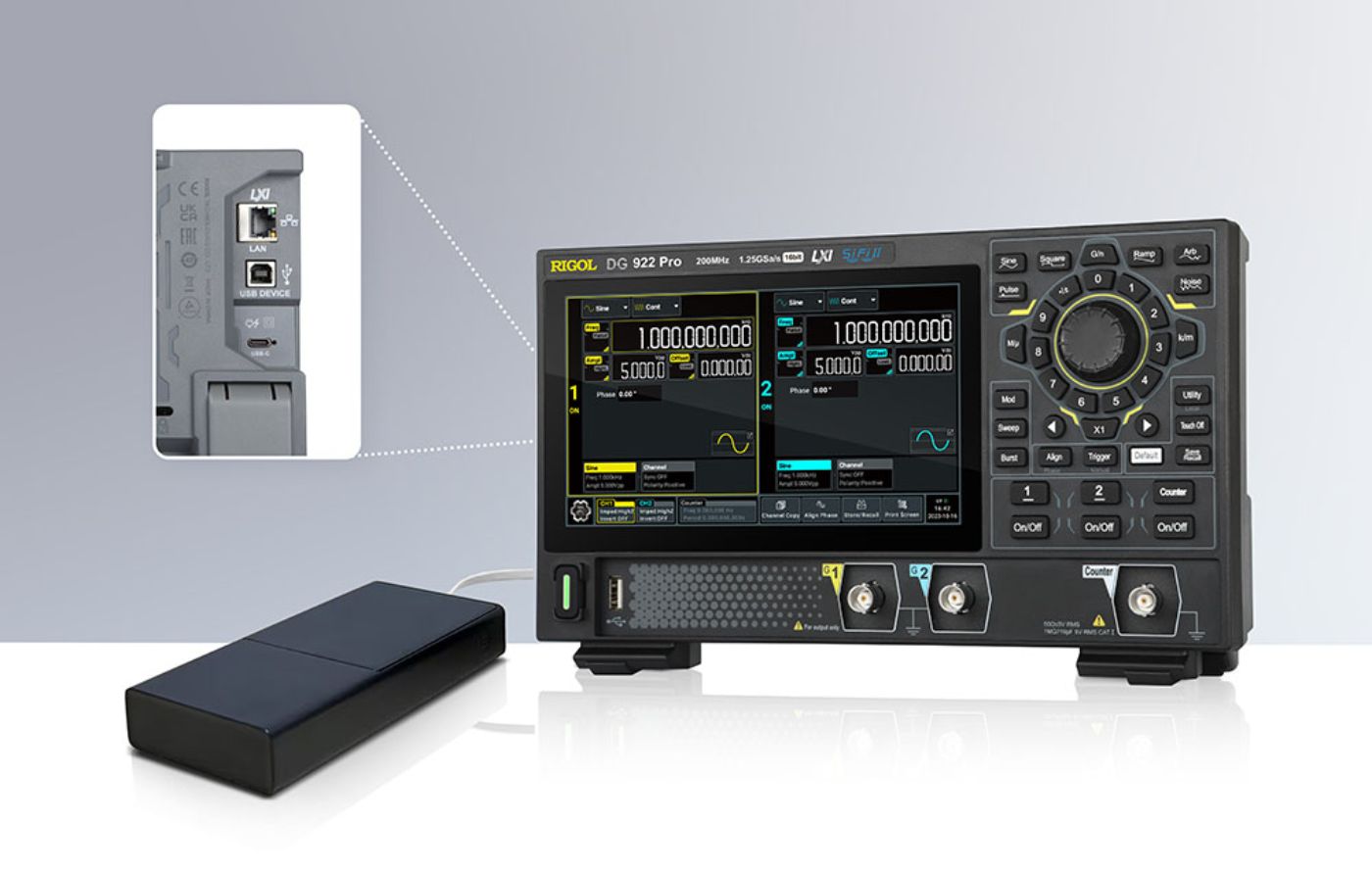

Equipped with Type-C connector
Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

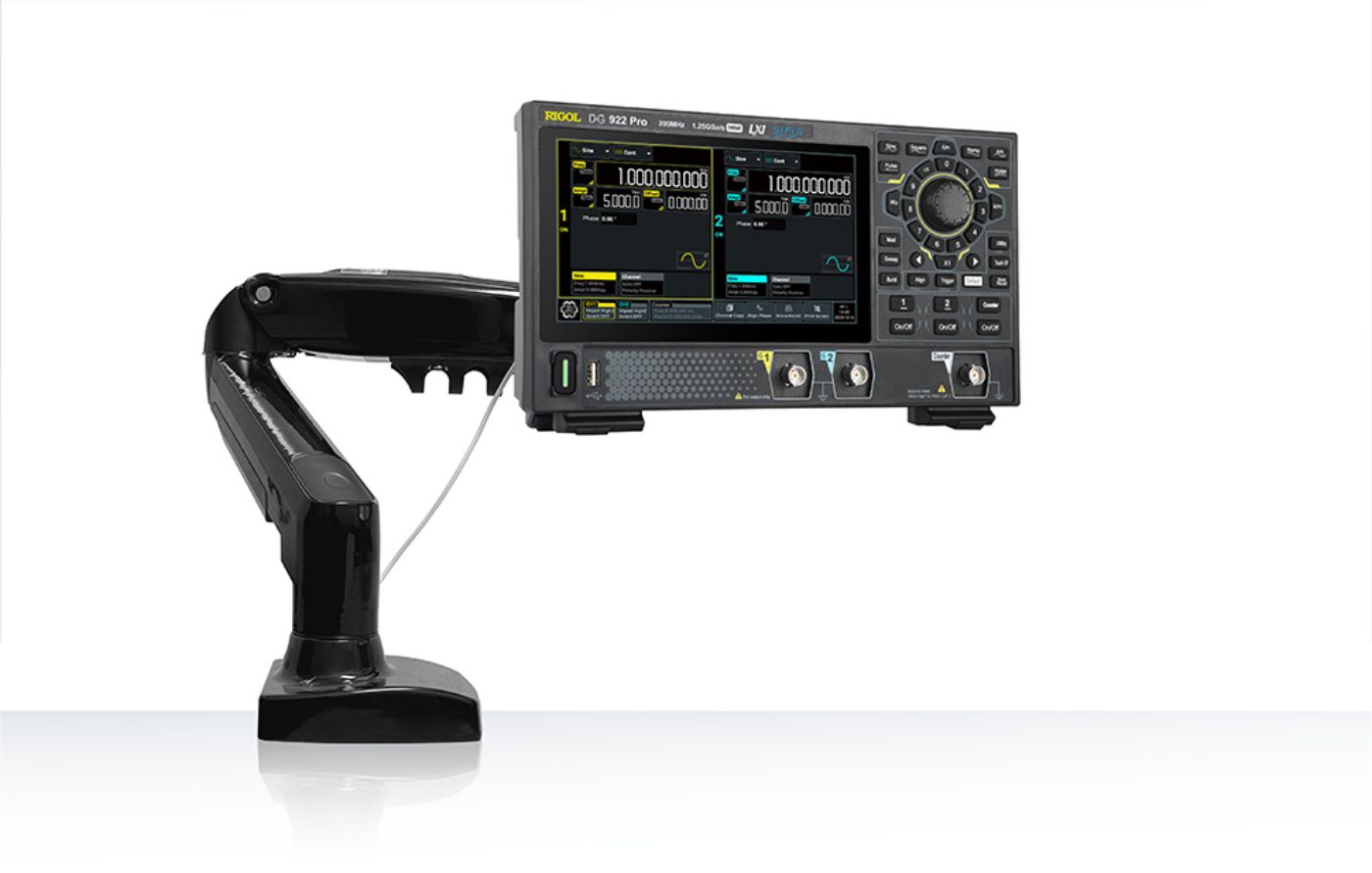

Smart appearance
The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

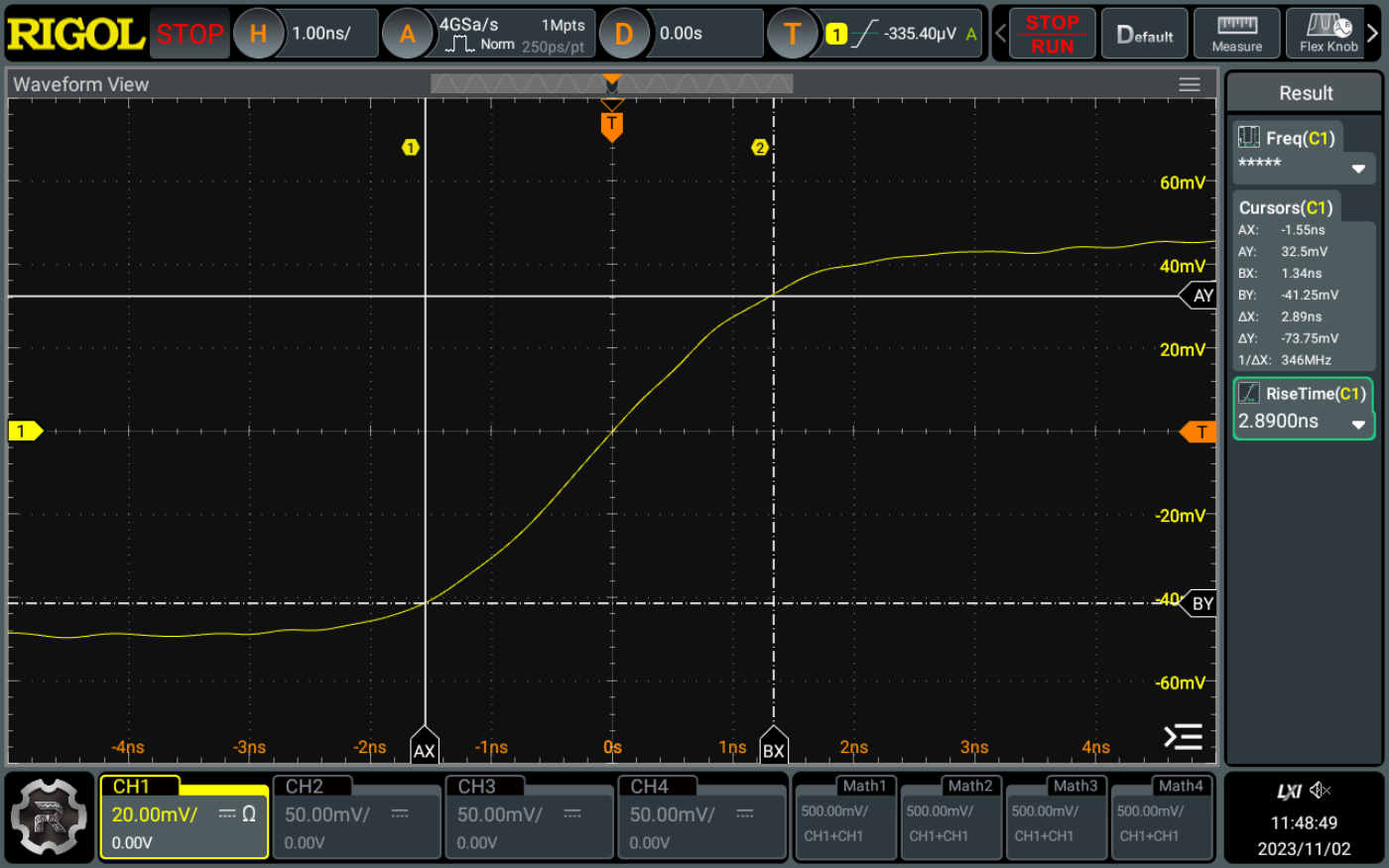

Fast rising edge
60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

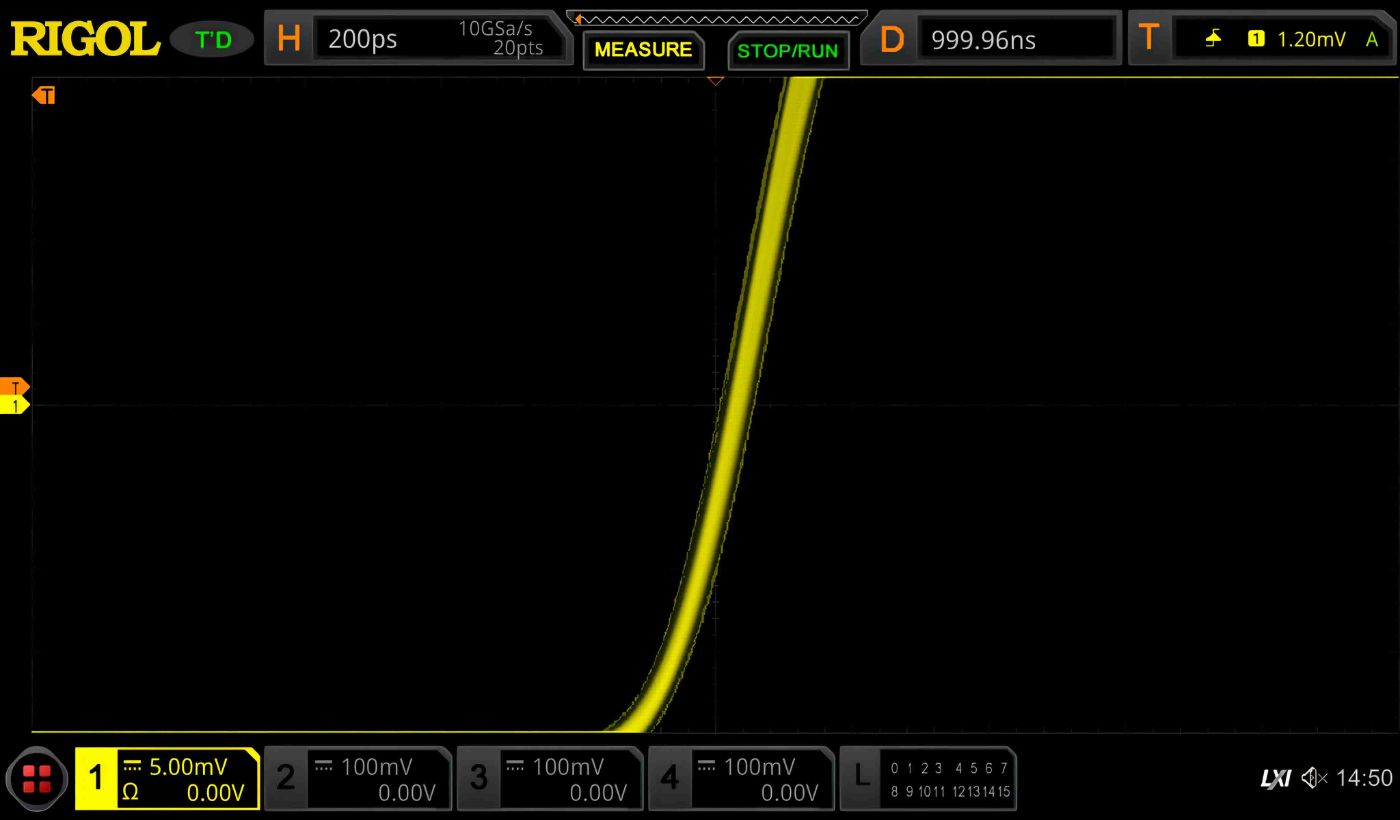

Ultra low signal jitter
Based on RIGOL’s SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

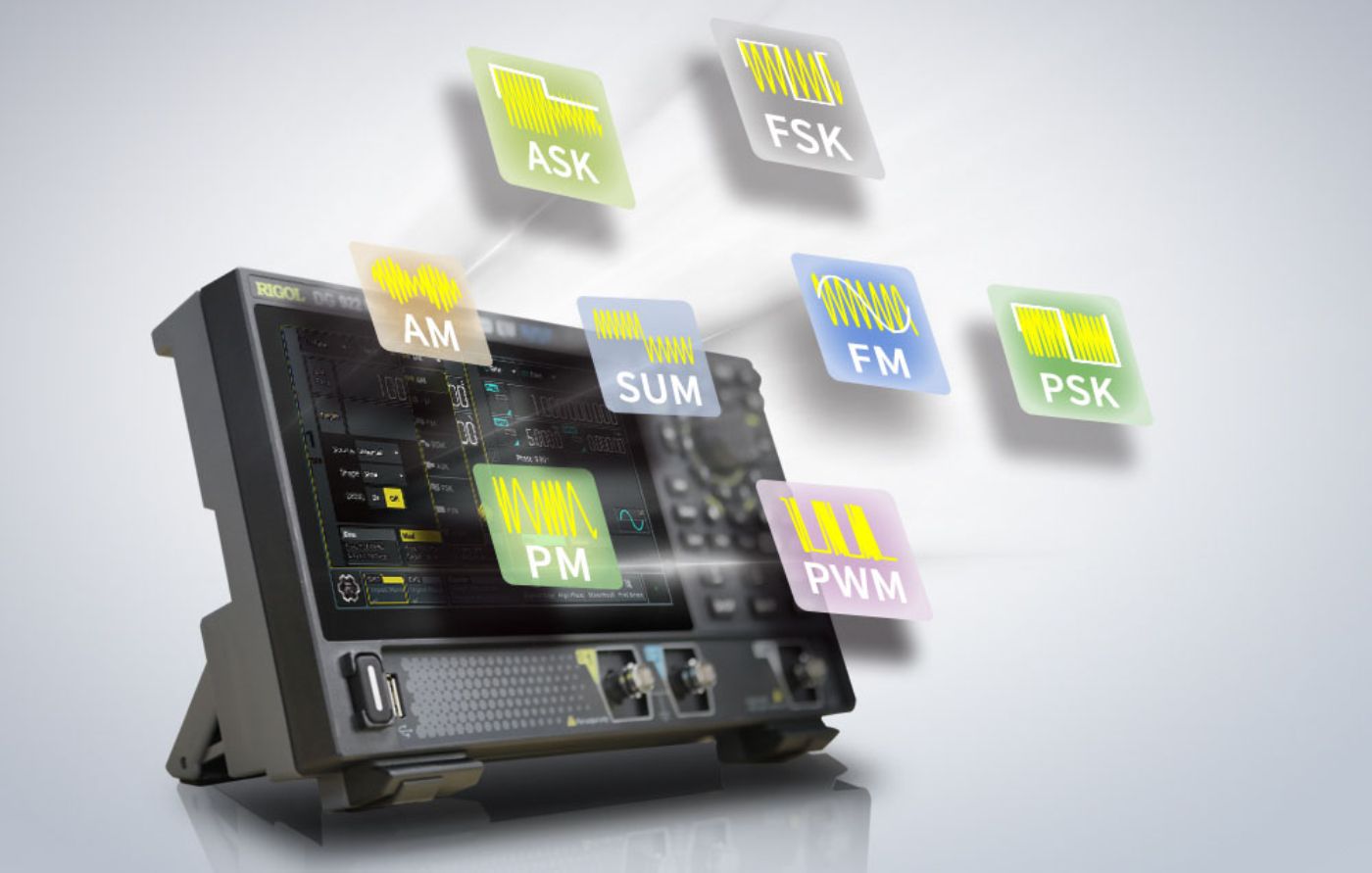

Rich modulation functions
Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

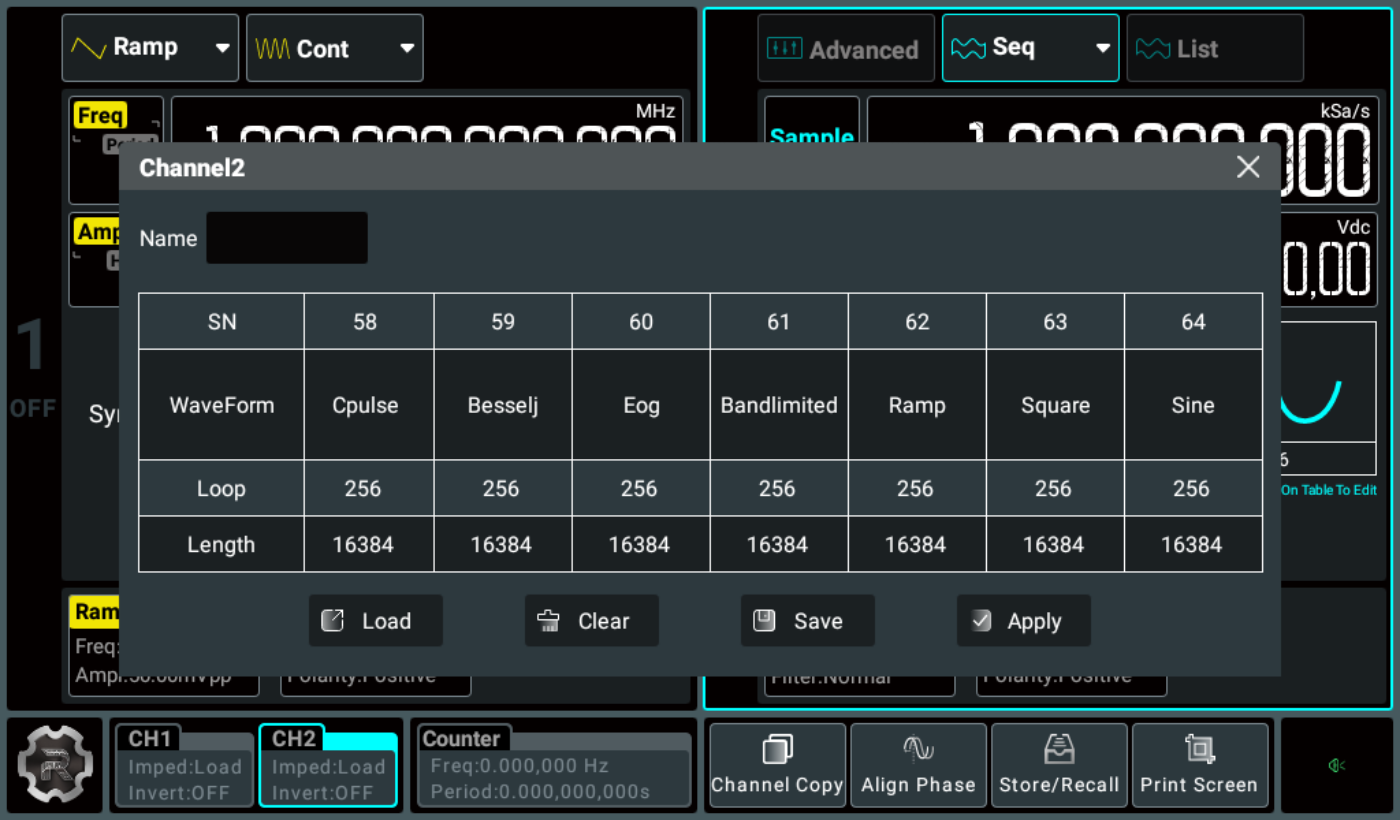

Sequence function
Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

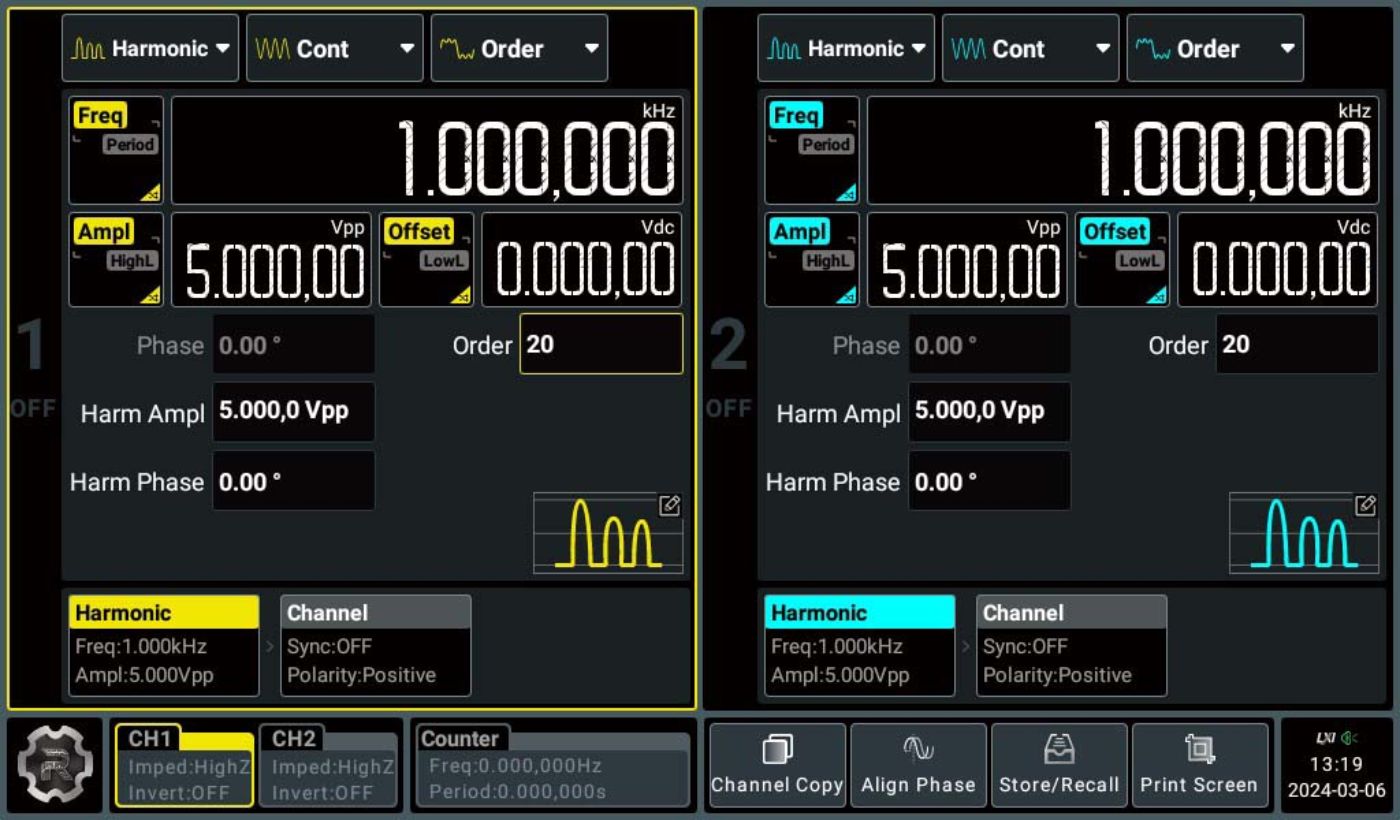

Maximum 20th harmonic generation function
Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

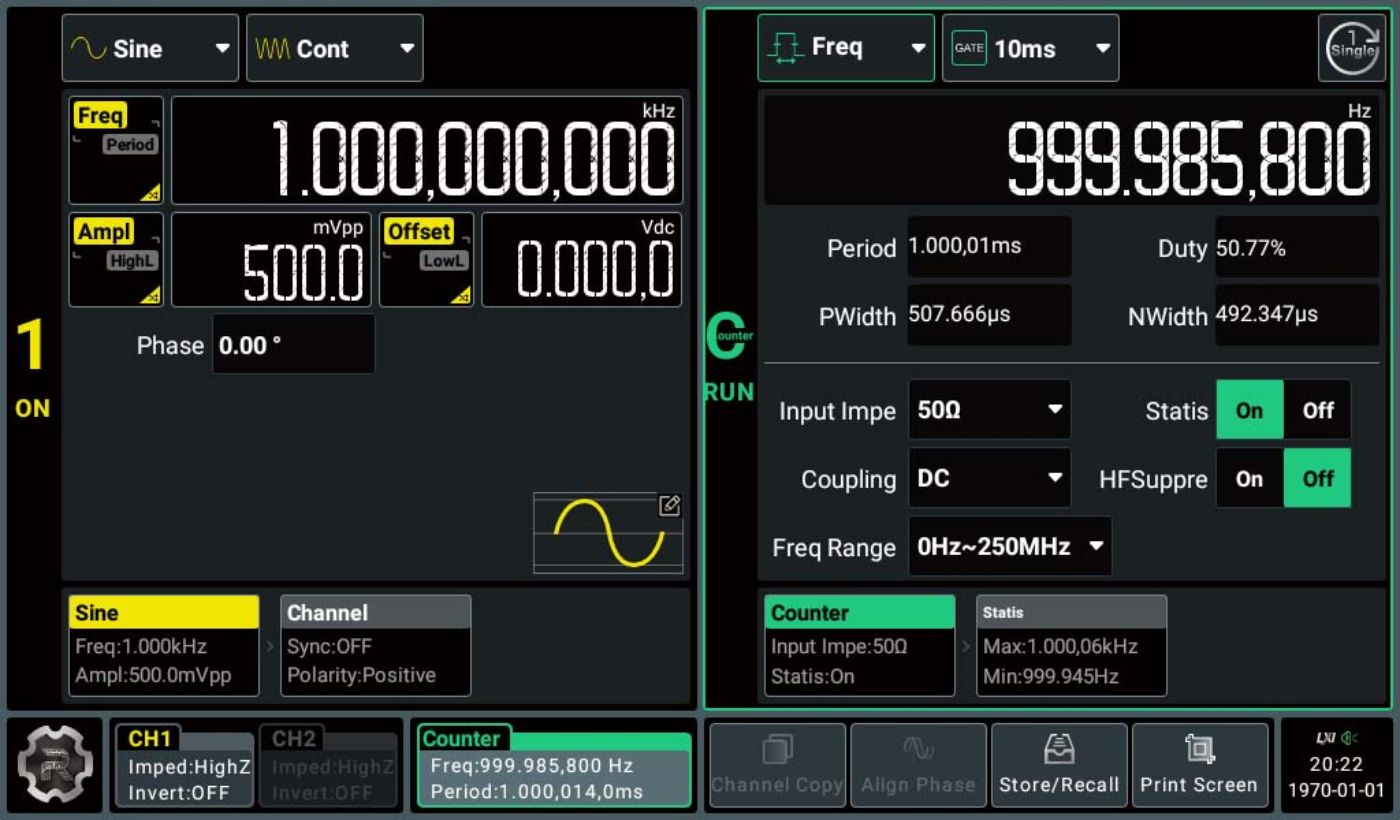

High resolution frequency meter
A 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging
DG900 Pro
Model
Maximum Output Frequency
Sample Rate
Vertical Resolution
Number of Channels
Arbitrary Waveform Length
Price
DG902 Pro
70MHz
1.25Gsa/s
16bits
2CH
16M(32M opt.)
DG912 Pro
150MHz
1.25Gsa/s
16bits
2CH
16M(32M opt.)
DG922 Pro
200MHz
1.25Gsa/s
16bits
2CH
16M(32M opt.)
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DG900 Pro-3RL | 32M upgrade option | ₹ 31,350 | ₹ 36,993 |
Universal optional accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM5041 | Ultra-Portable Platform Rack Mount Kit | ₹ 17,850 | ₹ 21,063 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG900Pro DataSheet | DSB15103-1110 | 2024-03-14 |
User Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG900Pro UserGuide | UGB15102-1110 | 2025-04-22 | |
| 📄 RM5041_RackmountKit_EN | 202603 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG900Pro QuickGuide | QGB15100-1110 | 2024-02-19 |
Programming Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG800ProDG900Pro ProgrammingGuide | 📄 PGB16102-1110 | 📄 2025-04-30 |
Open Source Acknowledgment
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG800 Pro &DG900 Pro Open Source Acknowledgment | V2.0 | 2024-02-19 |
