Oscilloscopes
DHO1000
The DHO1000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.
Analog Bandwidth
200MHz
Analog Channels
4
Maximum Real-time Sample Rate
-
Maximum Memory Depth
100Mpts(opt.)
Maximum Waveform Capture Rate
1,500,000wfms/s
Digital Channel
-
Downloads
Downloads
Select Model
Explore the DHO1000 Series Digital Oscilloscopes

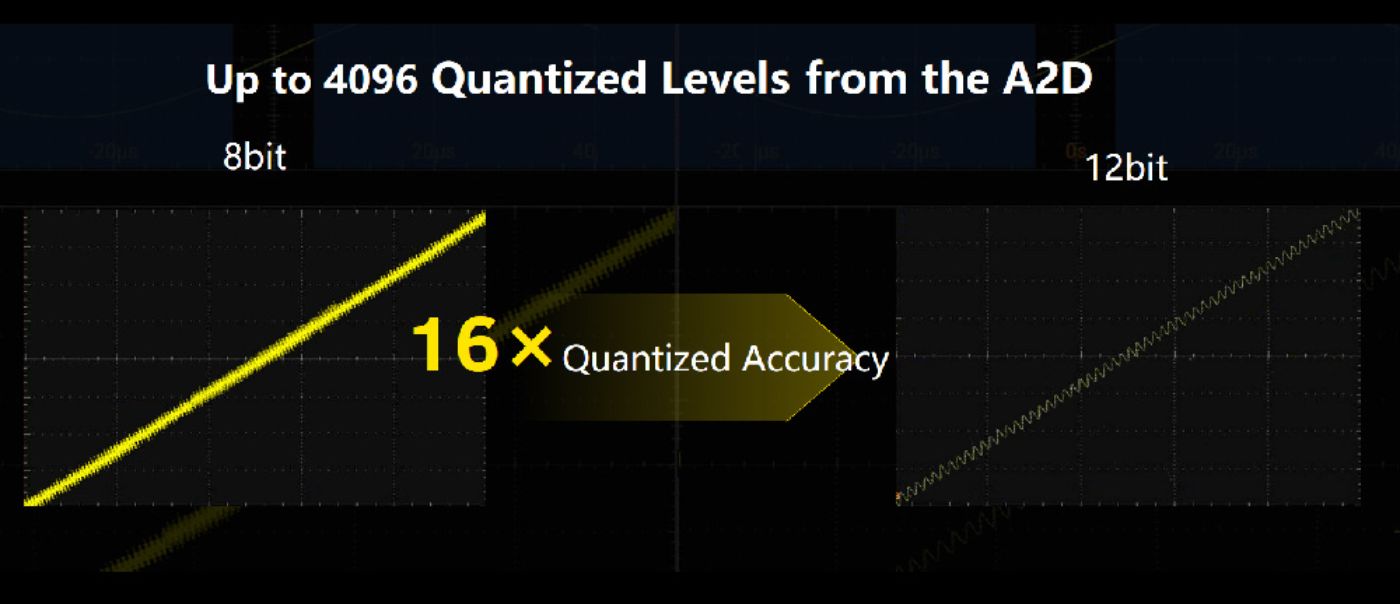

12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail

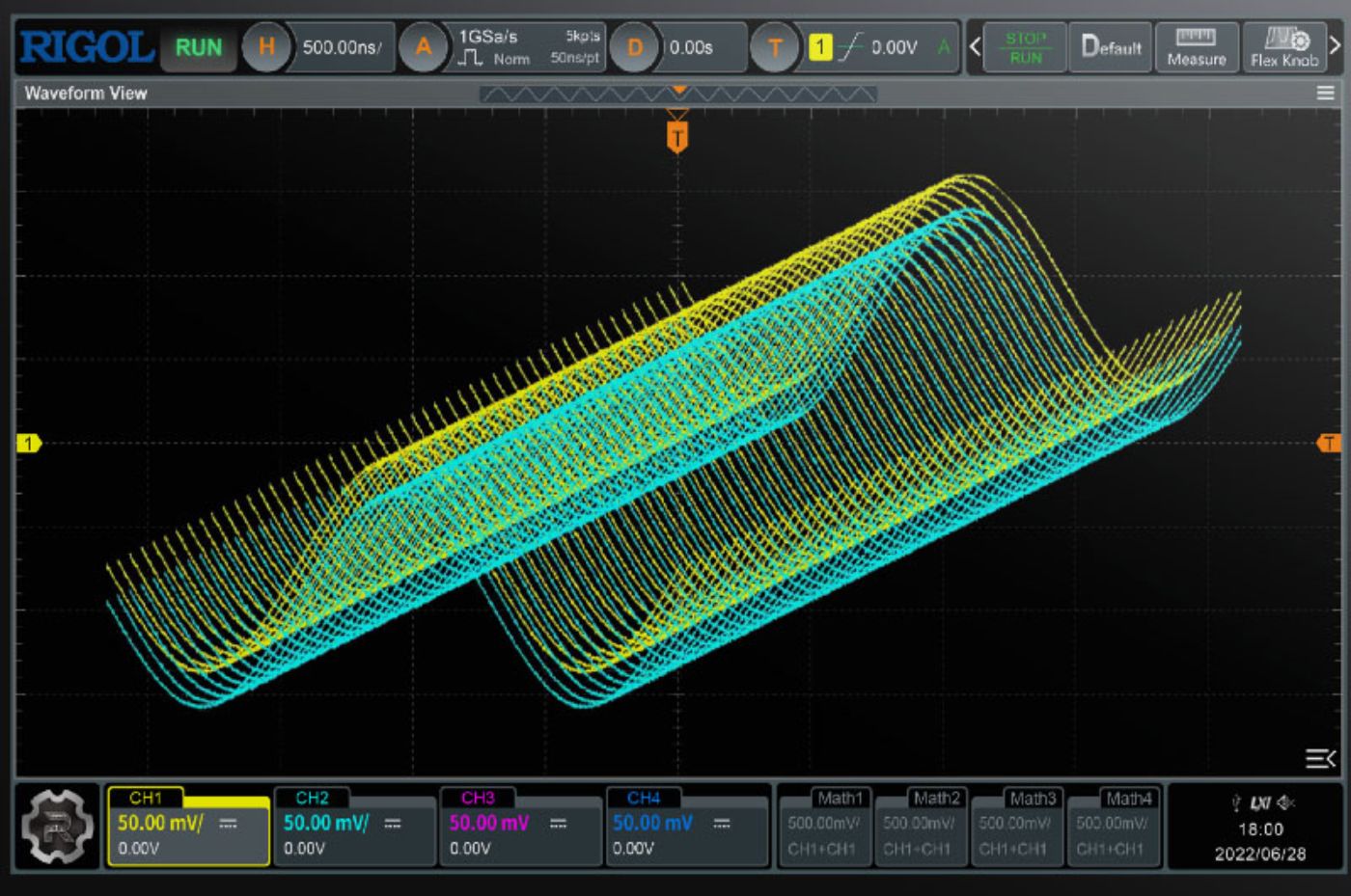

Ultra Acquire
Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode

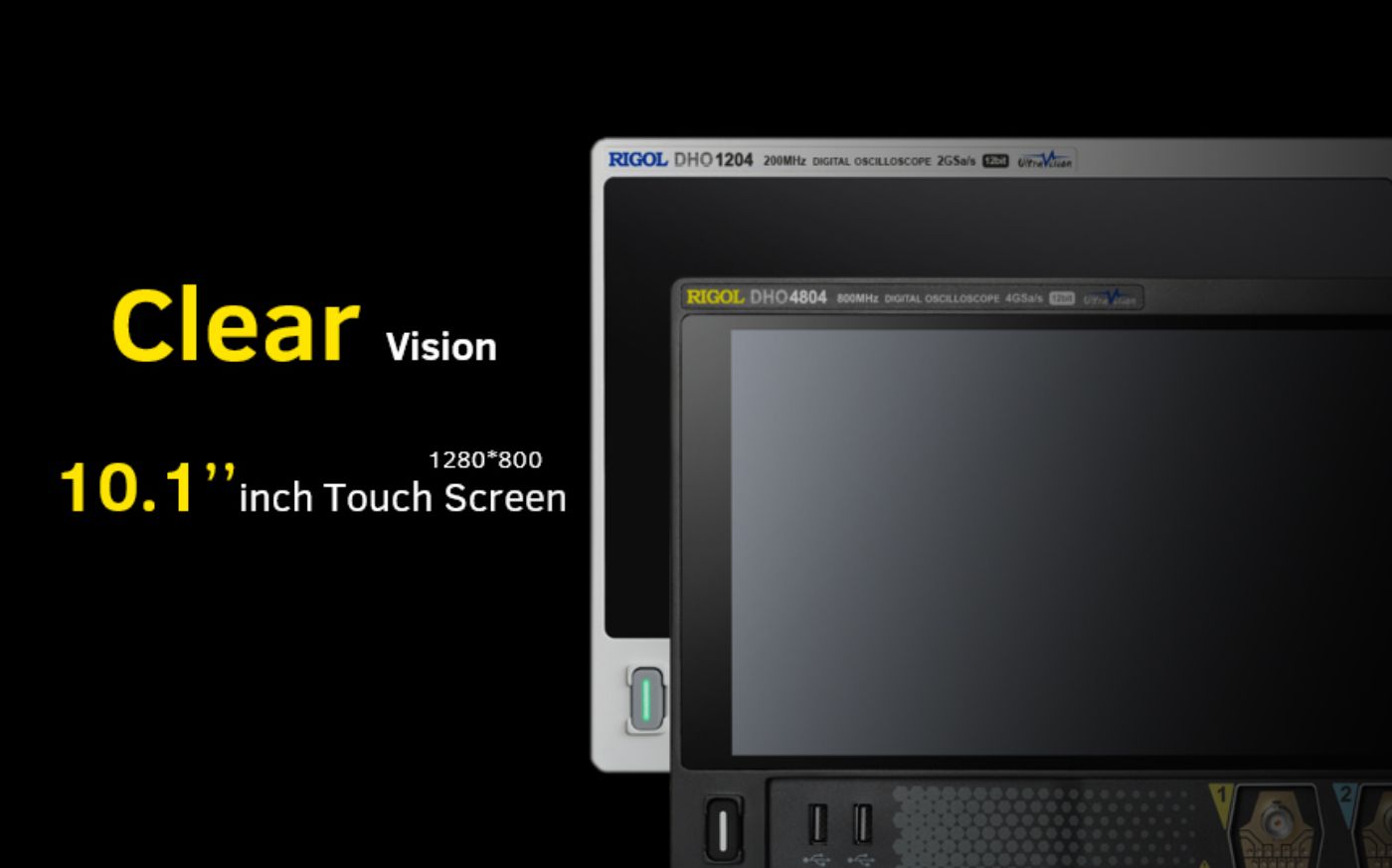

10.1-inch high-definition touch screen
It provides a 10.1-inch high-definition touch screen for more convenient human-computer interaction.

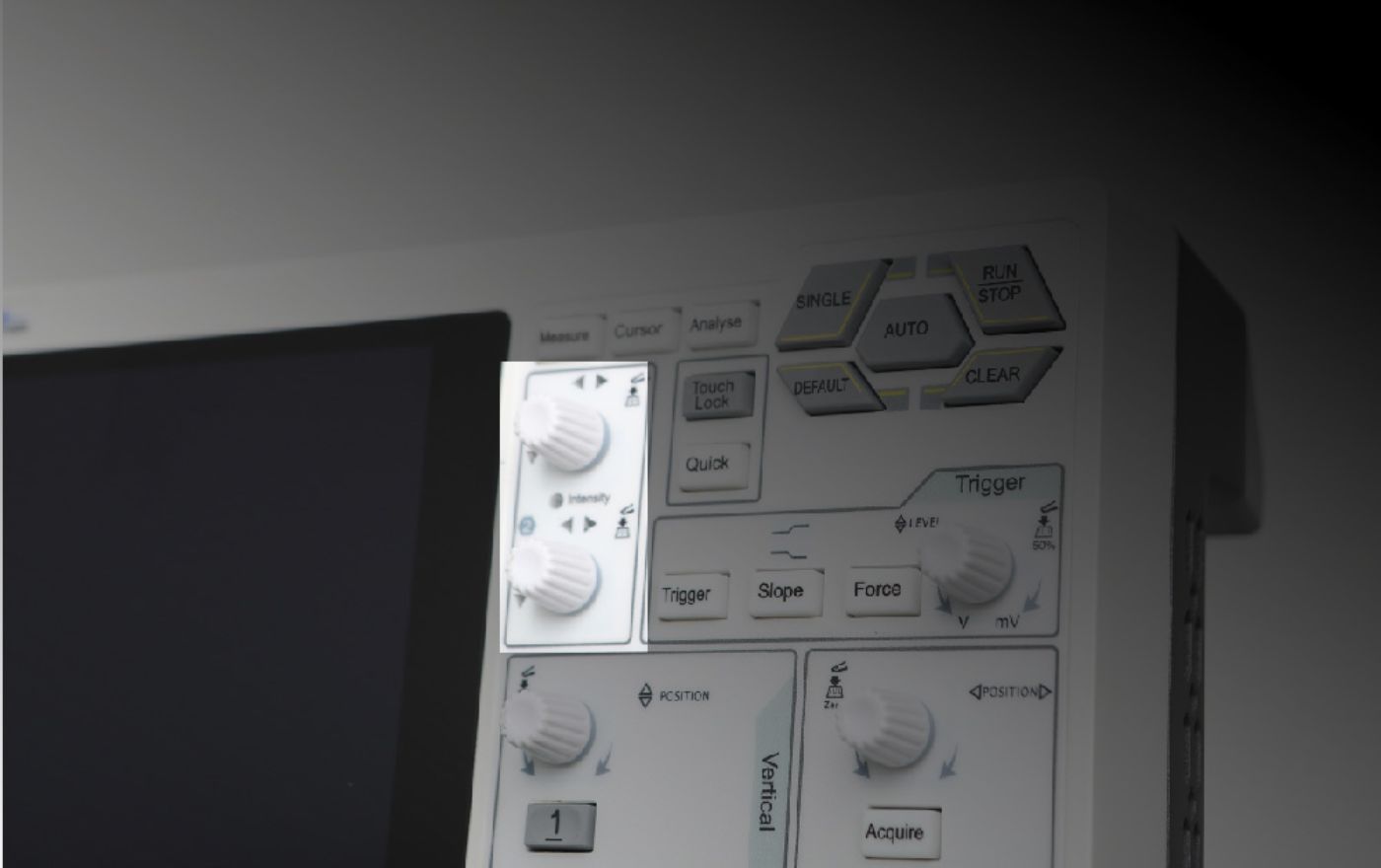

Flex knob
The dual multi-functional knob design eliminates the complex switching steps of a single knob and enables more efficient interaction.

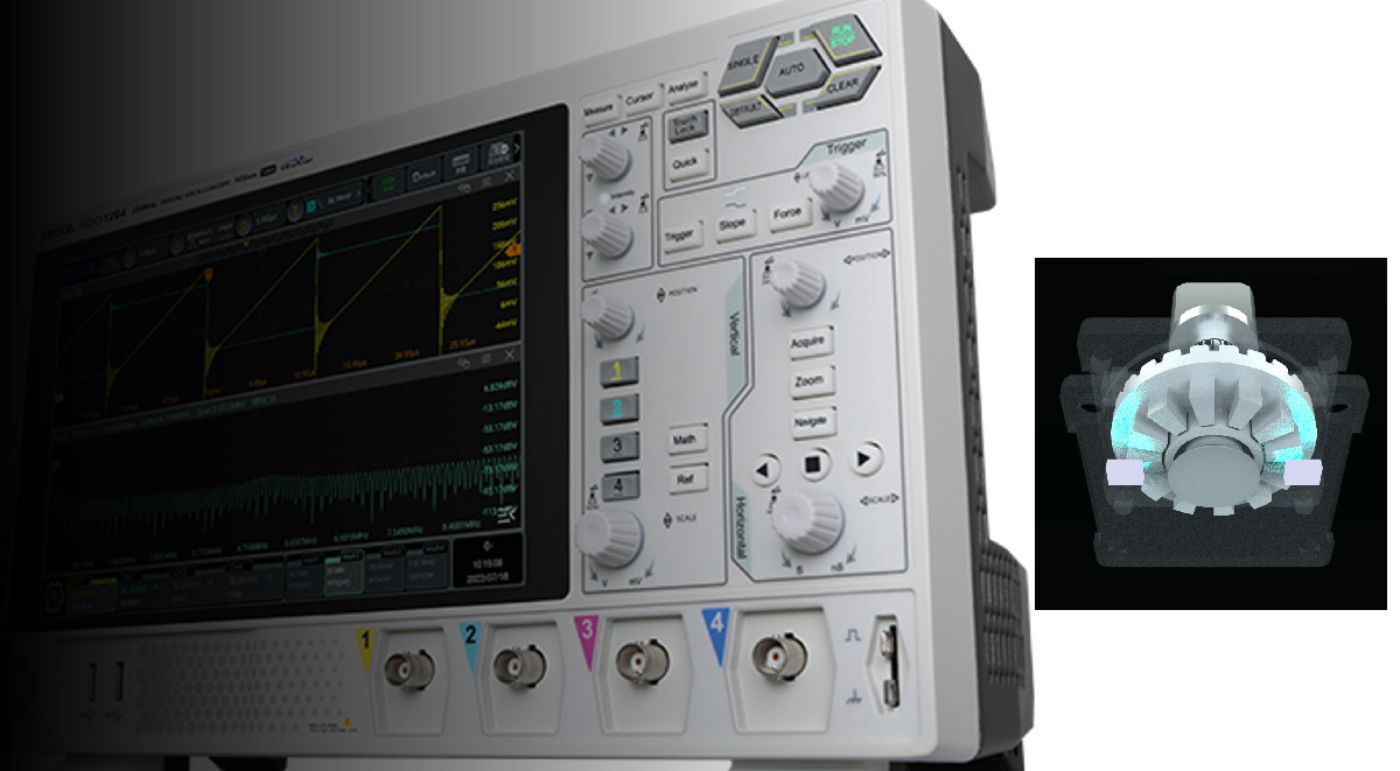

Photoelectric encoder
Equipped with a standard photoelectric encoder, it has an ultra-long service life of 34 years to safeguard your fixed assets.
DHO1000
Model
Analog Bandwidth
Analog Channels
Maximum Memory Depth
Maximum Waveform Capture Rate
Price
DHO1204U
200MHz
4
50Mpts(opt.)
500,000wfms/s
DHO1202U
200MHz
2
50Mpts(opt.)
500,000wfms/s
DHO1204
200MHz
4
100Mpts(opt.)
1,500,000wfms/s
DHO1202
200MHz
2
100Mpts(opt.)
1,500,000wfms/s
DHO1104
100MHz
4
100Mpts(opt.)
1,500,000wfms/s
DHO1102
100MHz
2
100Mpts(opt.)
1,500,000wfms/s
DHO1072
70MHz
2
100Mpts(opt.)
1,500,000wfms/s
DHO1074
70MHz
4
100Mpts(opt.)
1,500,000wfms/s
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DHO1000-BWU7T10 | 70M to 100M bandwidth upgrade option | ₹ 50,550 | ₹ 59,649 |
| DHO1000-BWU7T20 | 70M to 200M bandwidth upgrade option | ₹ 84,300 | ₹ 99,474 |
| DHO1000-BWU10T20 | 100M to 200M bandwidth upgrade option | ₹ 50,550 | ₹ 59,649 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DHO1000-RLU-01 | 100Mpts storage depth upgrade option | ₹ 16,800 | ₹ 19,824 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO1000 DataSheet | DSA32104-1110 | 2023-01-10 | |
| 📄 DHO1000U DataSheet | DSA42100-1110 | 2024-01-25 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO1000 UserGuide | UGA32103-1110 | 2025-02-13 | |
| 📄 DHO1000U UserGuide | UGA42102-1110 | 2024-01-25 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO1000 QuickGuide | QGA42100-1110 | 2023-01-10 | |
| 📄 DHO1000U_QuickGuide_EN | QGA42100-1110 | 2024-01-25 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO10004000 ProgrammingGuide | PGA34101-1110 | 2023-01-10 |
Performance Verification Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO1000 PerformanceVerification | PVA32101-1110 | 2025-06-13 |
