Oscilloscopes
DHO4000
Analog Bandwidth
800MHz
Analog Channels
4
Maximum Real-time Sample Rate
4GSa/s
Maximum Memory Depth
500Mpts(opt.)
Maximum Waveform Capture Rate
1,500,000wfms/s
Digital Channel
-
Downloads
Downloads
Select Model

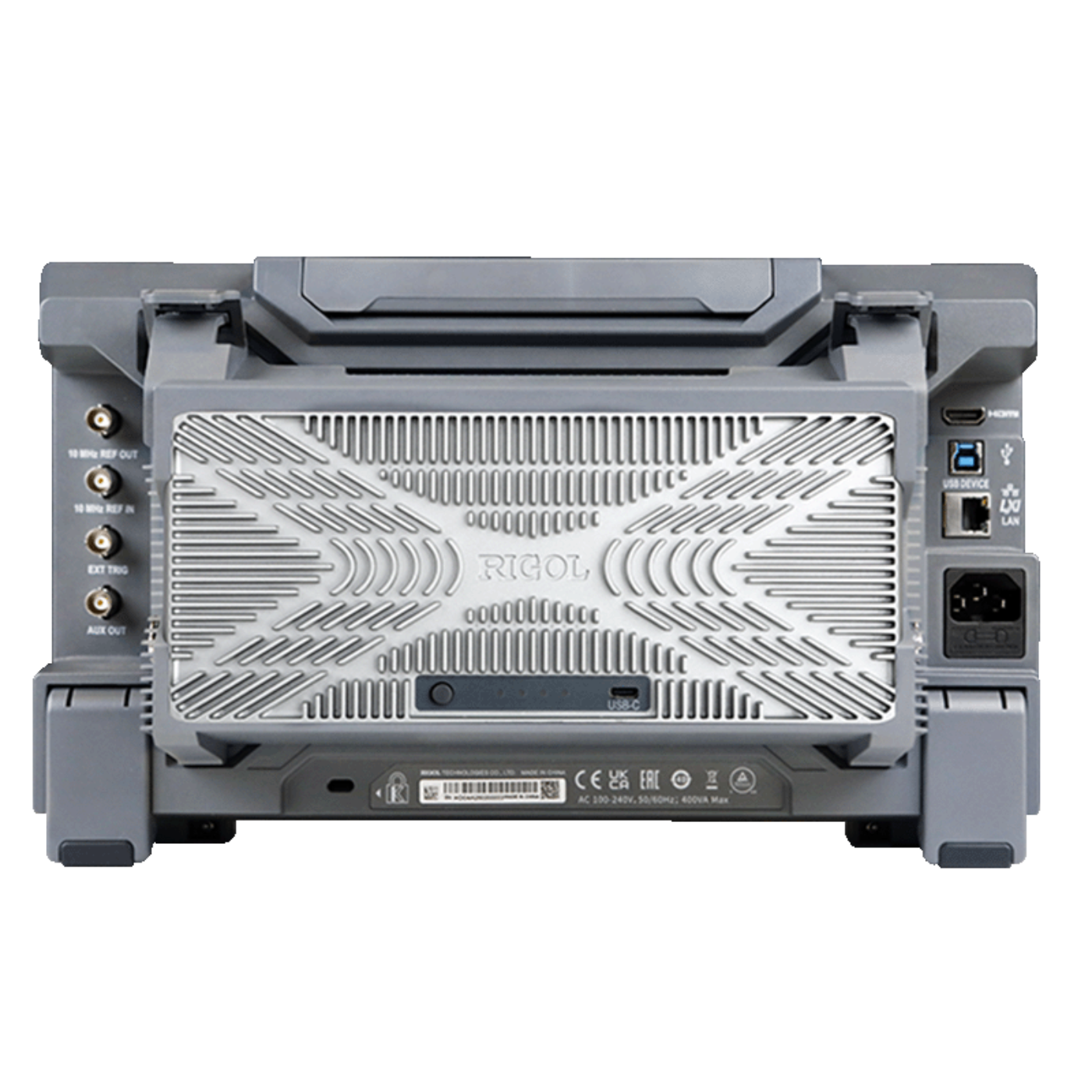

Explore the DHO4000 Series Digital Oscilloscopes

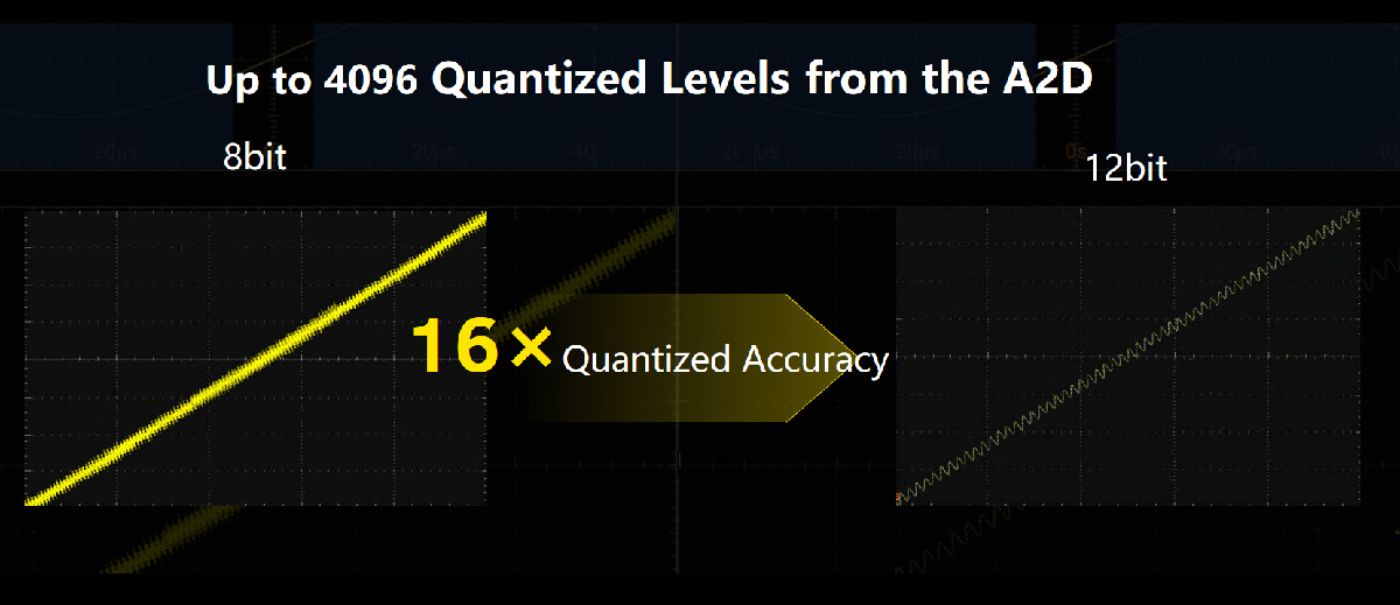

High-resolution 12-bit
All DHO4000 series oscilloscopes are equipped with Rigol’s second generation “Centaurus” chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors’ 8-bit counterparts.

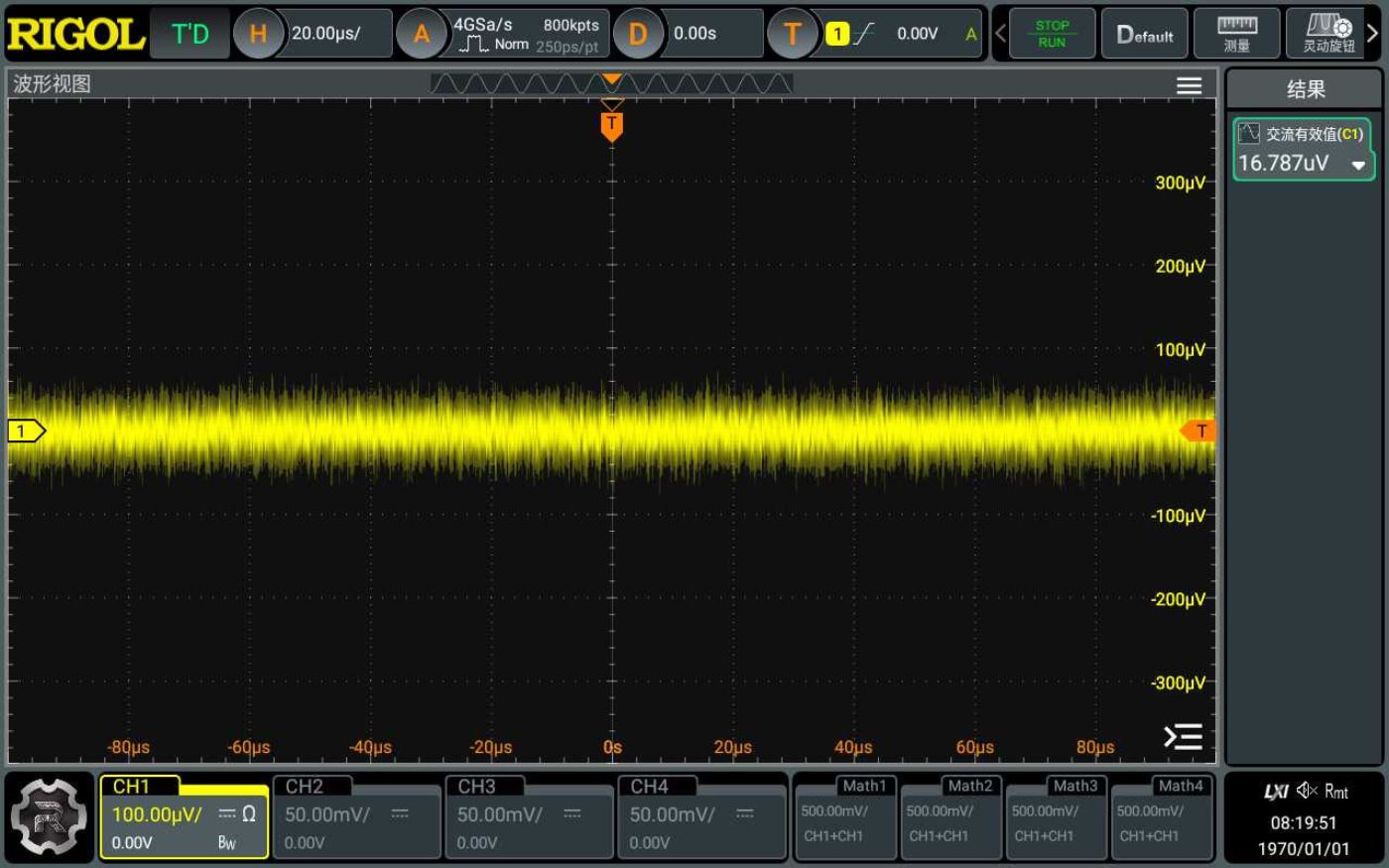

Industry-leading, low noise floor
18uVrms ultra-low noise floor (typical), cleaner signal.

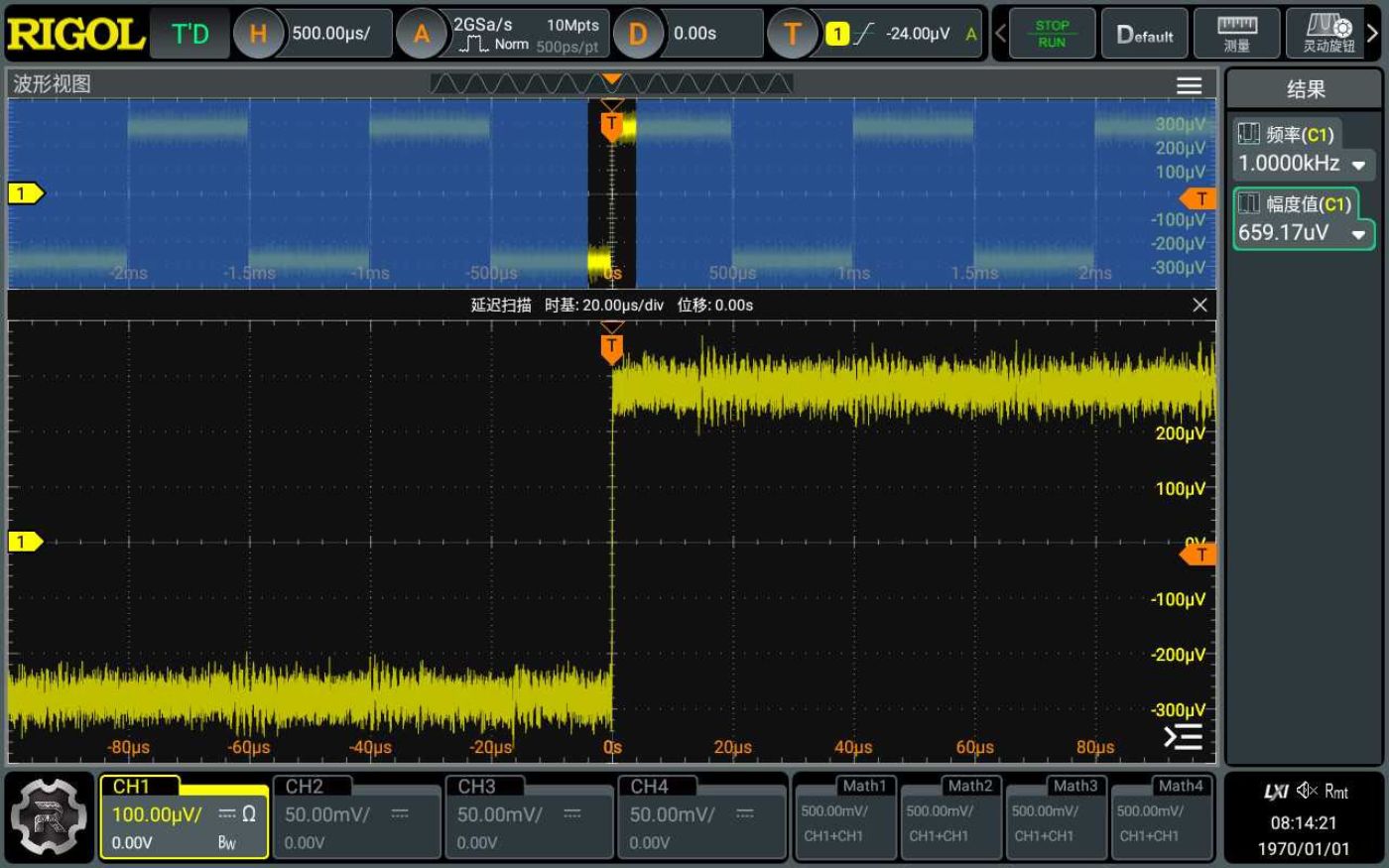

100μV ultra-low vertical sensitivity
The industry-leading vertical sensitivity range of 100μV/div enables accurate measurement of signals at the μV level.

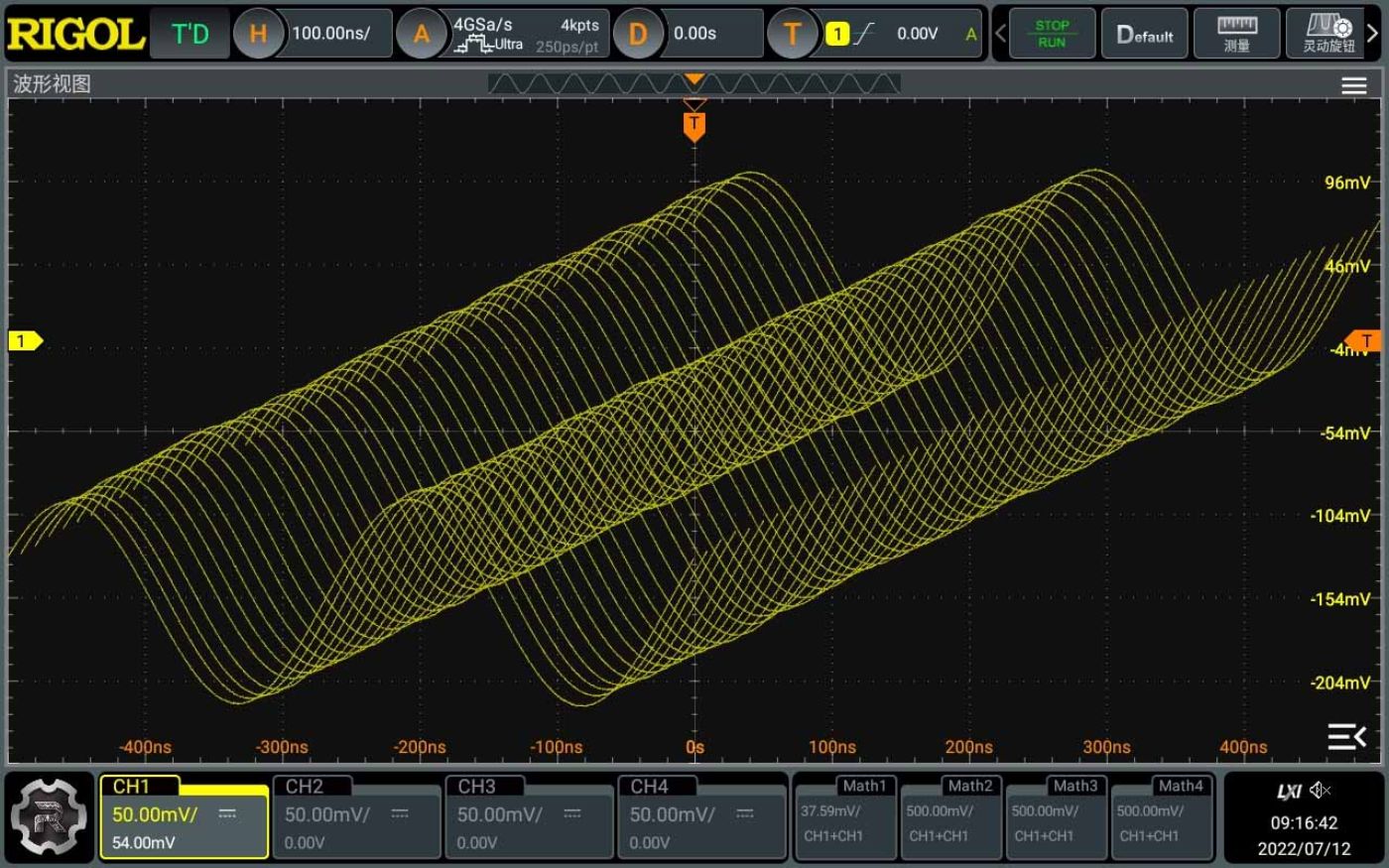

UltraAcquire mode
Supports UltraAcquire mode as standard, up to 1,500,000 wfms/s waveform acquisition rate. Not a single abnormal signal is missed.

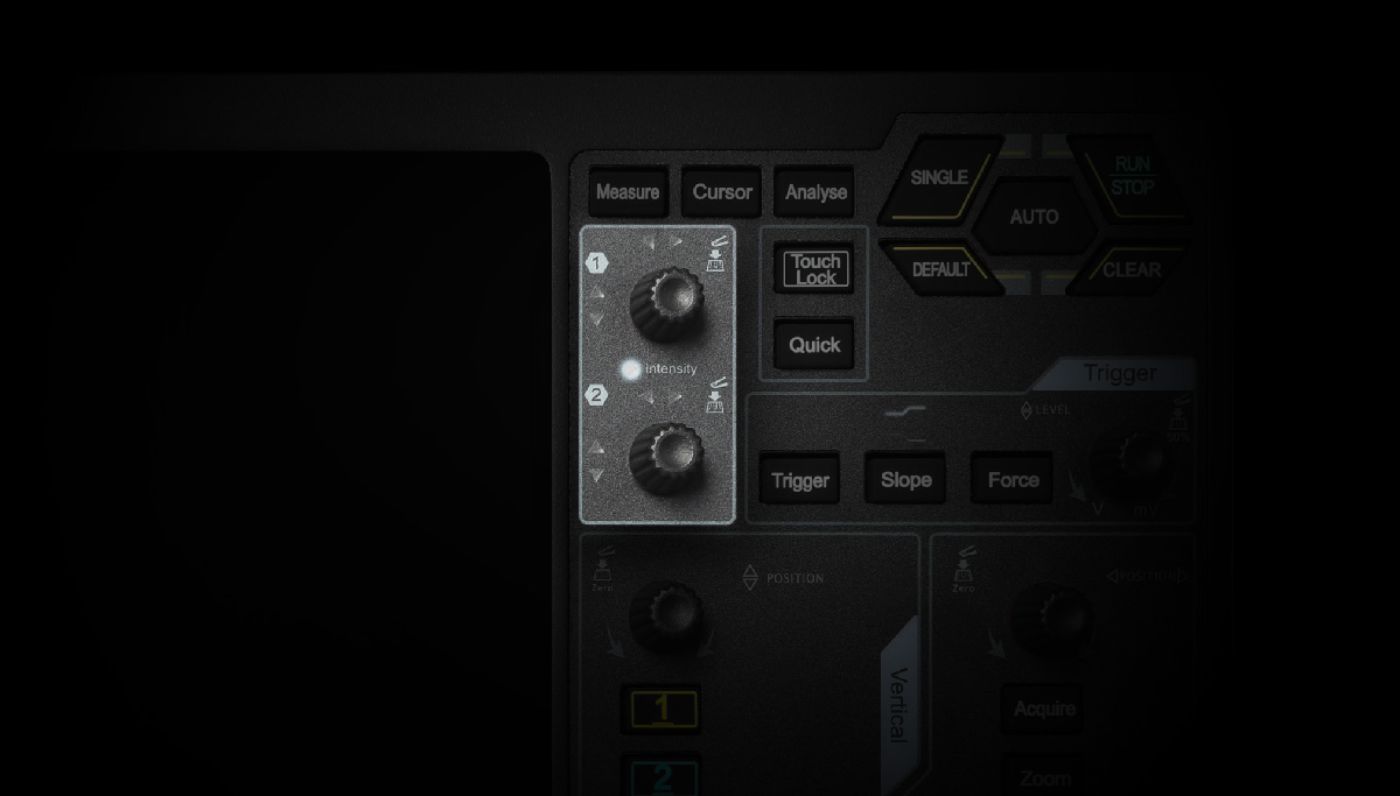

Flex knob button
The dual multi-function knob eliminates the complex switching steps of a single knob, resulting in more efficient interaction.
Supports battery power supply
Battery pack options are provided, allowing you to measure without limits anytime, anywhere!
DHO4000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Price
DHO4804
800MHz
4
4GSa/s
500Mpts(opt.)
1,500,000wfms/s
DHO4404
400MHz
4
4GSa/s
500Mpts(opt.)
1,500,000wfms/s
DHO4204
200MHz
4
4GSa/s
500Mpts(opt.)
1,500,000wfms/s
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DHO4000-BWU2T4 | 200M to 400M bandwidth upgrade option | ₹ 1,34,850 | ₹ 1,59,123 |
| DHO4000-BWU2T8 | 200M to 800M bandwidth upgrade option | ₹ 2,47,350 | ₹ 2,91,873 |
| DHO4000-BWU4T8 | 400M to 800M bandwidth upgrade option | ₹ 1,34,850 | ₹ 1,59,123 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DHO4000-RLU-05 | 500Mpts storage depth upgrade option | ₹ 50,550 | ₹ 59,649 |
| DHO4000-AUTOA | CAN-FD/LIN bus triggering and analysis options | ₹ 33,600 | ₹ 39,648 |
| DHO4000-AEROA | MIL-STD1553 bus triggering and analysis options | ₹ 33,600 | ₹ 39,648 |
| DHO4000-FLEXA | FlexRay Serial Bus Triggering and Analysis Options | ₹ 33,600 | ₹ 39,648 |
| DHO4000-AUDIOA | I2S bus trigger and analysis options | ₹ 33,600 | ₹ 39,648 |
| DHO4000-PWRA | Power Analysis Options | ₹ 33,600 | ₹ 39,648 |
| DHO4000-BND | DHO4000 Bundle Option | ₹ 89,850 | ₹ 1,06,023 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| BatHolder350 | Battery compartment | ₹ 1,12,350 | ₹ 1,32,573 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO4000 DataSheet | PGA34101-1110 | 2023-01-10 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHODHO5000 UserGuide | UGA43103-1110 | 2025-12-12 | |
| 📄 BatHolder350 UserGuide | UGN02100-1110 | 2025-07-30 | |
| 📄 RM6051_RackmountKit_EN | 202603 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO4000 QuickGuide | QGA33103-1110 | 2023-01-10 | |
| 📄 RIGOL Quick Guide to Safe Use of Battery Holder | V1.0 | 2025-09-30 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO10004000 ProgrammingGuide | PGA34101-1110 | 2023-01-10 |
