Oscilloscopes
DHO800
Analog Bandwidth
100MHz
Analog Channels
4
Maximum Real-time Sample Rate
1.25GSa/s
Maximum Memory Depth
25Mpts
Maximum Waveform Capture Rate
1,000,000 wfms/s
Digital Channel
-
Downloads
Downloads
Select Model
Explore the DHO800 Series of Digital Oscilloscopes

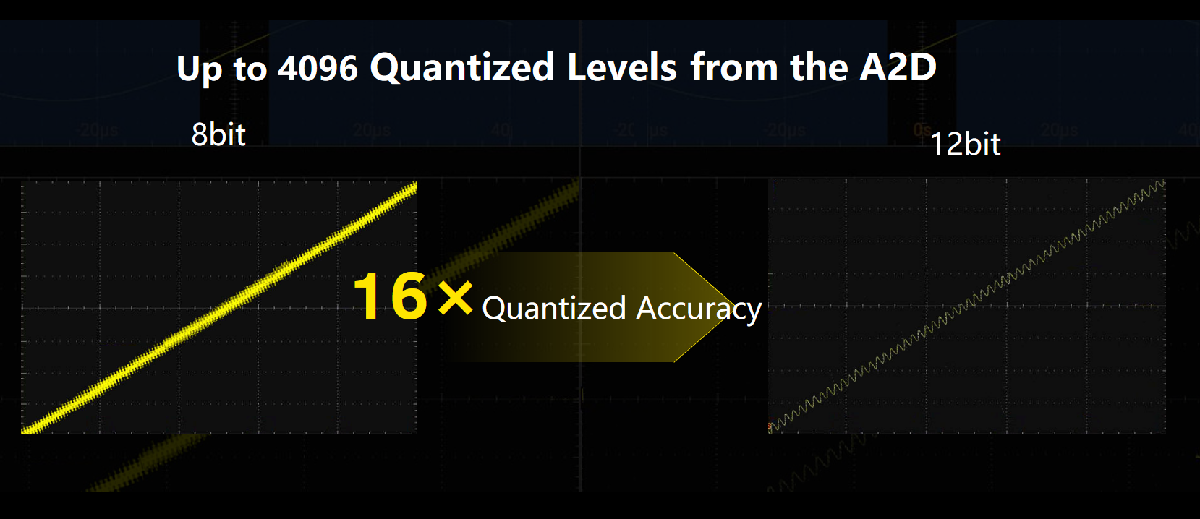

High-resolution 12-bit
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

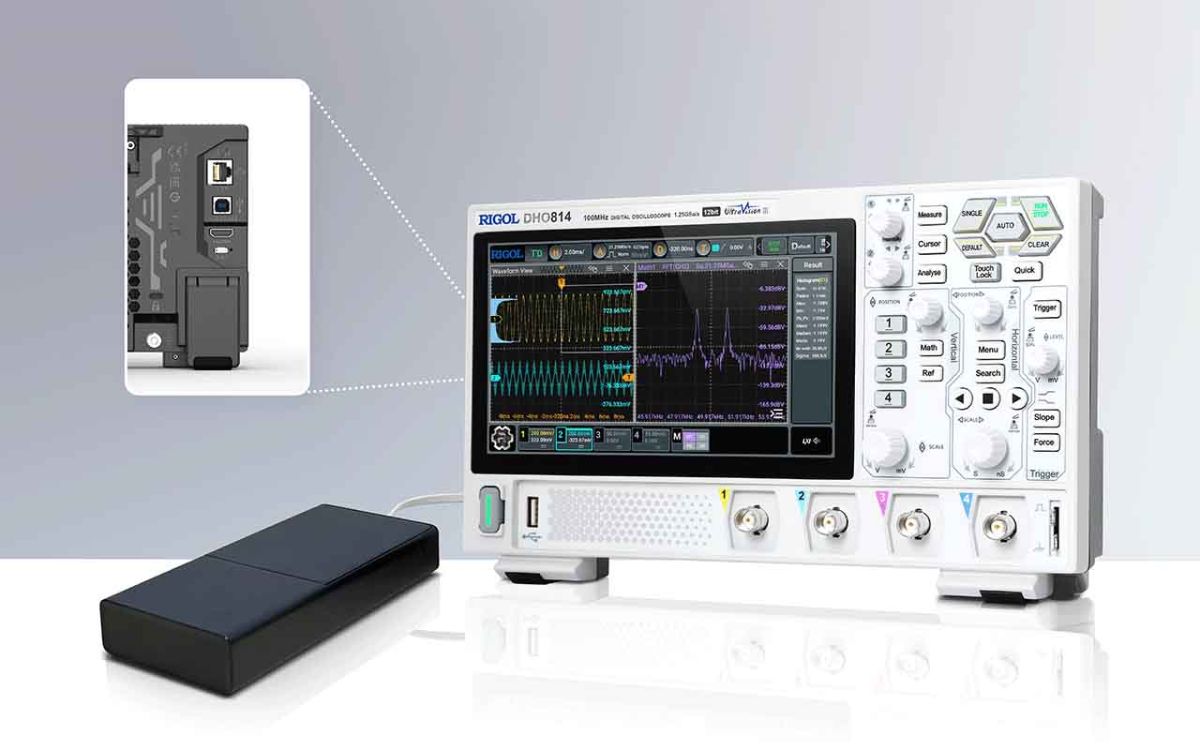

Support Type-C Power
Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.
Sleek Design

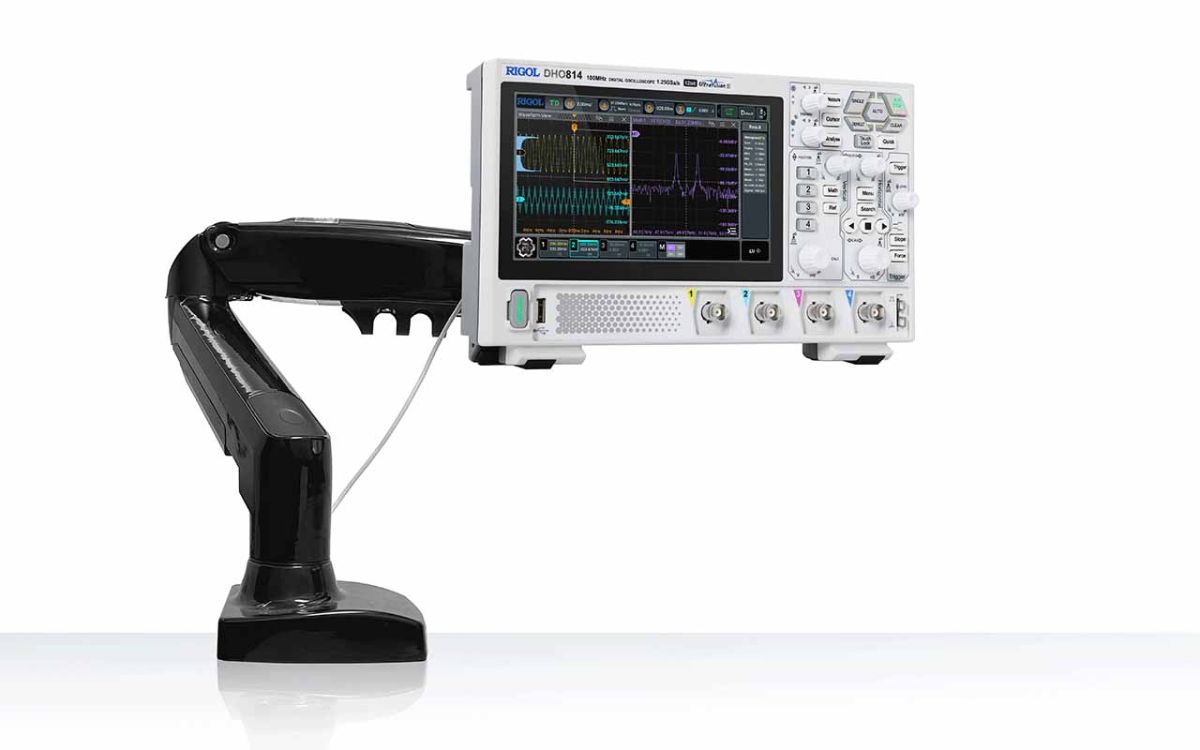

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

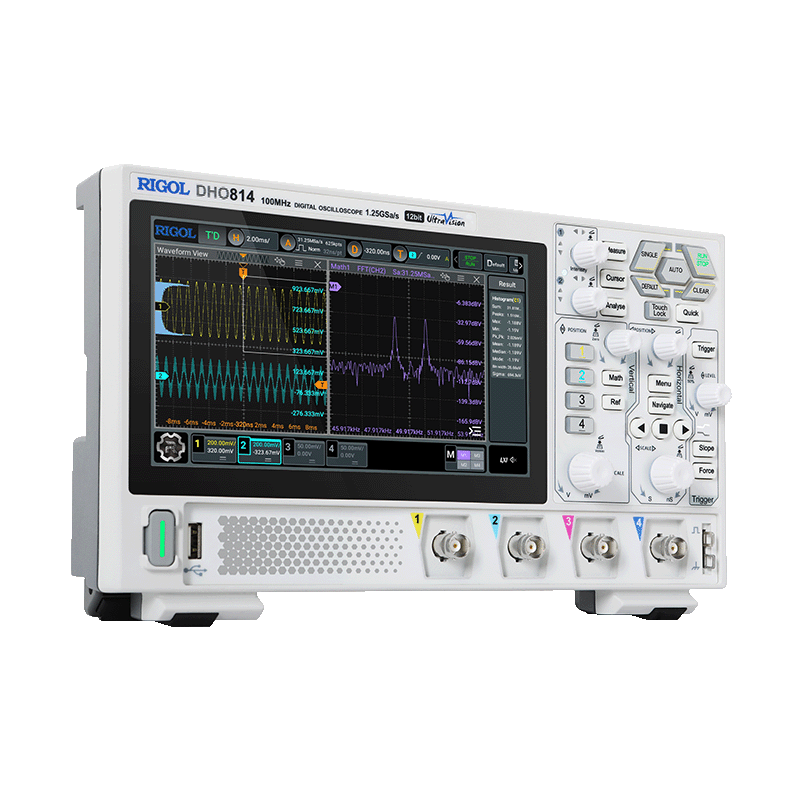

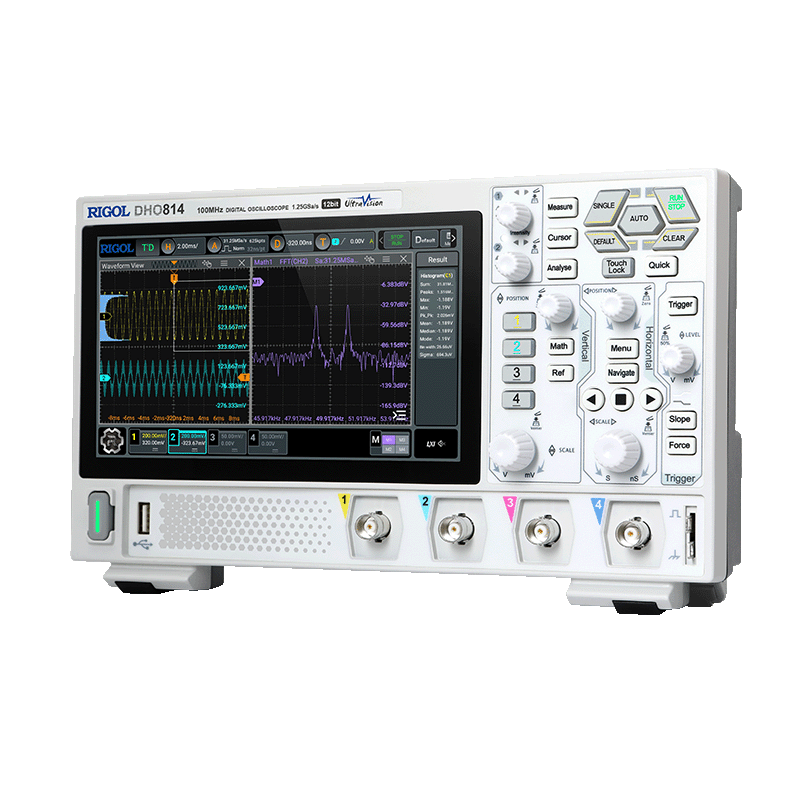

7-inch HD Touchscreen
The DHO800 boasts a 7-inch 1024×600 high-definition touchscreen, offering the perfect blend of compactness and functionality. Despite its small size, this device ensures convenient operation without compromising on screen size, providing ample space for all your tasks.

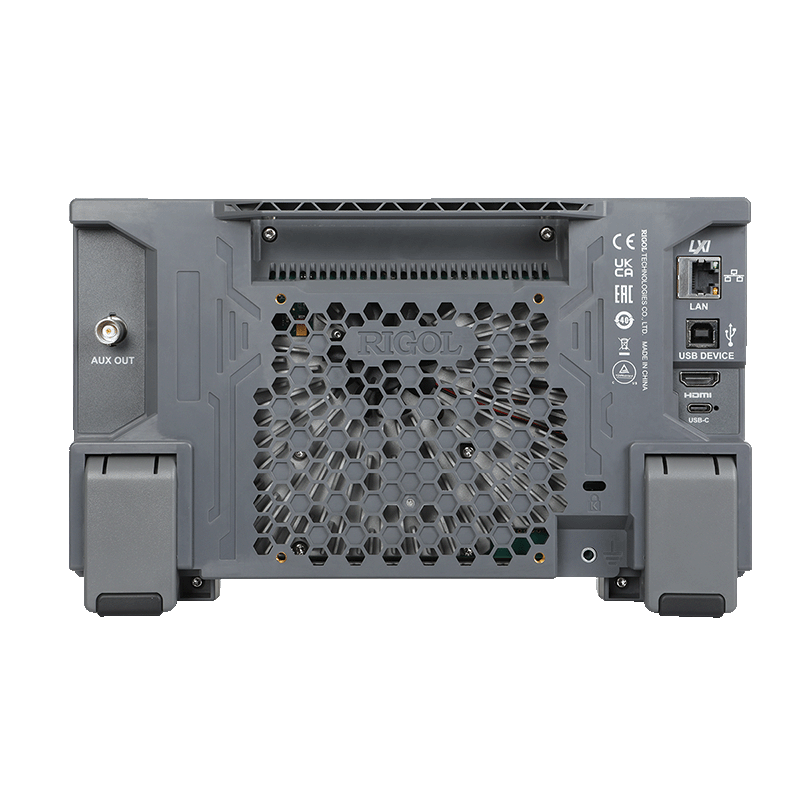

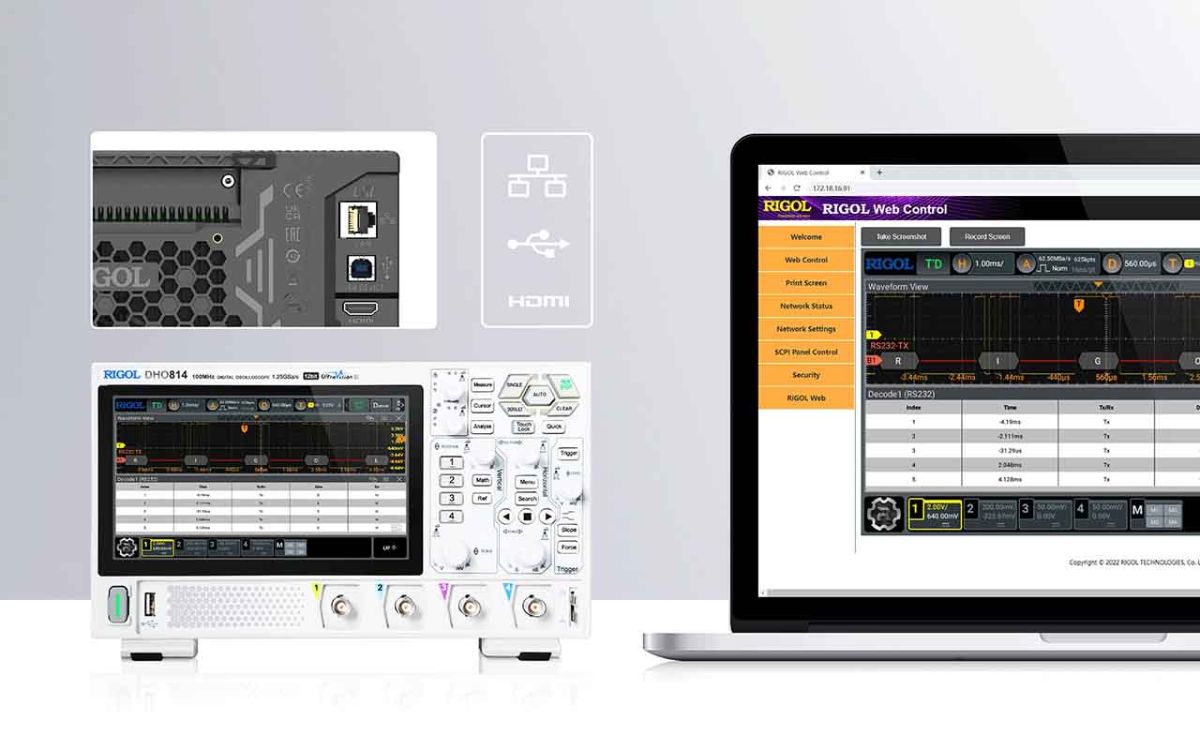

Versatile Interfaces
The DHO800 series comes standard with USB, LAN, and HDMI® output interfaces, supporting remote control and conference presentations, making collaboration more convenient.
DHO800
Model
Analog Bandwidth
Analog Channels
Maximum Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Price
DHO814
100MHz
4
1.25GSa/s
25Mpts
1,000,000 wfms/s
DHO812
100MHz
2
1.25GSa/s
25Mpts
1,000,000 wfms/s
DHO804
70MHz
4
1.25GSa/s
25Mpts
1,000,000 wfms/s
DHO802
70MHz
2
1.25GSa/s
25Mpts
1,000,000 wfms/s
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Universal Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM5041 | Ultra-Portable Platform Rack Mount Kit | ₹ 17,850 | ₹ 21,063 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO800 DataSheet | QGA36105-1110 | 2024-10-01 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO800 UserGuide | UGA36105-1110 | 2025-02-13 | |
| 📄 RM5041_RackmountKit_EN | 202603 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO800 QuickGuide | QGA36105-1110 | 2024-10-01 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO800900 ProgrammingGuide | PGA39106-1110 | 2025-05-09 |
