Oscilloscopes
DHO900
Analog Bandwidth
250MHz
Analog Channels
4
Maximum Real-time Sample Rate
1.25GSa/s

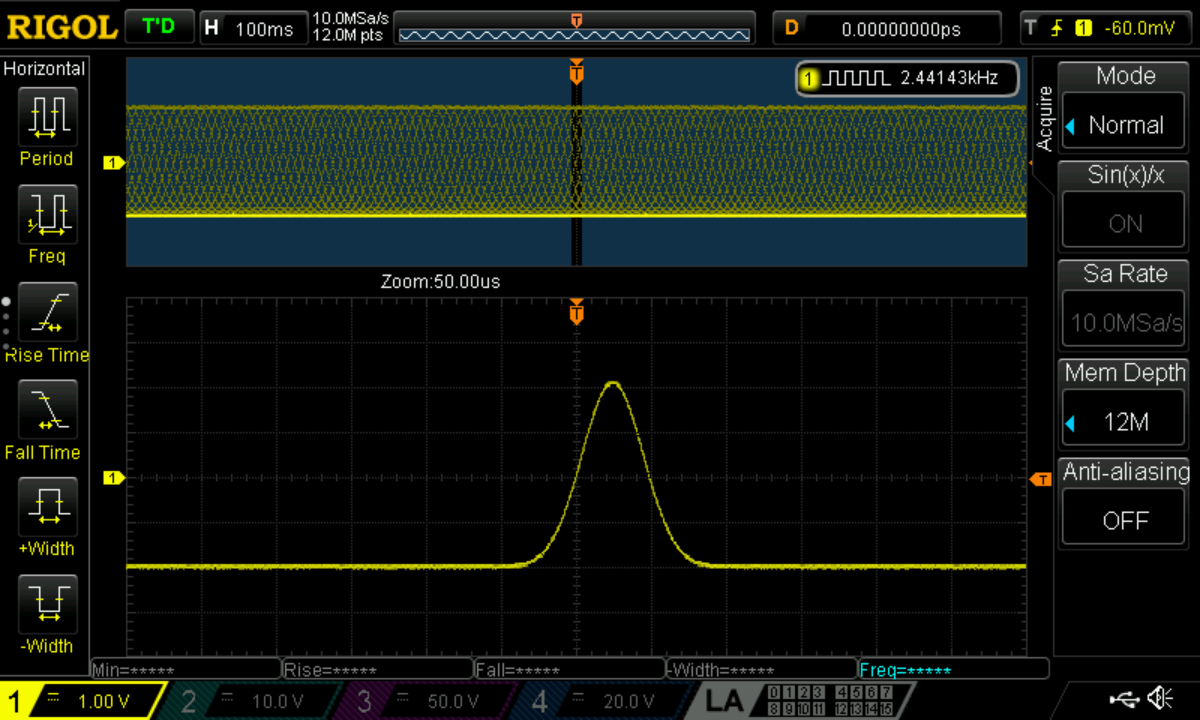

Maximum Memory Depth
50Mpts
Maximum Waveform Capture Rate
1,000,000 wfms/s
Digital Channel
16(Probe opt.)
Downloads
Downloads
Select Model

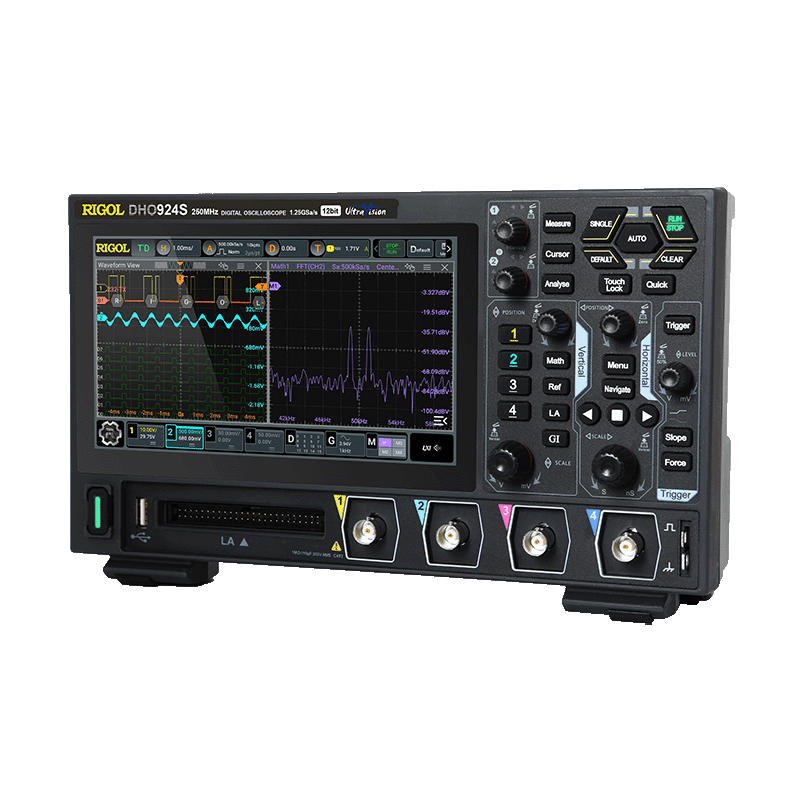

Explore the DHO900 Series Digital Oscilloscopes
High-resolution 12-bit
The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

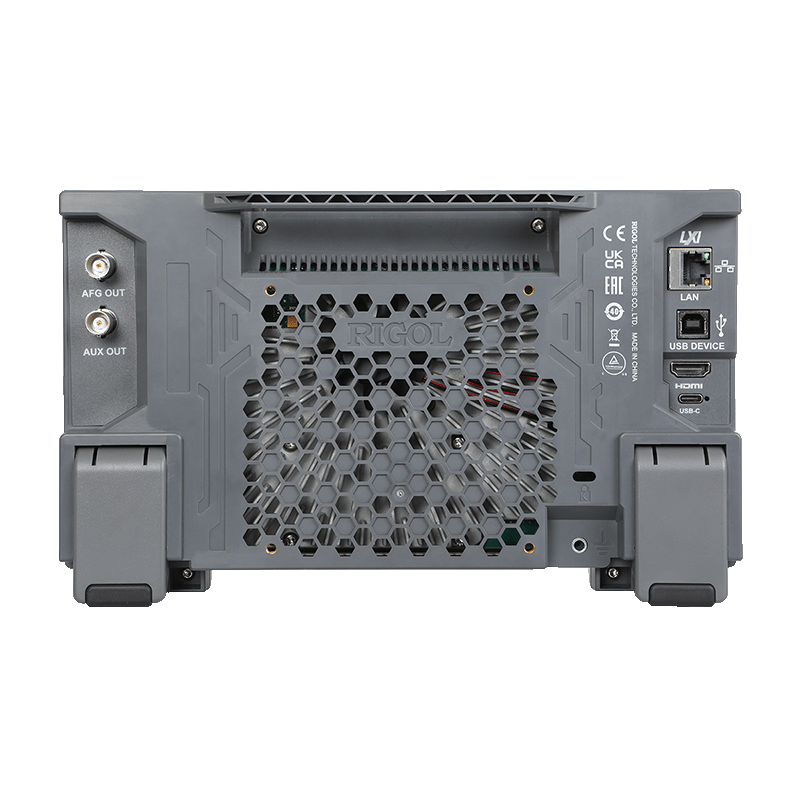

Support Type-C Power
The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.

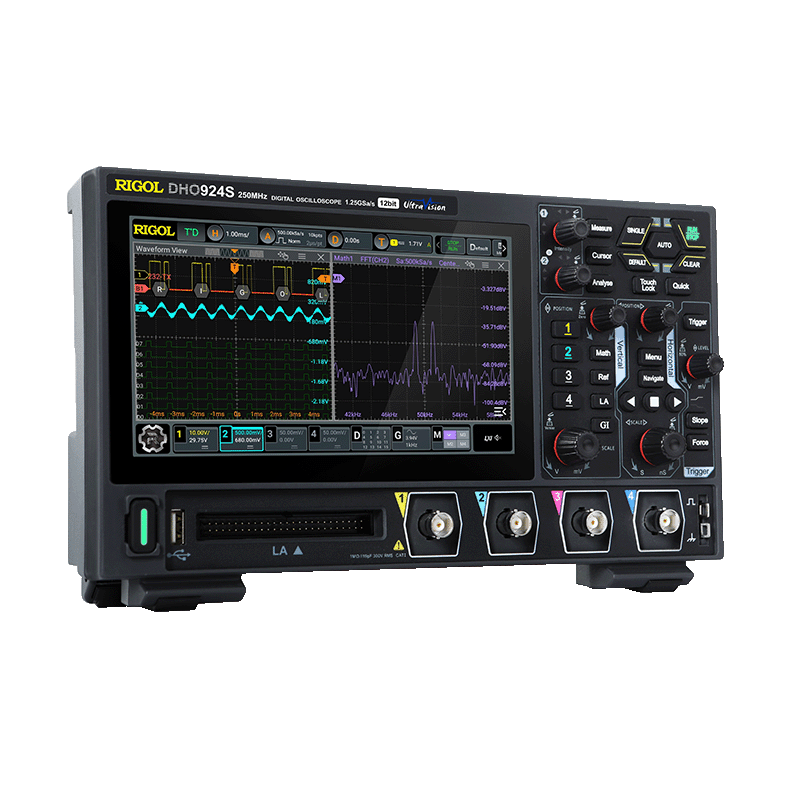

Sleek Design
The DHO900 series is compact and portable, effectively reducing the burden of carrying equipment for on-site operations. Additionally, it supports VESA standard monitor mounts, making your desktop more organized and saving workspace.
Supports Bode Plot Analysis
The DHO900S is equipped with the Bode diagram loop analysis function, facilitating switch-mode power supply loop analysis and amplitude-frequency response testing of components. This advanced feature enhances the device’s capabilities, allowing for comprehensive analysis and optimization of power supply systems and component performance.

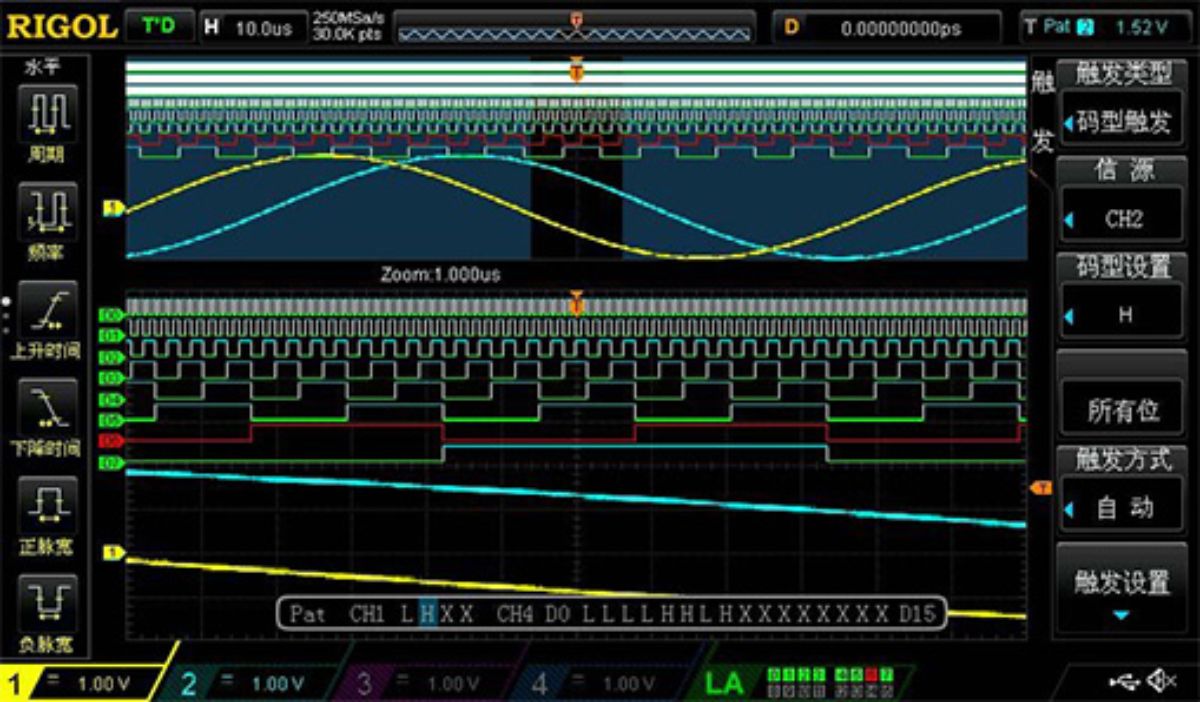

Standard Digital Channels
The entire DHO900 series comes standard with digital channels, which, when paired with the PLA2216 logic analysis probe, enables digital signal analysis. This solves the problem of simultaneous analog and digital signal debugging needs in electronic design.

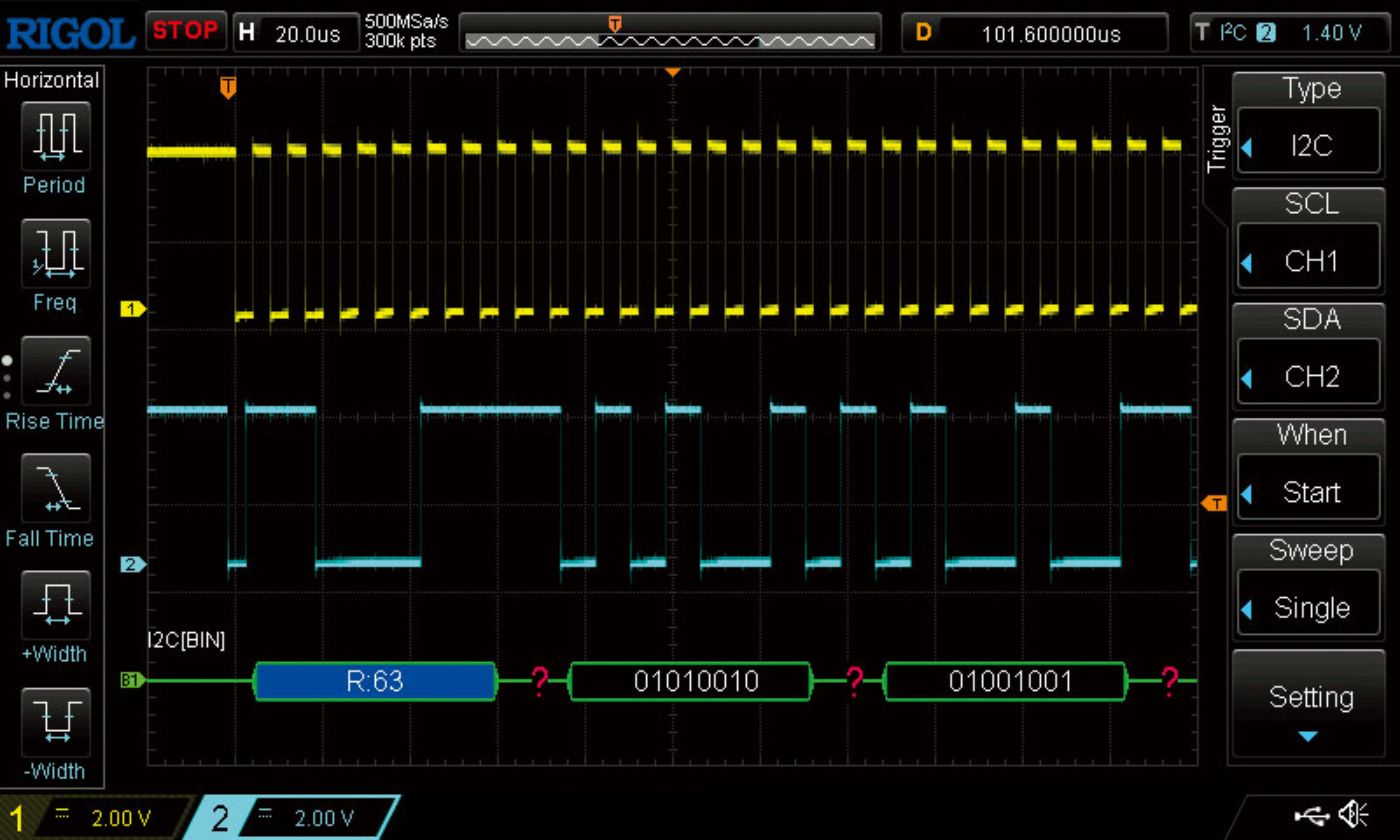

Rich triggering and decoding functions
The DHO900 has a rich set of triggering functions, including commonly used edge, slope, pulse width, etc., as well as some serial protocol triggering, such as the triggering and decoding of the I2C, SPI, RS232 protocols commonly used in embedded debugging and the CAN, LIN protocols commonly used in the automotive industry. The bus triggering and decoding functions of the DHO900 can accurately capture and parse protocol information, directly display the decoded content on the waveform or present it in the form of an event table, making your debugging more convenient and intuitive.
DHO900
Model
Analog Bandwidth
Analog Channels
Maximum Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
DHO924S
250MHz
4
1.25GSa/s
50Mpts
1,000,000 wfms/s
16(Probe opt.)
1CH
DHO924
250MHz
4
1.25GSa/s
50Mpts
1,000,000 wfms/s
16(Probe opt.)
-
DHO914S
125MHz
4
1.25GSa/s
50Mpts
1,000,000 wfms/s
16(Probe opt.)
1CH
DHO914
125MHz
4
1.25GSa/s
50Mpts
1,000,000 wfms/s
16(Probe opt.)
-
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Universal Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM5041 | Ultra-Portable Platform Rack Mount Kit | ₹ 17,850 | ₹ 21,063 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO900 DataSheet | V3.0 | 2024-10-01 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO900 UserGuide | UGA37103-1110 | 2025-02-13 | |
| 📄 RM5041_RackmountKit_EN | 202603 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO900 QuickGuide | QGA37104-1110 | 2025-06-13 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DHO800900 ProgrammingGuide | PGA39106-1110 | 2025-05-09 |
