DC Electronic Loads
DL3000
Total Power
450W
Voltage
200V
Current
70A
Maximum Frequency
30kHz
Current Slew Rate
5.0A/us
Current Readback Resolution
0.1mA
Downloads
Downloads
Select Model
Functions and Features

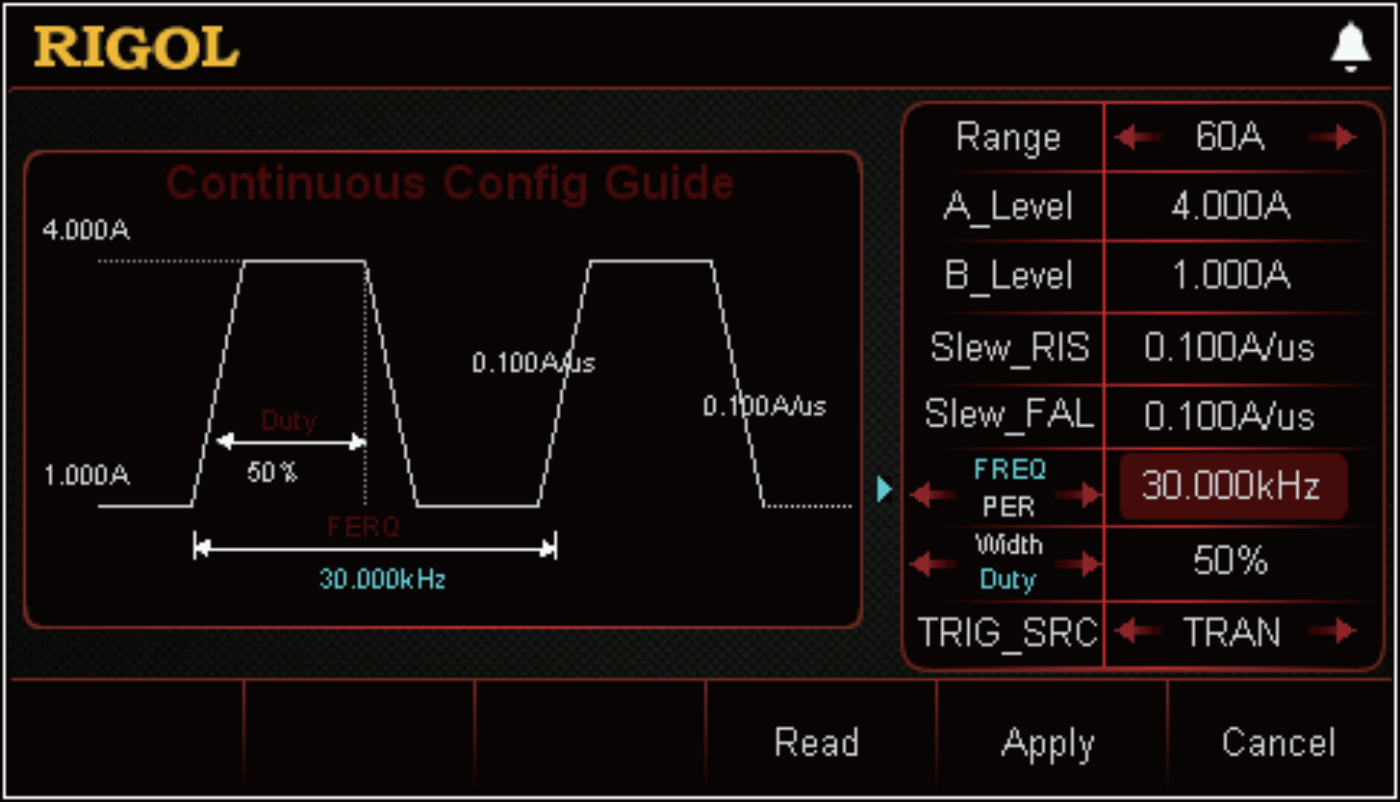

30kHz Dynamic Mode
The dynamic test function enables the load to switch between two sets of preset parameters (Value A and Value B) according to the set rules. This function can be used to test the dynamic characteristics of the device under test, and the maximum frequency can be set to 30 kHz.
Maximum current slope of 5A/us
The DL3041 model offers up to 5A/us and a 30kHz frequency setting for transient mode testing. This flexibility allows for simulating more dynamic real-world power demands, bringing higher reliability to battery and power supply systems.

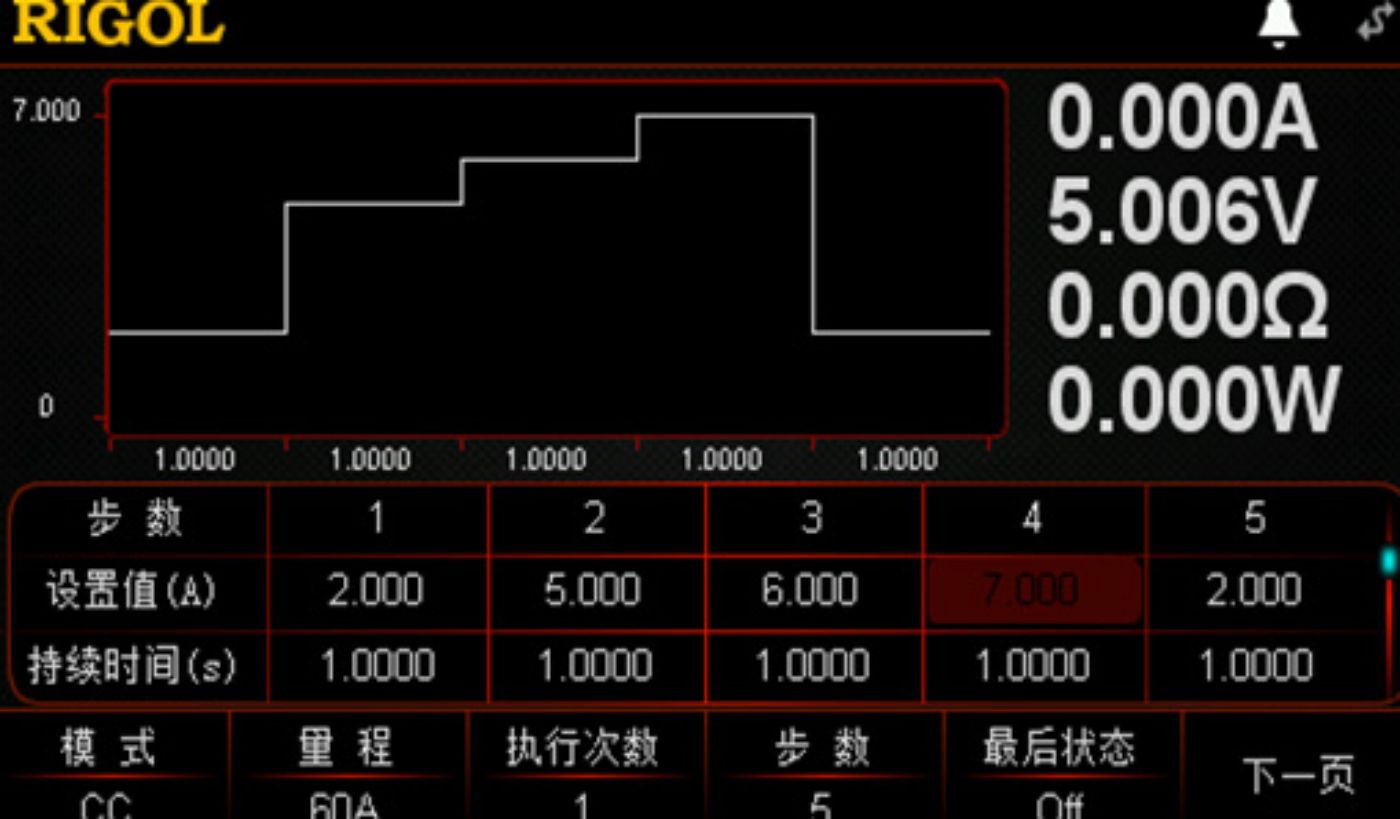

List function
By editing the setting values, durations, and slopes (only in CC mode) of each step, the List function can generate various complex sequences to meet complex testing requirements.

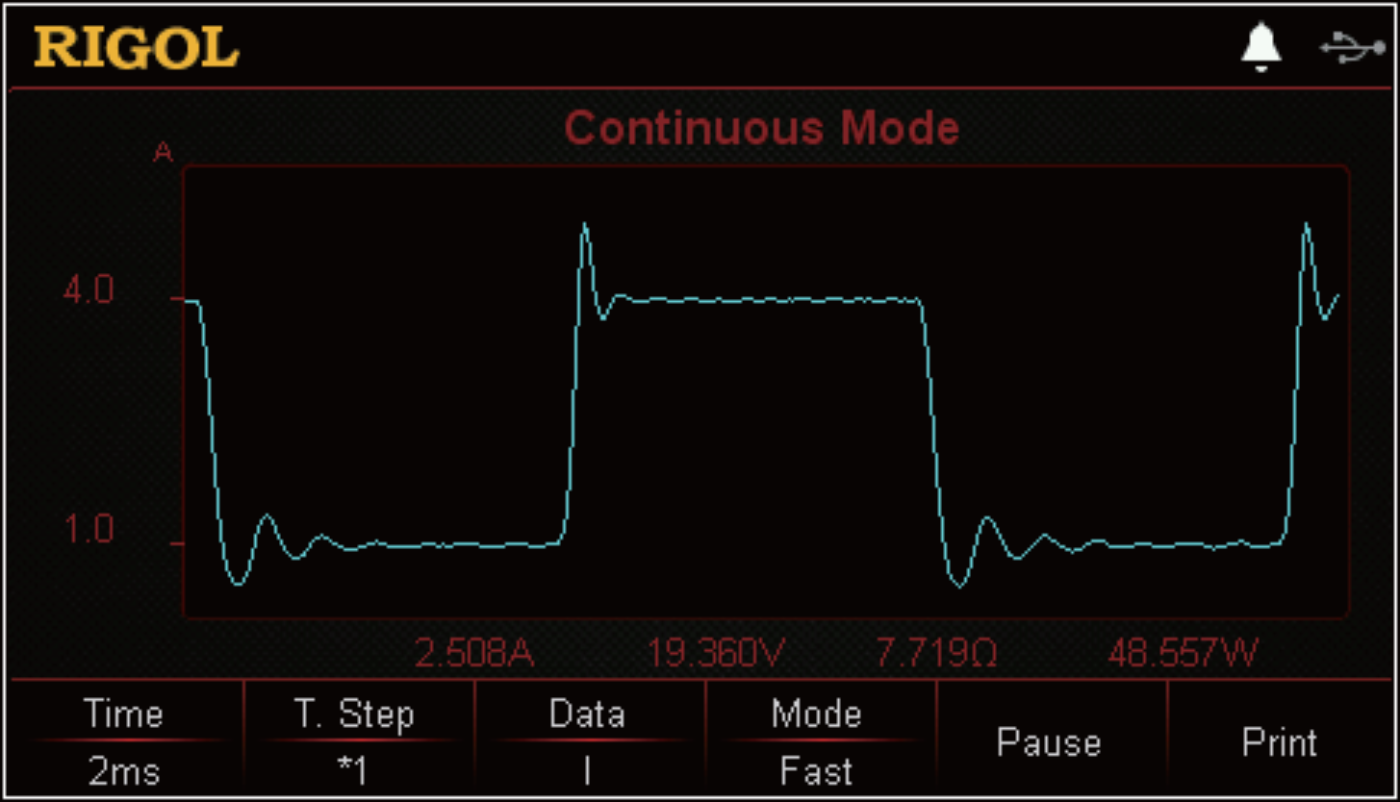

Waveform display function
The load provides a waveform display function and supports operations such as pausing, zooming in, zooming out, and taking screenshots of the waveform, which is convenient for users to observe the changing trend of parameters through the dynamic waveform.
Battery testing function
The key to making full use of the electronic load is the ability to easily configure the tests you need to run. Conduct battery capacity and discharge time tests through specialized settings to determine whether the battery can work effectively.
DL3000
Model
Total Power
Voltage
Current
Maximum Frequency
Current Slew Rate
Current Readback Resolution
Voltage Readback Resolution
Price
DL3041
450W
200V
70A
30kHz
5.0A/us
0.1mA
0.1mV
DL3031
350W
150V
60A
15kHz
1A/us
1mA
1mV
DL3031A
350W
150V
60A
30kHz
1A/us
0.1mA
0.1mV
DL3021A
200W
150V
40A
30kHz
1A/us
0.1mA
0.1mV
DL3021
200W
150V
40A
15kHz
1A/us
1mA
1mV
Functional Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| LAN-DL3 | LAN interface option | ₹ 14,250 | ₹ 15,815 |
| DIGITALIO-DL3 | Digital I/O option | ₹ 14,250 | ₹ 15,815 |
| HIRES-DL3 | Readback resolution option | ₹ 14,250 | ₹ 15,815 |
| FREQ-DL3 | High frequency option | ₹ 14,250 | ₹ 15,815 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| CB-DB9-DB9-F-F-150 | RS232 Data line，2 Female，150cm | ₹ 1,650 | ₹ 1,947 |
| CB-SENSE | sense test cable | ₹ 2,850 | ₹ 3,363 |
| CB-20A-780MM | 20A Red and black test cables | ₹ 2,850 | ₹ 3,363 |
| CB-40A-780MM | 40A Red and black test cables | ₹ 4,050 | ₹ 4,779 |
| CB-60A-780MM | 60A Red and black test cables | ₹ 5,550 | ₹ 6,549 |
| DL-02 | Terminal shield | ₹ 2,850 | ₹ 3,363 |
