DM3058-E

Multimeters

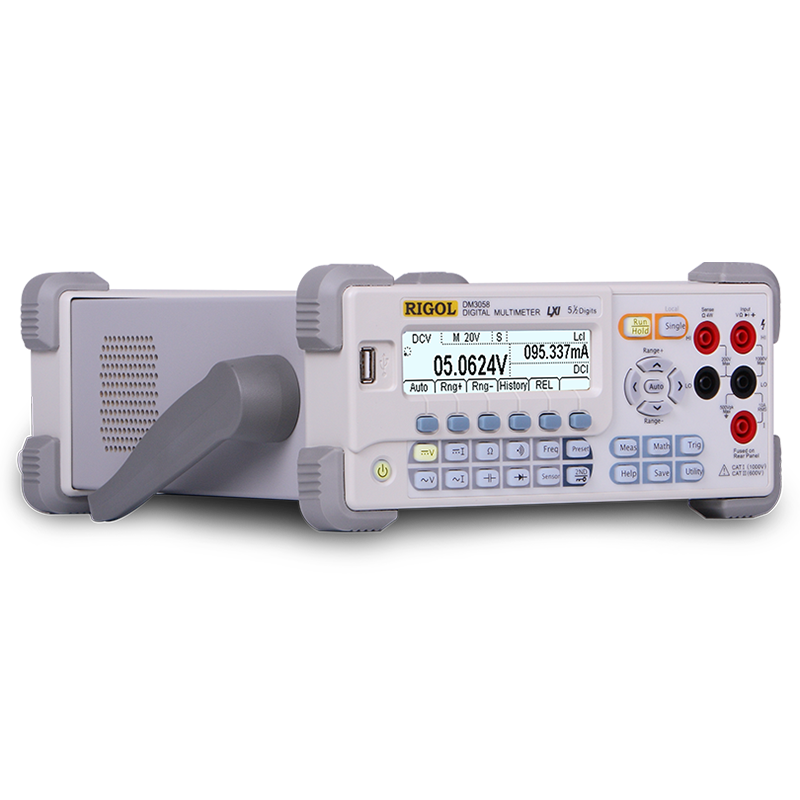

DM3058 / DM3058E is an economical 5.5-digit digital multimeter. It is designed for the test requirements of high accuracy, multi-function and automatic measurement. It integrates the functions of automatic measurement, multiple mathematical transformations and any sensor measurement. It provides USB, GPIB (DM3058 only), LAN (DM3058 only) and RS232 interfaces.

Accuracy

5.5 digits

DCV Yearly Accuracy

0.015%

Fastest Measurement Speed

123 rdgs/s

Connectivity

USB, GPIB（only DM3058）, LAN(only DM3058), RS232

Downloads

UserGuide

Downloads

DataSheet

Select Model

Models

Clear

Qty:

Explore the DM3058/E series digital multimeters

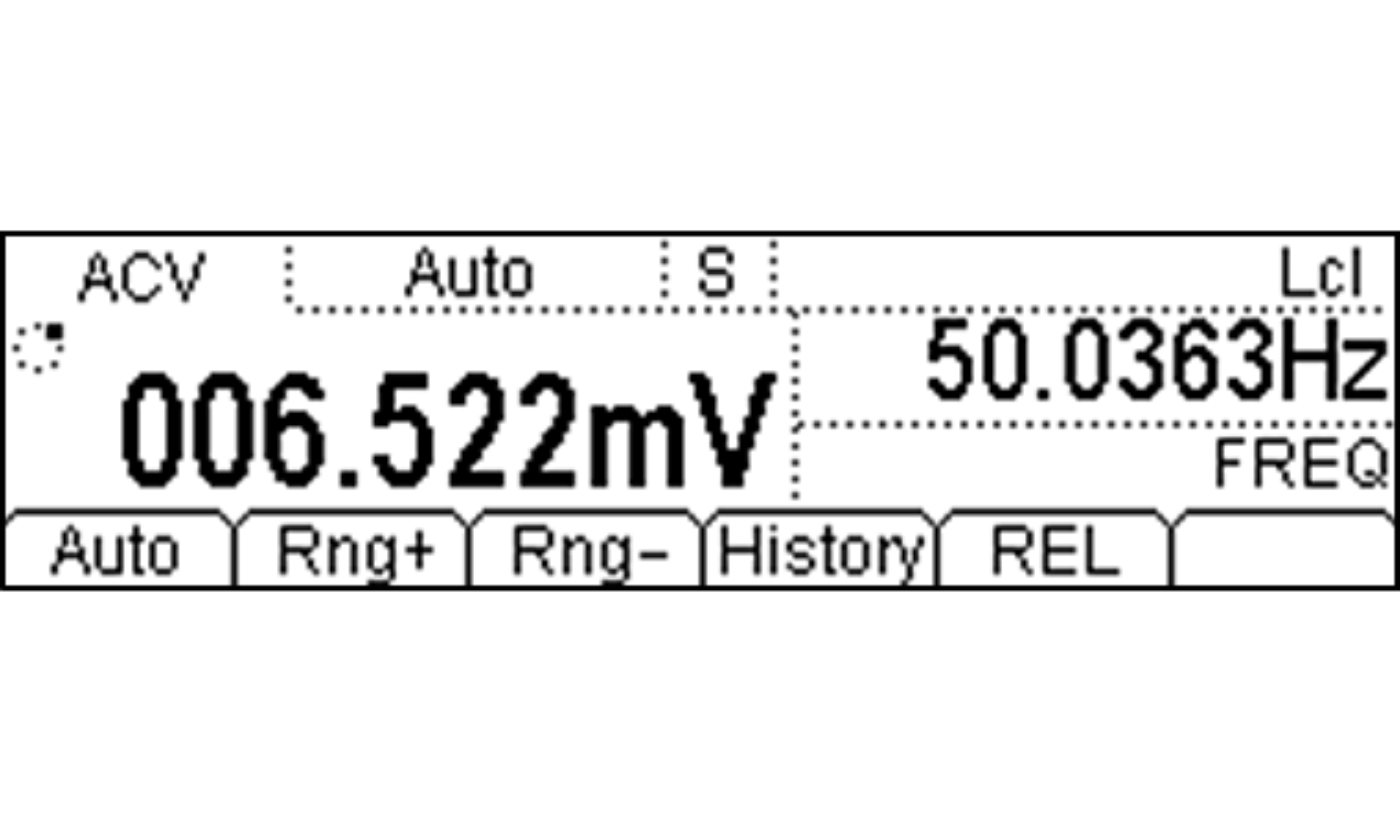

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

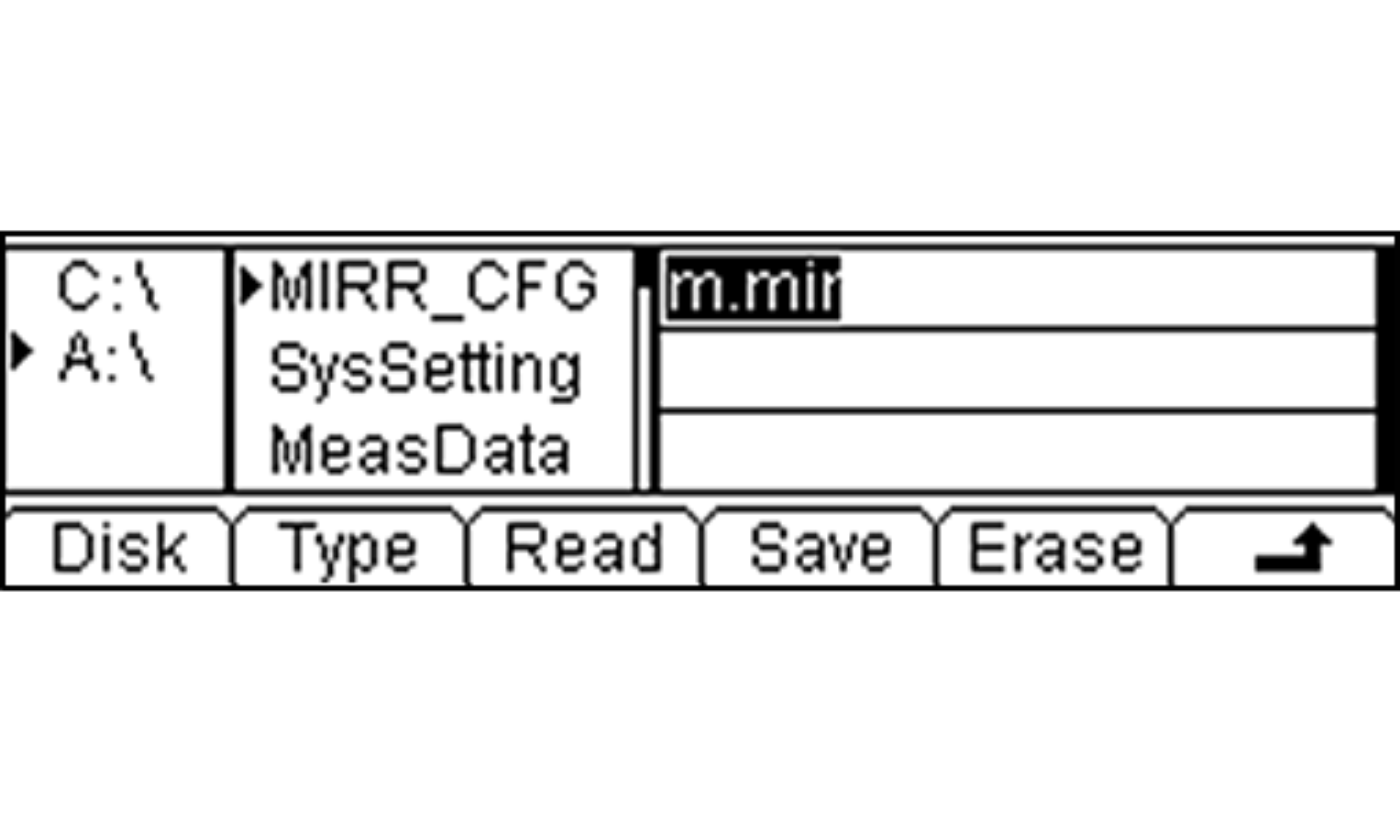

Mirror Image Configuration

All the configurations (system and sensor configuration) can be cloned into other DM3058/DM3058E on product line via USB storage device to improve work efficiency.

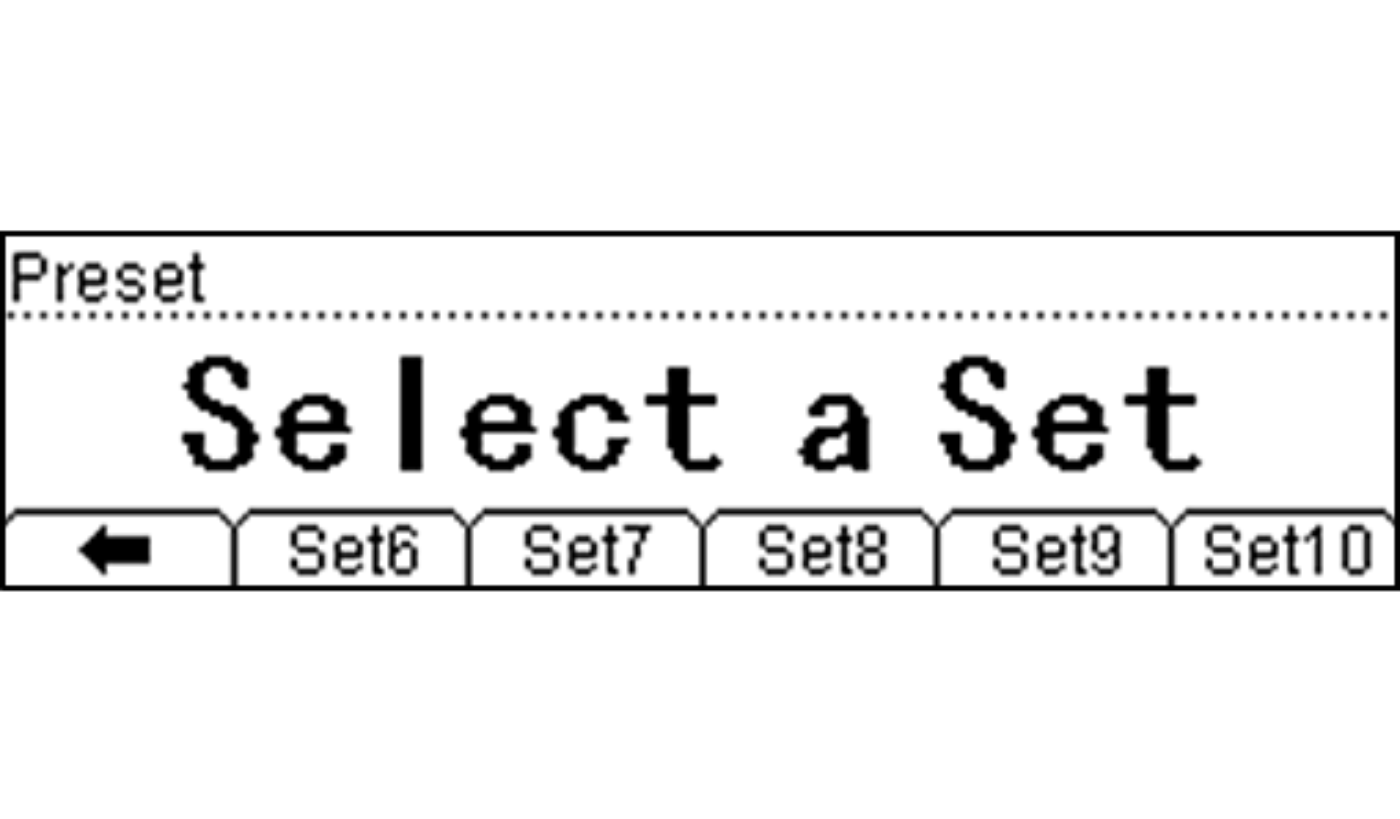

Preset Mode

Based on Preset Mode, the worker operation on product line could be greatly simplified. Besides, 10 groups of Preset Configuration are available to be stored and recalled.

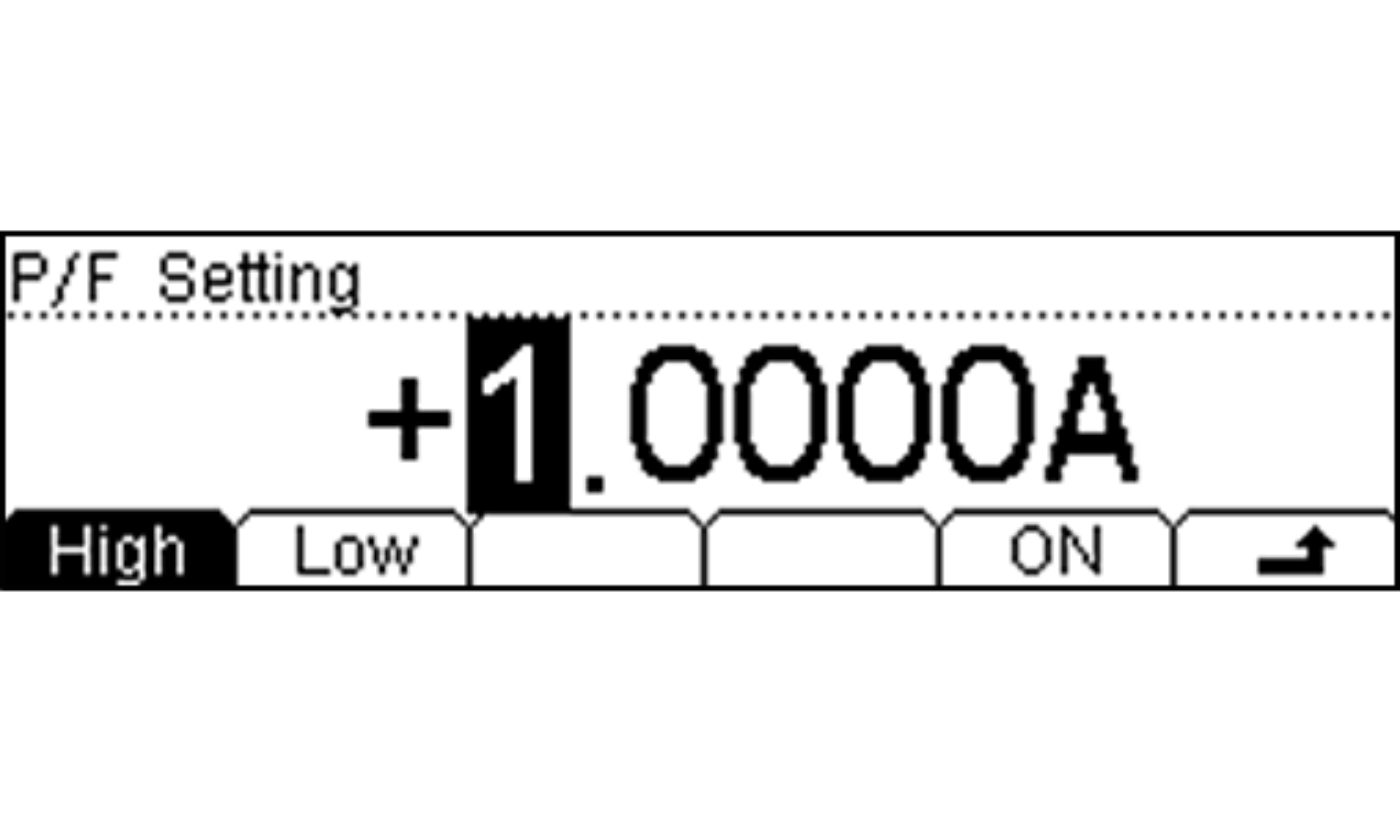

Pass/Fail

According to the set upper and lower limit parameters, the signal out of range is prompted, which is suitable for production line test.

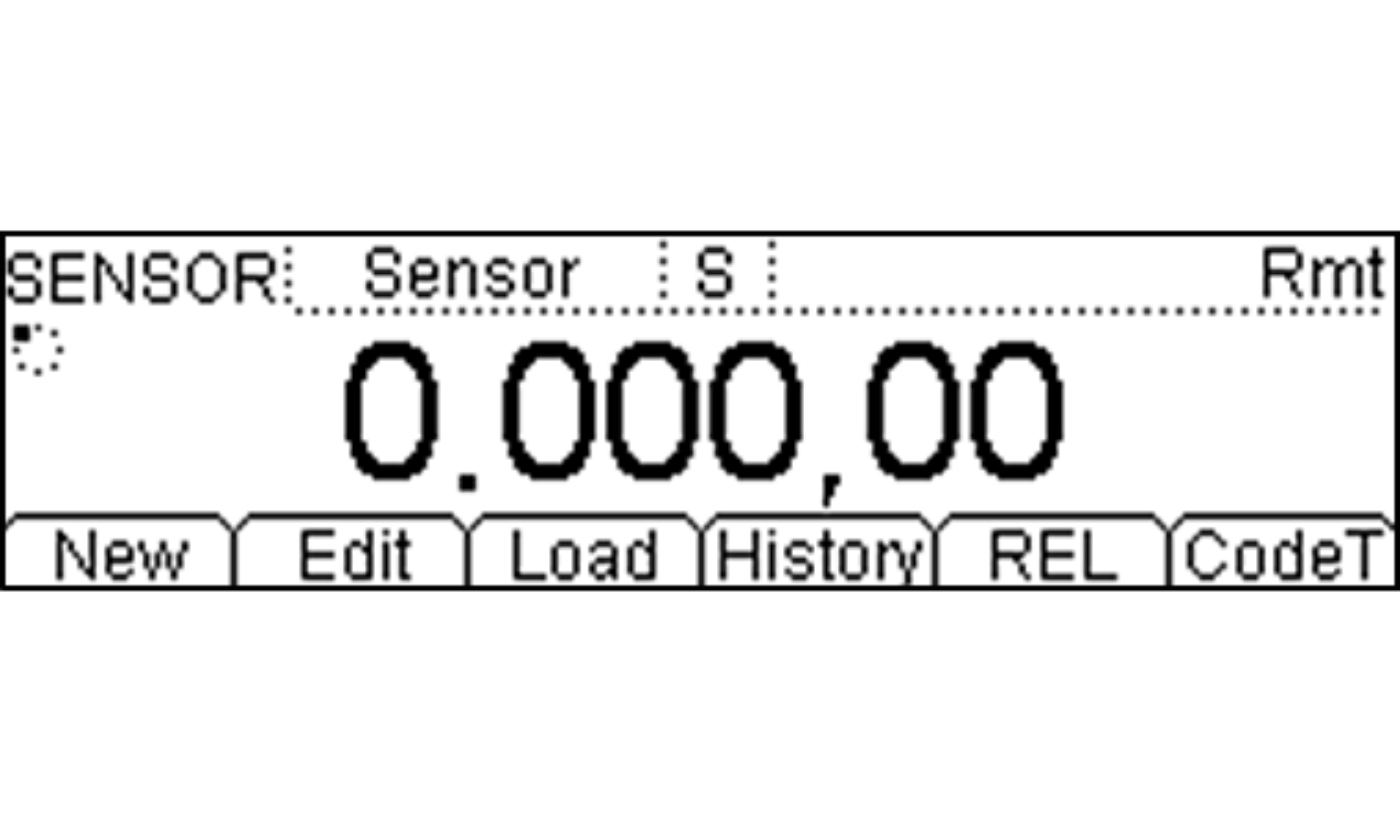

Any Sensor Measurement

It supports 6 sensor types, including DCV, DCI, freq, 2wr, 4wr and thermocouple TC, and also preset 10 groups of standard sensor types.

DM3058-E

Model

Accuracy

DCV Yearly Accuracy

Fastest Measurement Speed

Connectivity

Price

DM3058

5.5 digits

0.015%

123 rdgs/s

USB, GPIB（only DM3058）, LAN(only DM3058), RS232

DM3058E

5.5 digits

0.015%

123 rdgs/s

USB，RS232

Optinal Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
CB-DB9-DB9-F-F-150	RS232 Data line，2 Female，150cm	₹ 1,650	₹ 1,947
CB-USBA-USBB-FF-150	USB Data line，150cm	₹ 2,250	₹ 2,655
RM-DM3000	Rack mount kit	₹ 14,850	₹ 17,523
LD-DM	Multimeter test lead	₹ 3,750	₹ 4,425

User Guide

Name	Version	Release Time	Download
📄 DM858 UserGuide	UGC11104-1110	2025-12-16
📄 DM_CalibrationGuide_EN	CGC13100-1110	2026-04-14

Datasheet

Name	Version	Release time	Download
📄 DM3058-E DataSheet	V2.0	2024-06-18

Programming Guide

Name	Version	Release time	Download
📄 DM3058 ProgrammingGuide	V1.0	2019-08-29

Quick Guide

Name	Version	Release time	Download
📄 DM3058 QuickGuide	v1.0	2021-11-24
