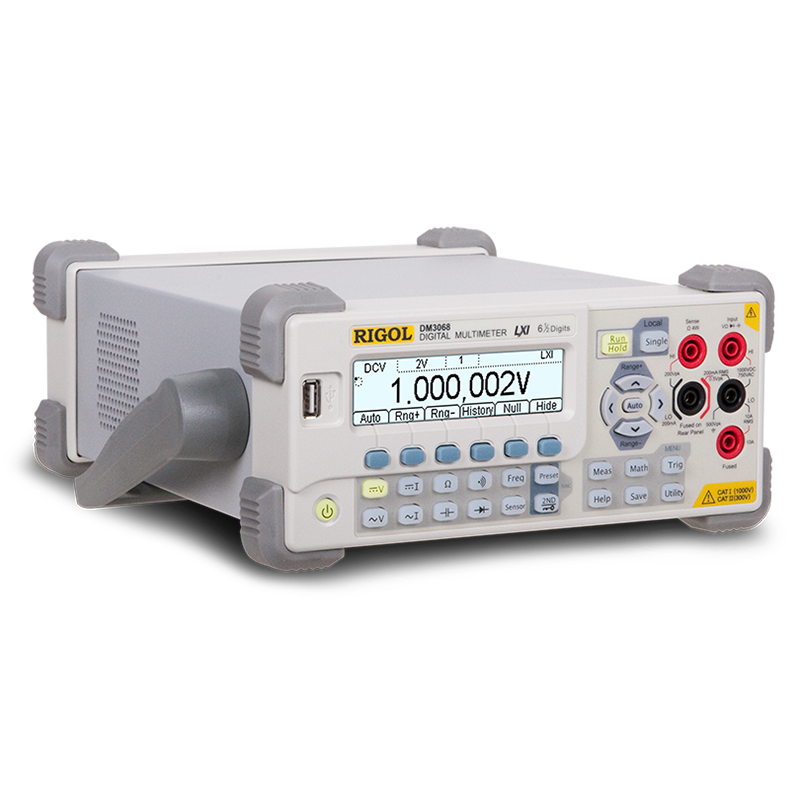

DM3068

Multimeters

DM3068 series digital multimeter has the highest accuracy of 6.5 bits. It is designed for the test requirements of high accuracy, multi-function and automatic measurement, and integrates the functions of automatic measurement, multiple mathematical transformations and arbitrary sensor measurement. Compatible with the mainstream multimeter command set, it can meet the needs of research and development, quality verification, automatic production, education and training and other fields.

Accuracy

6.5 digits

DCV Yearly Accuracy

0.0035%

Fastest Measurement Speed

10K rdgs/s

Connectivity

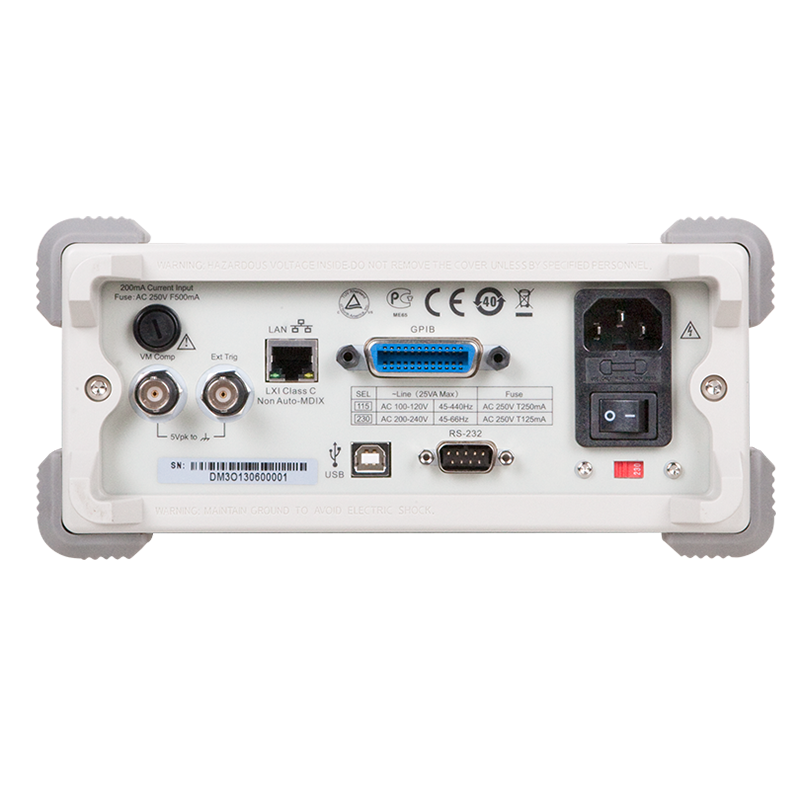

USB, GPIB, LAN(LXI-C), RS232

Downloads

UserGuide

Downloads

DataSheet

Select Model

Models

Clear

Qty:

Explore the DM3068 series digital multimeters

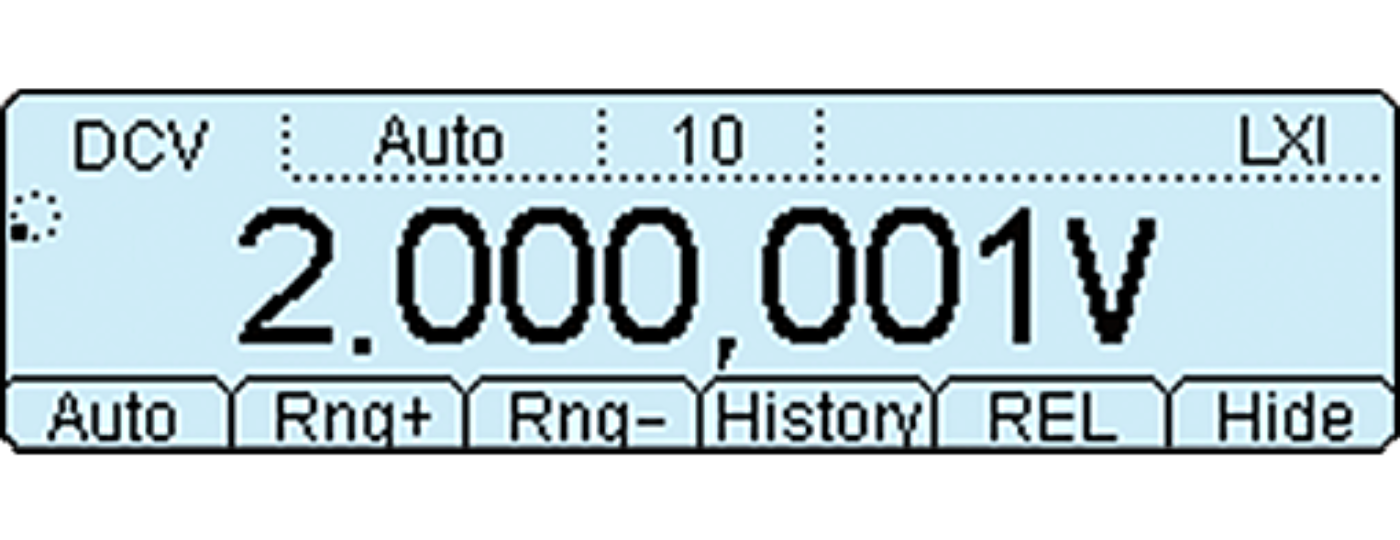

True 6 ½-digit reading

It has ± 2,200,000 counts, which is much larger than the ± 1,200,000 of similar products. Under the same reading resolution, it has a larger measurement range than similar products.

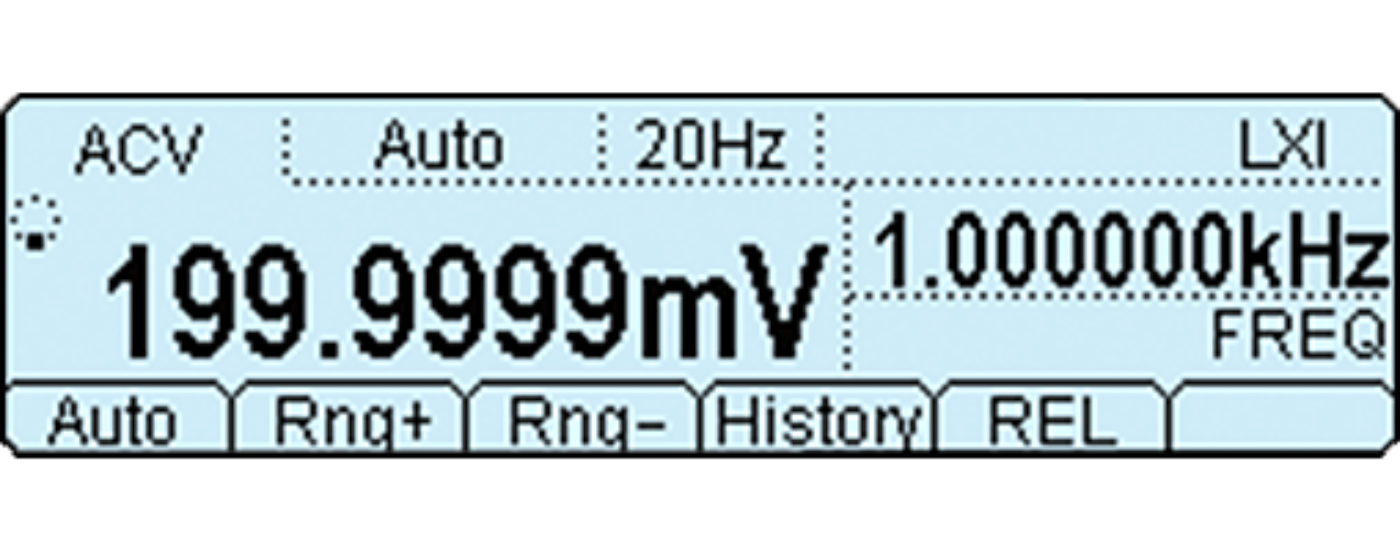

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

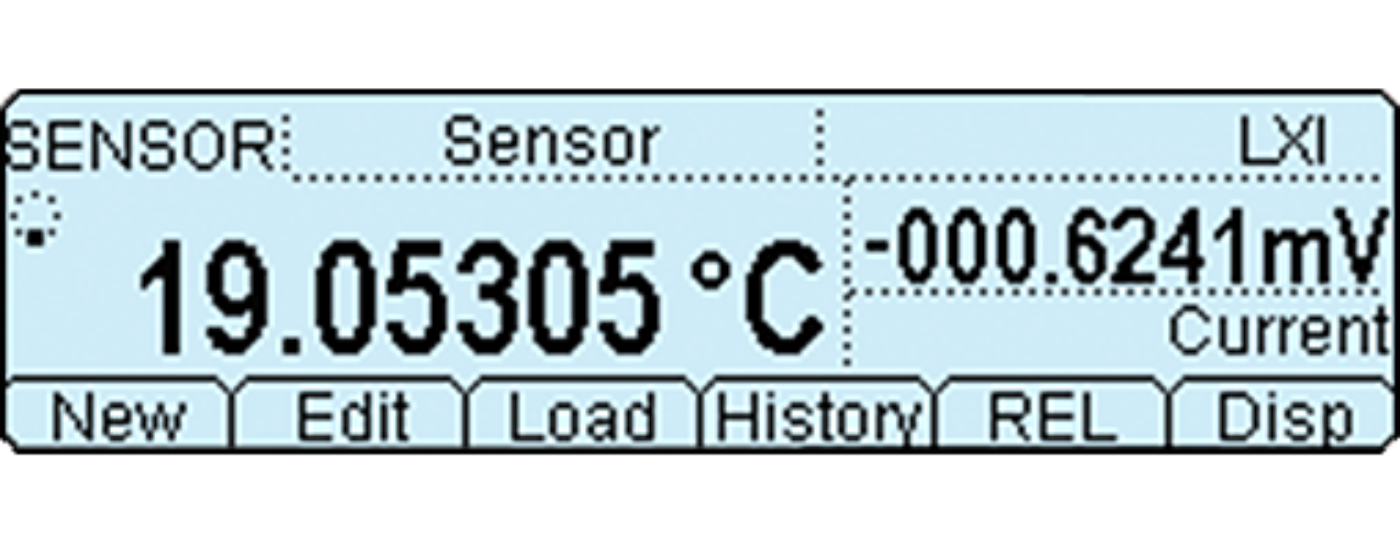

Support Any Sensor Measurement

The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.

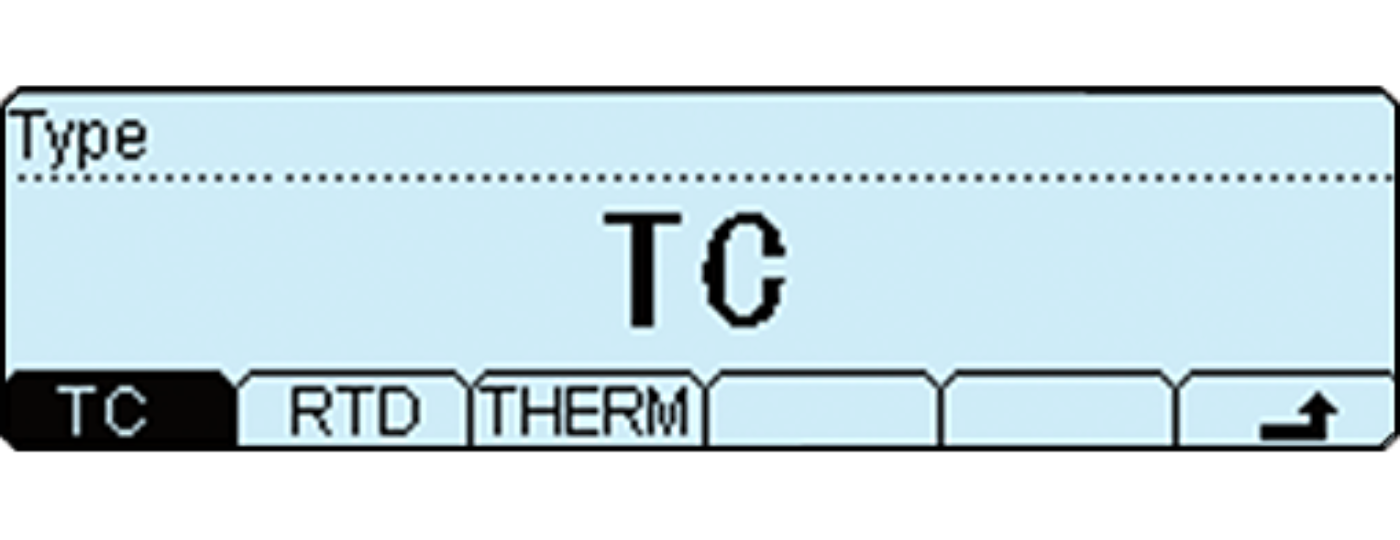

Supports a Variety of Temperature Sensors

Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.

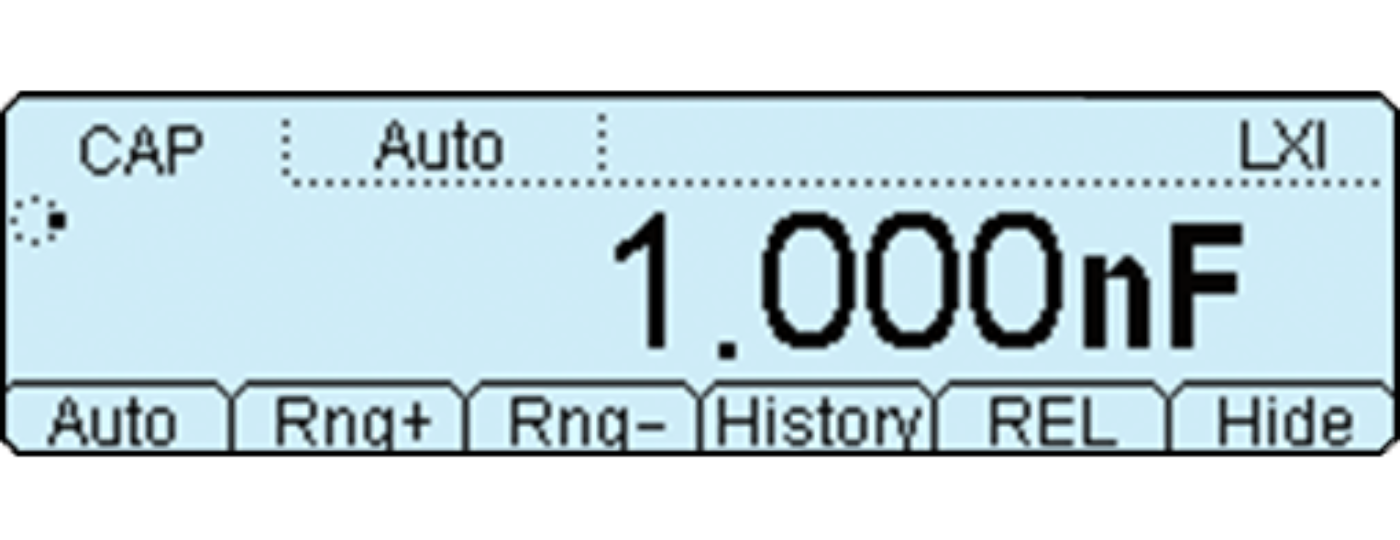

Capacitance Test Function

It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).

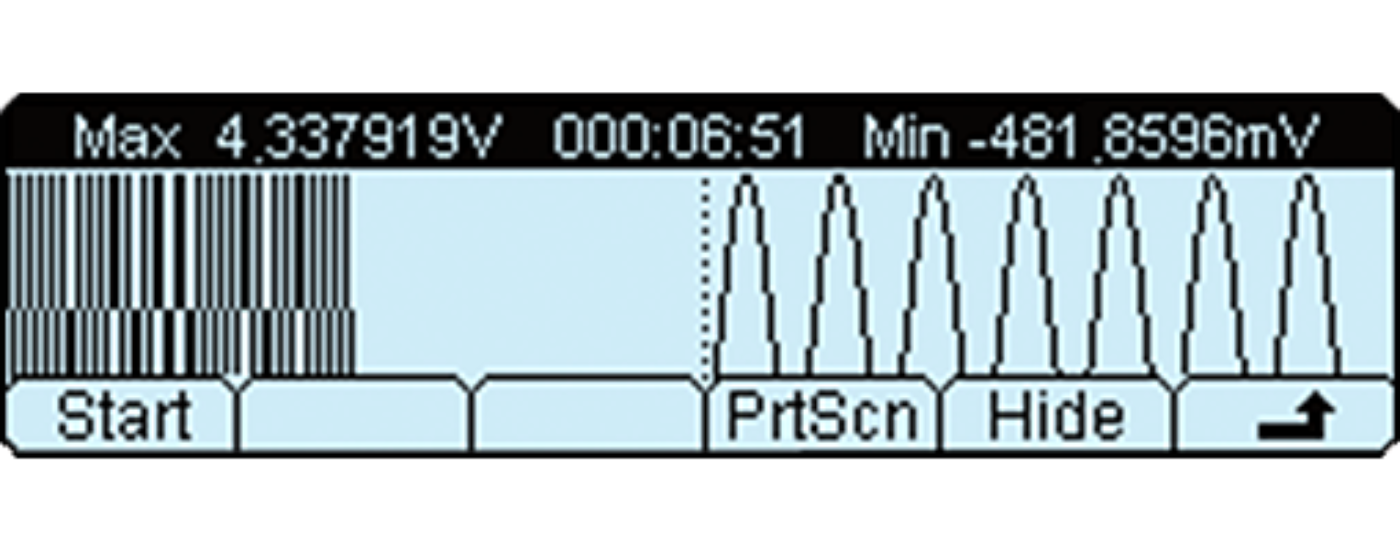

Trend Chart Display

By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.

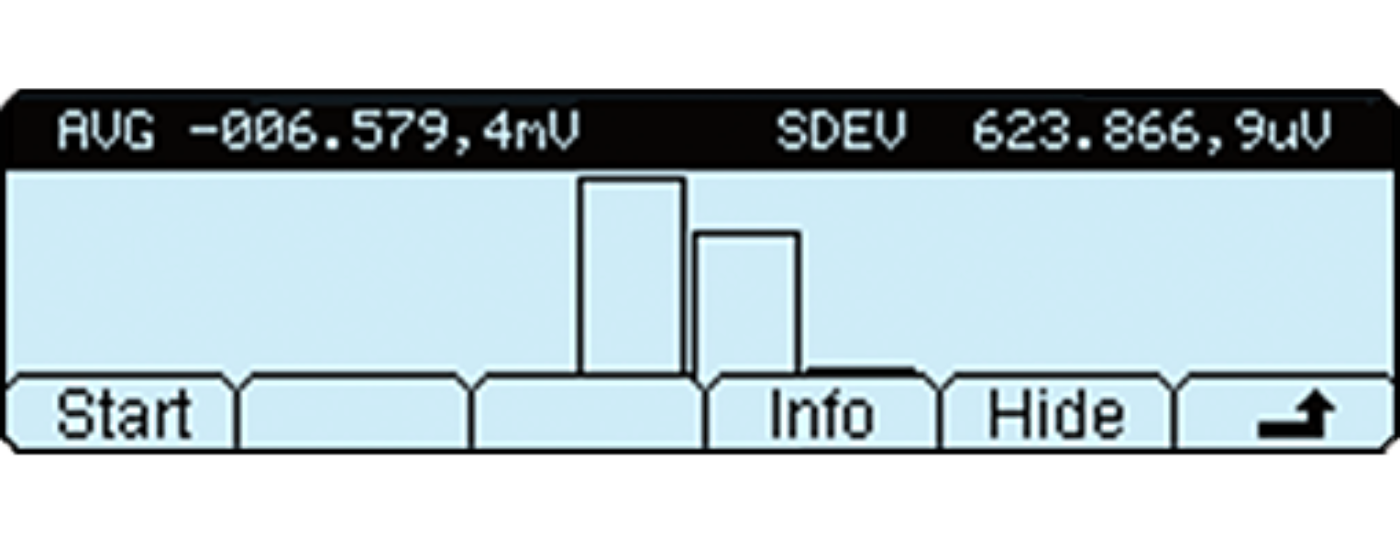

Histogram Display

Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.

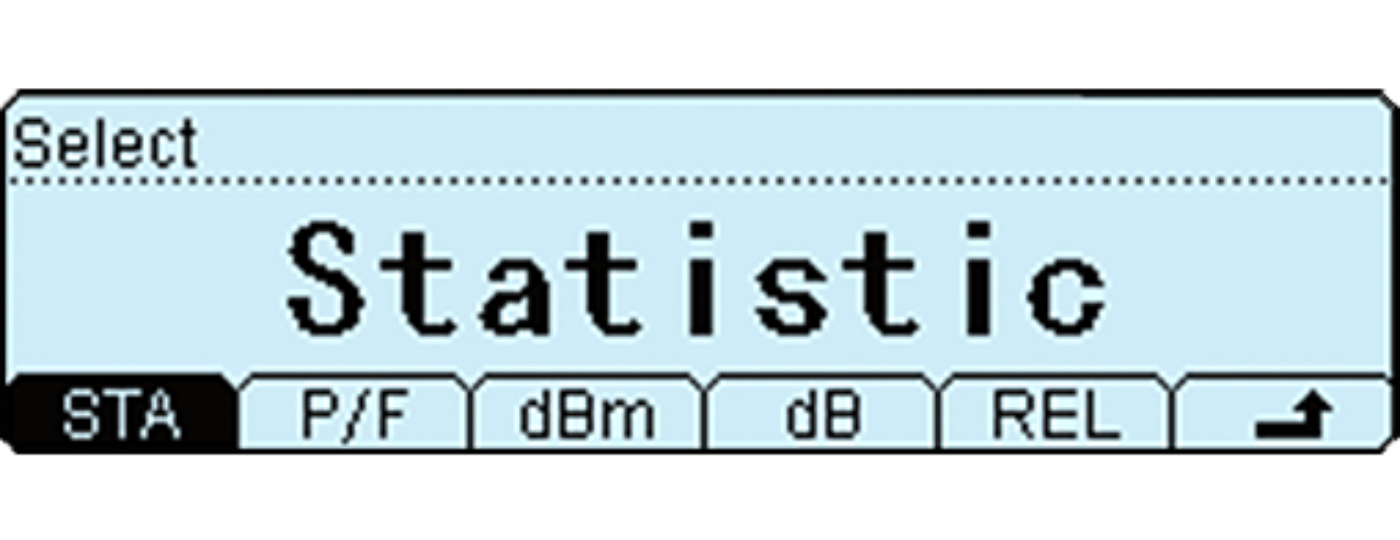

Statistical analysis function

Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.

DM3068

Model

Accuracy

DCV Yearly Accuracy

Fastest Measurement Speed

Connectivity

Price

DM3068

6.5 digits

0.0035%

10K rdgs/s

USB, GPIB, LAN(LXI-C), RS232

Optinal Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
CB-DB9-DB9-FF-150	RS232 Data line,2 Female，150cm	-	-
CB-USBA-USBB-FF-150	USB Data line，150cm	₹ 2,250	₹ 2,655
RM-DM3000	Rack mount kit	₹ 14,850	₹ 17,523
LD-DM	Multimeter test lead	₹ 3,750	₹ 4,425

User Guide

Name	Version	Release Time	Download
📄 DM3068 UserGuide	V1.0	2024-02-19
📄 DM_CalibrationGuide_EN	CGC13100-1110	2026-04-14

Datasheet

Name	Version	Release time	Download
📄 DM3068 DataSheet	V1.0	2024-02-19

Programming Guide

Name	Version	Release time	Download
📄 DM3068 ProgrammingGuide	V1.0	2021-10-27

Quick Guide

Name	Version	Release time	Download
📄 DM3068 QuickGuide	V1.0	2021-11-24
