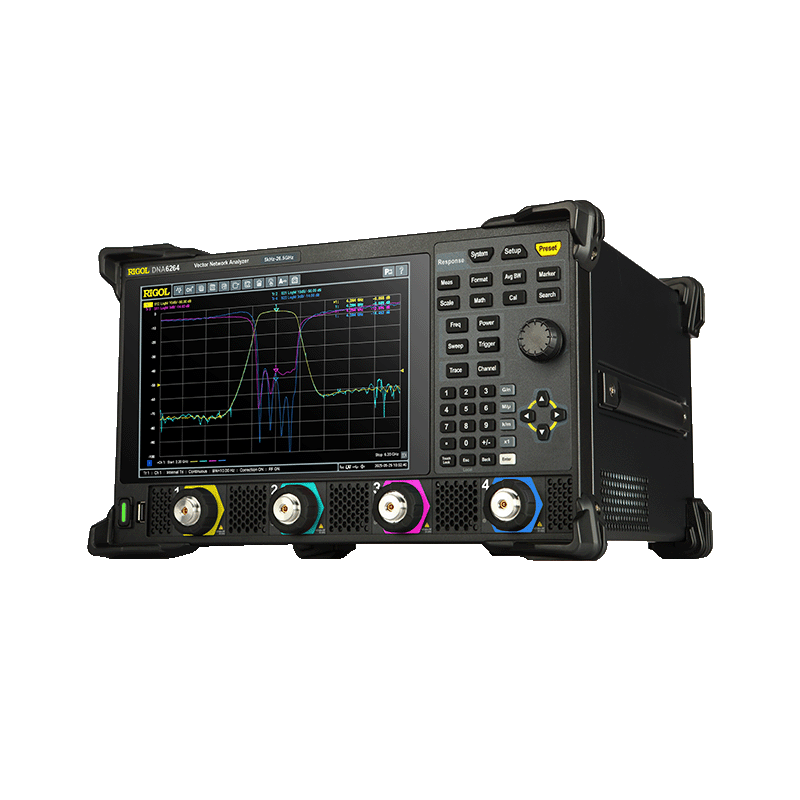

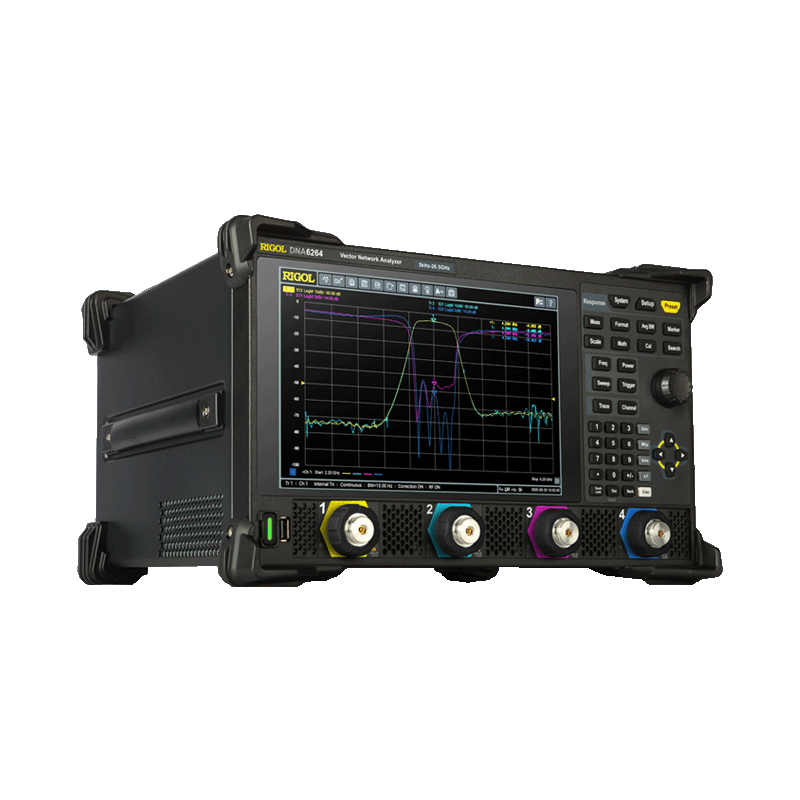

DNA6000

Vector Network Analyzer

The DNA6000 Vector Network Analyzer is the ideal choice for your lab and production line. Its solid benchtop form factor provides stable and reliable measurements, making it perfect for long-duration and repetitive testing tasks. Whether you’re debugging devices in R&D or performing quality control on the production line, it accurately characterizes the performance of components like filters, amplifiers, and cables. Ample connectivity options also simplify connections and automated testing, making it a dependable partner in your daily workflow.

Frequency Range

5 kHz ~ 26.5 GHz

Ports

4 Connector

3.5mm (m)

Downloads

User Guide

Downloads

DataSheet

Models

Clear

Qty:

Explore the DNA6000 Series Vector Network Analyzer

Broad Frequency Range for Diverse Applications

Delivering a frequency range from 5 kHz to 26.5 GHz with 4 or 2 test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Superior Performance & Stability

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Advanced Analysis Tools Built-In

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

True Device Performance via De-embedding

See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

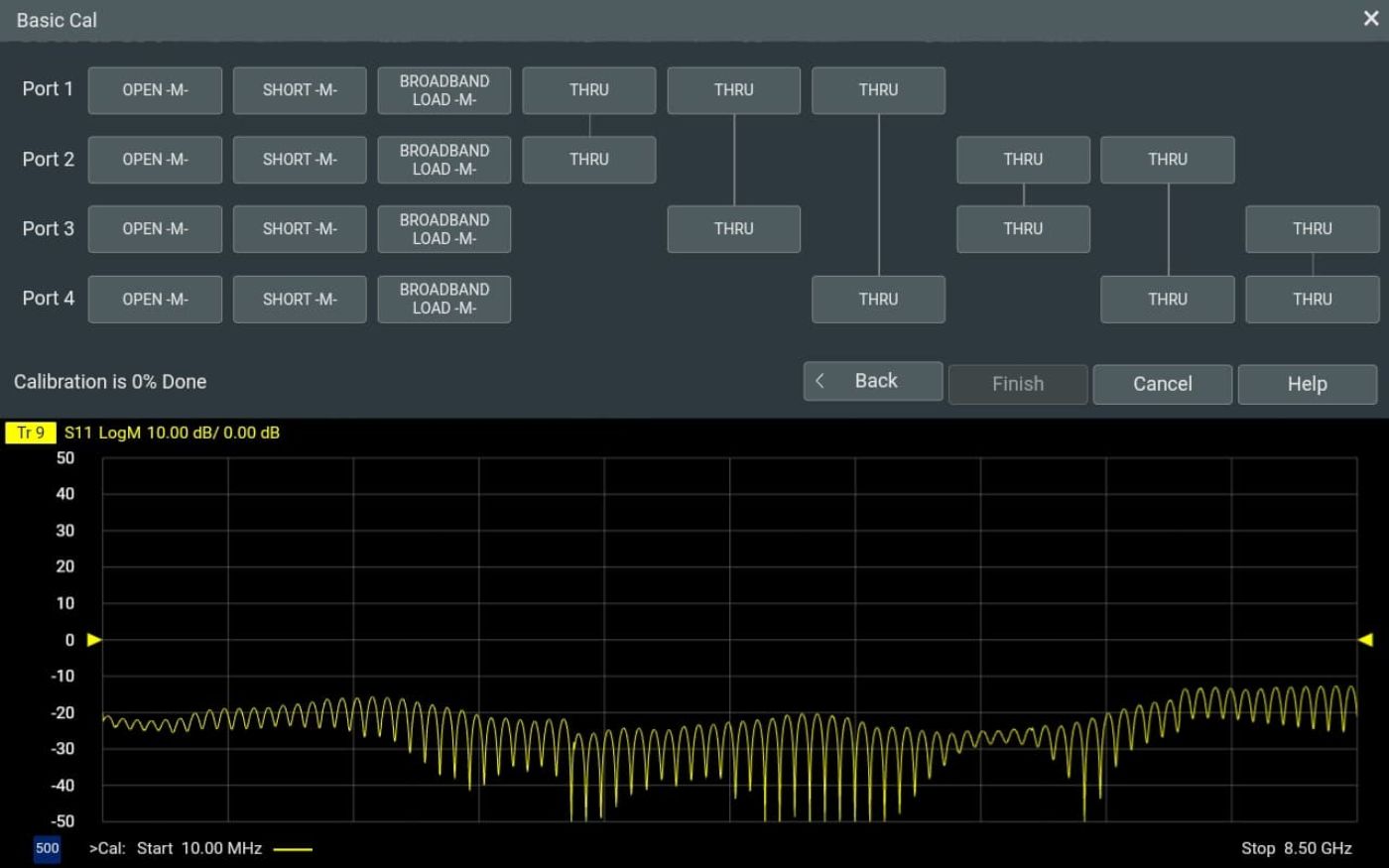

Intuitive Calibration

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Mechanical or Electronic Calibration

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Complete Accessory Support

Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

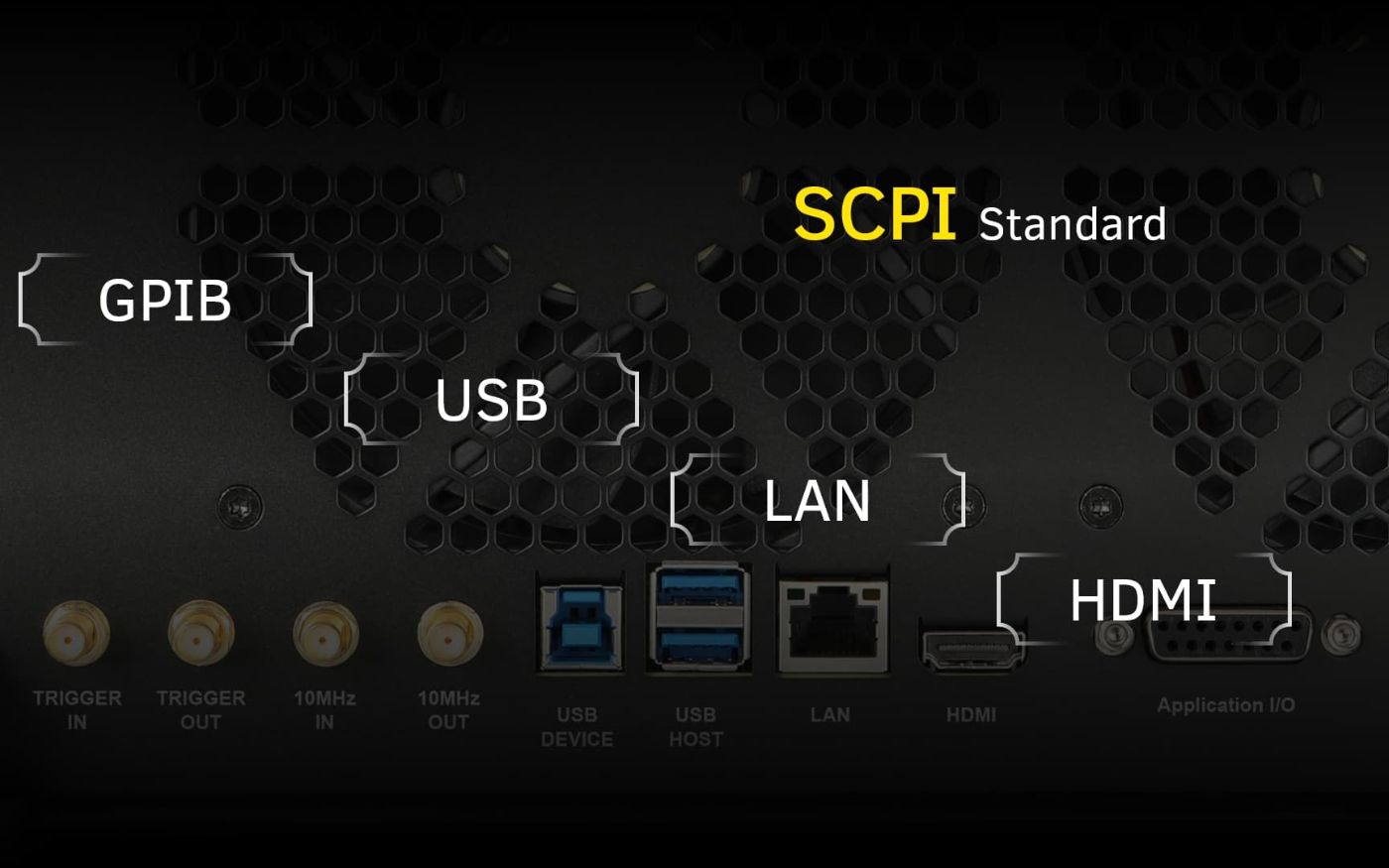

Drop-In Compatibility

Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

DNA6000

Model

Frequency Range

Ports

Connector

Price

DNA6264

5 kHz ~ 26.5 GHz

4 3.5mm (m)

DNA6262

5 kHz ~ 26.5 GHz

2 3.5mm (m)

DNA6204

5 kHz ~ 20 GHz

4 3.5mm (m)

DNA6202

5 kHz ~ 20 GHz

2 3.5mm (m)

DNA6144

5 kHz ~ 14 GHz

4 N (f)

DNA6142

5 kHz ~ 14 GHz

2 N (f)

DNA6084

5 kHz ~ 8.5 GHz

4 N (f)

DNA6082

5 kHz ~ 8.5 GHz

2 N (f)

Functional Options

Model	Description	INR List Price	INR (Inclusive of GST)
DNA-TDA10	Time Domain Analysis	₹ 168,600	₹ 198,948
DNA-DTF10	Distance to Fault	₹ 101,600	₹ 119,298

Calibration Modules and Kits

Model	Description	INR List Price	INR (Inclusive of GST)
MCAL104-NM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω	₹ 44,850	₹ 52,923
MCAL104-NF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω	₹ 44,850	₹ 52,923
MCAL109-NM1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω	₹ 168,600	₹ 198,948
MCAL109-NF1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω	₹ 168,600	₹ 198,948
MCAL109-NK1	Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω	₹ 314,850	₹ 371,523
MCAL104-SM1	Mechanical Calibration Kit, DC ~ 4.5 GHz, 3.5 mm (m)	₹ 56,100	₹ 66,198
MCAL104-SF1	Mechanical Calibration Kit, DC ~ 4.5 GHz, 3.5 mm (f)	₹ 56,100	₹ 66,198
MCAL109-SM1	Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (m)	₹ 202,350	₹ 238,773
MCAL109-SF1	Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (f)	₹ 202,350	₹ 238,773
MCAL109-SK1	Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (m & f)	₹ 337,350	₹ 398,073
MCAL126-35K1	Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f)	₹ 506,100	₹ 597,198
MCAL226-35F5	4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f)	₹ 404,850	₹ 477,723
ECAL109-NF2	Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports	₹ 404,850	₹ 477,723
ECAL114-NF2	Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports	₹ 449,850	₹ 530,823
ECAL126-35F2	Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports	₹ 607,350	₹ 716,673

Cables and Connectors

Model	Description	INR List Price	INR (Inclusive of GST)
CB-3.5M-3.5M-100-L-26G	RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) - 3.5 mm (m), 100 cm	₹ 43,800	₹ 51,684
CB-SMAM-SMAM-100-L-18G	RF Cable, DC ~ 18 GHz, SMA (m) - SMA (m), 100 cm	₹ 38,100	₹ 44,958
CB-NM-NM-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - N (m), 100 cm	₹ 38,100	₹ 44,958
CB-NM-SMAM-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - SMA (m), 100 cm	₹ 38,100	₹ 44,958
CB-NM-3.5M-100-L-18G	RF Cable, DC ~ 18 GHz, N (m) - 3.5mm (m), 100 cm	₹38,100	₹ 44,958
CB-NMD3.5F-3.5F-63-L-26G	VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) - 3.5mm (f), 63.5 cm	₹ 112,350	₹ 132,573
AD-NF-NF-L-18G	Adapter, N (f) - N (f), DC ~ 18GHz	₹ 4,350	₹ 5,133
AD-NM-NM-L-18G	Adapter, N (m) - N(m), DC ~ 18GHz	₹ 7,800	₹ 9,204
AD-SMAF-SMAF-L-18G	Adapter, SMA (f) - SMA (f), DC ~ 18GHz	₹ 5,550	₹ 6,549
AD-SMAM-SMAM-L-18G	Adapter, SMA (m) - SMA (m), DC ~ 18GHz	₹ 5,550	₹ 6,549
AD-3.5F-3.5F-L-26G	Adapter, 3.5mm (f) - 3.5mm (f), DC ~ 26.5GHz	₹ 8,850	₹ 10,443
AD-3.5M-3.5M-L-26G	Adapter, 3.5mm (m) - 3.5mm (m), DC ~ 26.5GHz	₹ 8,850	₹ 10,443
AD-NM-BNCF-L-4G	Adapter, N (m) - BNC (f), DC ~ 4GHz	₹ 8,850	₹ 10,443
AD-SMAM-NM-L-18G	Adapter, SMA (m) - N (m), DC ~ 18GHz	₹ 5,550	₹ 6,549
AD-SMAF-NM-L-18G	Adapter, SMA (f) - N (m), DC ~ 18GHz	₹ 5,550	₹ 6,549
AD-SMAF-BNCM-L-4G	Adapter, SMA (f) - BNC (m), DC ~ 4GHz	₹ 8,850	₹ 10,443
AD-3.5M-2.92F-L-26G	Adapter, 3.5mm (m) - 2.92 (f), DC ~ 26.5GHz	₹ 11,100	₹ 13,098
AD-3.5F-2.92M-L-26G	Adapter, 3.5mm (f) - 2.92 (m), DC ~ 26.5GHz	₹ 11,100	₹ 13,098

Other Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
TW8-8	Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors	₹ 24,600	₹ 29,028
TW12-19	Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors	₹ 24,600	₹ 29,028

General Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
RM6051	Thunderbird Platform Rack Mount Kit	₹ 28,050	₹ 33,099

User Manual

Name	Version	Release time	Download
📄 DNA6000_UserGuide_EN	UGR02101-1110	2026-03-02

Datasheet

Name	Version	Release time
📄 DNA6000_DataSheet_EN	UGR02101-1110	2026-03-02
📄 ECalModule_Datasheet_EN	ADS02103-1110	2026-04-15
📄 MechanicalCalibrationKits_EN	ADS03100-1110	2026-03-27
📄 RF-Cable_Datasheet_EN	ADS04101-1110	2026-04-15

Quick Guide

Name	Version	Release time	Download
📄 DNA6000_QuickGuide_EN	QGO02100-1110	2026-03-02

Programming Manual

Name	Version	Release time	Download
📄 DNA6000_ProgrammingGuide_EN	PGR02100-1110	2026-03-02

Performance Verification Manual

Name	Version	Release time	Download
📄 DNA6000_PerformanceVerification_EN	PVO02100-1110	2026-03-02
