DC Power Supplies
DP700
Number of Channels
1CH
Total Power
150W
Output per Channel
<-112dBc/Hz@1GHz,20kHz offset
Programming Resolution
10mV/10mA
Display Resolution
10mV/10mA
Readback Resolution
10mV/10mA
Downloads
Downloads
Select Model
Functions and Features

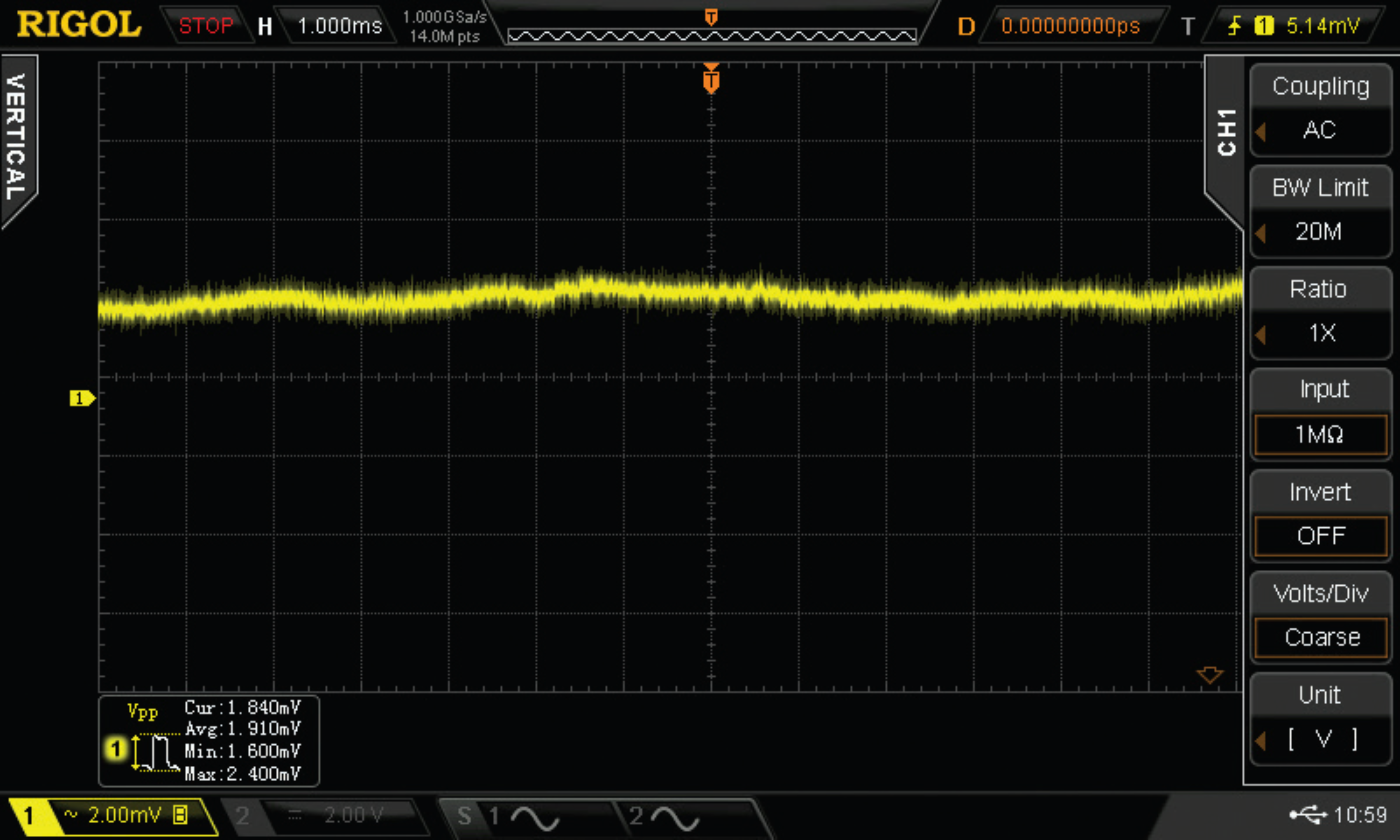

Low ripple noise
Ultra-low noise design (< 500uVrms/3mVpp) to meet users’ needs for high-purity power supply.

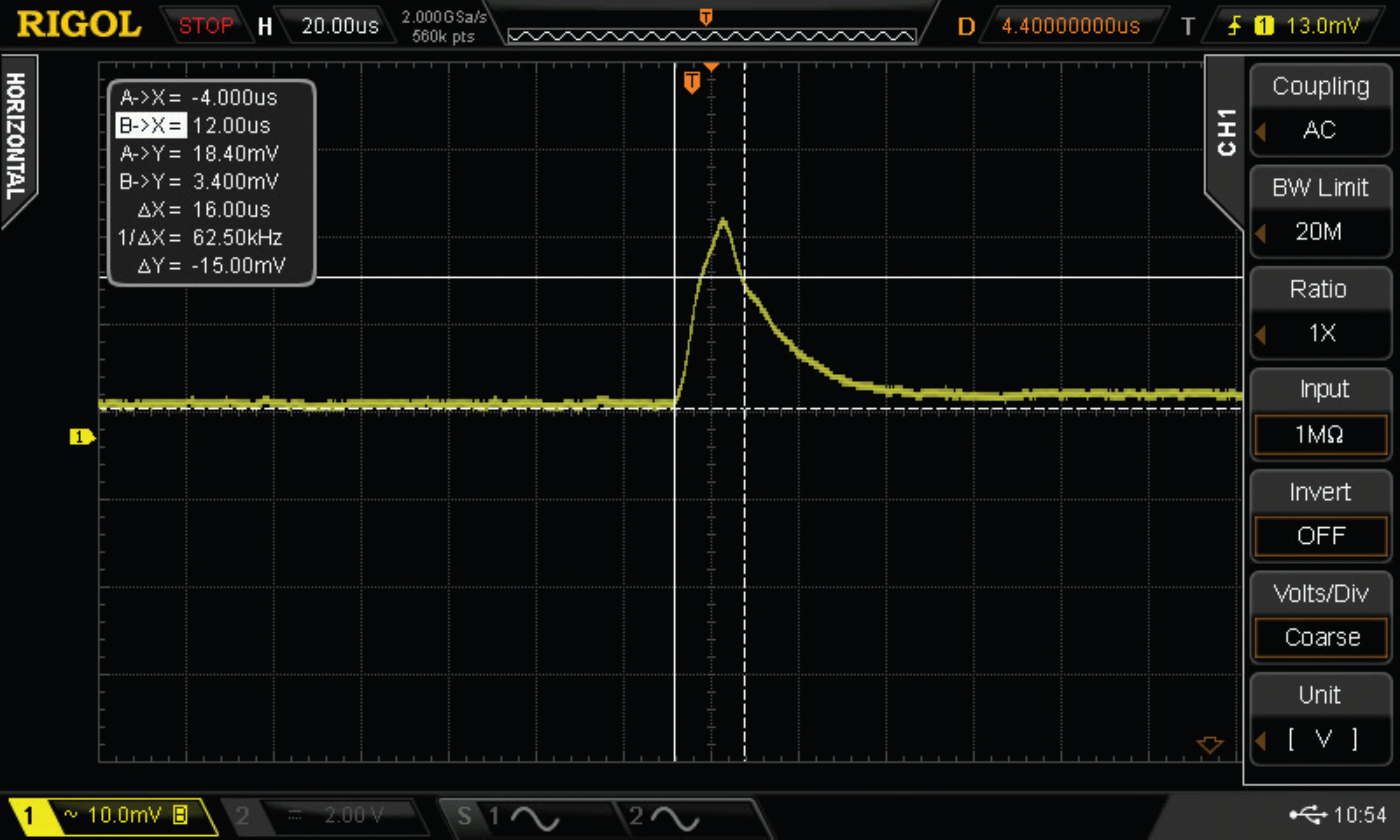

Fast transient response
With a transient response time of less than 50 μs, when the load current undergoes a transient change, the output voltage can quickly return to the set value, ensuring the output quality.

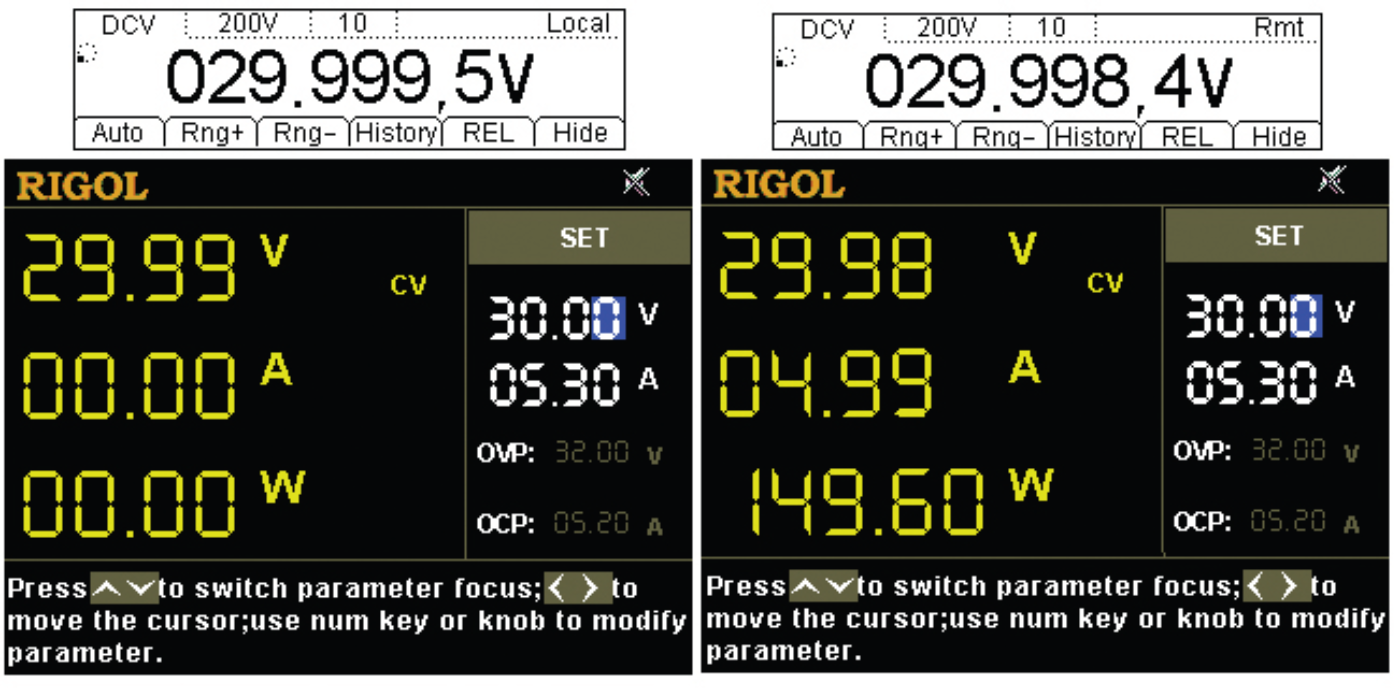

Excellent power supply & load regulation rate
A power supply regulation rate and load regulation rate of 0.01% ensure stable and safe output.

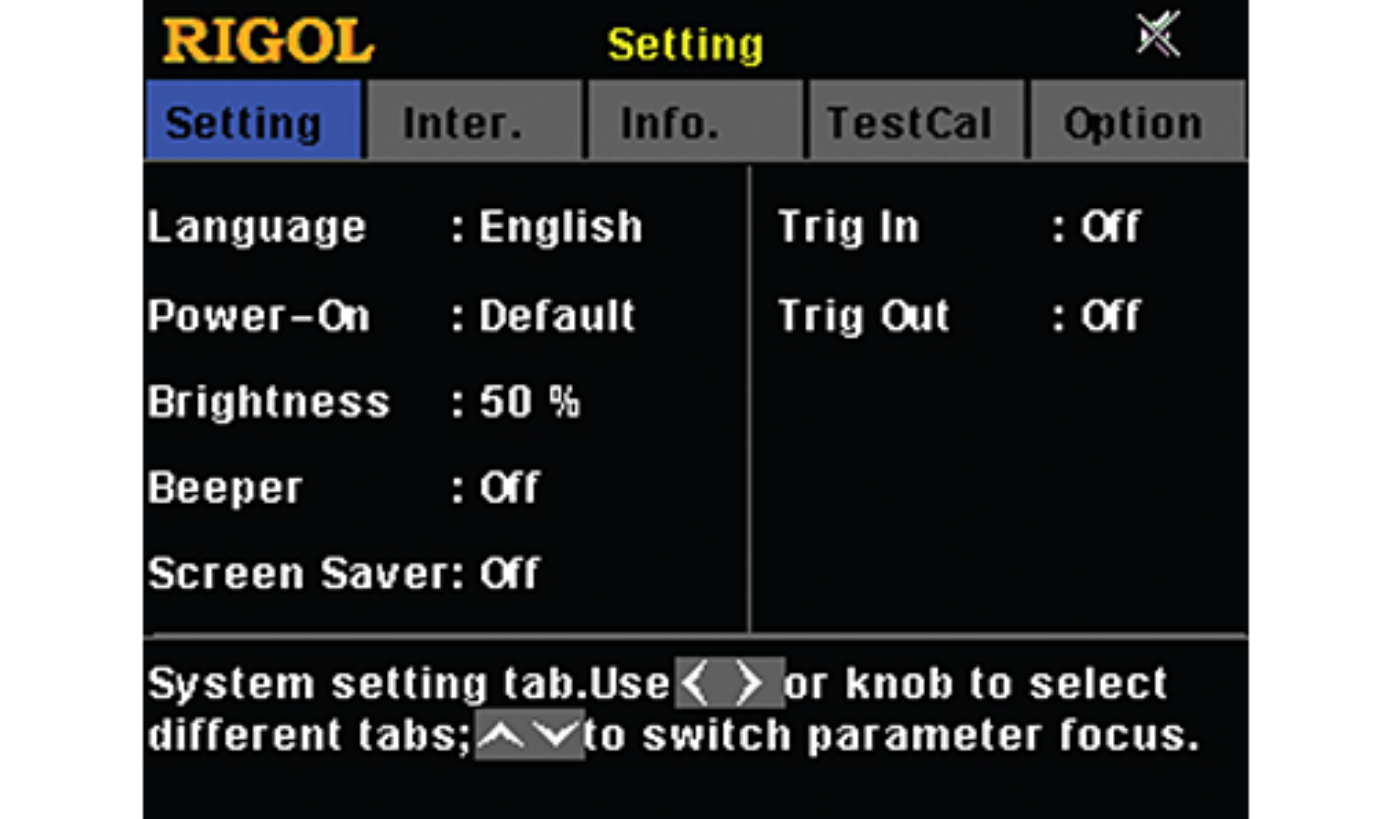

Convenient trigger function
When multiple power supplies are connected in series or parallel, using the external trigger function can make multiple power supplies output synchronously.

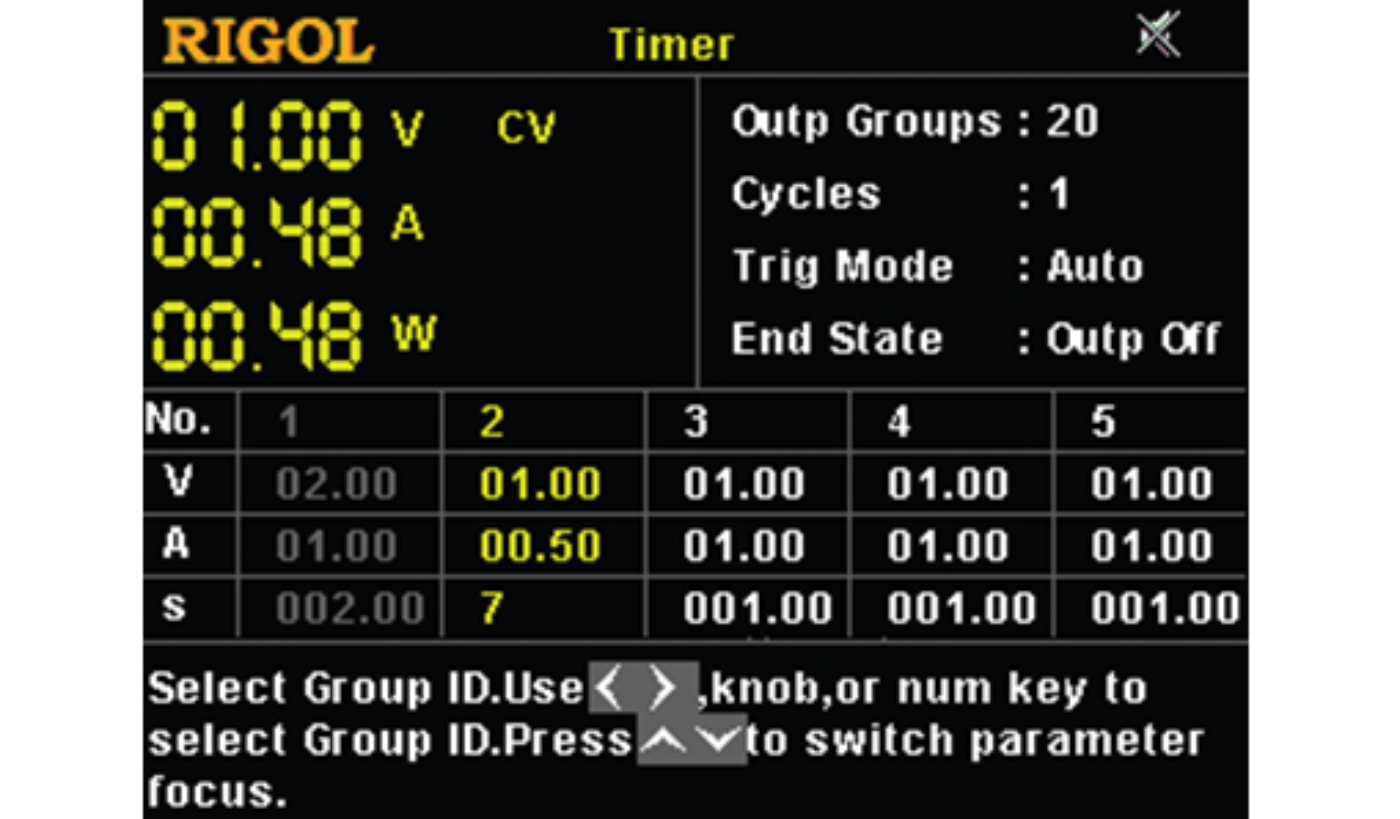

Timed output function
When the timed output is turned on, the voltage and current values for different time periods can be configured according to the pre-set timer parameters to provide variable voltage and current outputs for the load.

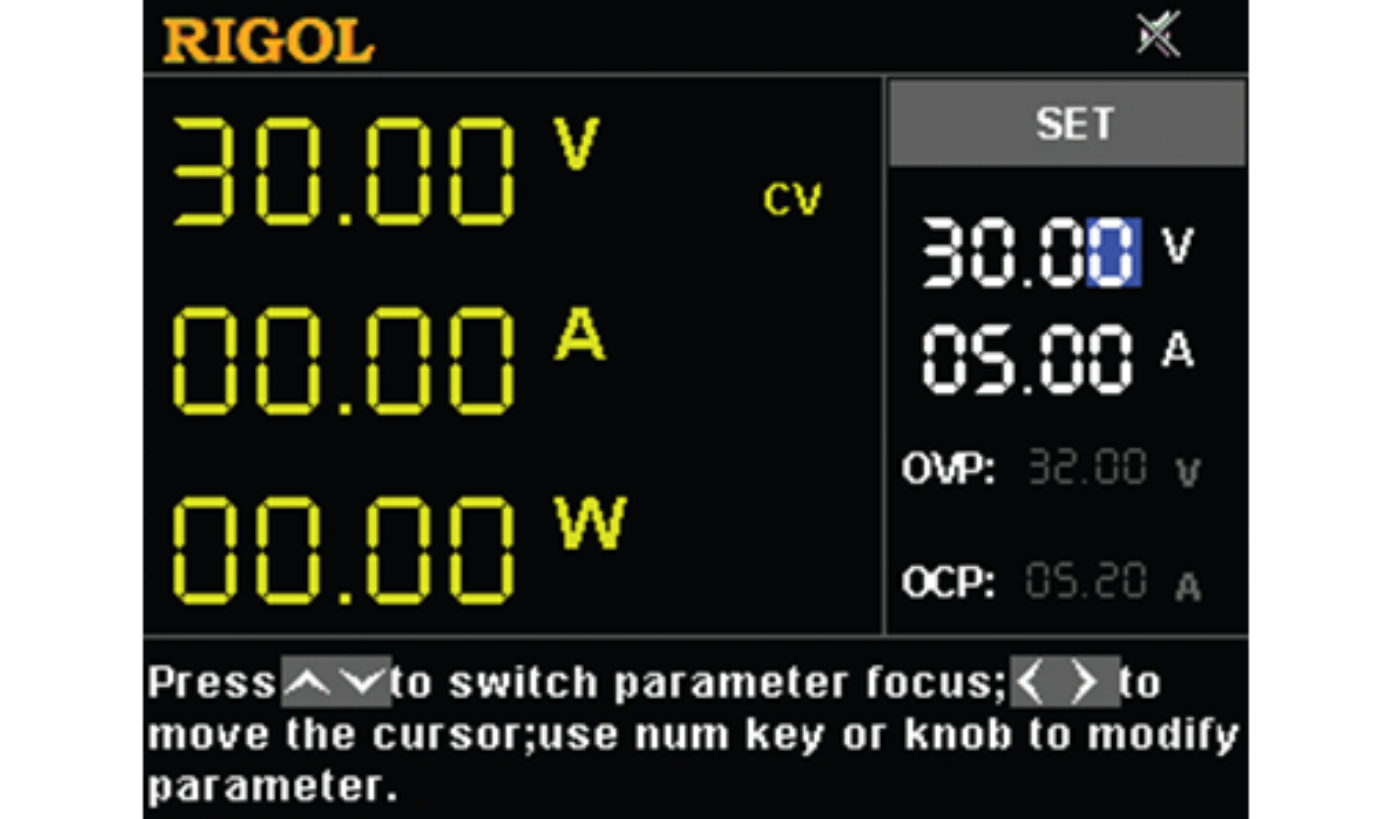

Overvoltage & Overcurrent Protection
Perfect overvoltage/overcurrent protection (OVP/OCP). Users can set the limits for overvoltage and overcurrent protection. When overvoltage or overcurrent occurs, the power supply will automatically turn off the output and give a prompt message.
DP700
Model
Number of Channels
Total Power
Output per Channel
Programming Resolution
Display Resolution
Readback Resolution
Communication Interface
Price
DP711
1CH
150W
30V/5A
10mV/10mA
10mV/10mA
10mV/10mA
RS232
DP712
1CH
150W
50V/3A
10mV/10mA
10mV/10mA
10mV/10mA
RS232
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| HIRES-DP700 | Provides high resolution options of 1mV and 1mA | ₹ 8,400 | ₹ 9,912 |
| TRIGGER-DP700 | Provide external trigger input and internal trigger output | ₹ 8,400 | ₹ 9,912 |
| TIMER-DP700 | Provide timing output function | ₹ 8,400 | ₹ 9,912 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| CB-DB9-DB9-F-F-150 | RS232 Data line，2 Female，150cm | ₹ 1,650 | ₹ 1,947 |
| RM-1-DP700 | Rack mount kit-1 machine | ₹ 12,000 | ₹ 14,160 |
| RM-2-DP700 | Rack mount kit-2 machines | ₹ 11,100 | ₹ 13,098 |
| RM-3-DP700 | Rack mount kit-1 machines | ₹ 11,100 | ₹ 13,098 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP700 UserGuide | V2.0 | 2024-06-21 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP700 DataSheet | V1.0 | 2019-08-29 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP700 ProgrammingGuide | V1.0 | 2019-08-29 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP700 QuickGuide | V1.0 | 2021-11-25 |
