DC Power Supplies
DP800
Number of Channels
3CH
Total Power
200W
Output per Channel
<-112dBc/Hz@1GHz,20kHz offset
Programming Resolution
1mV/0.1mA
Display Resolution
10mV/10mA
Readback Resolution
0.1mV/0.1mA
Downloads
Downloads
Select Model
Functions and Features

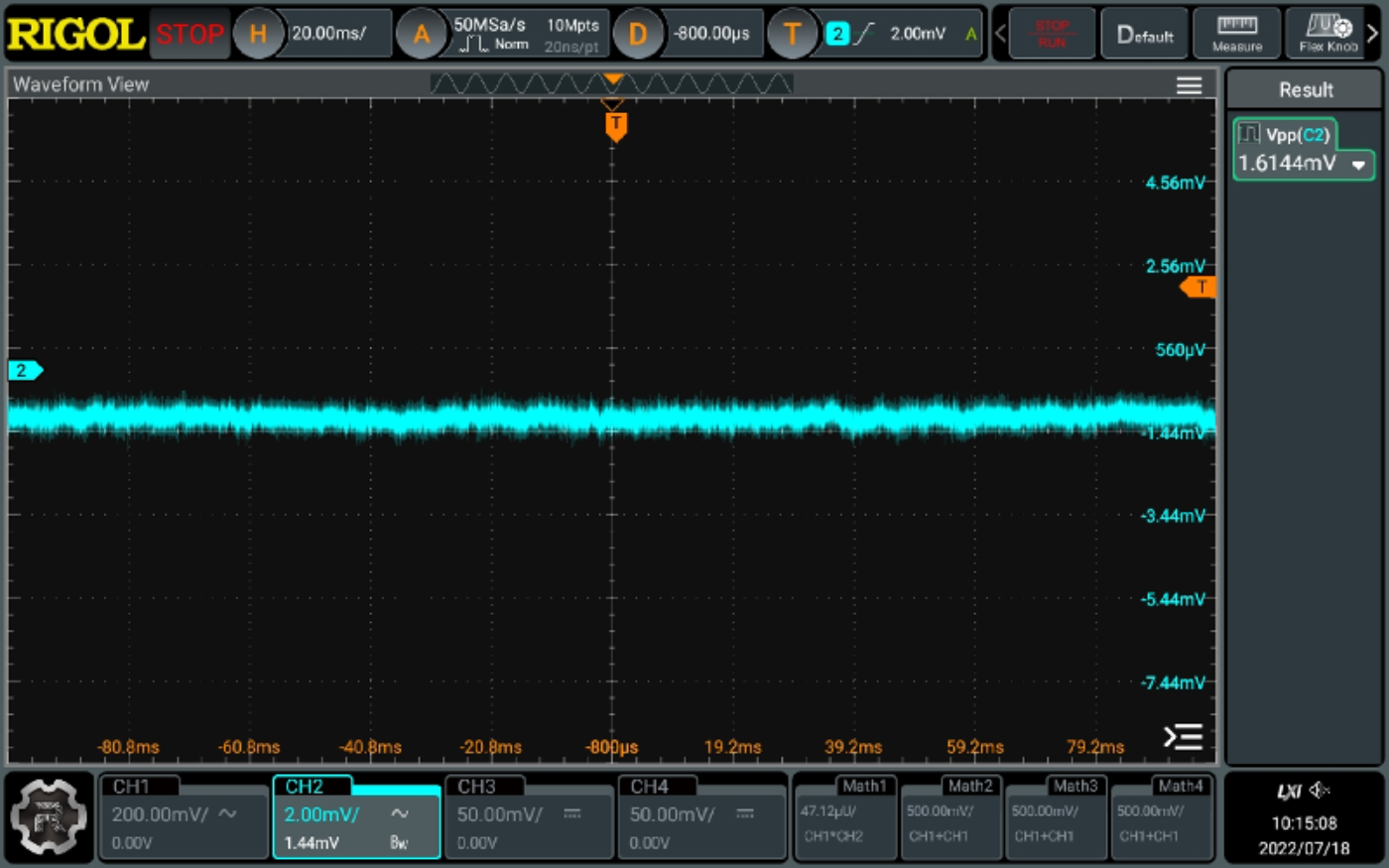

Low ripple noise: <350uVrms / 2mVpp
The ultra-low noise design meets the users’ needs for high-purity power supply.

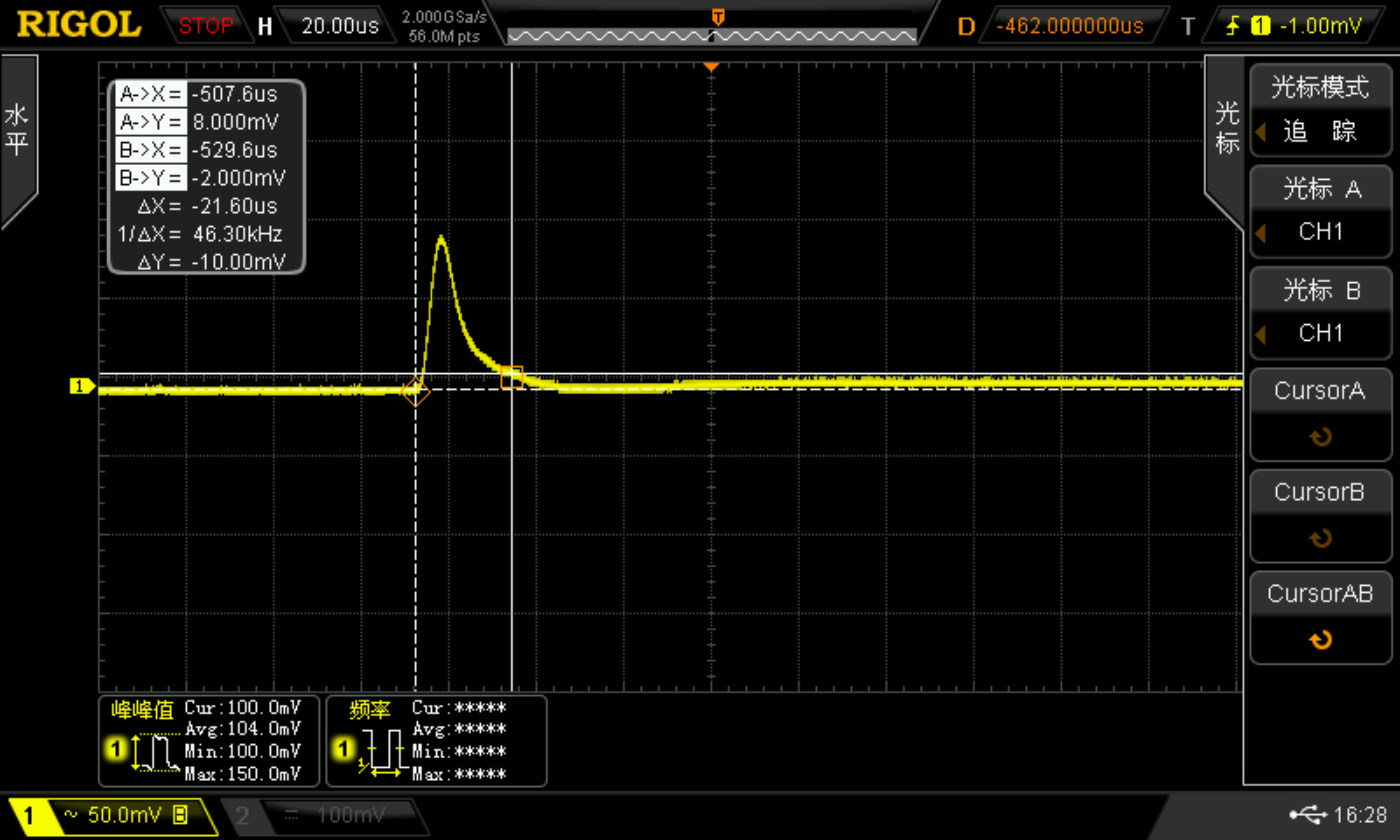

Fast transient response time: < 50us
A power supply response time of no more than 50 microseconds meets users’ needs for rapidly changing voltage waveforms.

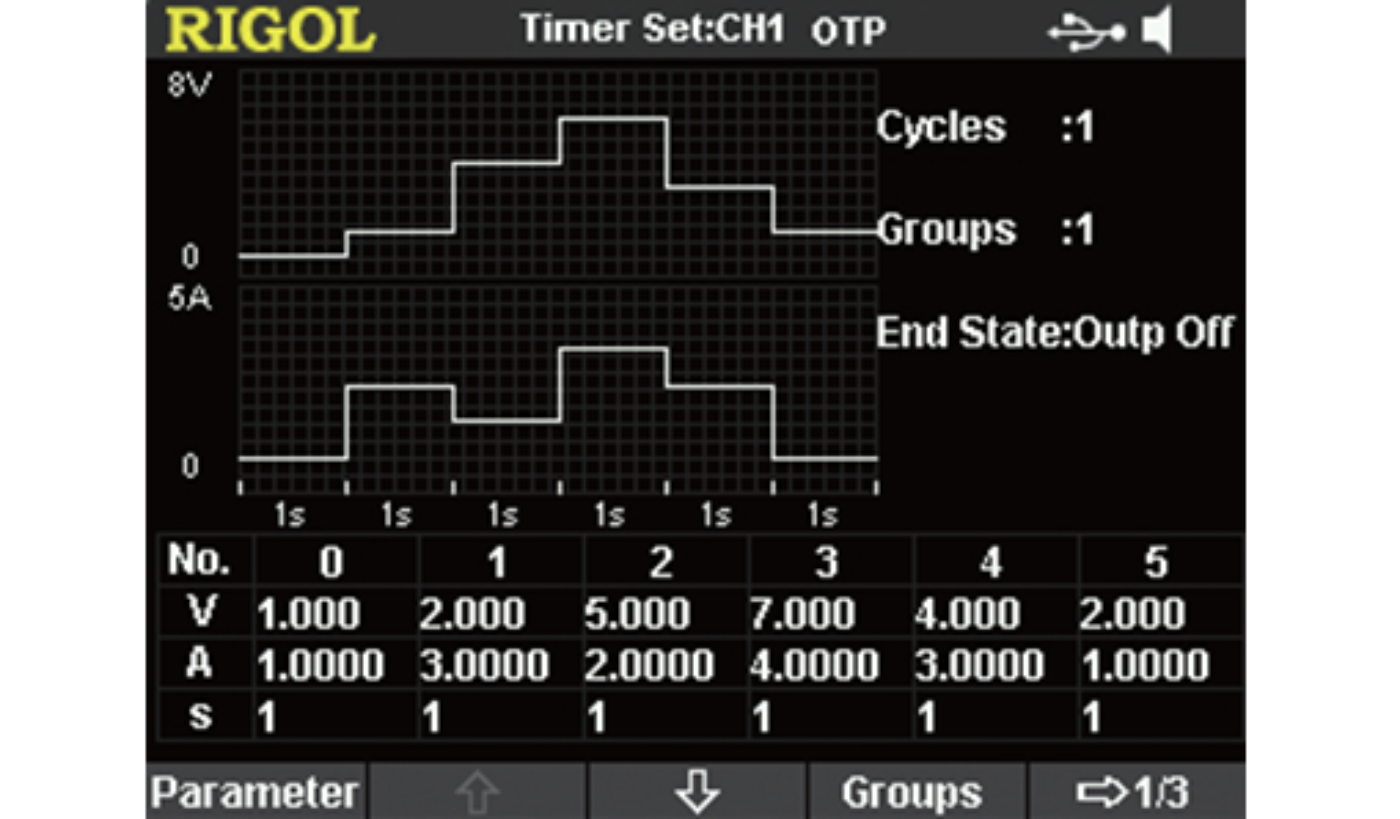

Standard timed output
When the timer is turned on, the instrument will output the preset voltage and current (up to 2048 sets). Users can set the number of output sets of the timer and set the output voltage, current, and timing time for each set. (The picture uses DP831A as an example).

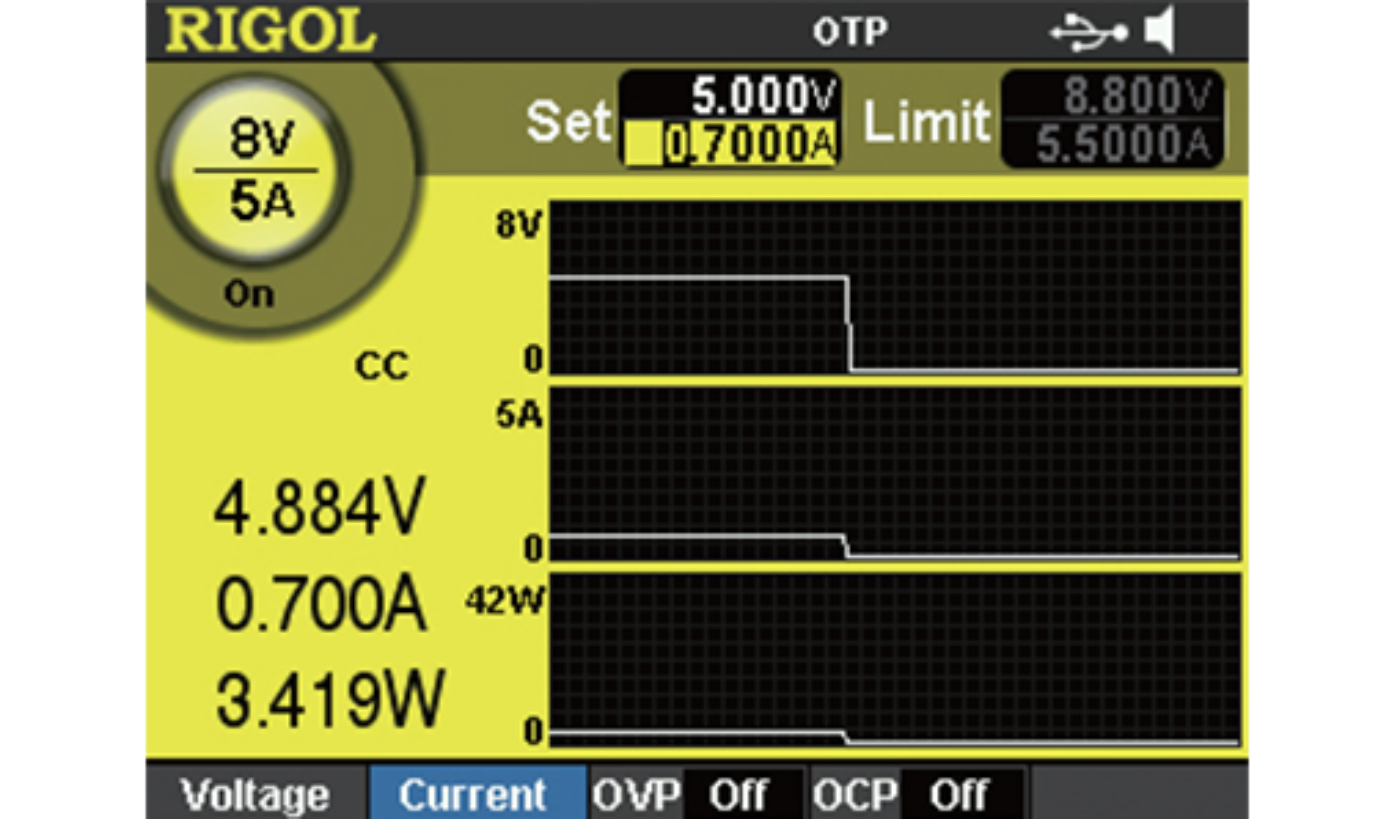

Built-in V/A/W measurement and waveform display
Measure in real-time and simultaneously display the changing trends of V/A/W parameters. (The picture takes DP831A as an example).

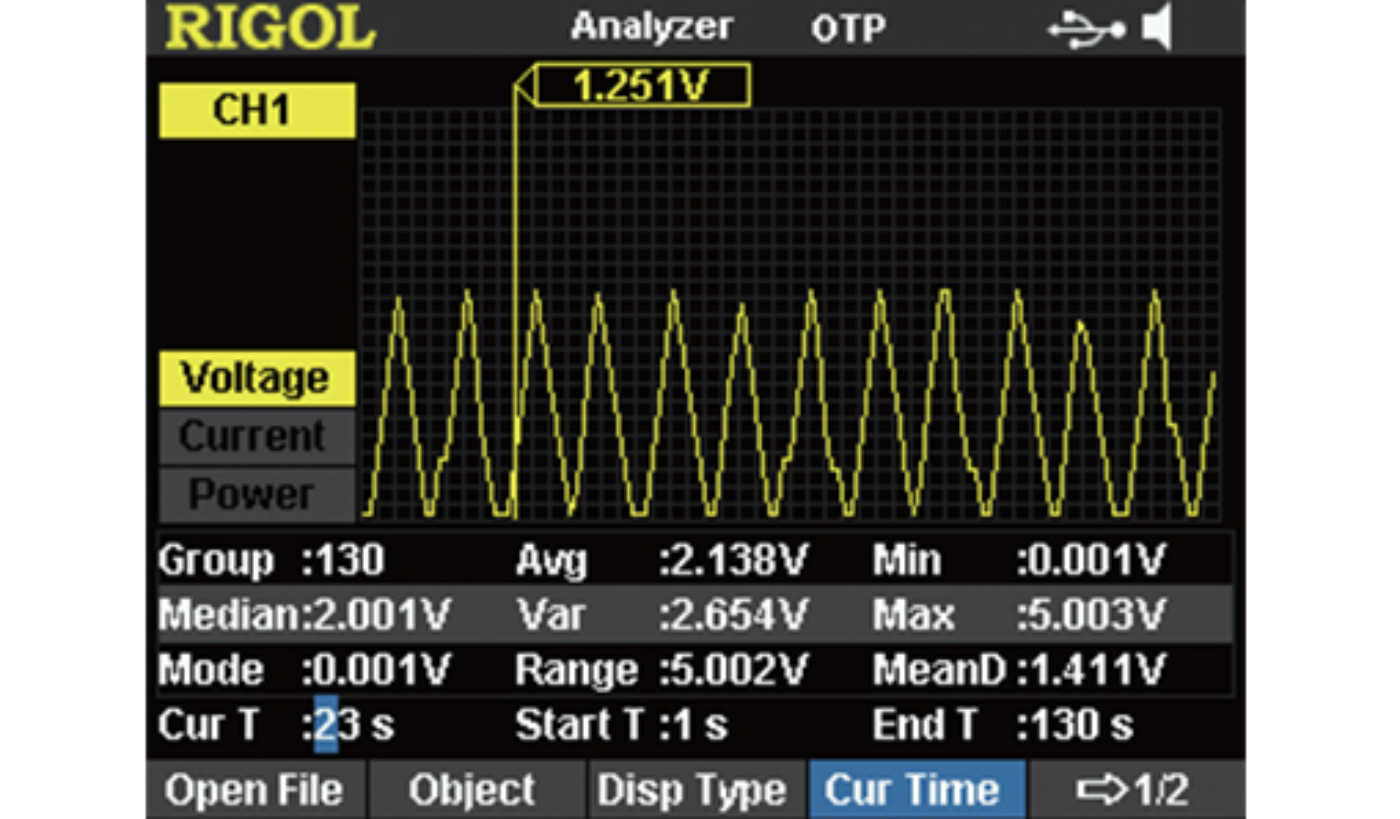

Functions such as output analysis, monitoring, and setting presets
It has functions such as output analysis, monitoring, and preset setting to achieve comprehensive monitoring and analysis. (The picture takes DP831A as an example).

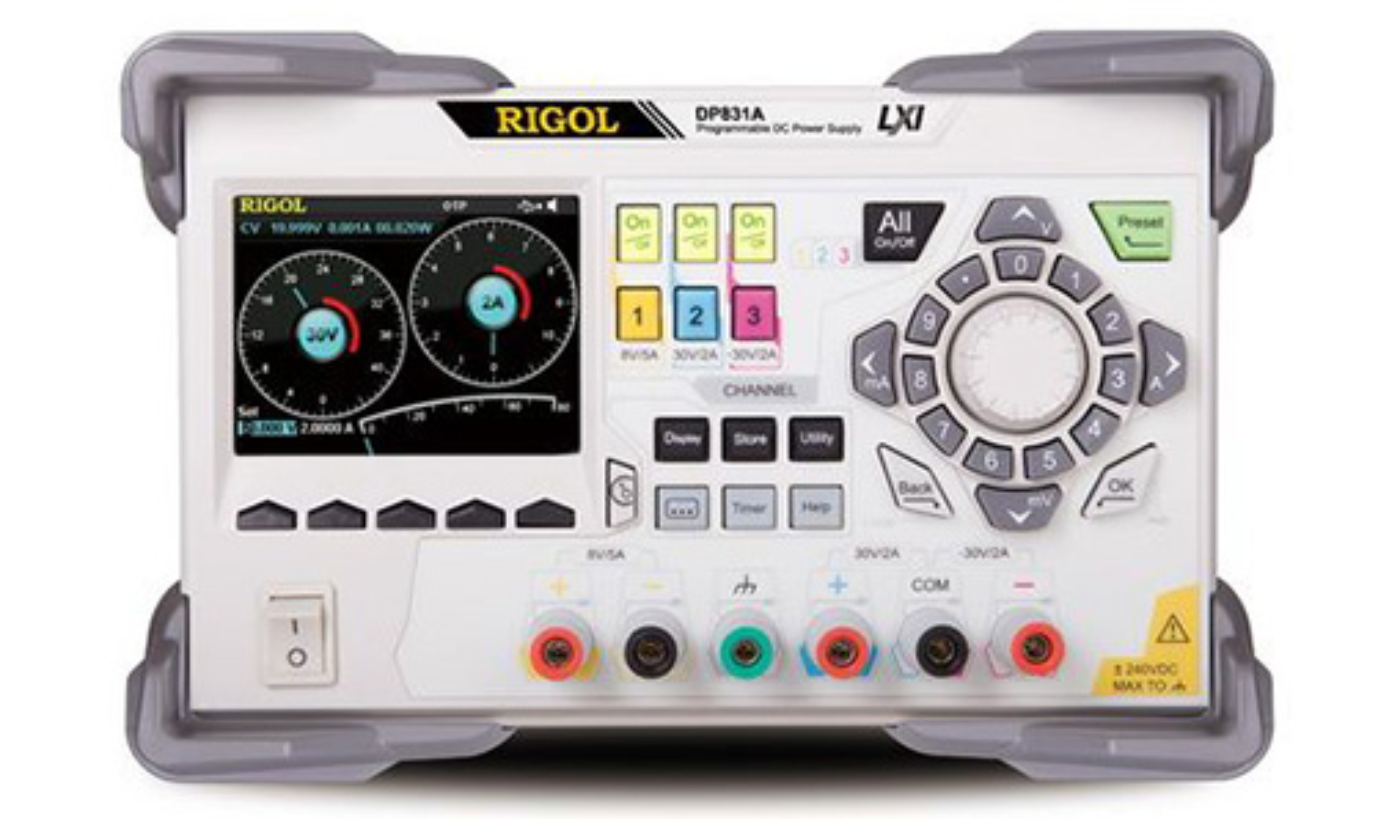

Original 3.5-inch TFT wide-screen display
The traditional numerical interface and the dashboard interface can be switched, with simple operation and intuitive clarity.
DP800
Model
Number of Channels
Total Power
Output per Channel
Programming Resolution
Display Resolution
Readback Resolution
Communication Interface
Price
DP832A
3CH
195W
30V/3A || 30V/3A , 5V/3A
1mV/1mA
1mV/1mA
0.1mV/0.1mA
USB、LAN、RS232、Digital IO
DP832
3CH
195W
30V/3A || 30V/3A , 5V/3A
10mV/10mA
10mV/10mA
10mV/1mA
USB(LAN/RS232/Digital IO opt.)
DP831A
3CH
160W
8V/5A || 30V/2A , -30V/2A
1mV/1mA
1mV/1mA
0.1mV/0.1mA
USB、LAN、RS232、Digital IO
DP831
3CH
160W
8V/5A || 30V/2A , -30V/2A
10mV/10mA
10mV/10mA
1mV/1mA
USB(LAN/RS232/Digital IO opt.)
DP821A
2CH
140W
8V/10A||60V/1A
1mV/1mA
1mV/1mA
1mV/1mA
USB、LAN、RS232、Digital IO
DP821
2CH
140W
8V/10A||60V/1A
10mV/10mA
10mV/10mA
10mV/10mA
USB(LAN/RS232/Digital IO opt.)
DP811A
1CH（2 Ranges）
200W
20V/10A（Low Range）,40V/5A（High Range）
1mV/1mA
1mV/1mA
0.1mV/0.1mA
USB、LAN、RS232、Digital IO
DP811
1CH（2 Ranges）
200W
20V/10A（Low Range）,40V/5A（High Range）
10mV/10mA
10mV/10mA
1mV/1mA
USB(LAN/RS232/Digital IO opt.)
DP813A
1CH（2 Ranges）
200W
8V/20A（Low Range） ，20V/10A（High Range）
1mV/1mA
1mV/1mA
1mV/1mA
USB、LAN、RS232、Digital IO
DP822A
2CH
180W
20V/5A||5V/16A
1mV/1mA
1mV/1mA
1mV/1mA
USB、LAN、RS232、Digital IO
DP813
1CH（2 Ranges）
200W
8V/20A（Low Range） ，20V/10A（High Range）
10mV/10mA
10mV/10mA
10mV/10mA
USB(LAN/RS232/Digital IO opt.)
DP822
2CH
180W
20V/5A||5V/16A
10mV/10mA
10mV/10mA
10mV/10mA
USB(LAN/RS232/Digital IO opt.)
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| HIRES-DP800 | Provide 1mV&1mA high Resolution | ₹ 11,400 | ₹ 13,452 |
| DIGITALIO-DP800 | Provide 4 trigger input and output channels | ₹ 11,400 | ₹ 13,452 |
| AFK-DP800 | Online monitoring and analysis function | ₹ 11,400 | ₹ 13,452 |
| INTERFACE-DP800 | Provide RS-232&LAN interface | ₹ 15,000 | ₹ 17,700 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM-2-DP800 | DP800系列机架套件-双台 | ₹ 15,750 | ₹ 18,585 |
| SPR-DP800 | DP800 red Safety connector | - | - |
| SPB-DP800 | DP800 black Safety connector | - | - |
| CB-DB9-DB9-F-F-150 | RS232 Data line，2 Female，150cm | ₹ 1,650 | ₹ 1,947 |
| RM-1-DP800 | DP800系列机架套件-单台 | ₹ 17,850 | ₹ 21,063 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP800 UserGuide | V1.0 | 2021-10-27 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP800 DataSheet | V2.0 | 2025-06-13 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP800 ProgrammingGuide | V1.1 | 2021-10-27 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP800 QuickGuide | V1.1 | 2021-10-27 |
