DC Power Supplies
DP900
Number of Channels
3CH
Total Power
210W
Output per Channel
<-112dBc/Hz@1GHz,20kHz offset
Programming Resolution
1mV/1mA
Display Resolution
10mV/1mA
Readback Resolution
0.1mV/0.1mA
Downloads
Downloads
Select Model
Functions and Features
Low Ripple Noise: <350μVrms / 2mVpp
One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Provides a high-purity signal.
Fast Transient Response Time: < 50us
A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user’s needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.
Precise Arbitrary Wave Function: 100ms

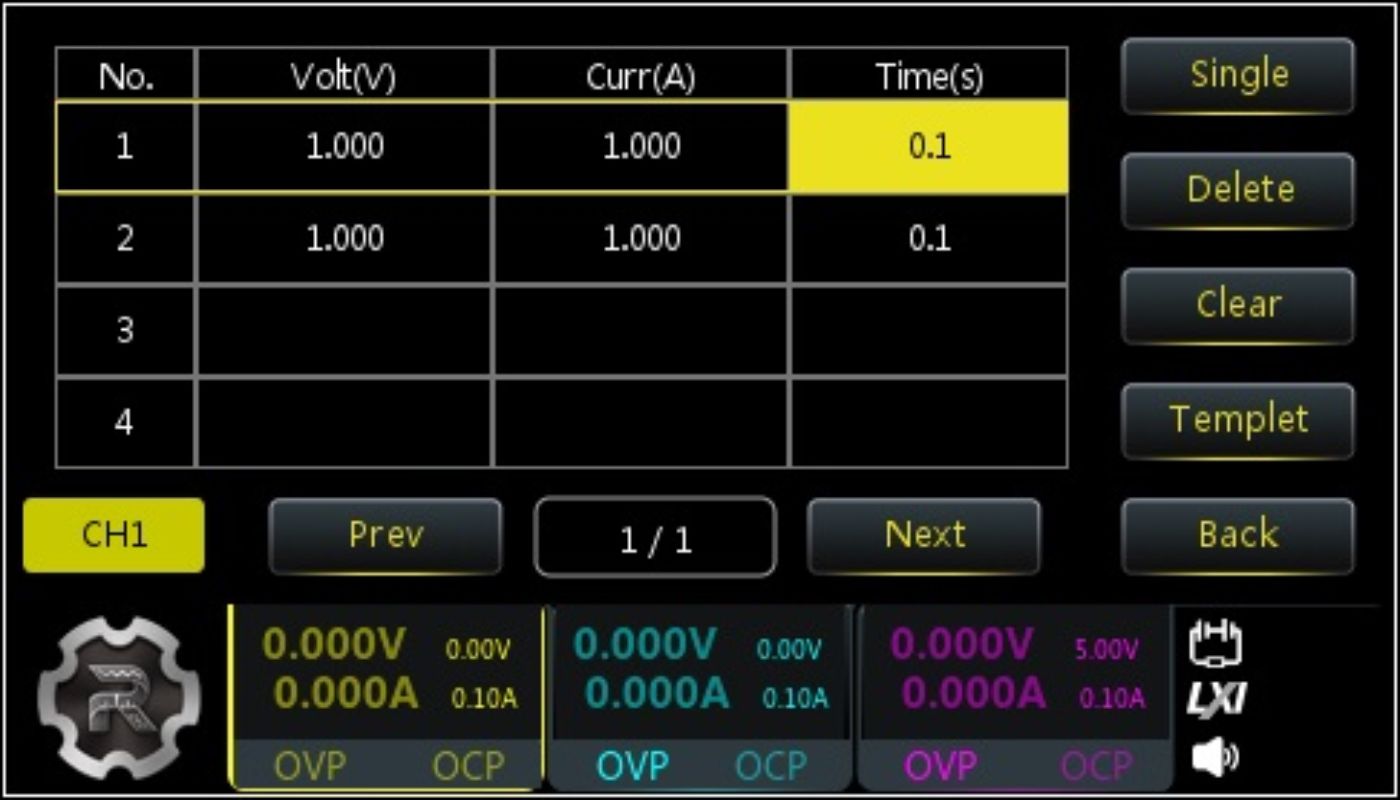

The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.
One-Key Series-Parallel, Flexible Testing

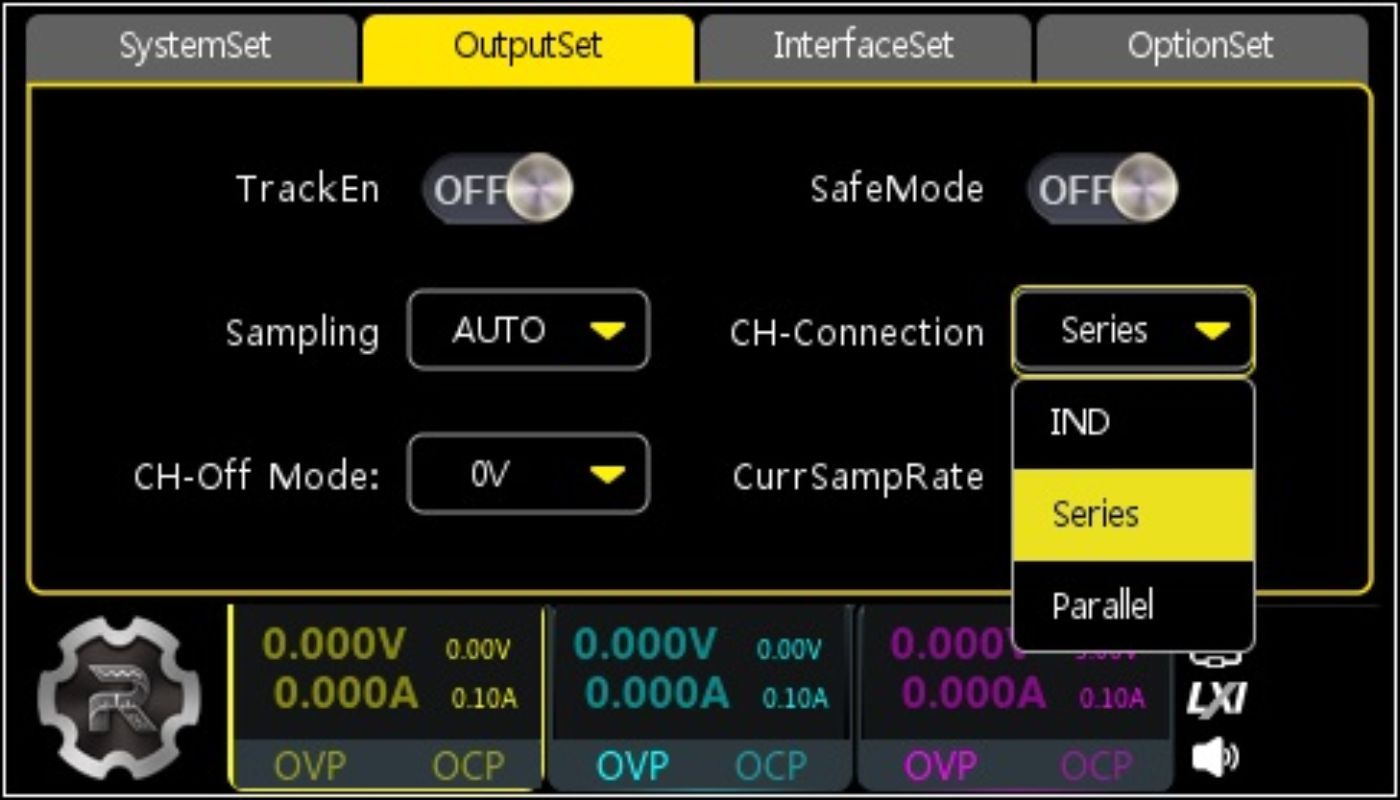

Channel 1 and channel 2 of the DP900 have added a one-key series-parallel function. The machine can realize serial 64V or parallel 6A output. Say goodbye to external cumbersome wiring and software switching to help your test efficiency.
A Variety of Functions, A Wide Range of Applications

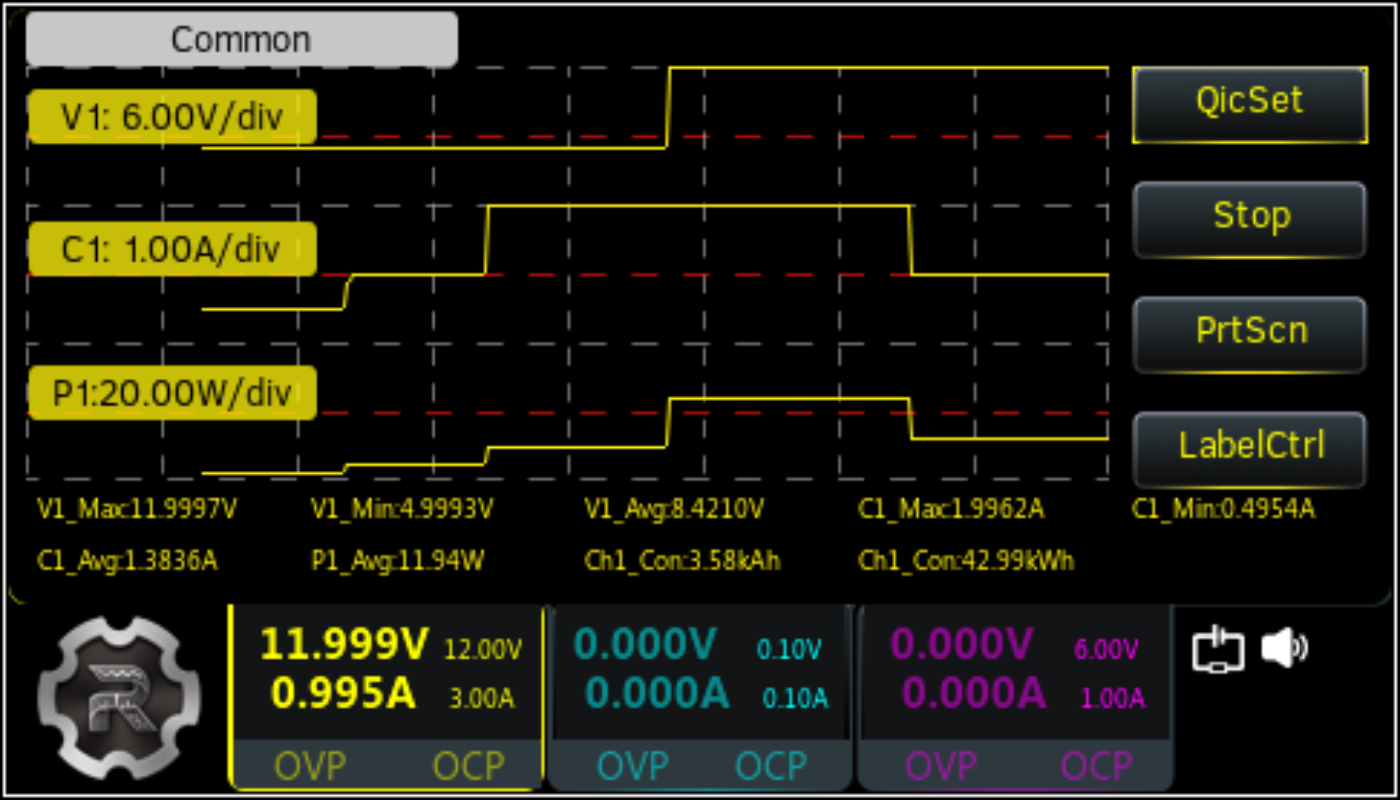

DP900 series programmable linear DC power supply also provides various functions such as general analysis, pulse current analysis, monitor, trigger, etc., and is compatible with the standard SCPI command set, which can give you higher-level analysis and control capabilities, not only simple power delivery.
Colorful Appearance, Convenient Operation

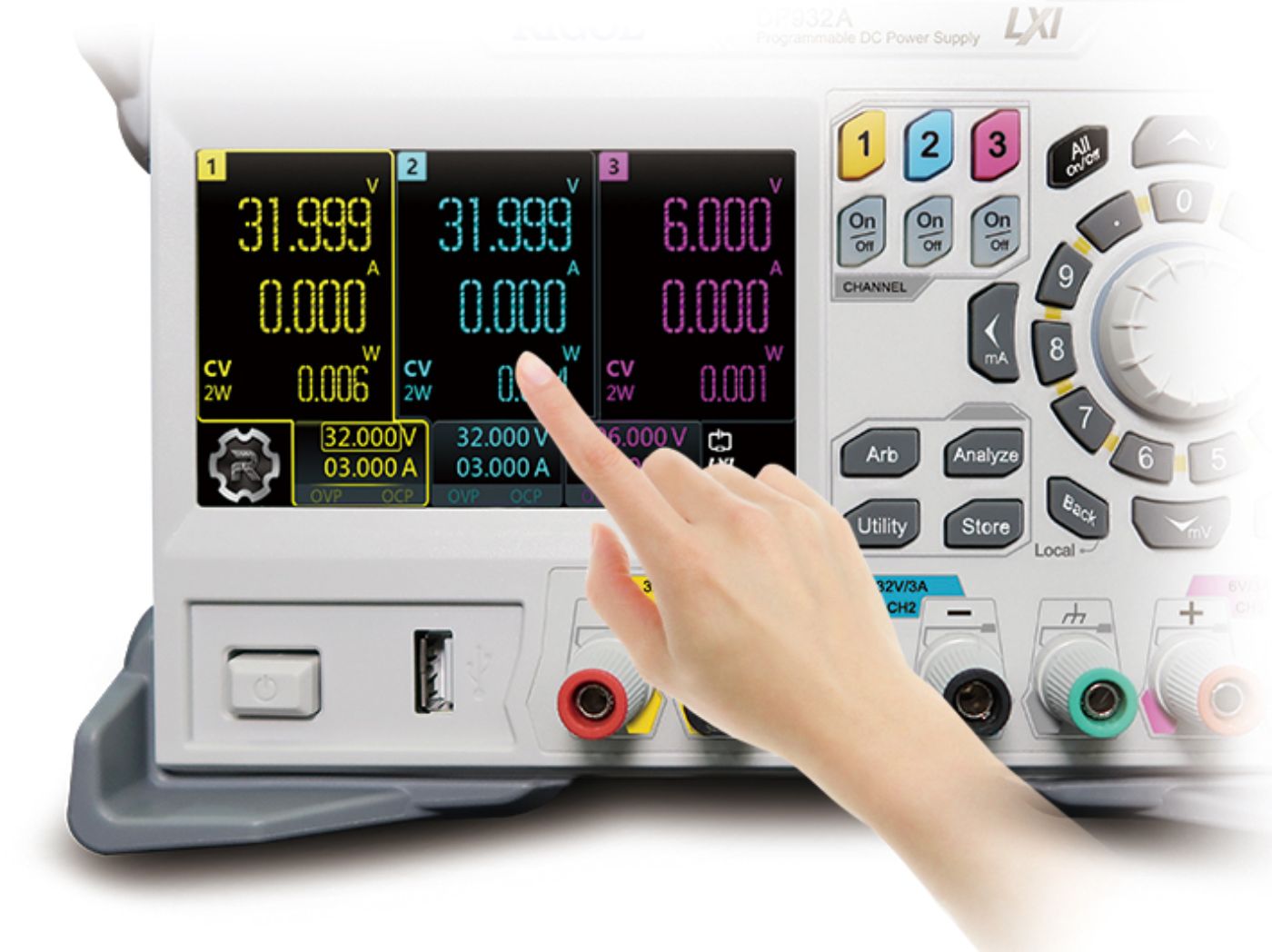

The 4.3-inch color touch screen supports two working modes: touch screen and non-touch screen, and smooth touch interaction brings a better experience for your testing.
Benefit Education, Safety Terminal

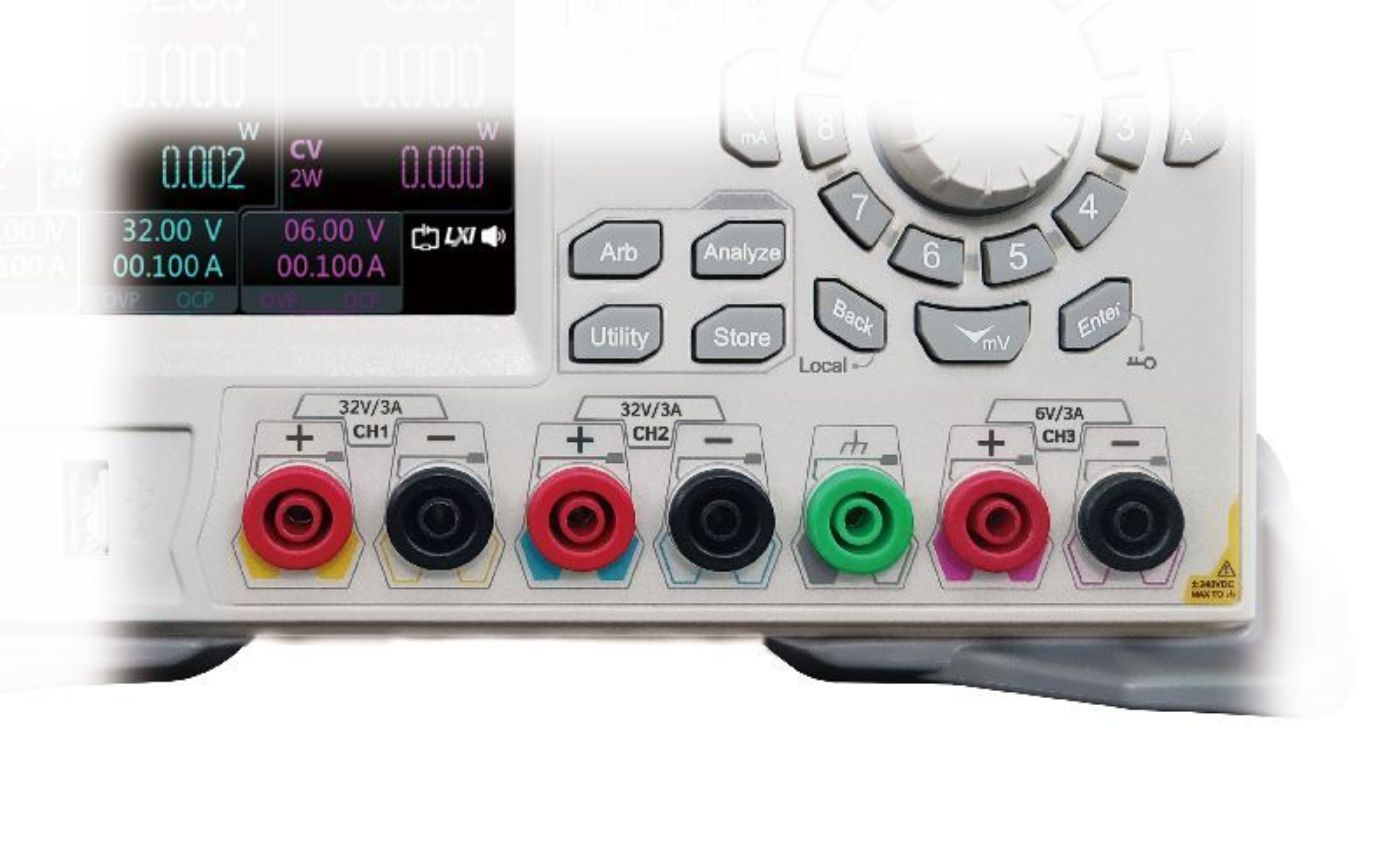

The front panel of the DP932U model of the DP900 series is equipped with safety terminals without exposed metal, which can protect the user’s test safety. Sincere price, reliable performance, and safety guarantee are the best choice for your purchase!
DP900
Model
Number of Channels
Total Power
Output per Channel
Programming Resolution
Display Resolution
Readback Resolution
Communication Interface
Price
DP932A
3CH
210W
32V/3A || 32V/3A || 6V/3A
1mV/1mA
1mV/1mA
0.1mV/0.1mA
USB、LAN、Digital IO
DP932E
3CH
198W
30V/3A || 30V/3A || 6V/3A
10mV/10mA
10mV/10mA
10mV/10mA
USB、LAN
DP932U
3CH
210W
32V/3A || 32V/3A || 6V/3A
10mV/1mA
10mV/1mA
10mV/1mA
USB、LAN、opt-Digital IO
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DP900-HIRES | 1 mA&1 mV high-resolution setting | ₹ 13,350 | ₹ 15,753 |
| DP900-ARB | Arbitrary function with the minimum dwell time of 100 ms | ₹ 13,350 | ₹ 15,753 |
| DP900-DIGITALIO | 4-pin trigger in/out function | ₹ 13,350 | ₹ 15,753 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP900 UserGuide | V3.0 | 2024-08-23 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP900 DataSheet | V3.0 | 2024-08-23 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP900 ProgrammingGuide | V3.0 | 2024-08-23 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DP900 QuickGuide | V1.0 | 2024-02-23 |
