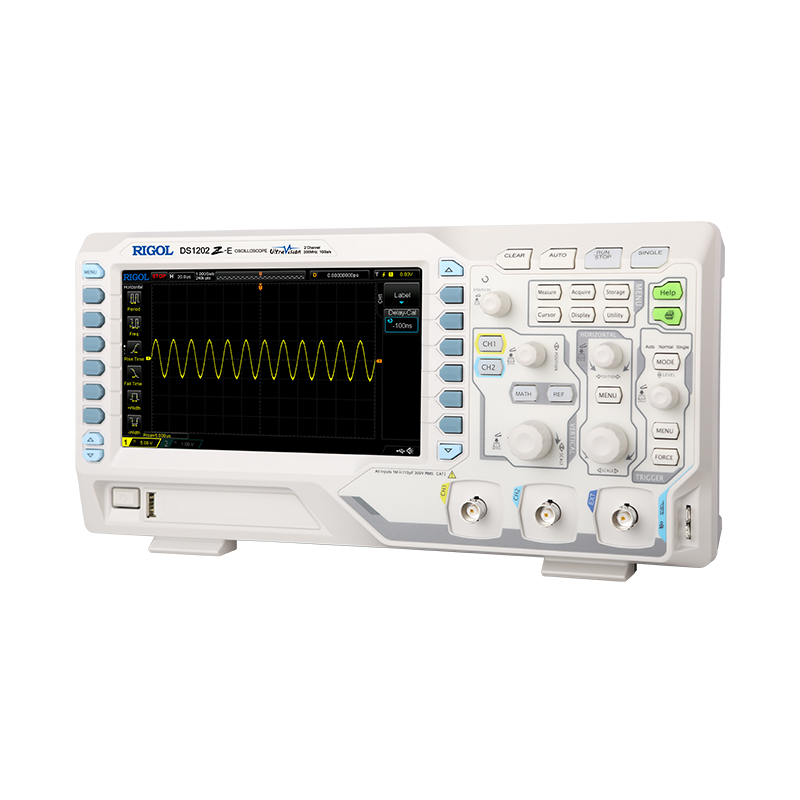

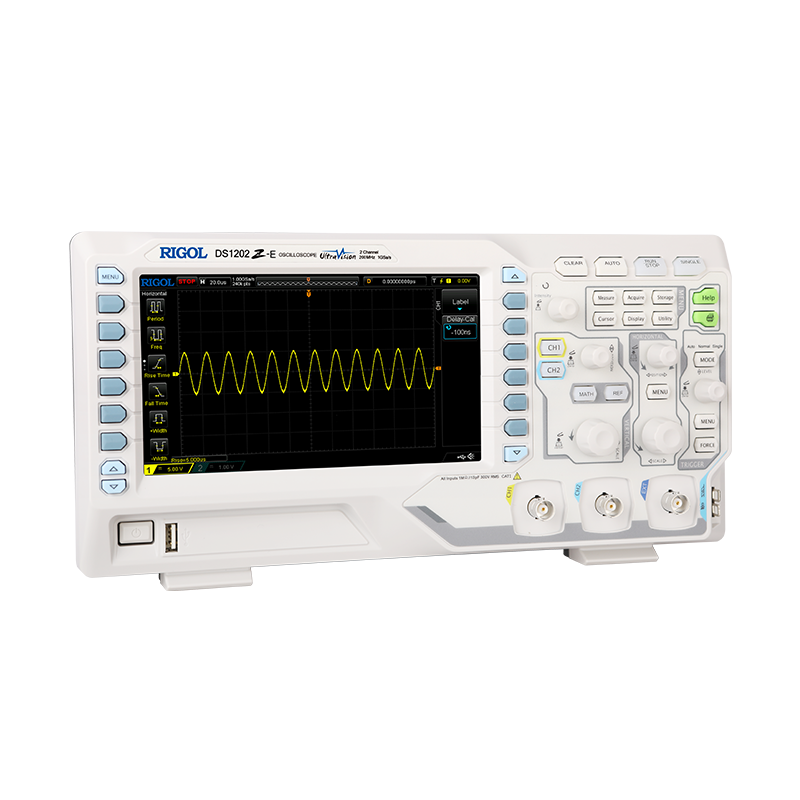

DS1000Z-E

Oscilloscopes

DS1000Z-E series digital oscilloscope is designed by RIGOL based on the mainstream demand. It is a high-performance and economic digital oscilloscope specially contributed by e-commerce.

Analog Bandwidth

200MHz

Analog Channels

2 Maximum Real-time Sample Rate

1GSa/s

Maximum Memory Depth

24Mpts

Maximum Waveform Capture Rate

30,000wfm/s

Digital Channel

-

Downloads

Select Model

Models

Clear

Qty:

Explore DS1000Z-E Series Digital Oscilloscopes

Waveform refresh rate of 30,000 wfms/s

A waveform refresh rate of 30,000 wfms/s makes it easier to capture sporadic abnormal signals.

All DHO4000 series oscilloscopes are equipped with Rigol’s second generation “Centaurus” chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors’ 8-bit counterparts.

24m storage depth

Standard 24m ultra long storage depth. It allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate for a longer period of time, without missing any waveform change

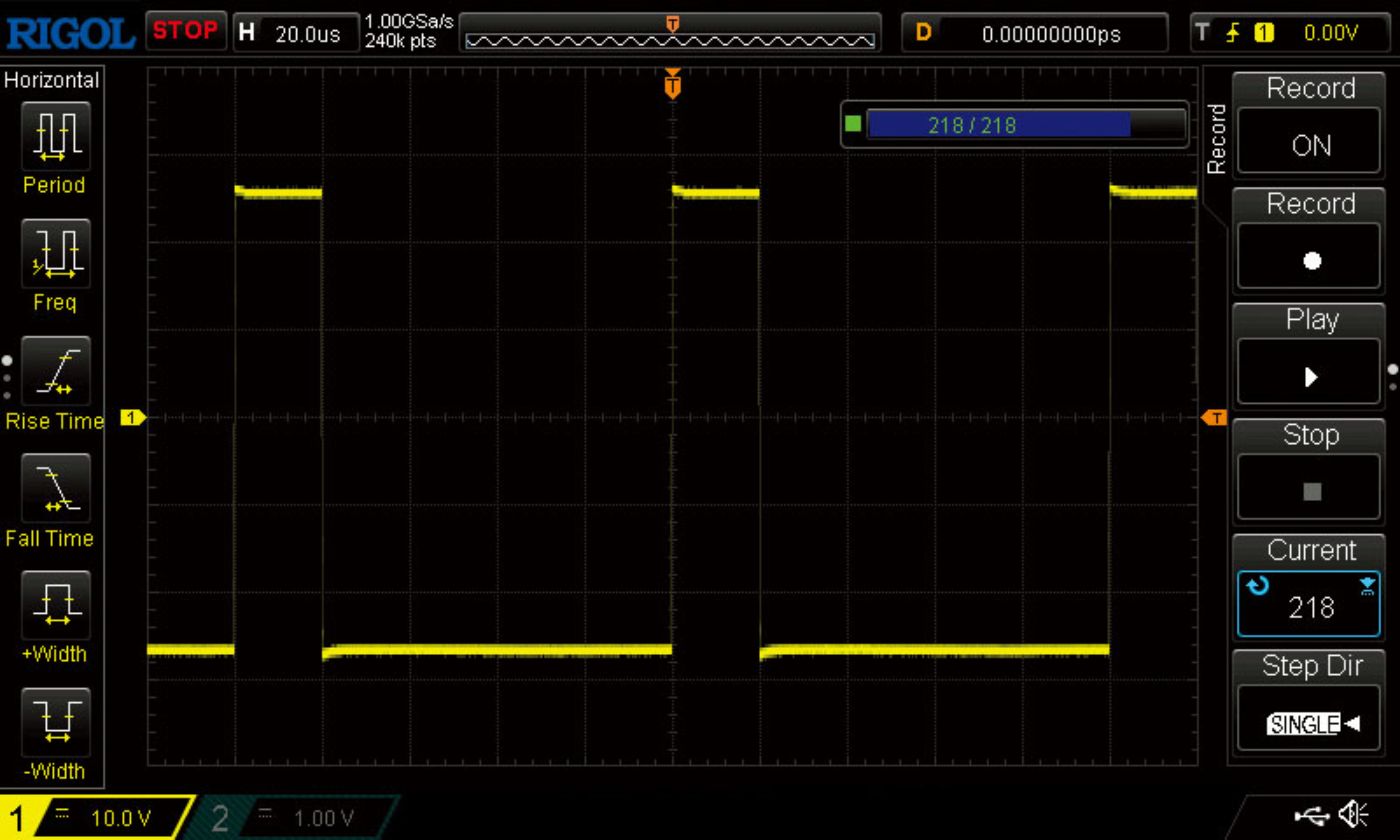

Hardware waveform recording and playback function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location

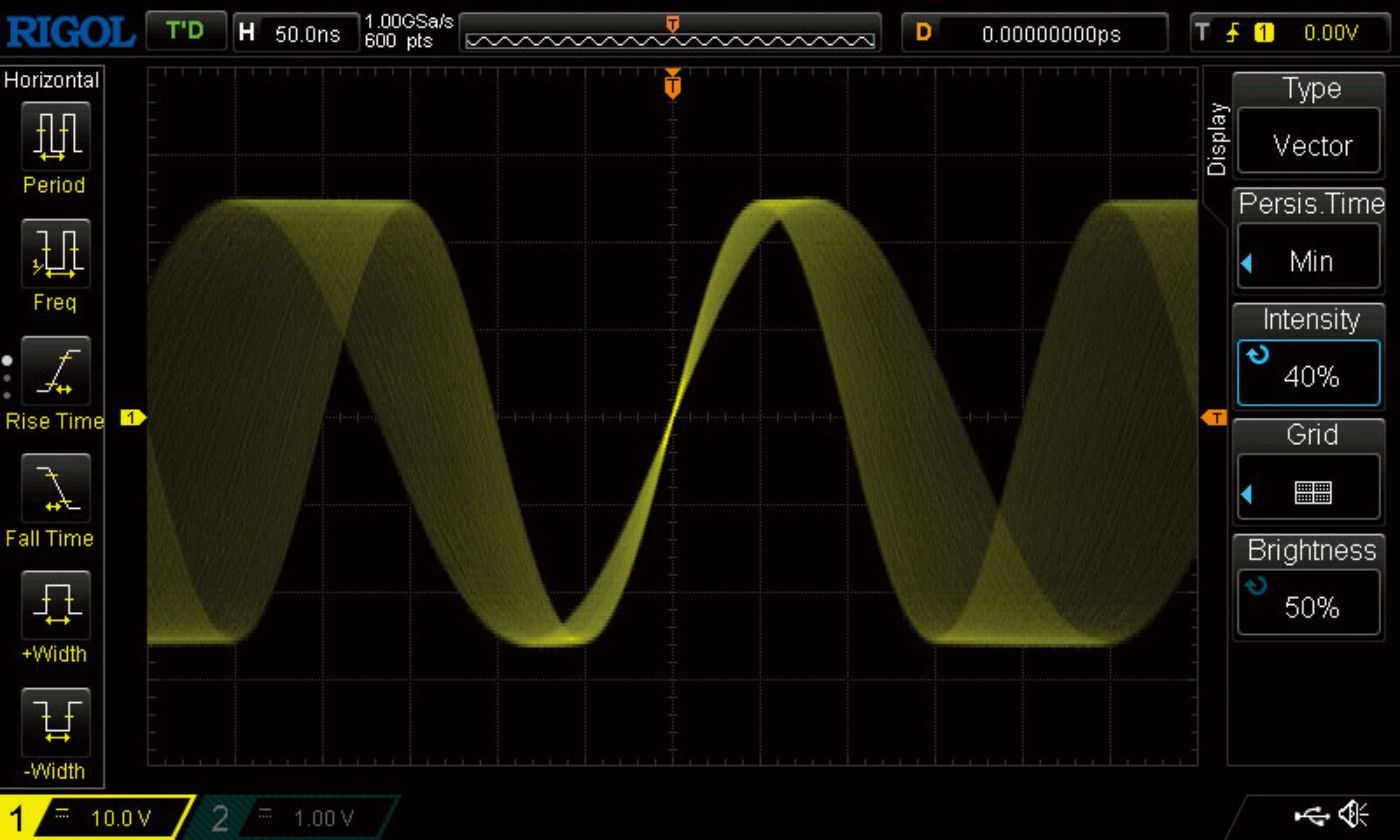

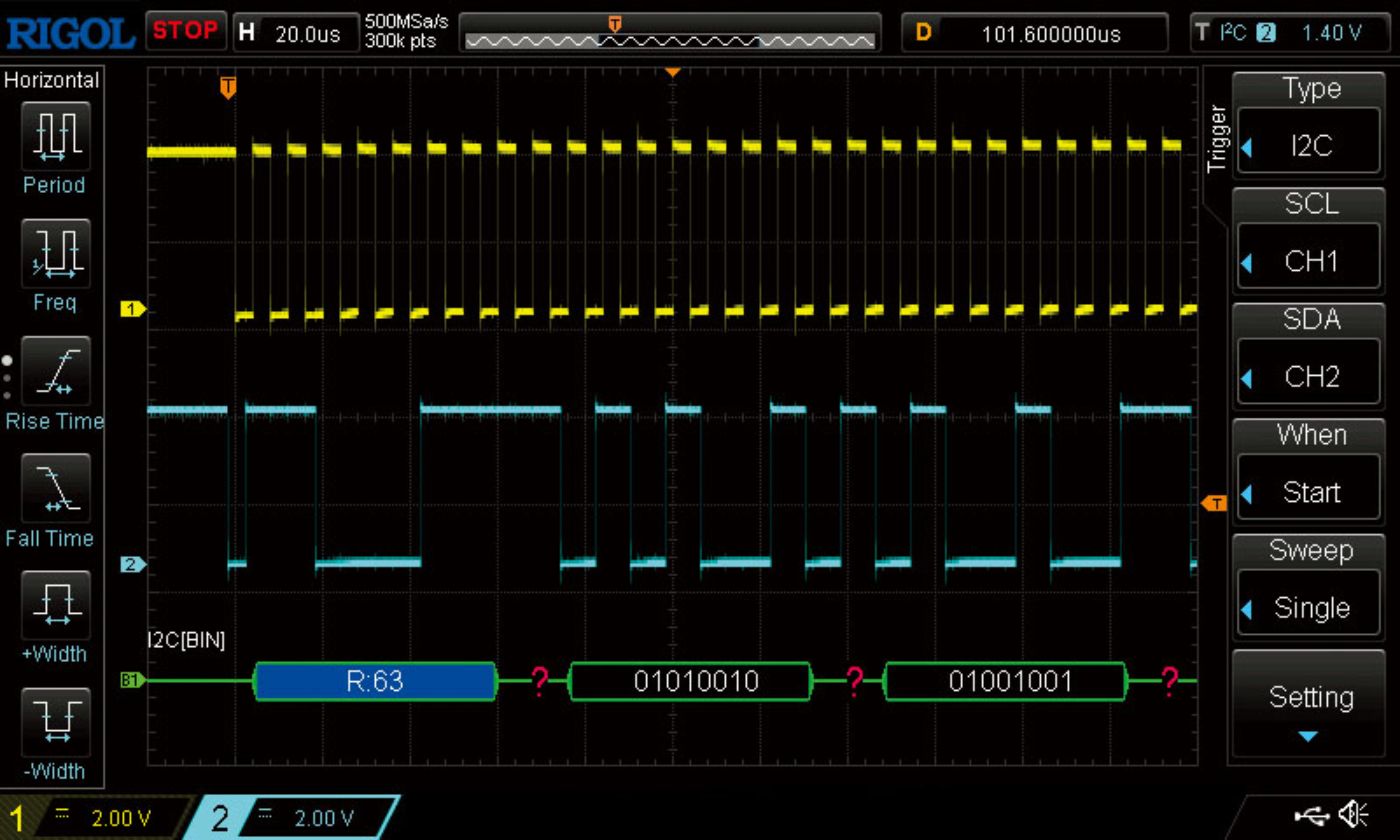

Serial bus triggering and decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus

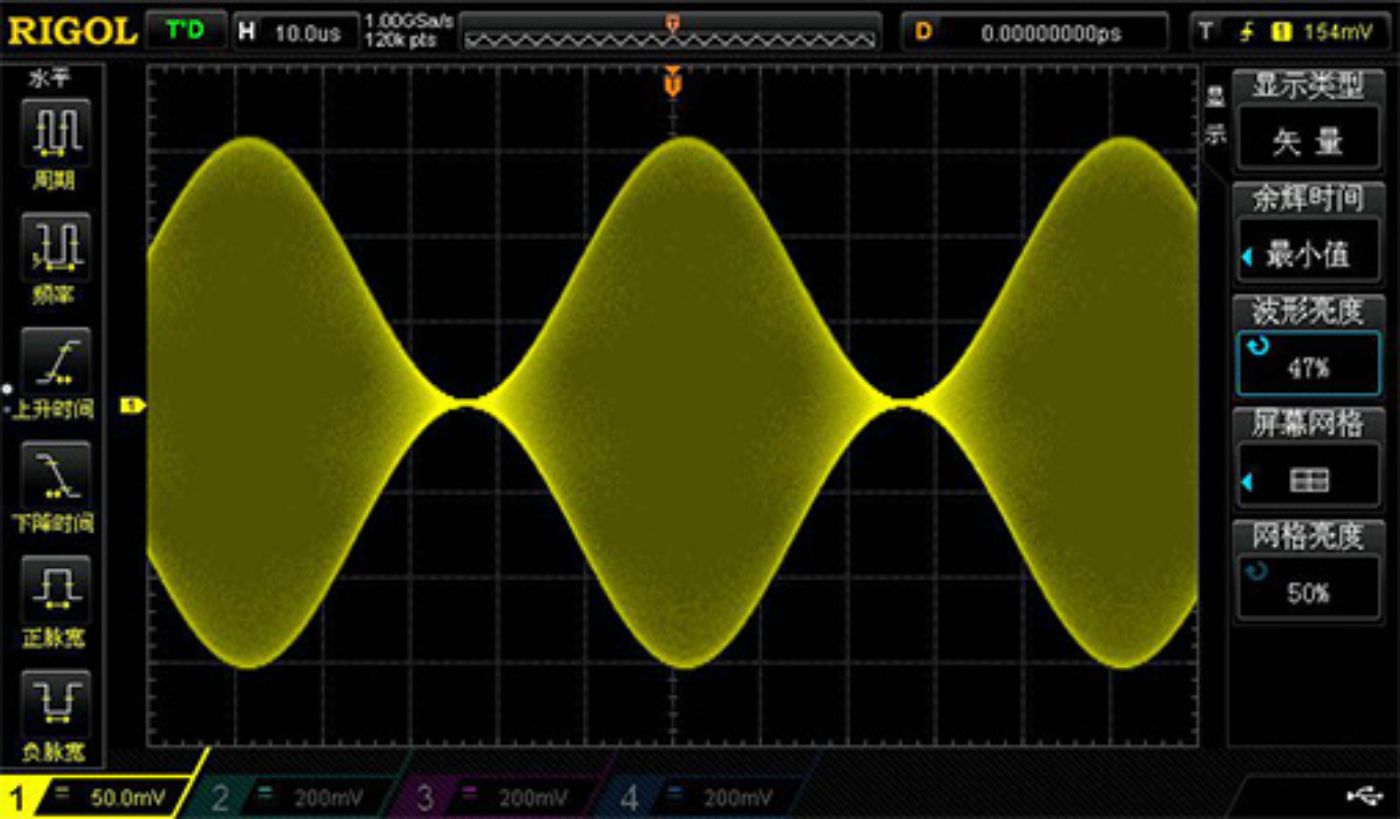

Digital fluorescent display

Multi level gray level display capability, providing similar fluorescent display effect, and the change of waveform can be seen at a fraction of a millisecond

DS1000Z-E

Model

Analog Bandwidth

Analog Channels

Maximum Real-time Sample Rate

Maximum Memory Depth

Maximum Waveform Capture Rate

Price

DS1202Z-E

200MHz

2 1GSa/s

24Mpts

30,000wfm/s

DS1102Z-E

100MHz

2 1GSa/s

24Mpts

30,000wfm/s

Optical Isolated Probe

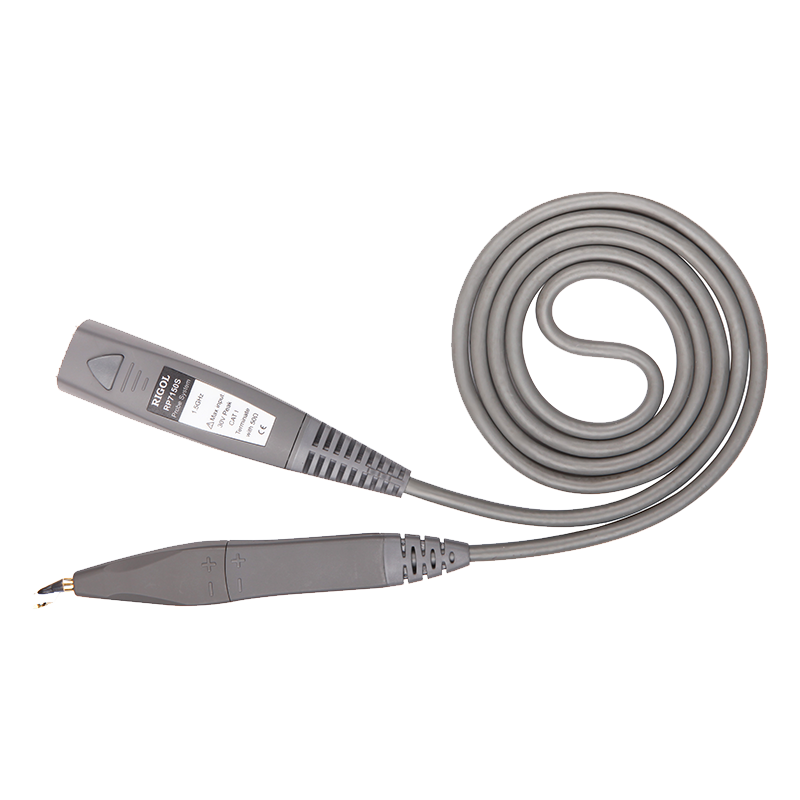

Single-ended Probes

Active Voltage Differential Probes

Current Probe

Logic Analyzer Probes

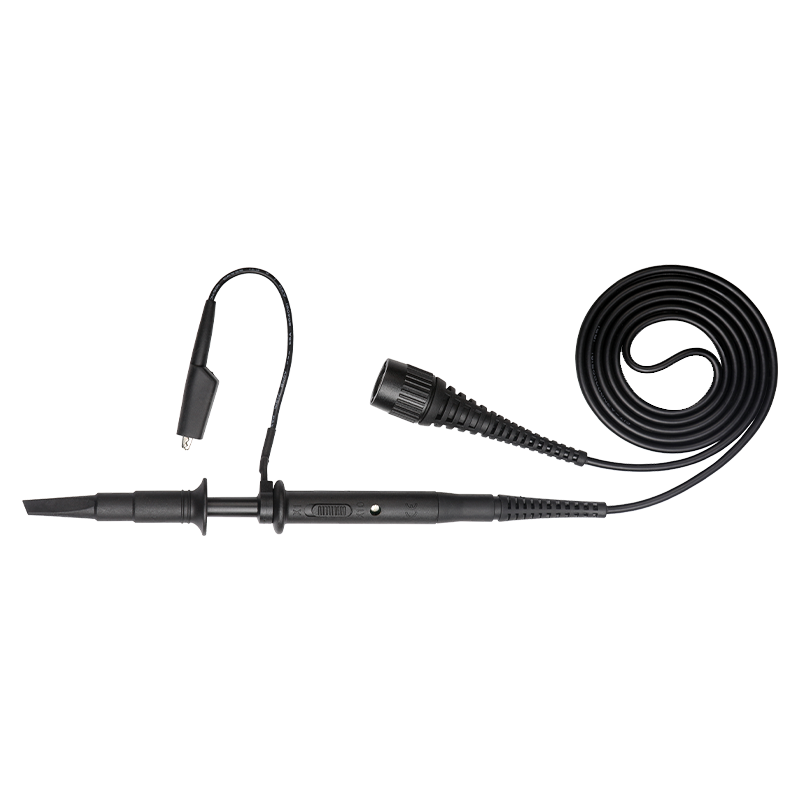

Passive Probe

High-Voltage Differential Probes

Functional Options

Model	Description	INR List Price	INR (Inclusive of GST)
RM-DG4000/DS1000Z	Rack options	₹ 16,350	₹ 19,293

Datasheet

Name	Version	Release time	Download
📄 DS1000Z-E DataSheet	V1.2	2021-10-26

User Guide

Name	Version	Release time	Download
📄 DS1000ZE UserGuide	UGA27102-1110	2021-10-26

Quick Guide

Name	Version	Release time	Download
📄 DS1000ZE QuickGuide	QGA27100-1110	2021-10-29

Programming Guide

Name	Version	Release time	Download
📄 DS1000ZE ProgrammingGuide	PGA27101-1110	2021-10-29
