Oscilloscopes
DS70000
Analog Bandwidth
5GHz
Analog Channels
4
Maximum Real-time Sample Rate
20GSa/s
Maximum Memory Depth
2Gpts(opt.)
Maximum Waveform Capture Rate
1,000,000 wfms/s
Digital Channel
-
Downloads
Downloads
Select Model
Explore the DS70000 Series Oscilloscopes

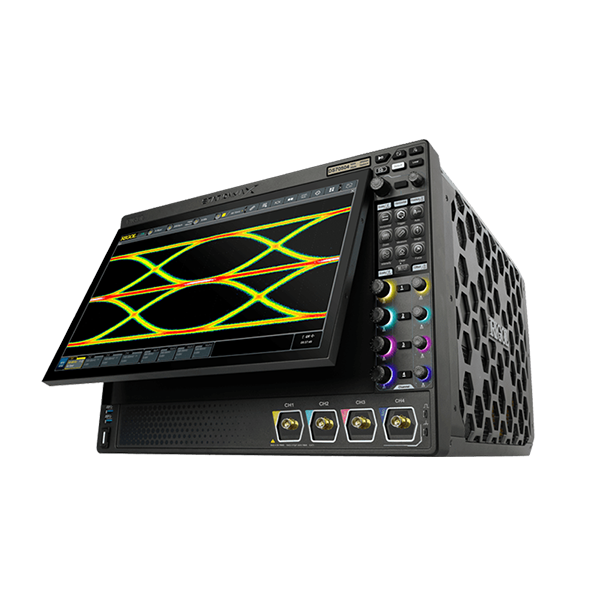

Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz

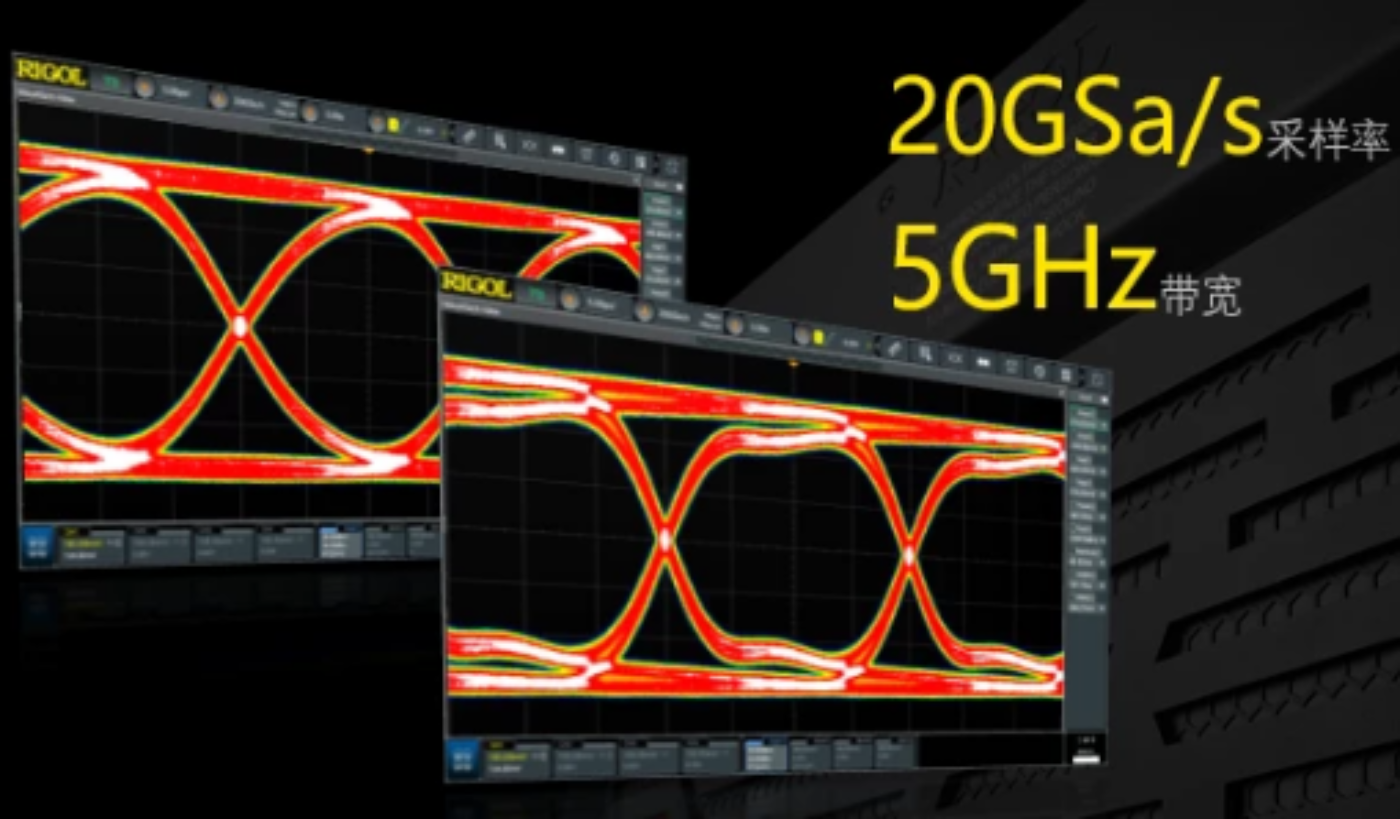

Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate

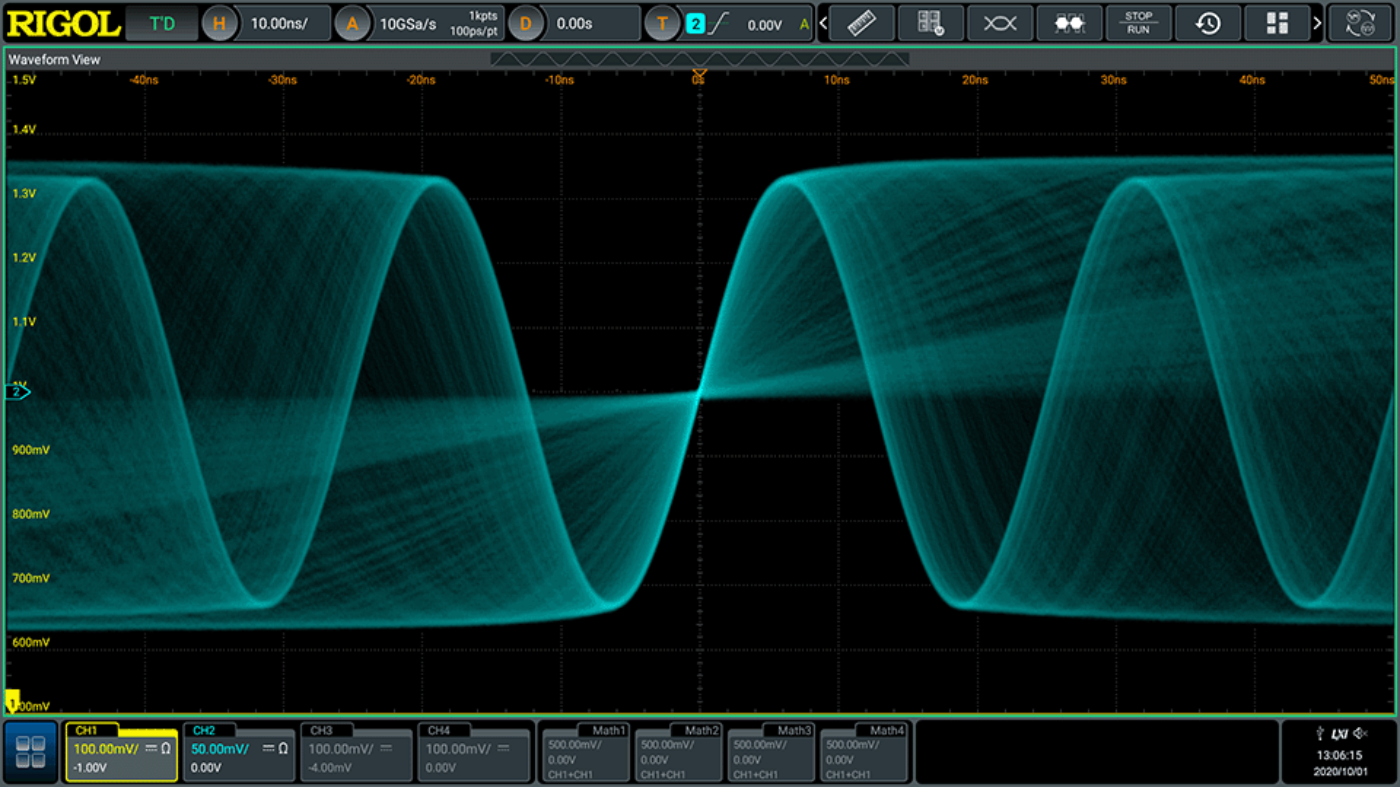

Waveform Capture Rate

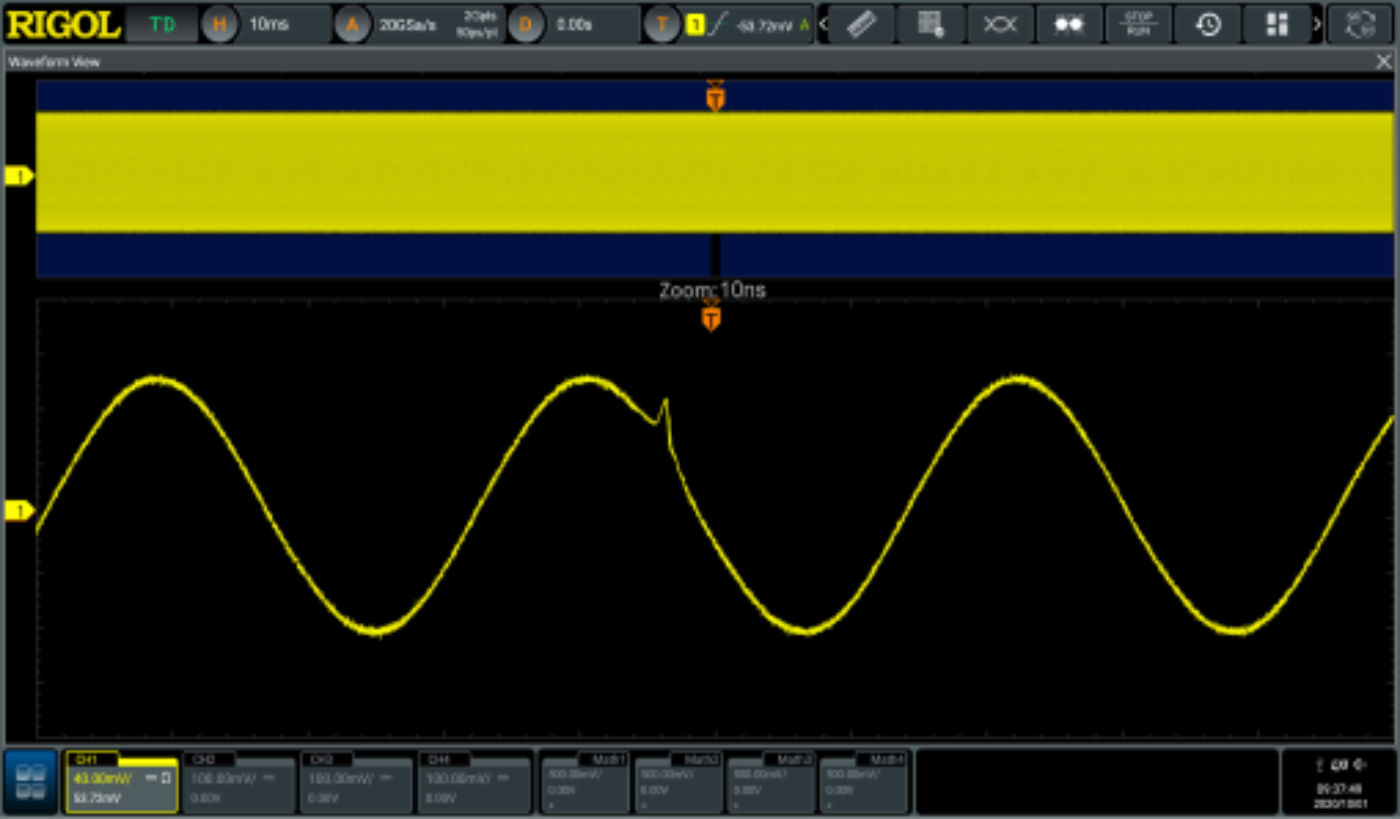

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory
500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution

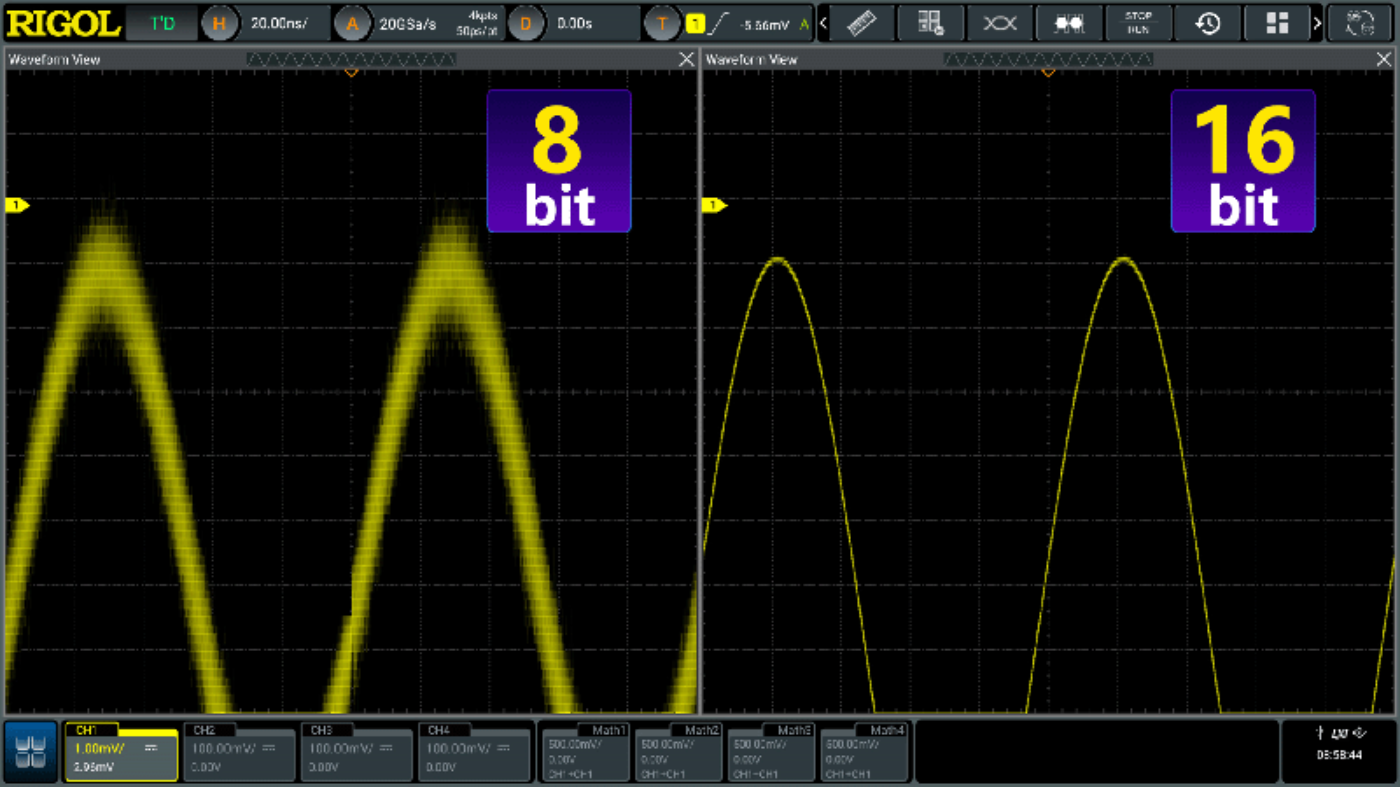

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
10,000 FFTs per second

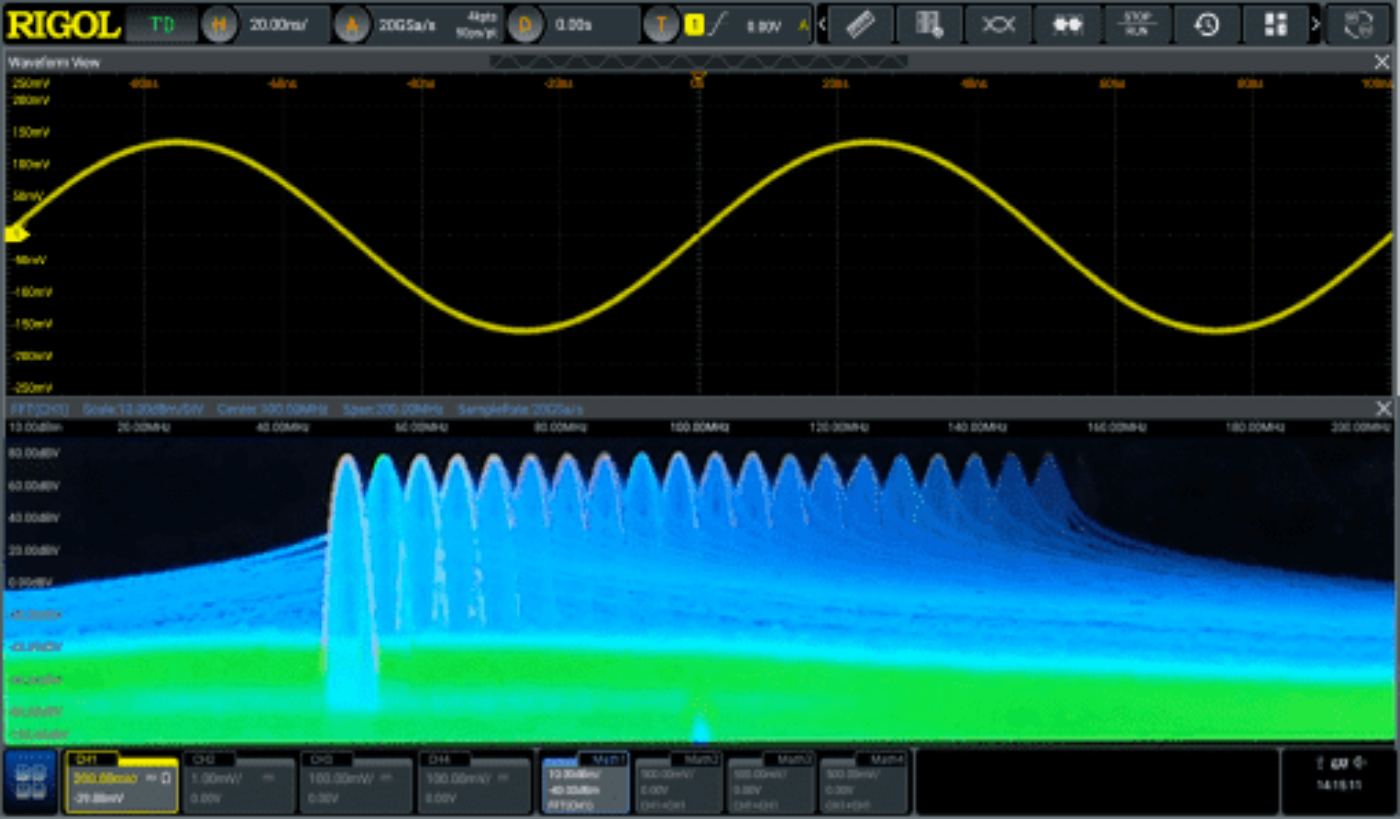

Based on RIGOL’s new-generation UltraVision III platform and leveraging hardware acceleration, it achieves 10,000 FFTs per second, providing a user experience similar to that of real-time spectrum.
Multiple Touchscreens for efficient visualization
15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface

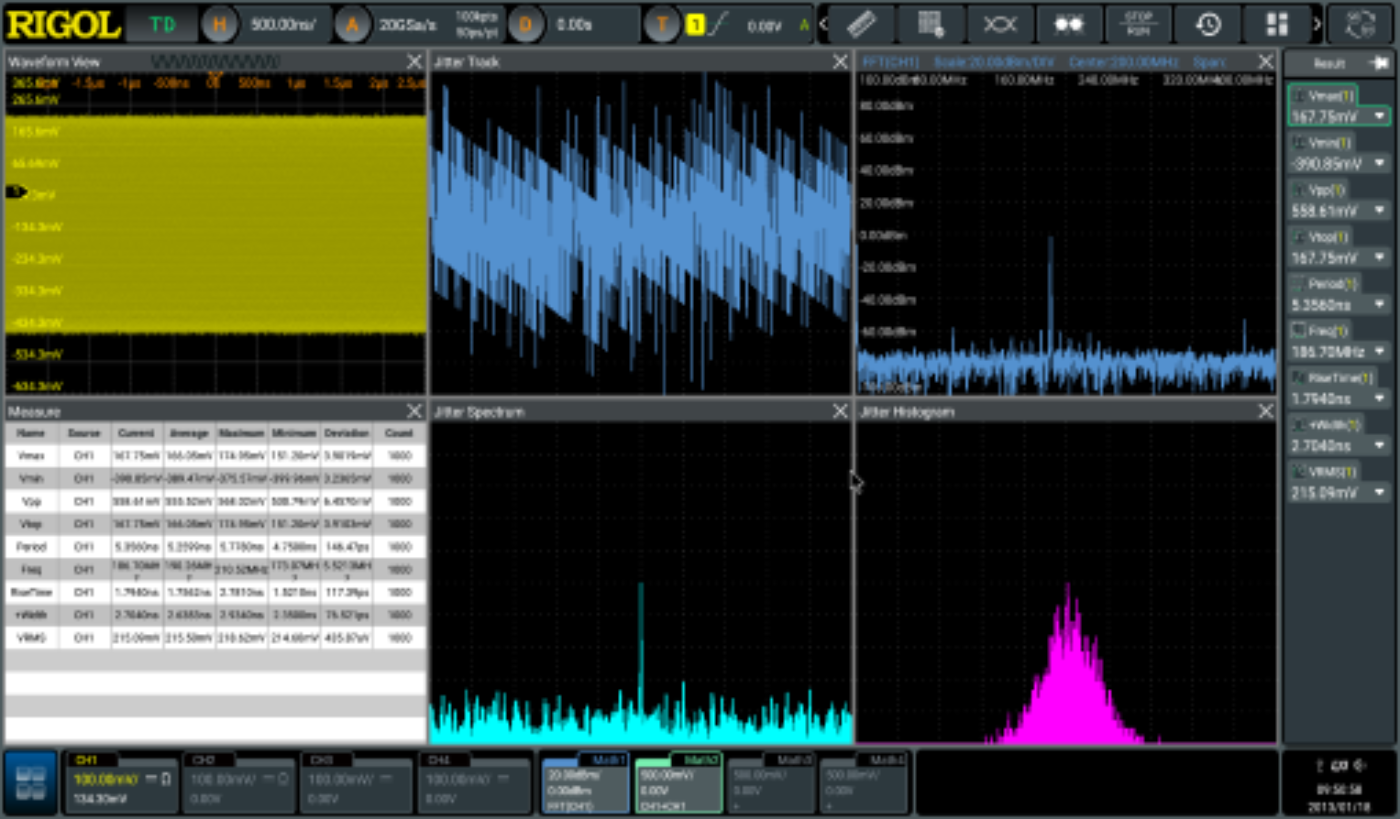

Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar
Photoelectric encoder with a longer service life

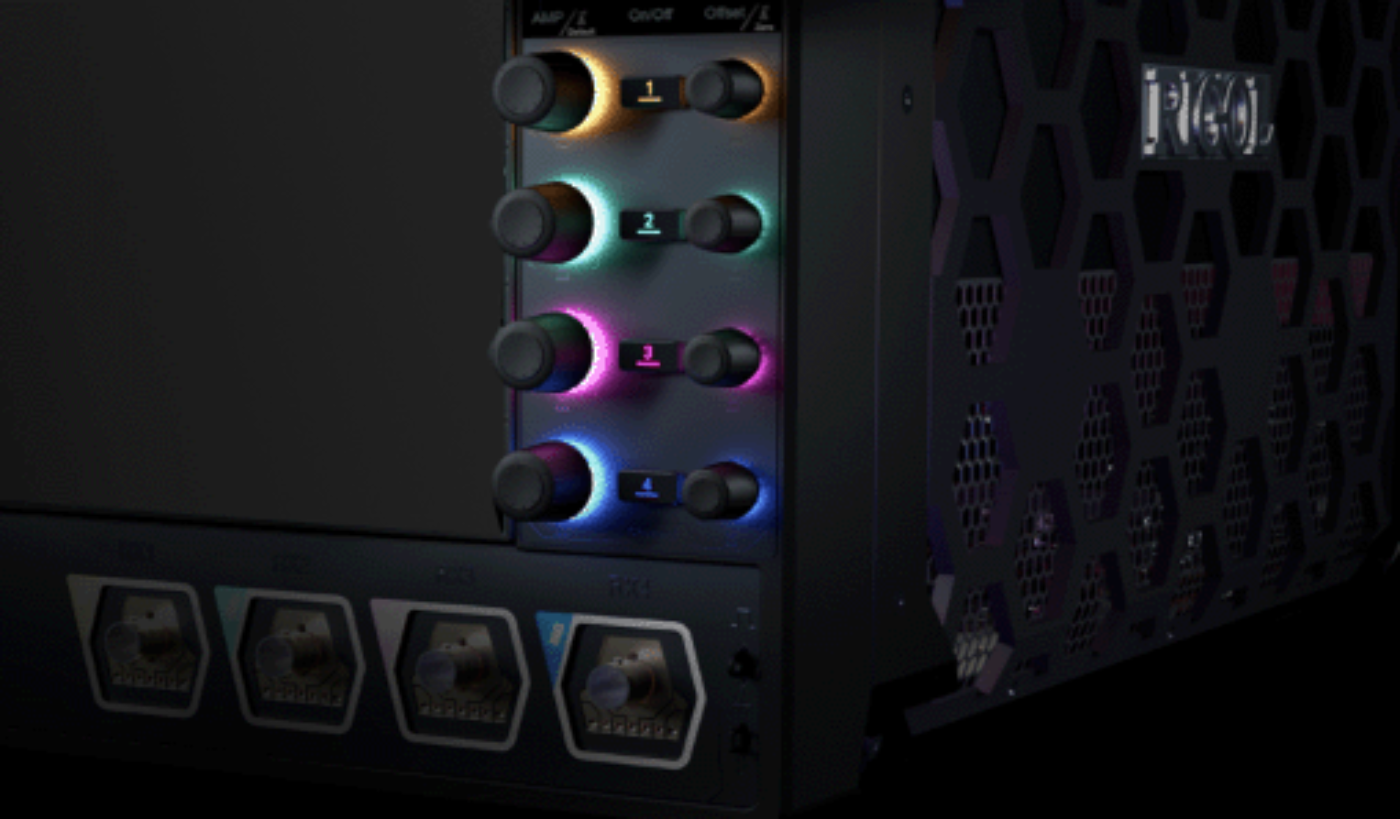

The knobs of the DS70000 series oscilloscopes use photoelectric encoders, which can ensure a service life of more than 100,000 presses and 1 million rotations of operation. As a frequently used adjustment method, the knobs based on photoelectric encoders no longer have the worry of wear and provide reliable operation for a longer time.
High-definition intelligent control feedback keyboard

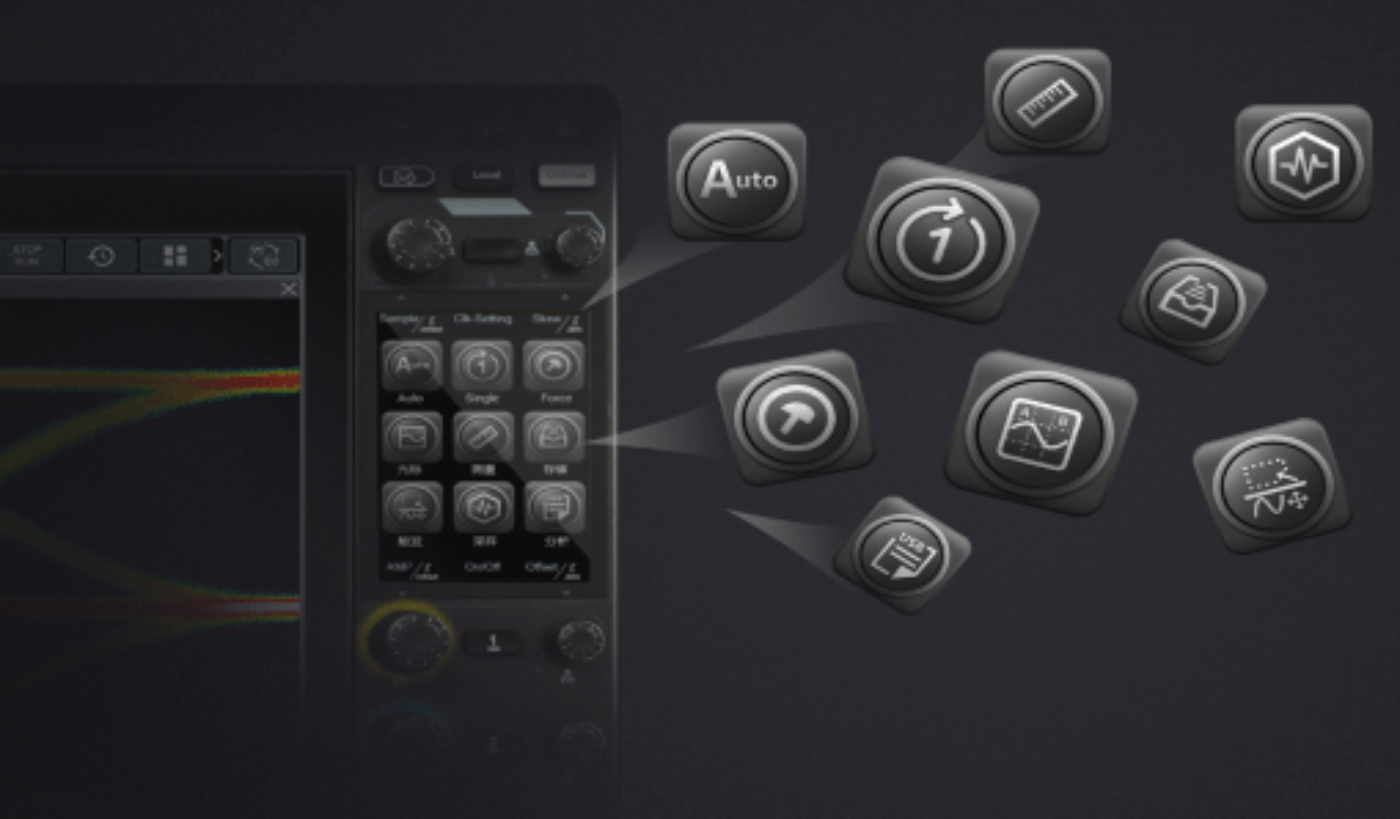

In addition to the main screen, the DS70000 is equipped with an additional screen that serves as a customizable high – definition intelligent control feedback keyboard. Customers can customize the shortcut menu according to their own usage habits, and there is feedback when touching. When observing multiple windows, this screen can be used as an extended screen to increase the number of observation items.
Electronic signage

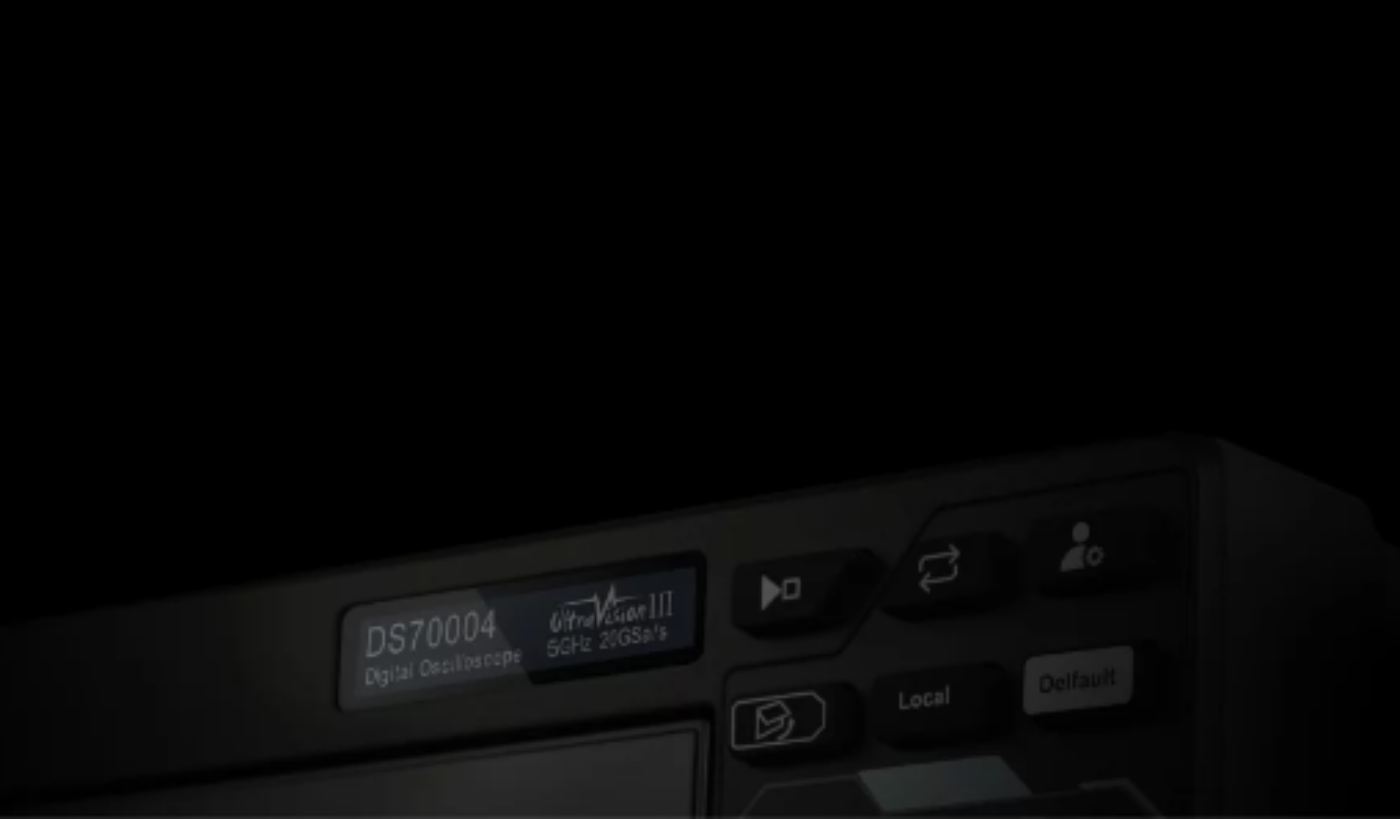

The model and main parameters of the product are displayed on the electronic sign. The content can be retained for 20 years even when the device is turned off. After the instrument is upgraded, the performance parameters can be automatically refreshed to ensure the matching of the instrument asset information.
DS70000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Price
DS70304
3GHz
4
20GSa/s
2Gpts(opt.)
1,000,000 wfms/s
DS70504
5GHz
4
20GSa/s
2Gpts(opt.)
1,000,000 wfms/s
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Performance Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS70000-RL-20 | storage depth upgrade option | ₹ 6,60,640 | ₹ 7,79,555 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS70000-JITTA | Eye Diagram & Advanced Jitter Analysis | ₹ 6,60,640 | ₹ 7,79,555 |
| DS70000-10MAUTOC | 10M Automotive Ethernet Compliance Test (T1S) | - | - |
| DS70000-10MINDUC | 10M Industrial Ethernet Compliance Test(T1L) | - | - |
| DS70000-AENETC | 100M/1000M Automotive Ethernet Compliance Test | - | - |
| DS70000-ENETC | 100/1000M Ethernet Conformance Test | ₹ 8,17,440 | ₹ 9,64,579 |
| DS70000-DPHY12C | MIPI D-PHY1.2 Compliance Test | - | - |
| DS70000-USBC | USB 2.0 Signal Quality Compliance Test | ₹ 3,24,640 | ₹ 3,83,075 |
| DS70000-USBA | USB2.0 Protocol Analysis Option | ₹ 2,79,840 | ₹ 3,30,211 |
| DS70000-RFFEA | MIPI-RFFE Protocol Analysis Option | ₹ 2,79,840 | ₹ 3,30,211 |
| DS70000-EMBDA | I2C/SPI Bus trigger and analysis options | ₹ 2,79,840 | ₹ 3,30,211 |
| DS70000-AEROA | MIL-STD1553 bus triggering and analysis options | ₹ 2,79,840 | ₹ 3,30,211 |
| DS70000-RTSA | Real time spectrum analysis option | ₹ 6,60,640 | ₹ 7,79,555 |
| DS70000-AUDIOA | Audio Bus I2S Protocol Triggering and Decoding | ₹ 2,79,840 | ₹ 3,30,211 |
| DS70000-AUTOA | Automotive Serial Bus CAN/CAN-FD, LIN Triggering and Decoding | ₹ 2,79,840 | ₹ 3,30,211 |
Test Fixture
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| TF-ENET10G-RL-STP | 10M/100M/1000M/2.5G/5G/10G Return-loss Test Fixture | ₹ 1,54,050 | ₹ 1,81,779 |
| TFB-AENET-MTD-STP | Automotive Ethernet H-MTD Compliance Test Fixture KIT | - | - |
| TFB-AENET-MAT-STP | Automotive Ethernet MATEnet Compliance Test Fixture KIT | - | - |
| TF-AENET-CME-STP | Automotive Ethernet Common-Mode Emission Test Fixture | ₹ 17,850 | ₹ 21,063 |
| TF-USBD-STP | USB2.0 Device Compliance Test Fixture | ₹ 55,200 | ₹ 65,136 |
| TF-USBH-STP | USB2.0 Host Compliance Test Fixture | ₹ 55,200 | ₹ 65,136 |
| TF-ENET-STP | 100M/1000M Ethernet Compliance Test Fixture | ₹ 2,80,200 | ₹ 3,30,636 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS70000 DataSheet | DSA29104-1110 | 2025-05-20 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS70000 UserGuide | UGA29105-1110 | 2024-11-26 | |
| 📄 RM7011 RackmountKit | RKB13X00-1110 | 2025-11-10 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO7000&DS7000 QuickGuide | QGA29101-1110 | 2024-11-26 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS70000 ProgrammingGuide | PGA29105-1110 | 2024-11-26 |
