Oscilloscopes
DS8000-R
Analog Bandwidth
2GHz
Analog Channels
4
Maximum Real-time Sample Rate
10GSa/s
Maximum Memory Depth
500Mpts
Maximum Waveform Capture Rate
600,000 wfms/s
Digital Channel
1CH（opt.）
Downloads
Downloads
Select Model
Explore the DS8000-R Series Digital Oscilloscopes

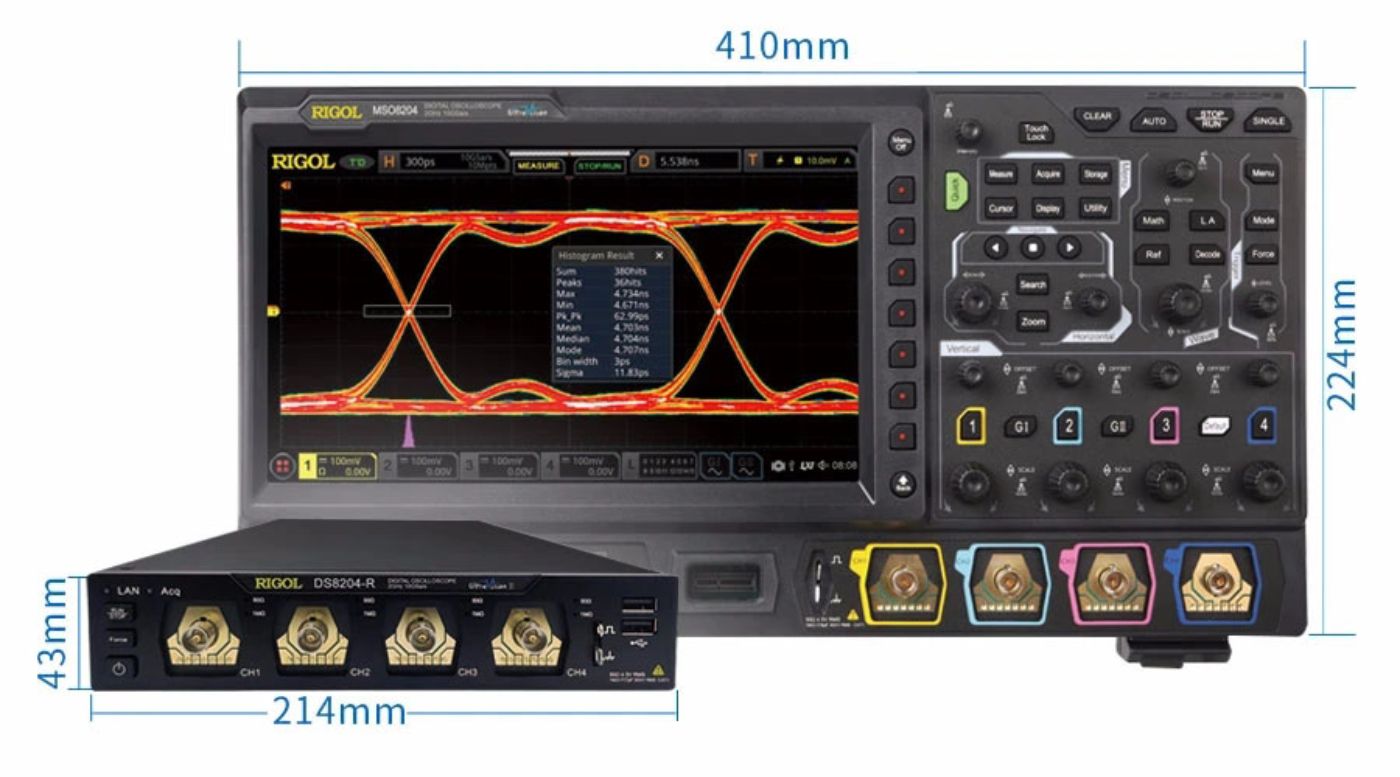

Compact design
Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.

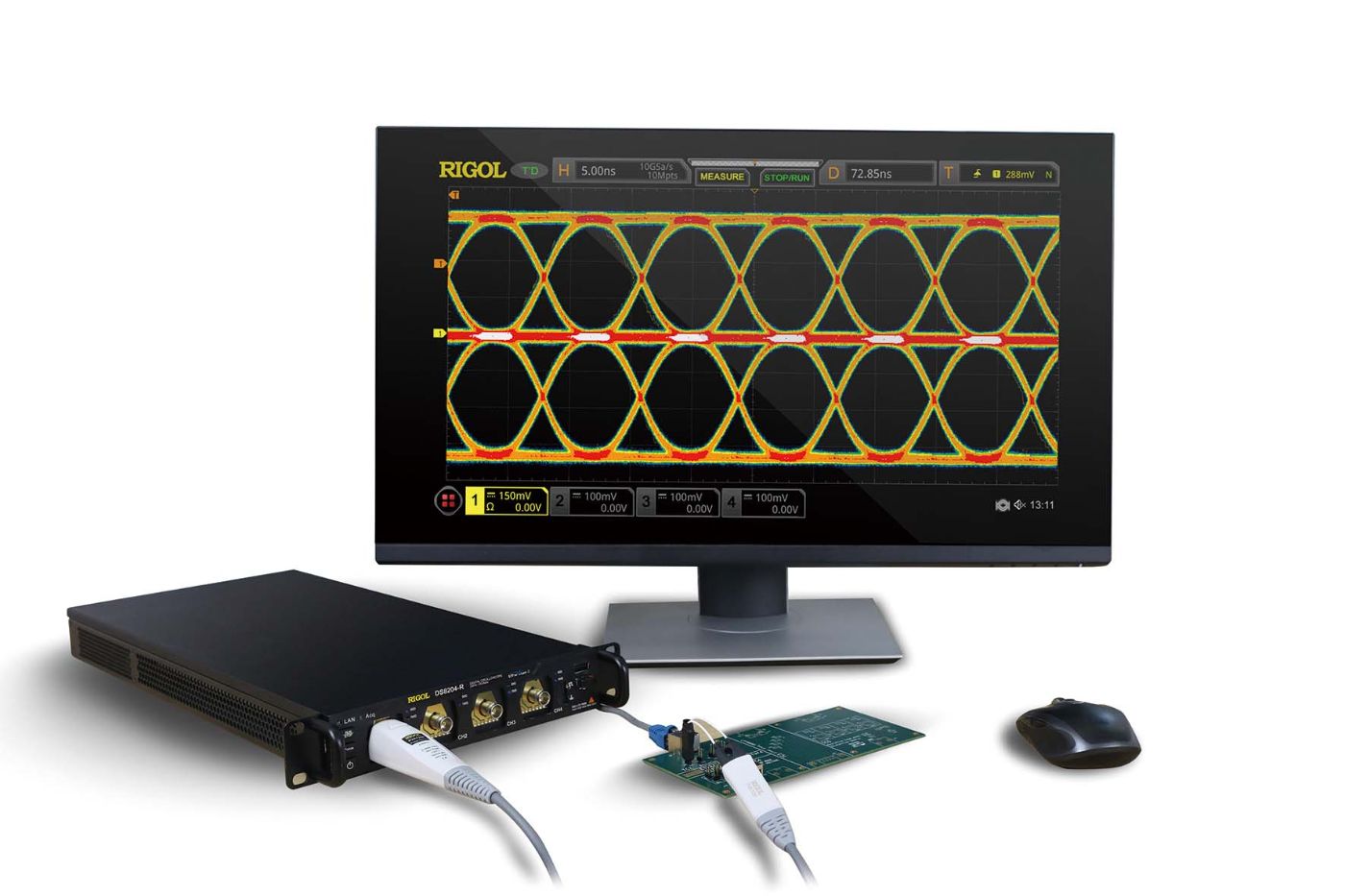

Convenient stand-alone working mode

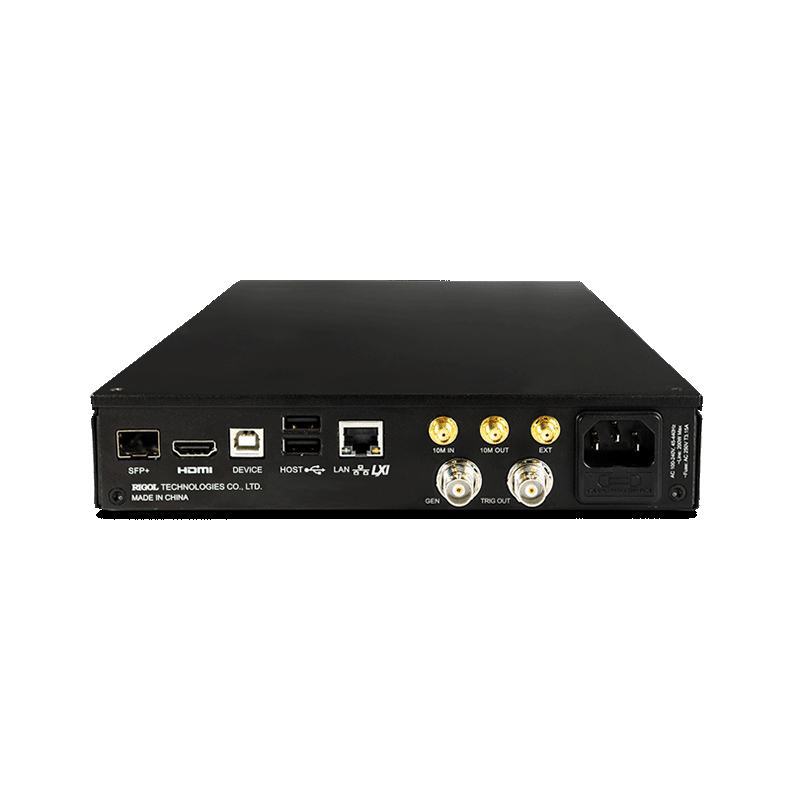

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI® interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.
Suitable for low-temperature working environments
No LCD screen, the minimum operating temperature is -40°C, and it can be applied to signal monitoring in special environments.

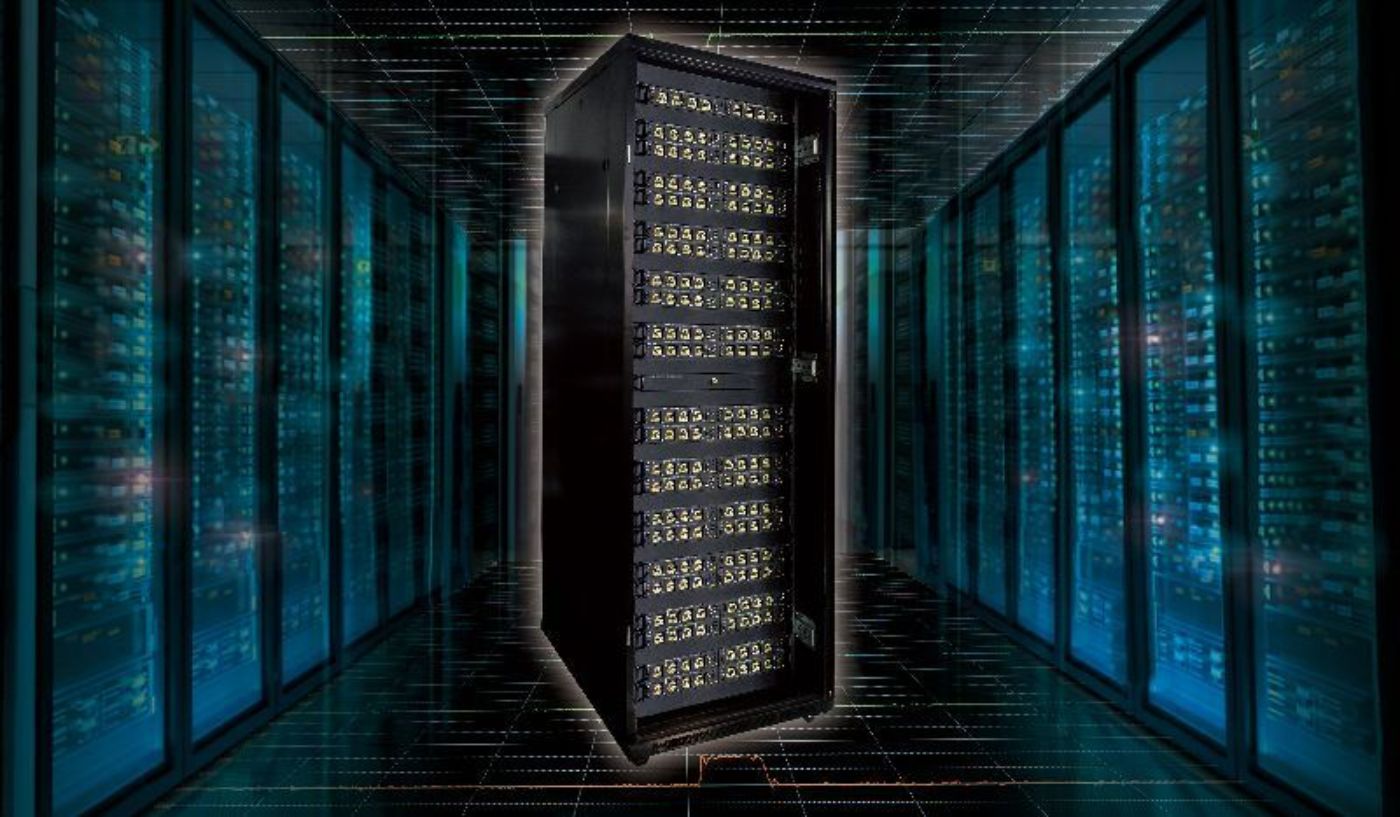

Save the rack space
Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space

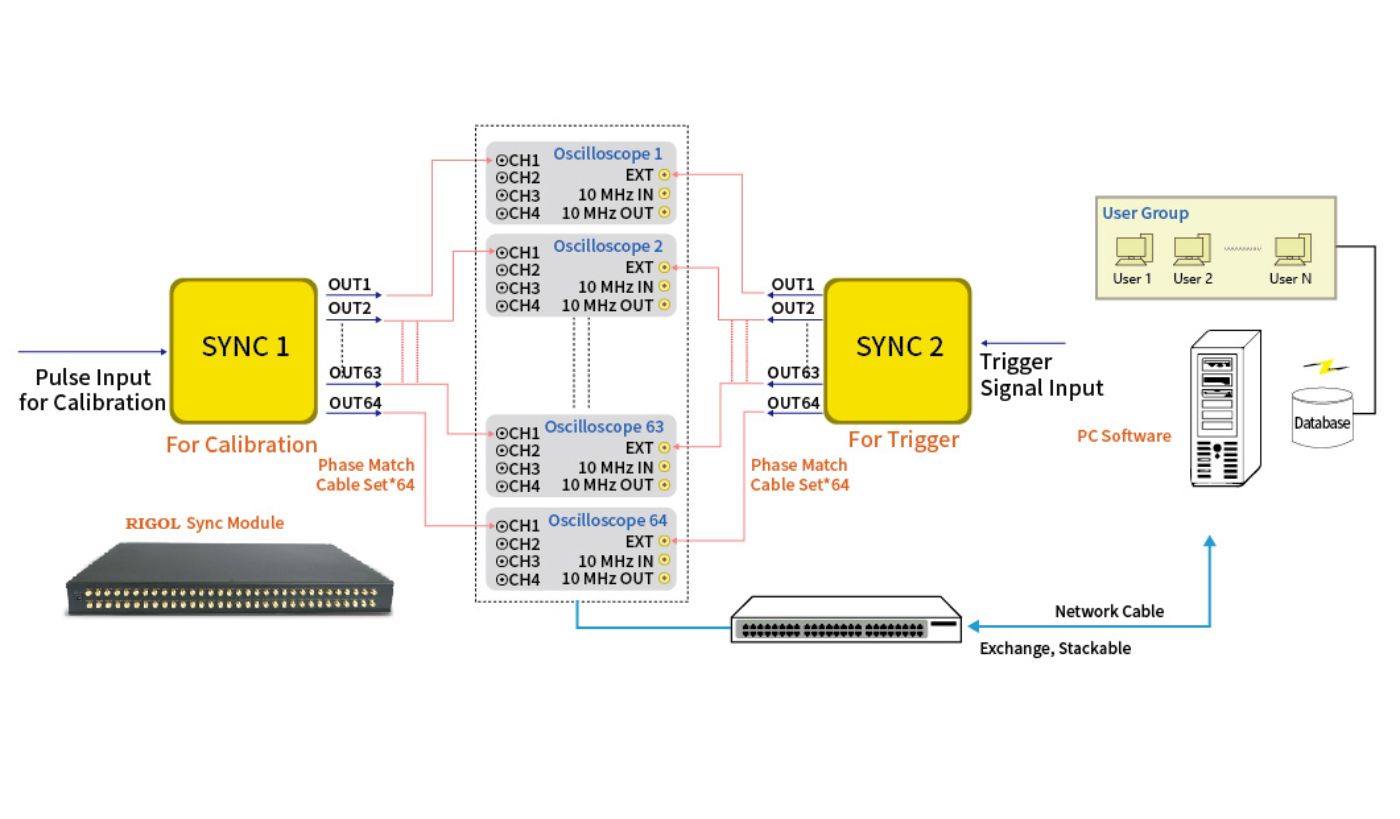

Scalable to 512 channels of synchronous trigger capability
Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation

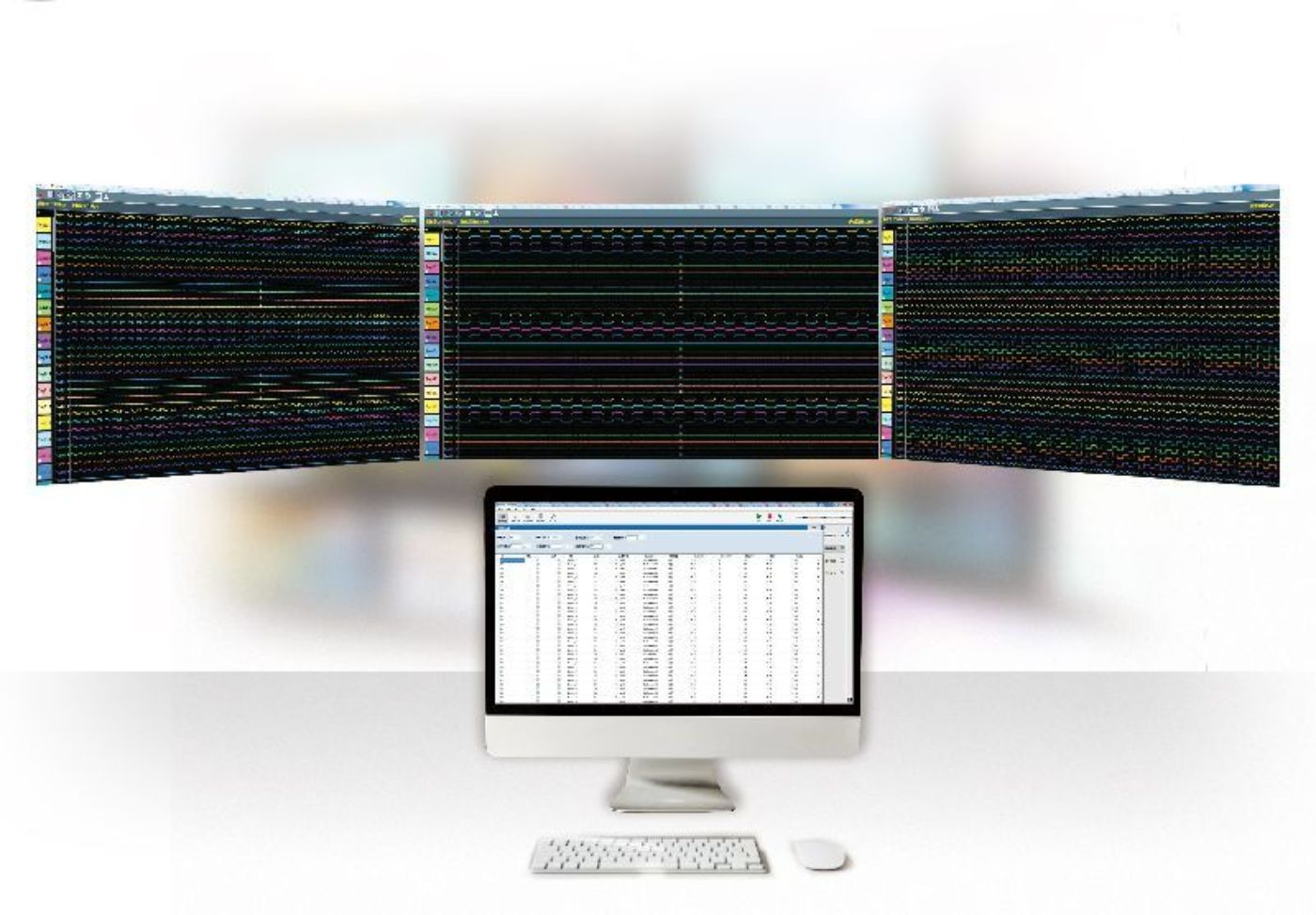

Multi-channel high-speed data acquisition
For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel
DS8000-R
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Price
DS8204-R
2GHz
4
10GSa/s
500Mpts
600,000 wfms/s
1CH（opt.）
DS8104-R
1GHz
4
10GSa/s
500Mpts
600,000 wfms/s
1CH（opt.）
DS8034-R
350MHz
4
10GSa/s
500Mpts
600,000 wfms/s
1CH（opt.）
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS8000-R-JITTER | Eye diagram and jitter analysis | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-PWR | Built-in power analysis | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-AWG | Add built-in 25MHz AWG | ₹ 78,240 | ₹ 92,323 |
| DS8000-R-AERO | MIL-STD 1553 Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-AUDIO | I2S Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,11,840 |
| DS8000-R-FLEX | FlexRay Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-AUTO | CAN/LIN Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-EMBD | I2C/SPI Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-COMP | RS232/UART Bus trigger and analysis options | ₹ 1,11,840 | ₹ 1,31,971 |
| DS8000-R-BND | Bundle option | ₹ 2,57,440 | ₹ 3,03,779 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS SYNC64 | 64-channel synchronization module | ₹ 10,12,350 | ₹ 11,94,573 |
| RPA246 | Power analysis phase difference calibration fixture | ₹ 8,100 | ₹ 9,558 |
| DK-DS6000 | Demo board | ₹ 24,450 | ₹ 28,851 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS8000-R DataSheet | V3.0 | 2025-05-07 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS8000R UserGuide | UGA27103-1110 | 2022-12-29 | |
| 📄 DSSYNC64 UserGuide | 2021-10-29 | 2021-10-29 | |
| 📄 RM1011RM1012 RackMountKit | RKD27100-1110 | 2021-11-05 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS8000R QuickGuide | QGA27100-1110 | 2021-10-29 |
Performance Verification Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS8000R PerformanceVerificationGuide | PVA27101-1110 | 2021-10-29 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS8000R ProgrammingGuide | PGA27101-1110 | 2021-10-29 |
Open Source Acknowledgment
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO5000&MSO&DS7000&MSO8000(A)&DS8000-R Open Source Acknowledgment | 202512 | 2025-12-24 |
