Oscilloscopes
DS80000
Analog Bandwidth
13GHz
Analog Channels
4
Maximum Real-time Sample Rate
40GSa/s
Maximum Memory Depth
4Gpts(opt.)
Maximum Waveform Capture Rate
250,000wfms/s
Digital Channel
-
Downloads
Downloads
Select Model

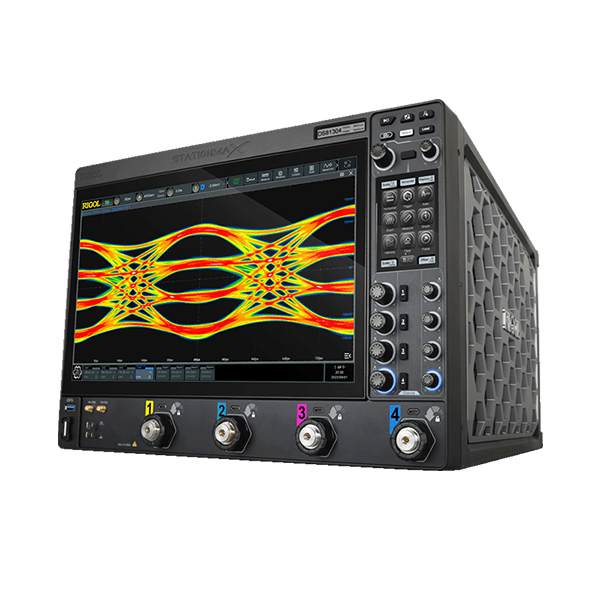

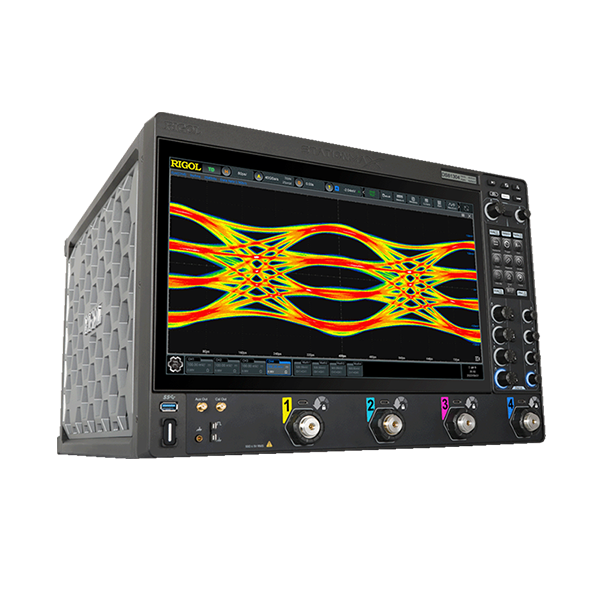

Explore the DS80000 Series Digital Oscilloscopes

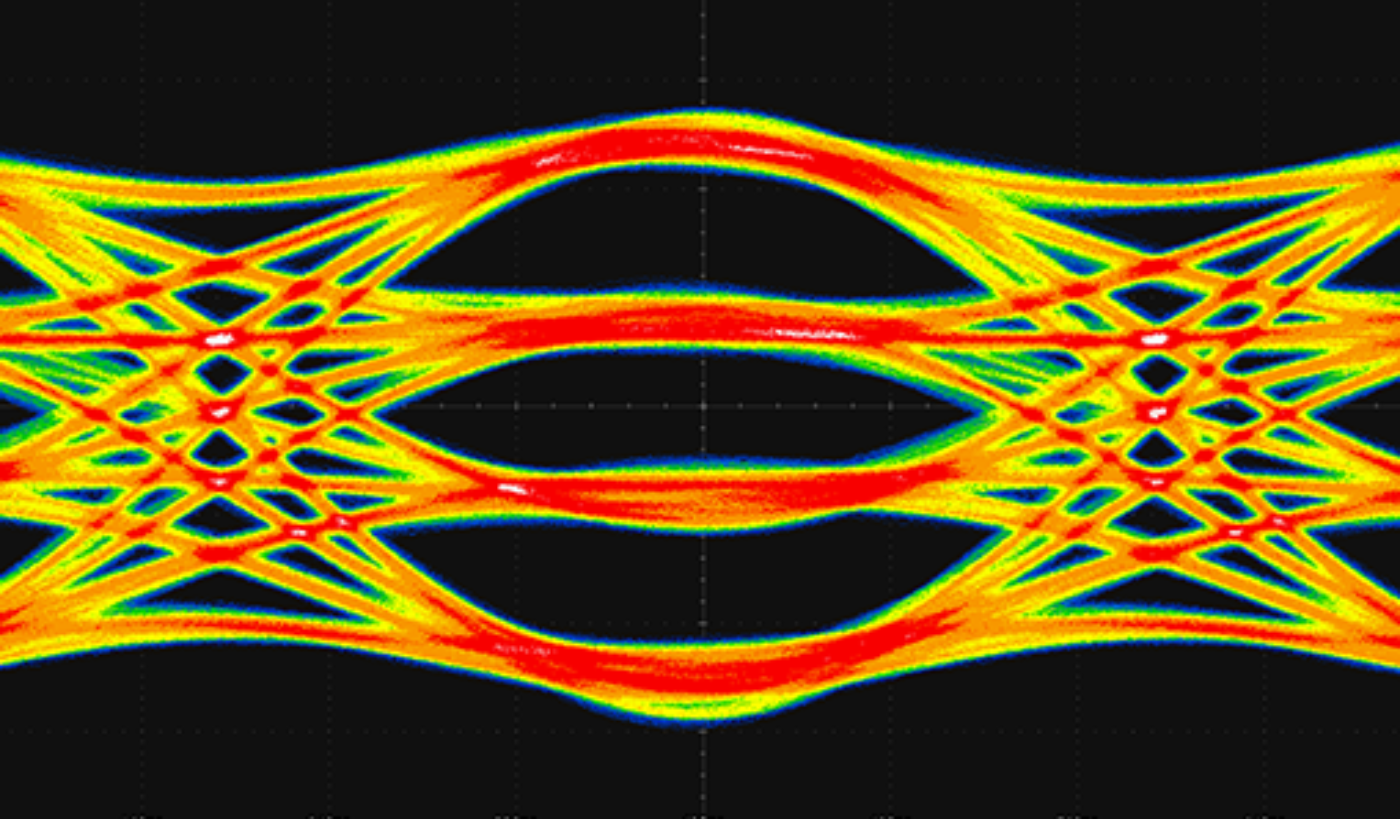

Higher bandwidth, higher sampling
Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz, which can more realistically restore signals and cover more applications.

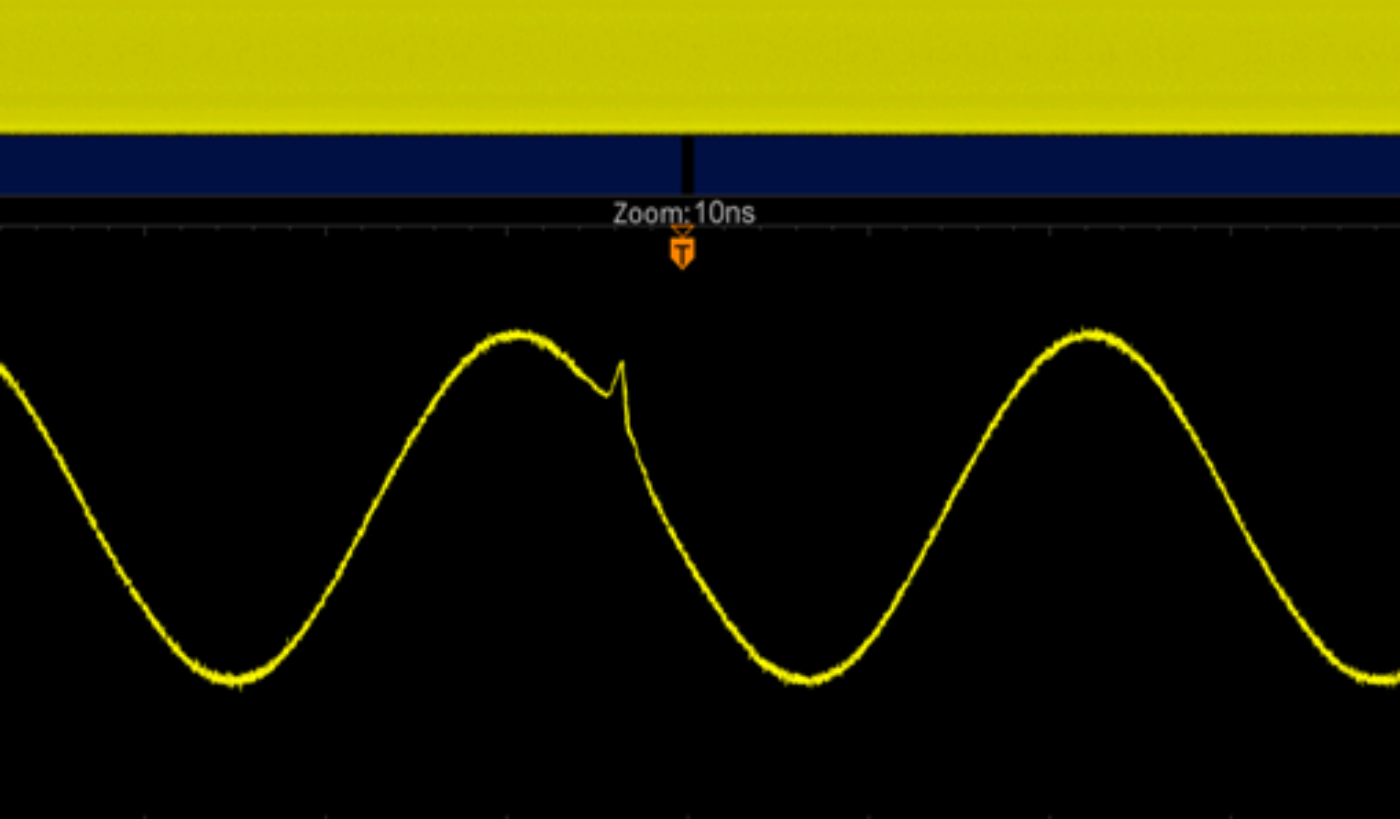

Deep storage high fidelity
Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

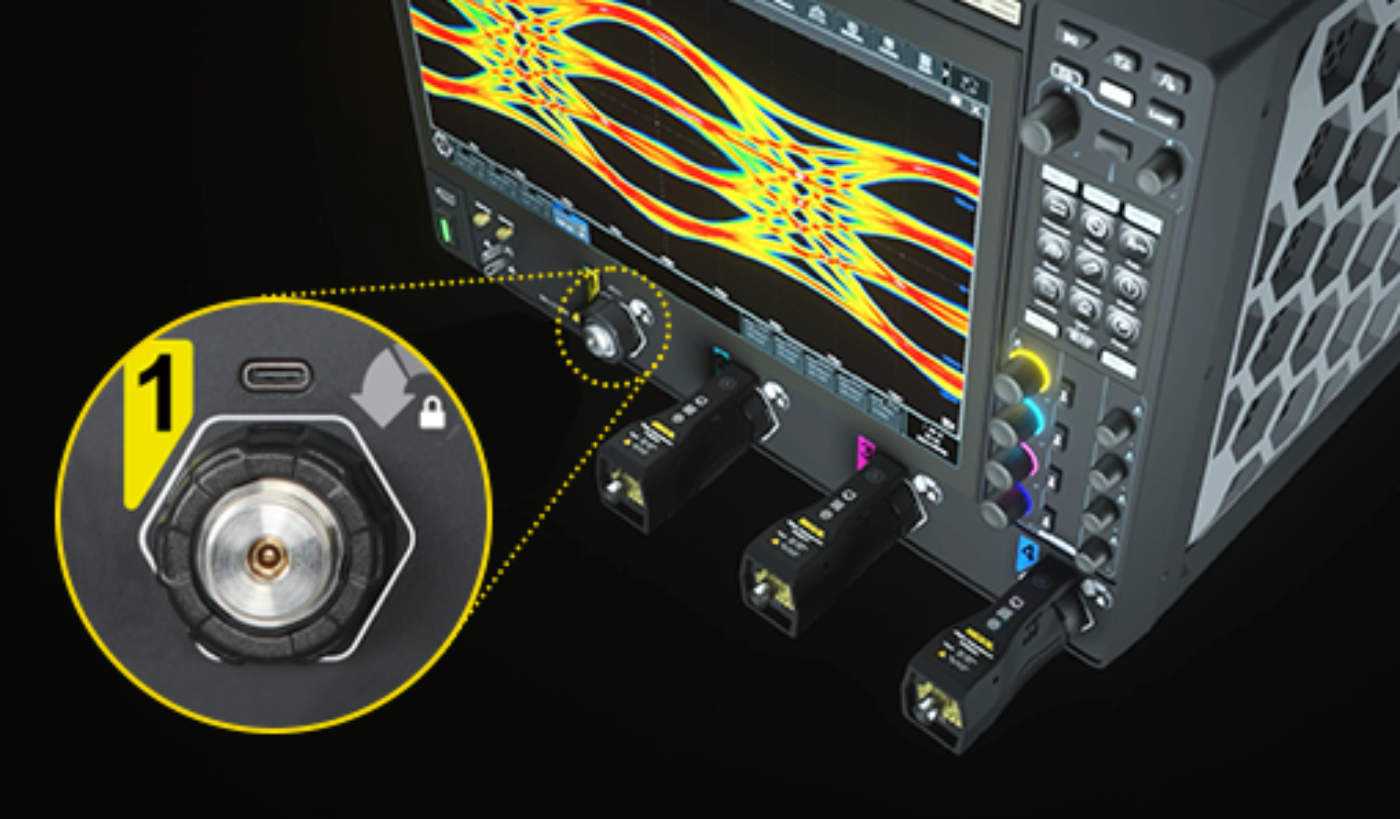

New interface design
The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, supports direct signal connection with 3.5mm connectors, and is equipped with RIGOL’s self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL original probes, providing convenience for your use.

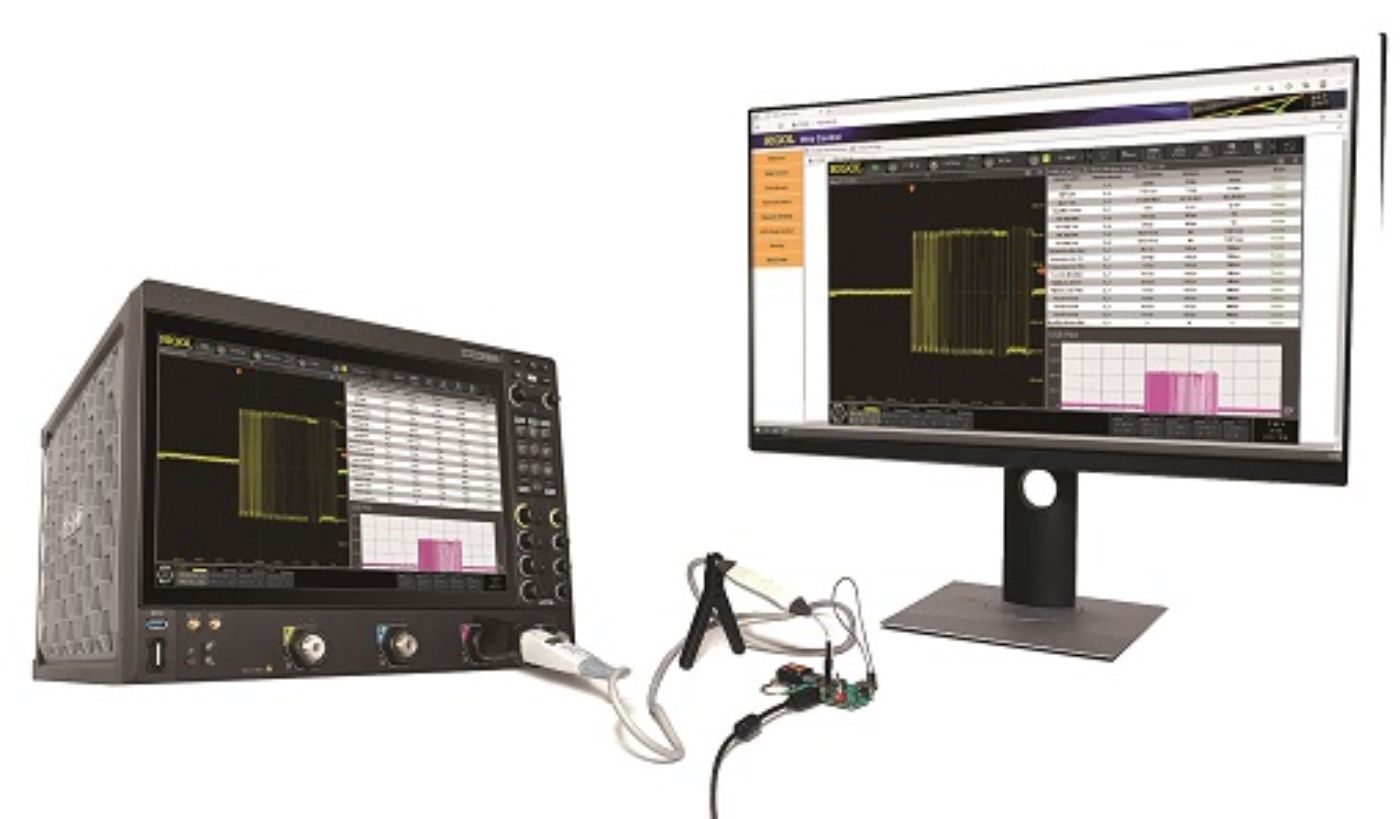

Meet more high-speed application scenarios
DS80000 has a maximum analog bandwidth of 13GHz and a maximum real-time sampling rate of 40GSa/s, which can meet the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.
DS80000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Price
DS81304
13GHz
4
40GSa
4Gpts(opt.)
250,000wfms/s
DS81004
10GHz
4
40GSa
4Gpts(opt.)
250,000wfms/s
DS80804
8GHz
4
40GSa
4Gpts(opt.)
250,000wfms/s
DS80604
6GHz
4
40GSa
4Gpts(opt.)
250,000wfms/s
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Memory Depth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS80000-RLU-40 | 4G Record length Option | ₹ 15,54,560 | ₹ 18,34,381 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS80000-JITTA | Jitter and Eye Diagram | ₹ 7,70,560 | ₹ 9,09,261 |
| DS80000-AUTOENTC | Automotive Enet Test | ₹ 1,11,840 | ₹ 1,31,971 |
| DS80000-USBC | USB 2.0 Compliance Test | ₹ 3,11,360 | ₹ 3,67,405 |
| DS80000-USB3C | USB 3.0 Compliance Test | ₹ 8,25,600 | ₹ 9,74,208 |
| DS80000-ENETC | 100/1000M Ethernet Compliance Test | ₹ 7,70,560 | ₹ 9,09,261 |
| DS80000-AUTOA | Automotive Bus Decode | ₹ 2,55,360 | ₹ 3,01,325 |
| DS80000-EMBDA | Embedded Trigger&Decode | ₹ 2,55,360 | ₹ 3,01,325 |
| DS80000-AUDIOA | I2S Trigger and Decode | ₹ 2,55,360 | ₹ 3,01,325 |
Test Fixture
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| TF-USBH-STP | USB2.0 Host Compliance Test Fixture | ₹ 55,200 | ₹ 65,136 |
| TF-USBD-STP | USB2.0 Device Compliance Test Fixture | ₹ 55,200 | ₹ 65,136 |
| TF-ENET-STP | 10/100/1000M Ethernet Compliance Test Fixture | ₹ 2,80,200 | ₹ 3,30,636 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS80000 DataSheet | DSA38100-1110 | 2025-05-08 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS80000 UserGuide | UGA38100-1110 | 2025-05-08 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS80000 QuickGuide | QGA38101-1110 | 2025-05-16 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS80000 ProgrammingGuide | PGA38100-1110 | 2025-05-08 |
