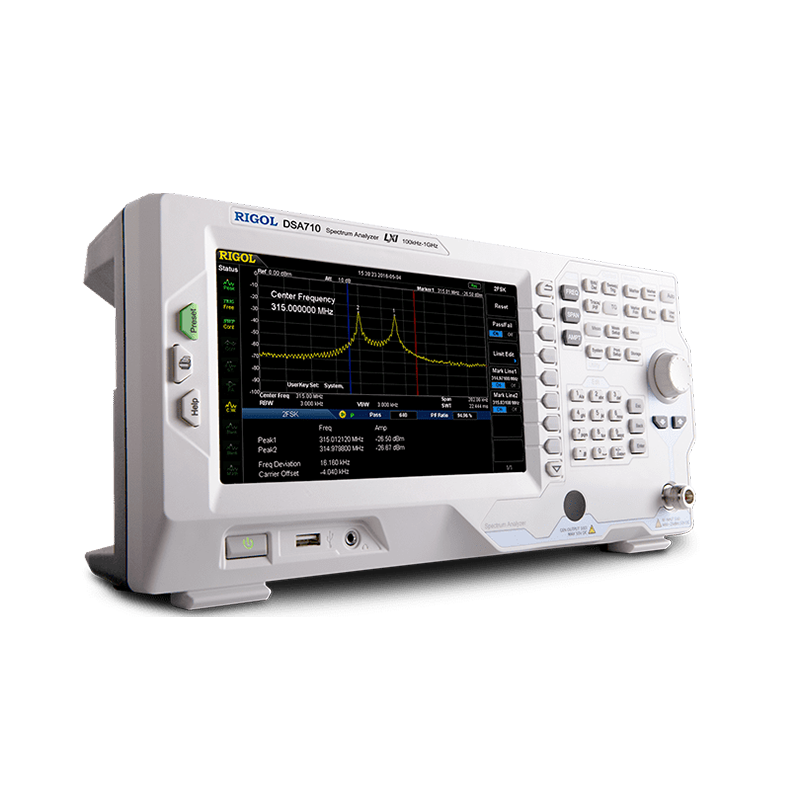

DSA700

Spectrum Analyzer

Entry level spectrum analyzers for education, IoT, hobby, and radio applications 500 MHz and 1 GHz models with option for Seamless Signal Capture, EMI, and more

Frequency Range

100kHz~1GHz

Resolution Bandwidth (RBW)

10Hz~1MHz

Phase Noise (Typ.)

-80dBc/Hz@10kHz

Displayed Average Noise Level (DANL)

-130dBm (Normalized to 100Hz)

Tracking Generator

No

Analysis Function

-

Downloads

Select Model

Models

Clear

Qty:

Explore the DSA700 Series Spectrum Analyzers

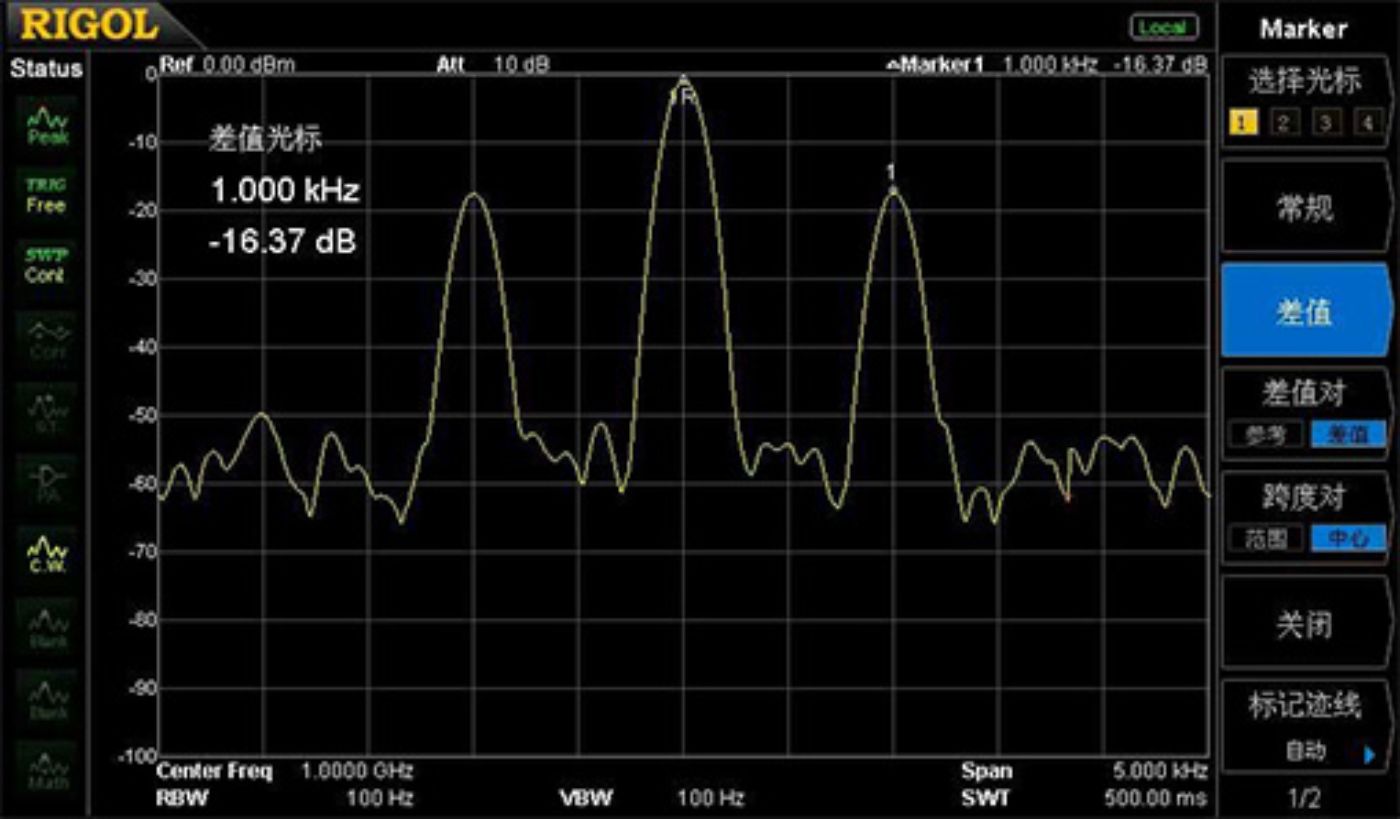

Down to 10Hz Minimum Resolution Bandwidth (RBW)

Provides high resolution to separate signals with similar frequencies enabling easier signal identification

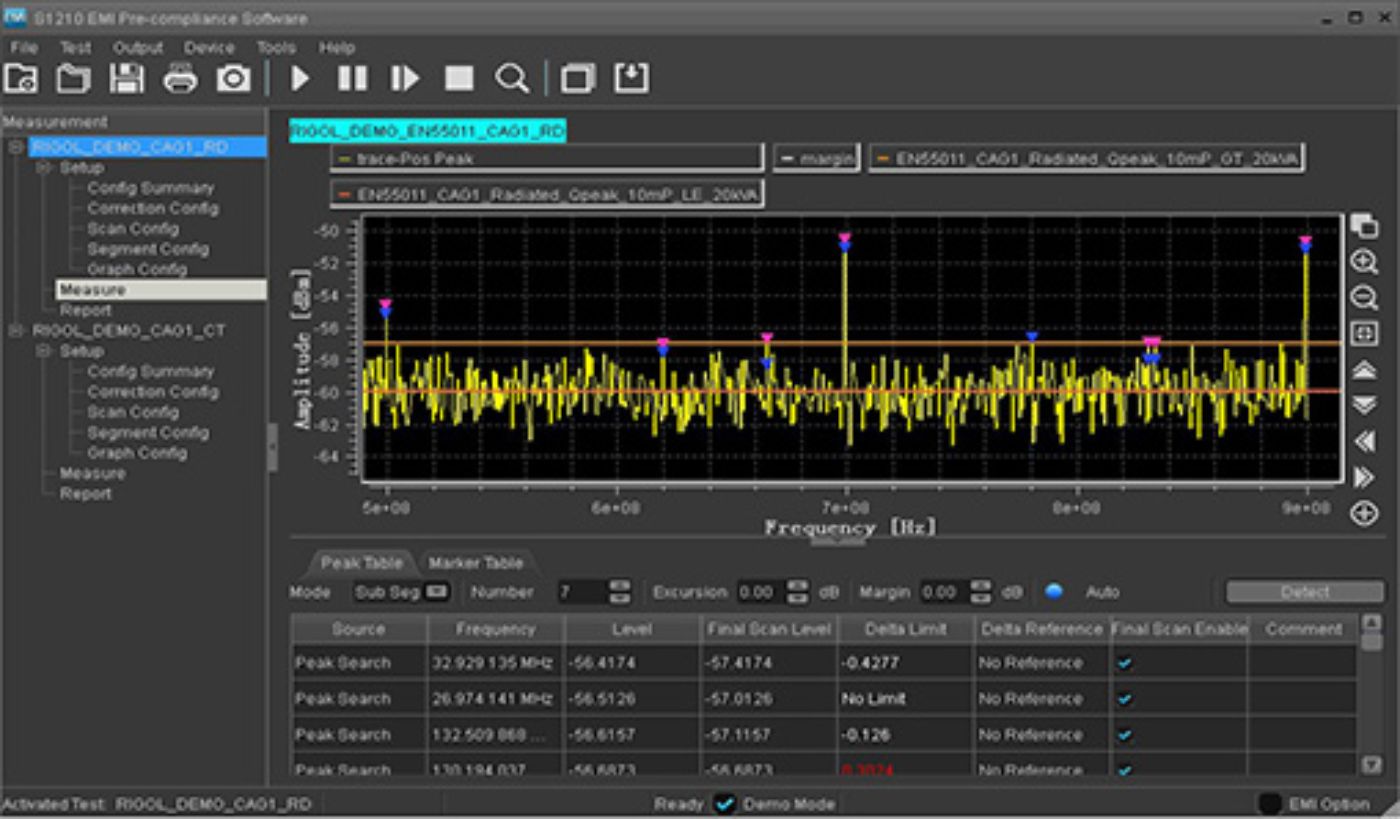

EMI PreCompliance Measurements (Option)

The DSA700 has an EMI filter (6 dB) and a quasi-peak detector to make EMI pre-test/diagnostics more accurate, and complete test and report generation using the host computer software S1210.

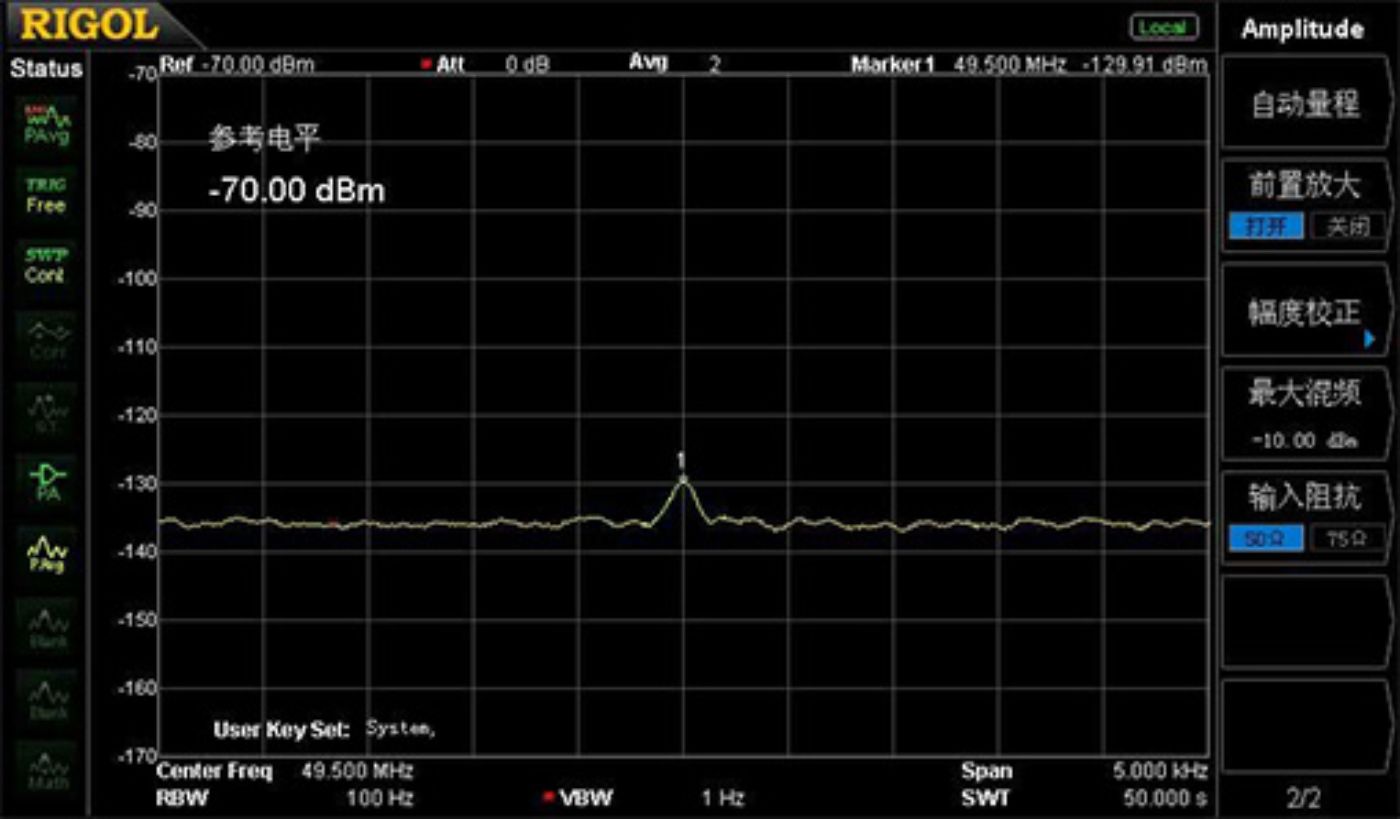

Excellent Noise Floor Reduction for Weak Signal Testing

Testing of weak signals is susceptible to the noise floor of the spectrum analyzer itself. The DSA700 series displays an average noise level as low as -130dBm (normalized to 100Hz), which effectively guarantees the ability to test weak signals.

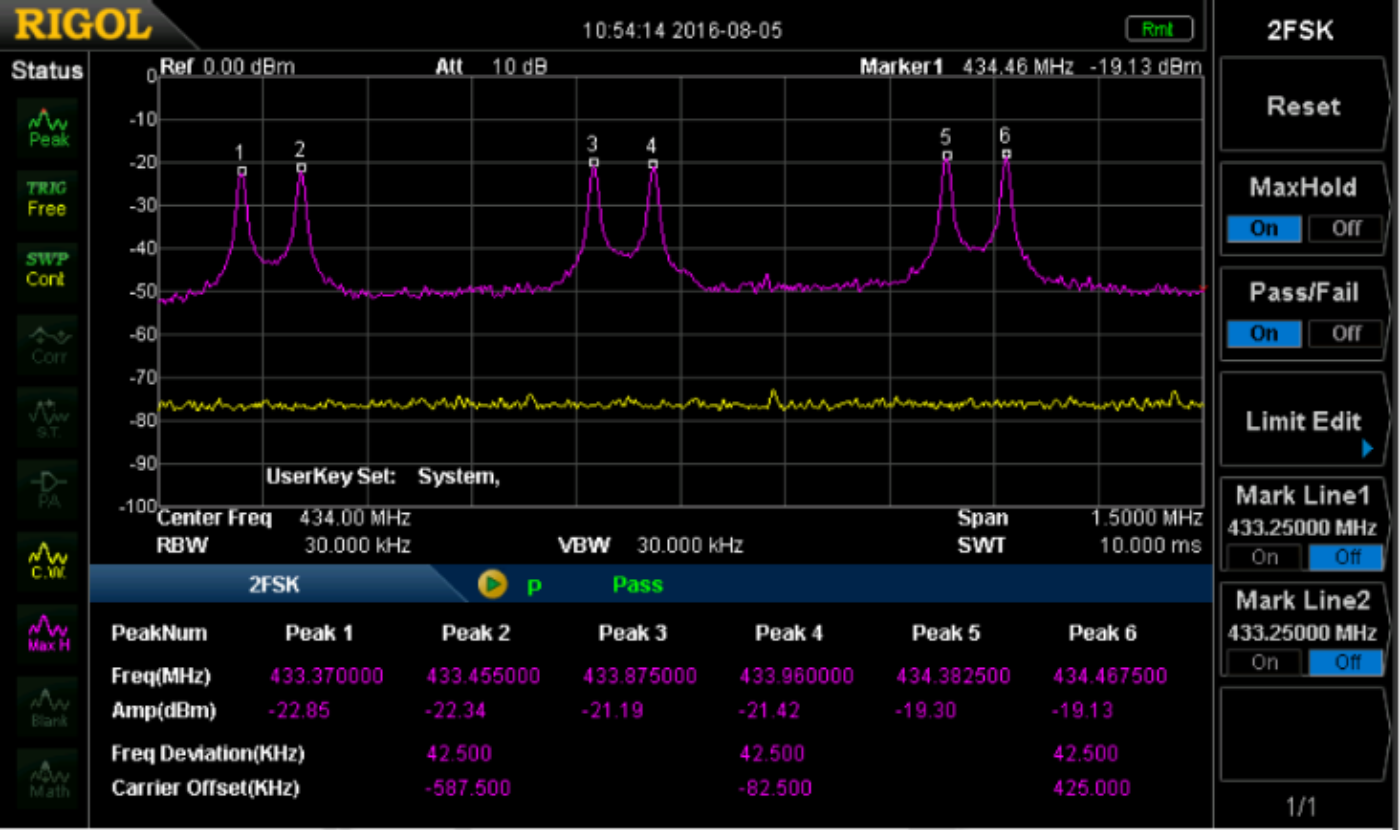

ASK/FSK Signal Capture with Fast Capture

ASK/FSK modulation is usually used for car remote control keys, TPMS tire pressure modules and small wireless modules. The DSA700 can perform ASK/FSK signal capture through the SSC-DSA function extension, and has built-in 2FSK test function to directly obtain parameters such as center frequency, power and offset.

DSA700

Model

Frequency Range

Resolution Bandwidth (RBW)

Phase Noise (Typ.)

Displayed Average Noise Level (DANL)

Price

DSA710

100kHz~1GHz

10Hz~1MHz

-80dBc/Hz@10kHz

-130dBm (Normalized to 100Hz)

DSA705

100kHz~500MHz

10Hz~1MHz

-80dBc/Hz@10kHz

-130dBm (Normalized to 100Hz)

Function Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
SSC-DSA	2FSK	₹ 23,550	₹ 27,789
AMK-DSA800	Advanced measurement module	₹ 61,950	₹ 73,101
EMI-DSA800	EMIFilter and quasi-peak detector kit	₹ 75,000	₹ 88,500

Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
USB-GPIB	USB-GPIB adapter	₹ 39,000	₹ 46,020
ATT03301H	30dB High Power Attenuator，Maximum power is 100W	₹ 30,900	₹ 36,462
RF CATV Kit	Include：50Ω to 75Ωadapter（2pcs）	₹ 55,350	₹ 65,313
RF Attenuator Kit	Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）	₹ 70,050	₹ 82,659
RF Adaptor Kit	Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)	₹ 42,300	₹ 49,914
CB-NM-SMAM-75-L-12G	N(M)-SMA(M) RF Cable	₹ 26,100	₹ 30,798
CB-NM-NM-75-L-12G	N(M)-N(M) RF Cable	₹ 26,100	₹ 30,798
NFP-3	Near field probe，Frequency range: 30 MHz to 3 GHz	₹ 56,100	₹ 66,198
DSA Utility Kit	Include：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna（2pcs）	₹ 89,550	₹ 105,669

Host computer options

Model	Description	INR List Price	INR (Inclusive of GST)
S1210	EMI pre-test software	₹ 56,100	₹ 66,198
Ultra Spectrum	DSAPC software	₹ 27,750	₹ 32,745

User Guide

Name	Version	Release time
📄 NFP-3 UserGuide	V1.0	2021-10-21
📄 DSA700 UserGuide	UGD18102-1110	2021-10-22
📄 DSA700 RackmountKit	V1.0	2021-10-21
📄 DSA700 Options Accessories	UMD18100-1110	2021-10-22

Datasheet

Name	Version	Release time	Download
📄 DSA700 DateSheet	V1.0	2021-10-22

Quick Guide

Name	Version	Release time	Download
📄 DSA700 QuickGuide	v1.0	2021-11-23

Programming Guide

Name	Version	Release time	Download
📄 DSA700 ProgrammingGuide	PGD18101-1110	2021-10-22
