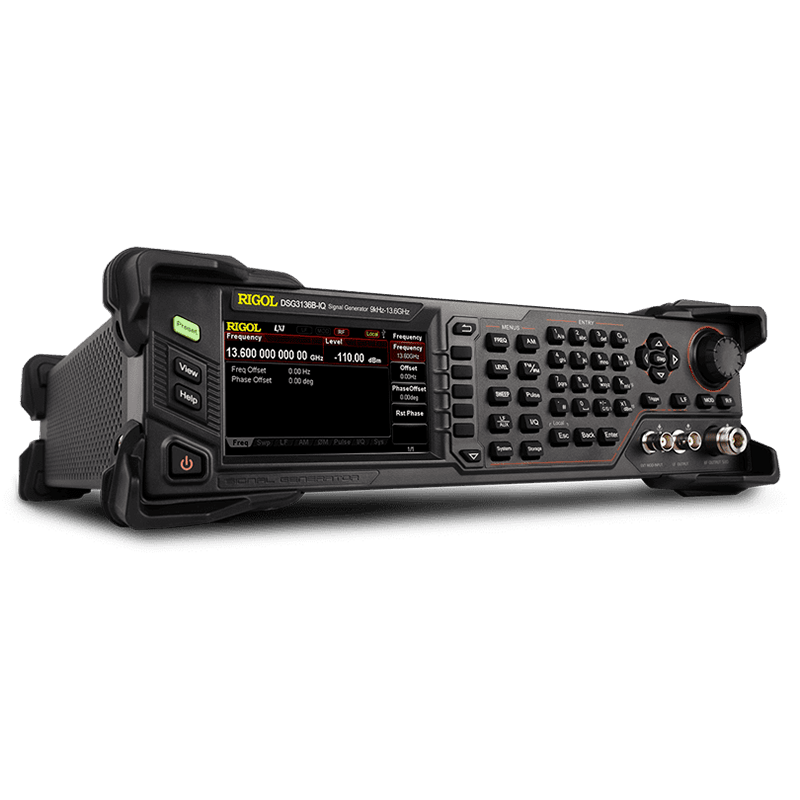

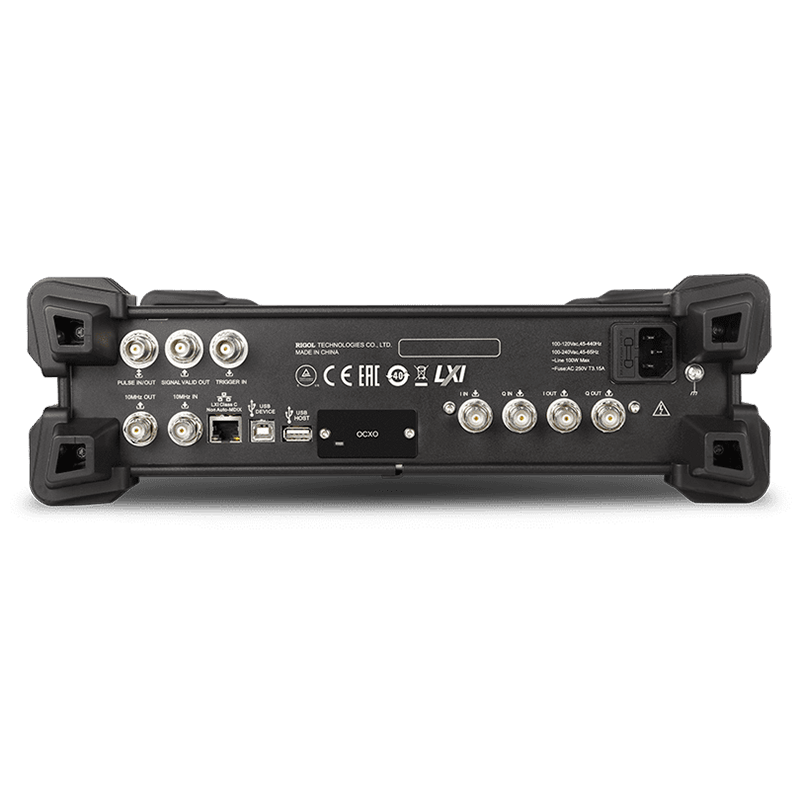

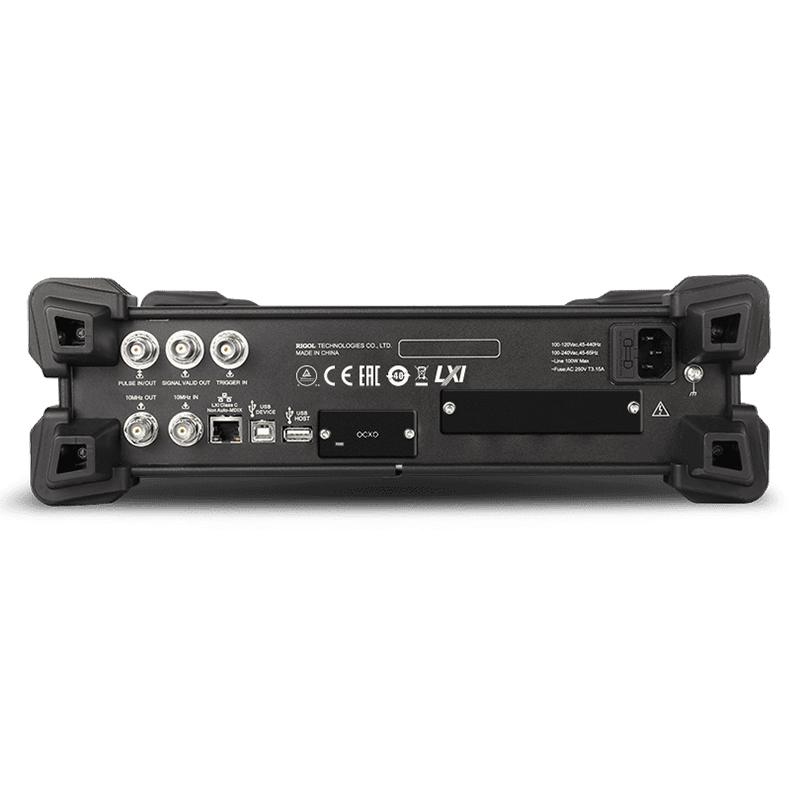

DSG3000B

RF Signal Generators

The DSG3000B Series offers continuous wave high power carriers up to 13.6 GHz, standard AM/FM/ØM analog modulation up to 3.6 GHz, and I/Q modulation and I/Q baseband output up to 6.5 GHz on the models ending in “IQ”. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

Frequency Range

9kHz~13.6GHz

Amplitude Specification Range

-110dBm~+20dBm

SSB Phase Noise (Typ.)

<-116dBc/Hz@1GHz,20kHz offset

Modulation Type

AM/FM/ØM/Pulse

Downloads

User Guide

Downloads

DataSheet

Models

Clear

Qty:

Functions and Features

High Power Signal Generation Capability

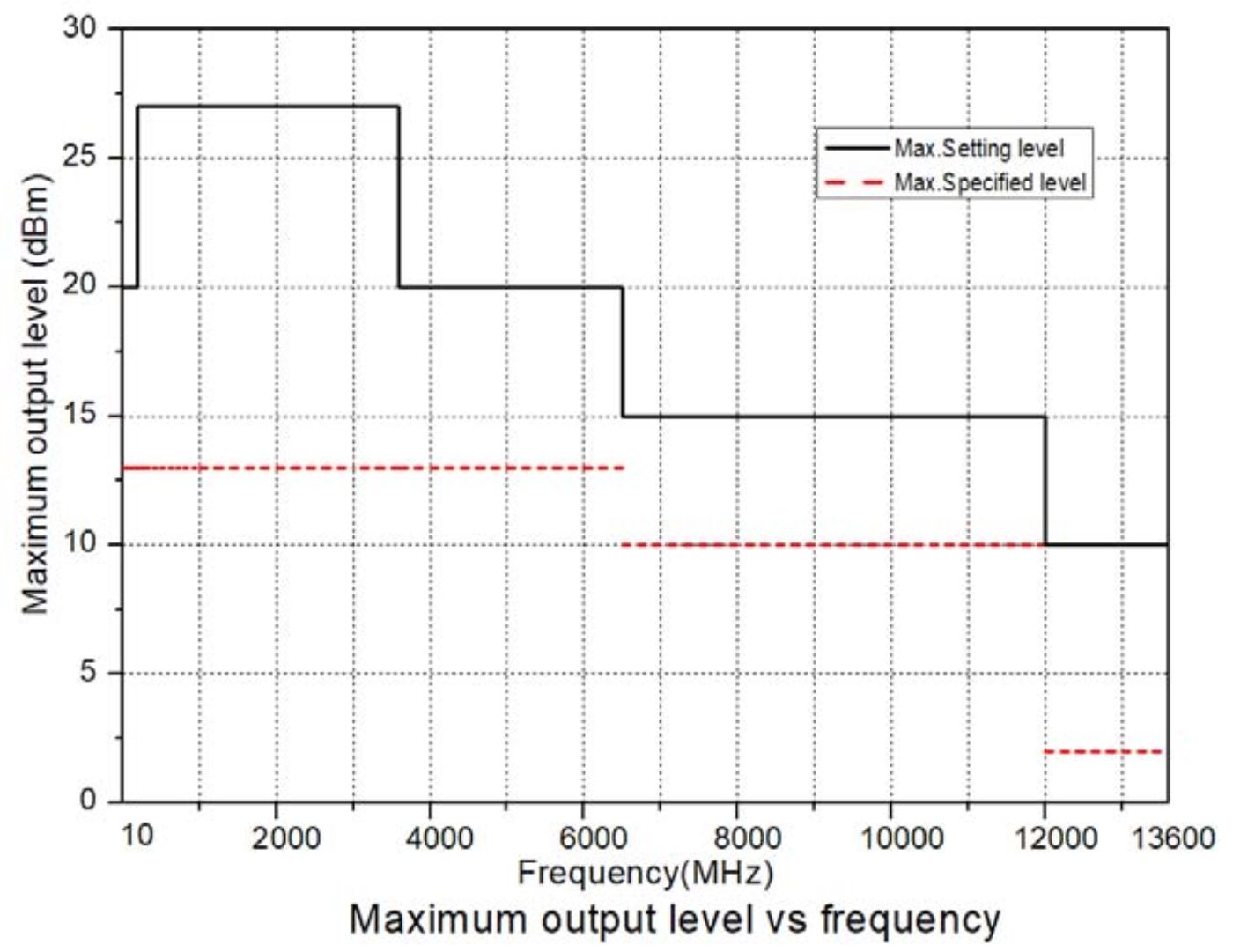

The maximum output amplitude is +27dBm，which meets the non-linearity test of the amplifier.

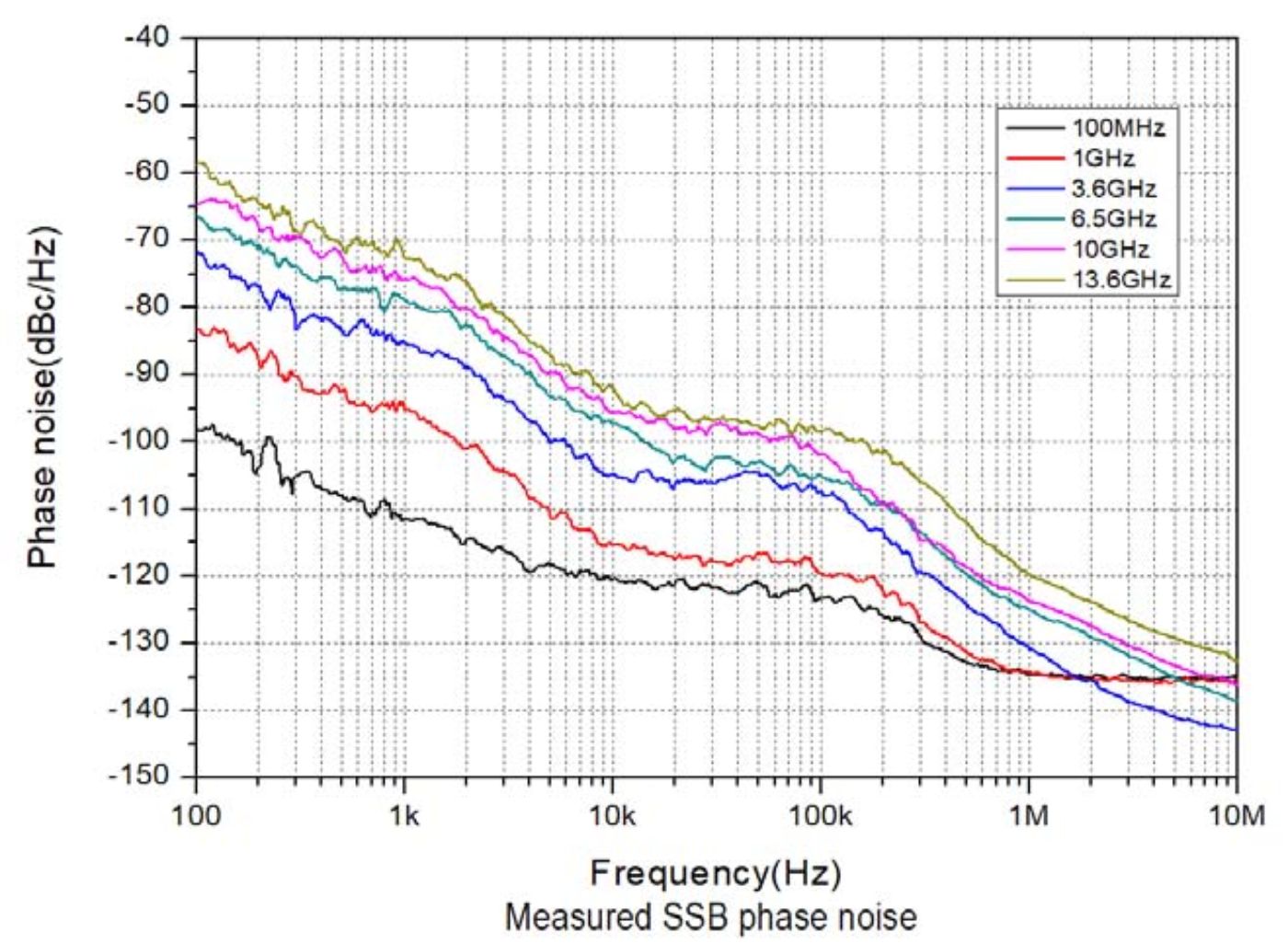

Phase Noise Metric

High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index

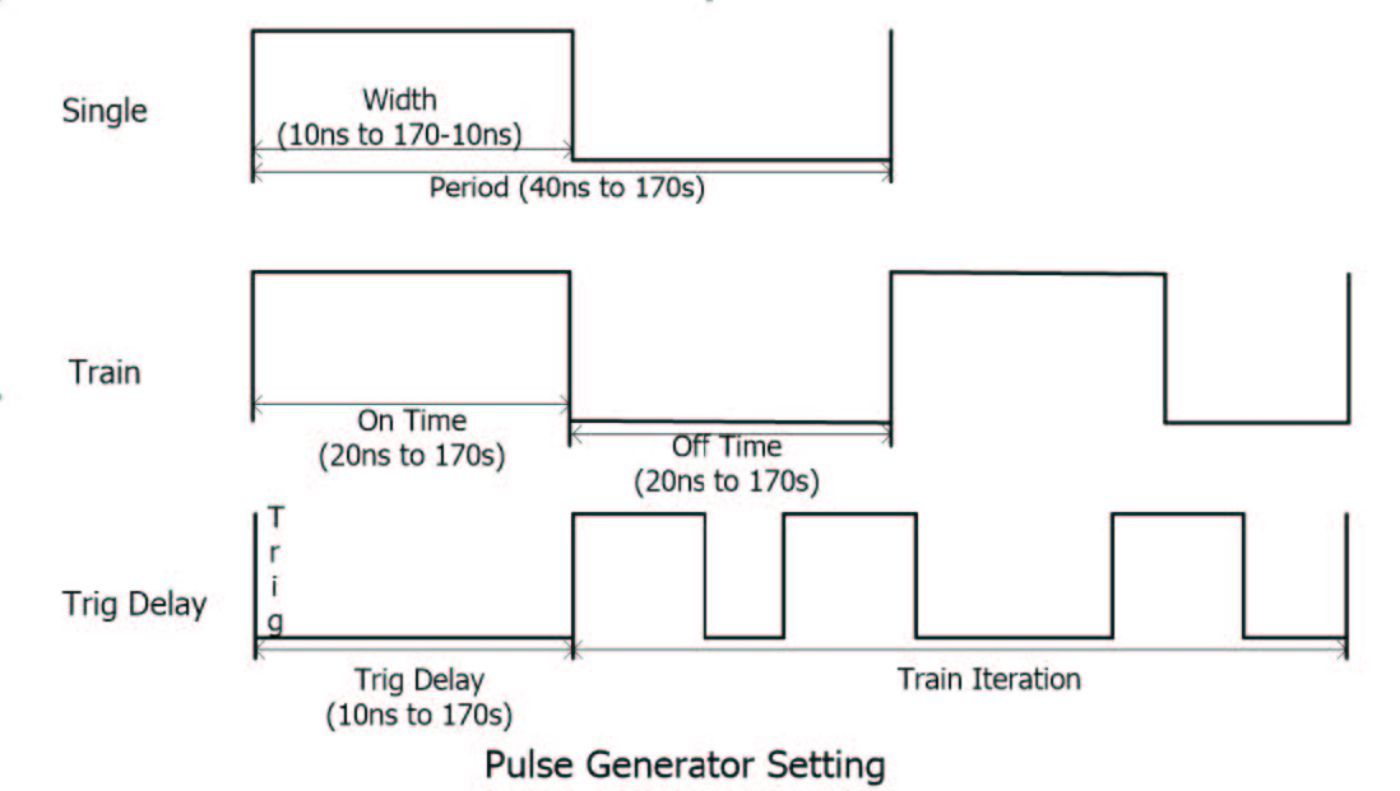

Support pulse modulation; on/off ratio up to 70 dB

Internal and External IQ Modulation

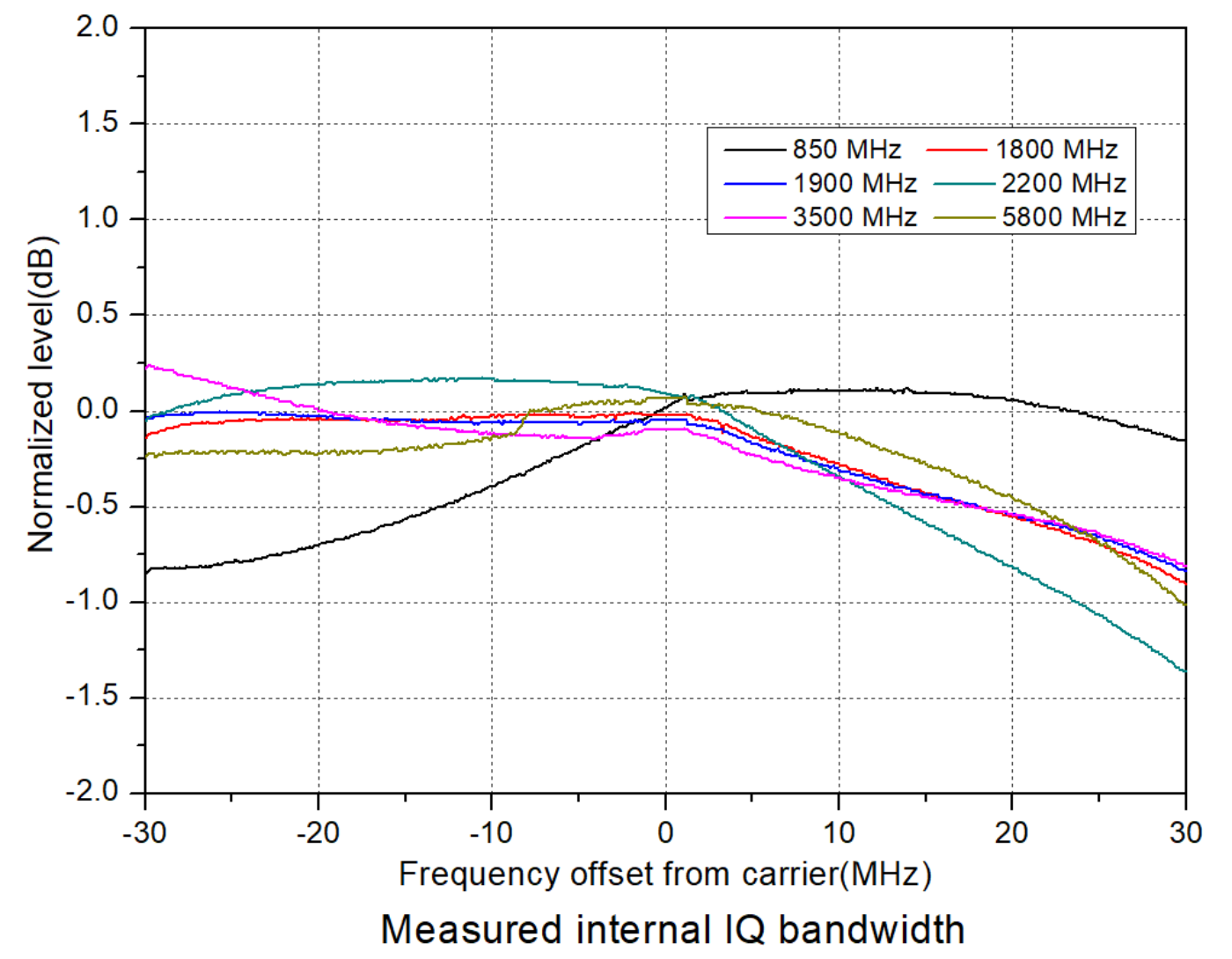

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform

Multiple Modulation Methods

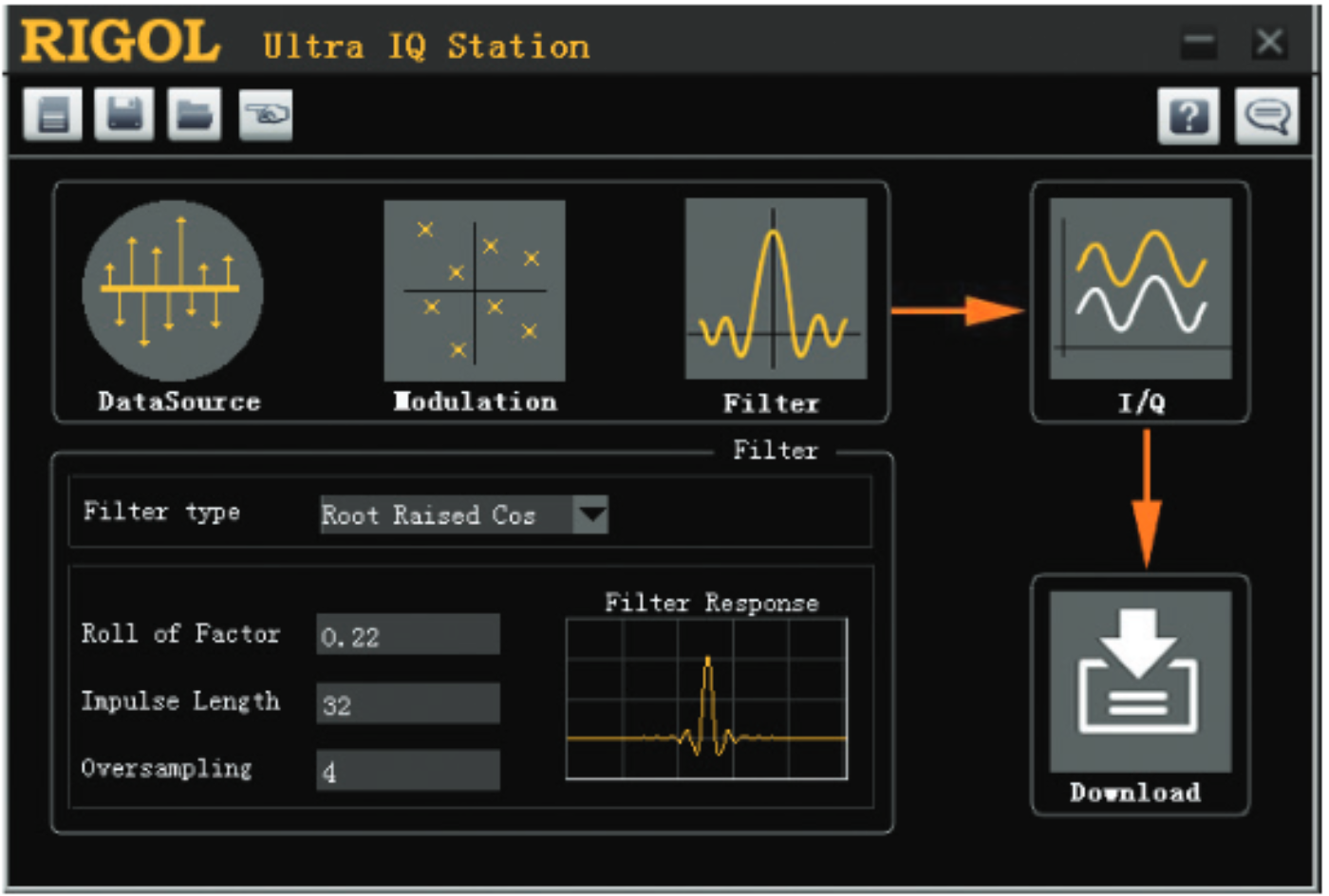

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources

DSG3000B

Model

Frequency Range

Amplitude Specification Range

SSB Phase Noise (Typ.)

Modulation Type

Price

DSG3136B

9kHz~13.6GHz

-110dBm~+20dBm

<-116dBc/Hz@1GHz,20kHz offset

AM/FM/ØM/Pulse

DSG3136B-IQ

9kHz~13.6GHz

-110dBm~+20dBm

<-116dBc/Hz@1GHz,20kHz offset

AM/FM/ØM/Pulse/IQ

DSG3065B-IQ

9kHz~6.5GHz

-110dBm~+20dBm

<-116dBc/Hz@1GHz,20kHz offset

AM/FM/ØM/Pulse/IQ

DSG3065B

9kHz~6.5GHz

-110dBm~+20dBm

<-116dBc/Hz@1GHz,20kHz offset

AM/FM/ØM/Pulse

Function Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
DSG3000B-PUG	DSG3000B Pulse Train Generator	₹ 62,850	₹ 74,163

Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
CB-USBA-USBB-FF-150	USB Data line，150cm	₹ 2,250	₹ 2,655
CB-BNC-BNC-MM-100	BNC Coaxial line，100cm	₹ 2,100	₹ 2,478
USB-GPIB	USB-GPIB adapter	₹ 37,500	₹ 44,250
CB-NM-SMAM-75-L-12G	N(M)-SMA(M) RF Cable	₹ 26,100	₹ 30,798
CB-NM-NM-75-L-12G	N(M)-N(M) RF Cable	₹ 26,100	₹ 30,798
ATT03301H	30dB High Power Attenuator，Maximum power is 100W	₹ 30,900	₹ 36,462
RF Attenuator Kit	Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）	₹ 70,050	₹ 82,659
RF Adaptor Kit	Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)	₹ 42,300	₹ 49,914
