RF Signal Generators

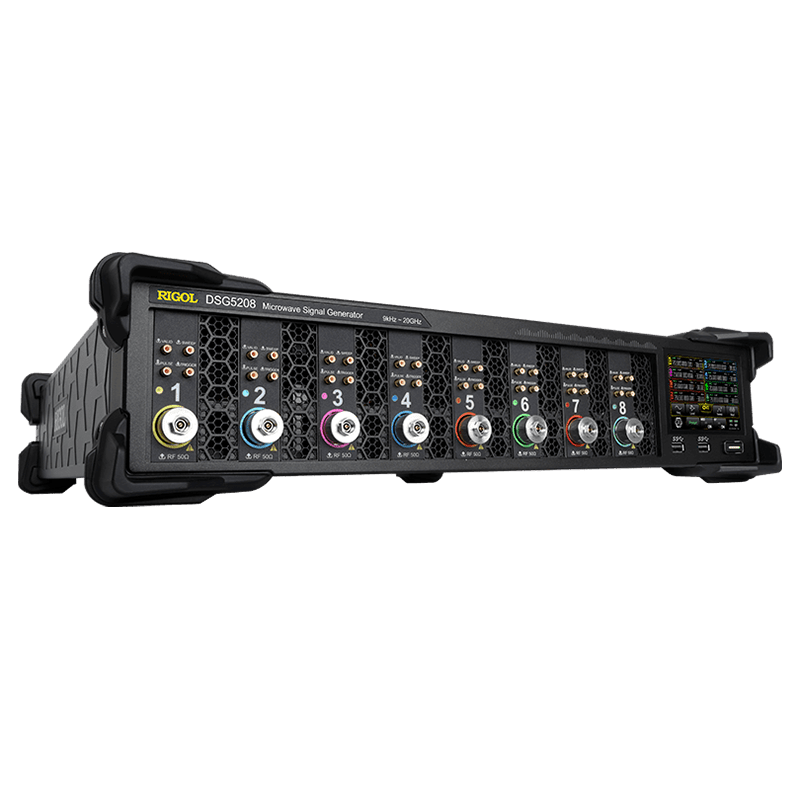

DSG5000
Frequency Range
9kHz~20GHz
Amplitude Specification Range
-30dBm~+25dBm
SSB Phase Noise (Typ.)
<-133dBc/Hz@1GHz,10kHz offset
Modulation Type
AM/FM/ØM/Pulse
Downloads
Downloads
Functions and Features

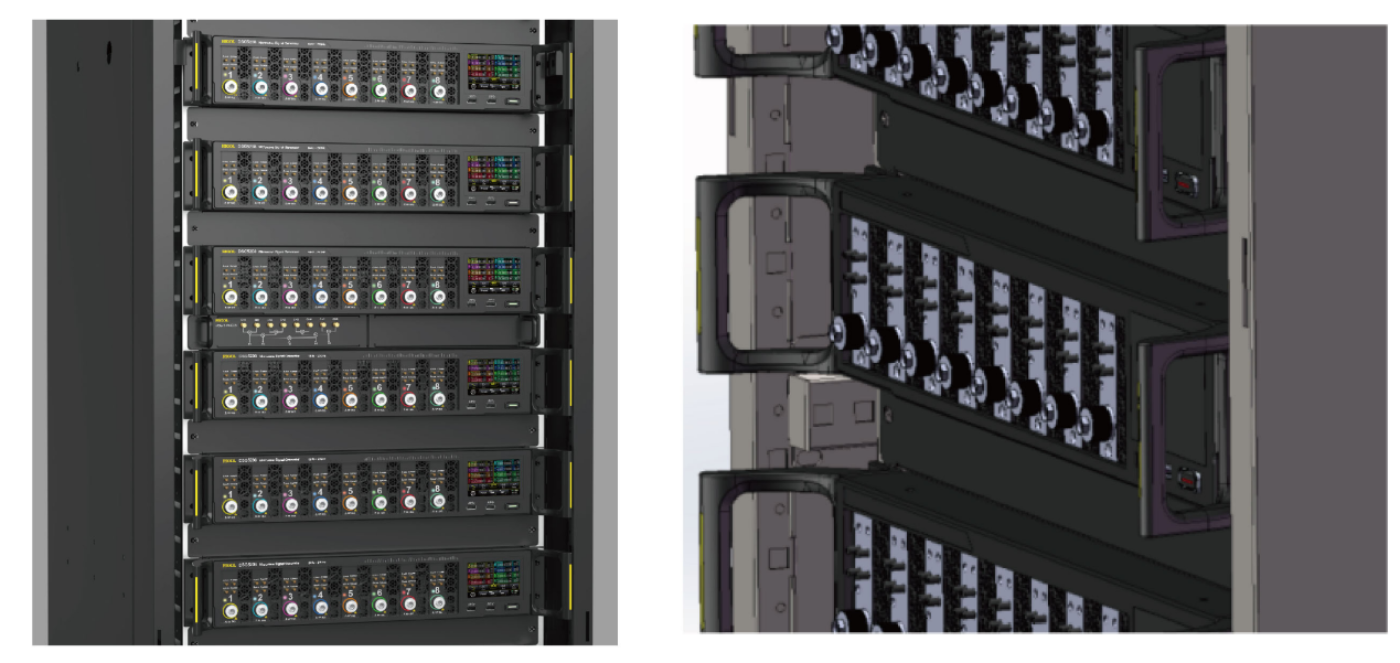

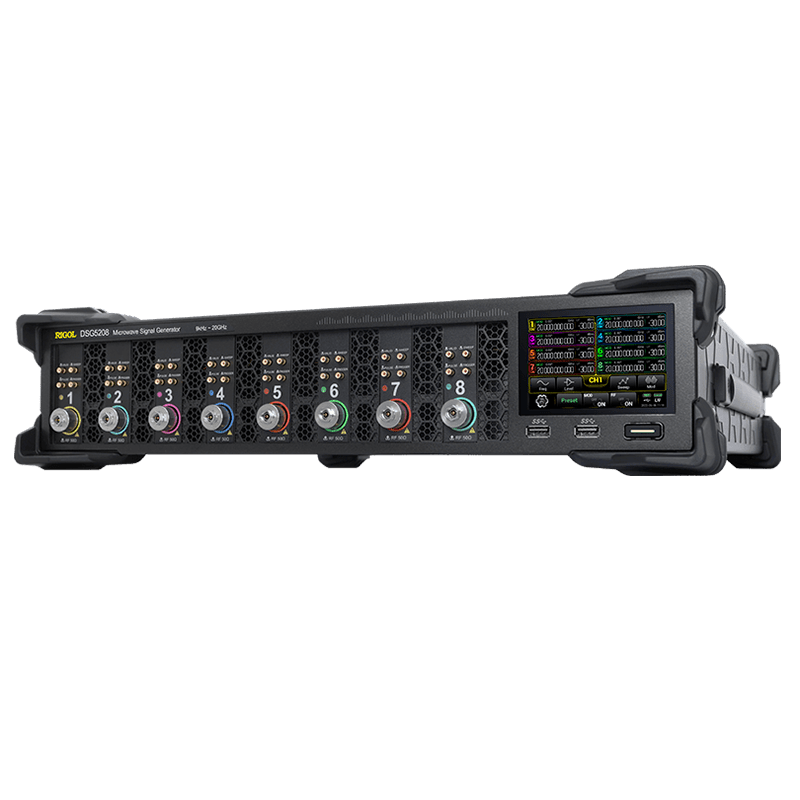

High density, more compact
DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.
High performance, more stable

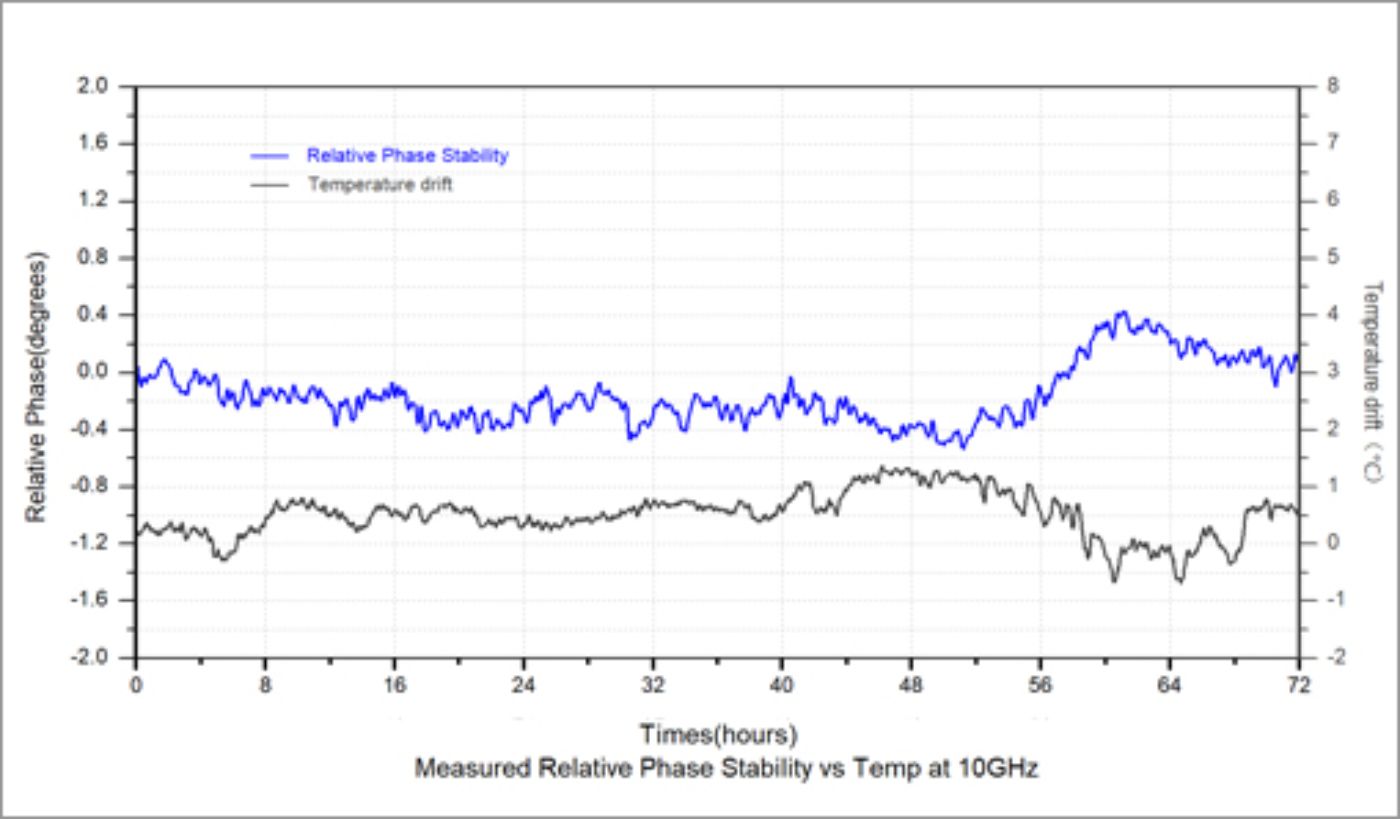

DSG5000 has excellent inter-channel phase stability, inter-channel phase stability <1°@10GHz, and phase adjustment resolution of 0.01°. The maximum output power is as high as 25dBm, which meets the test requirements of non-linear indicators such as amplifiers.
Low noise, purer

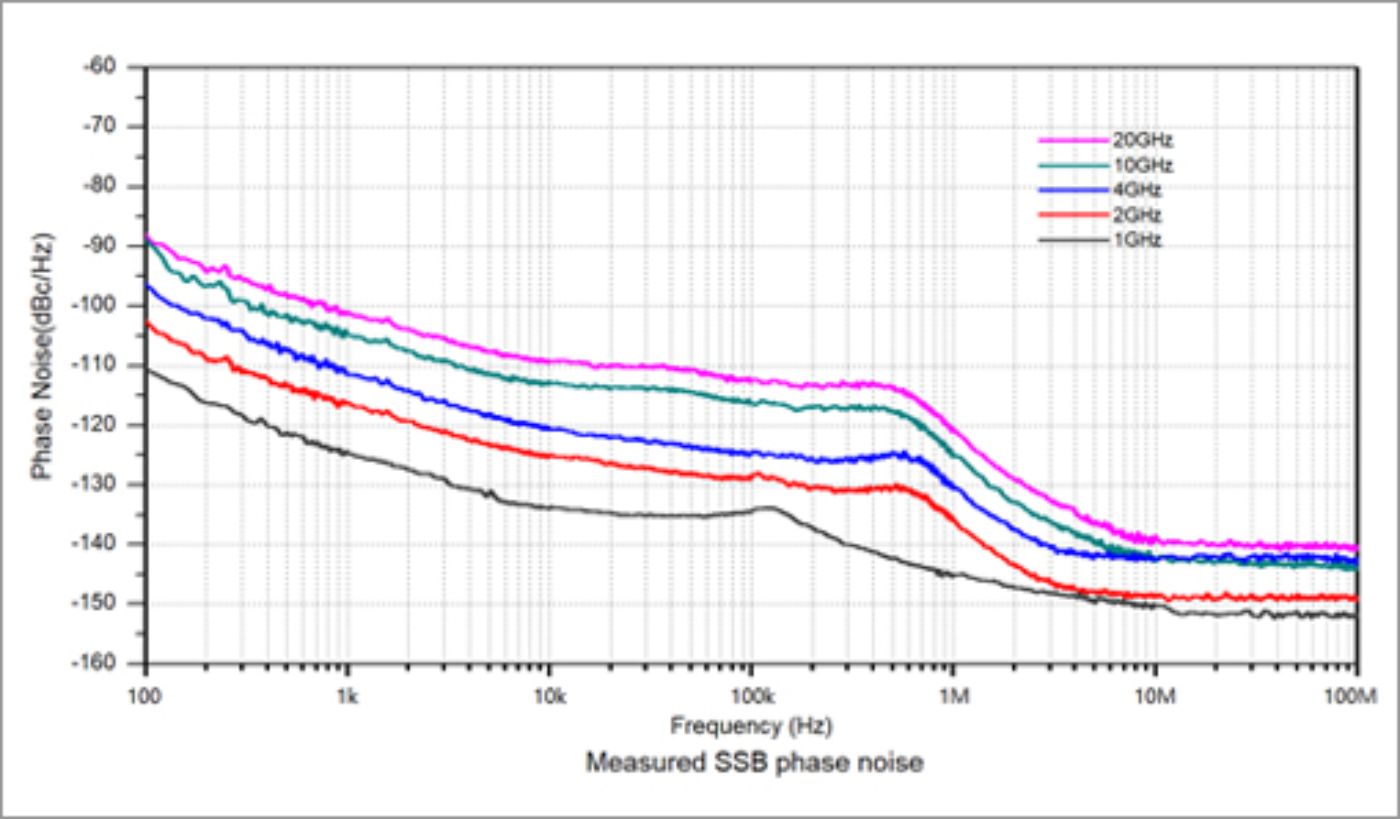

The typical value of phase noise is <-133dBc/Hz@1GHz, 10kHz, with high signal purity. After selecting a high-stable clock reference, you can get more outstanding nearby phase noise indicators.
High scalability, easier control

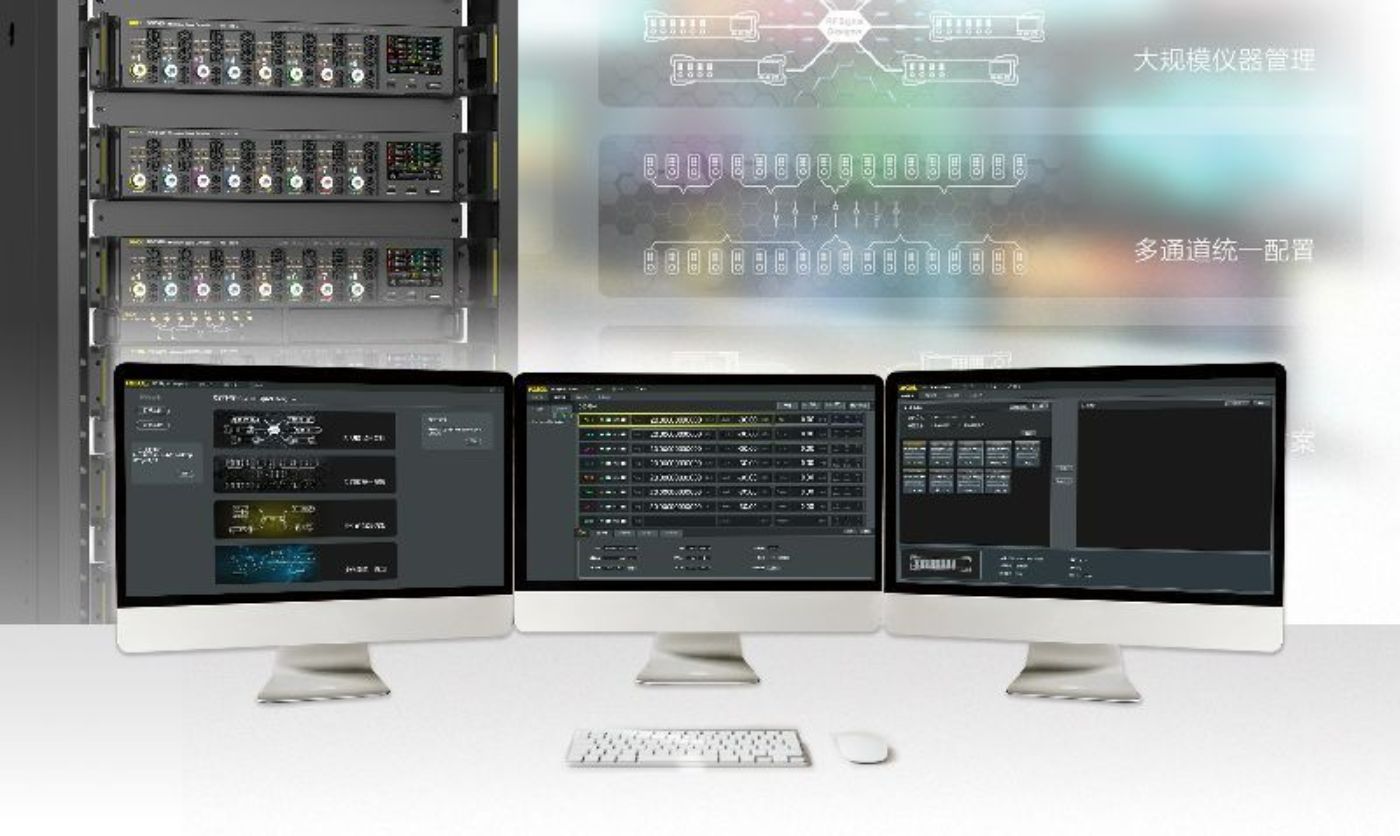

Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.
High usability

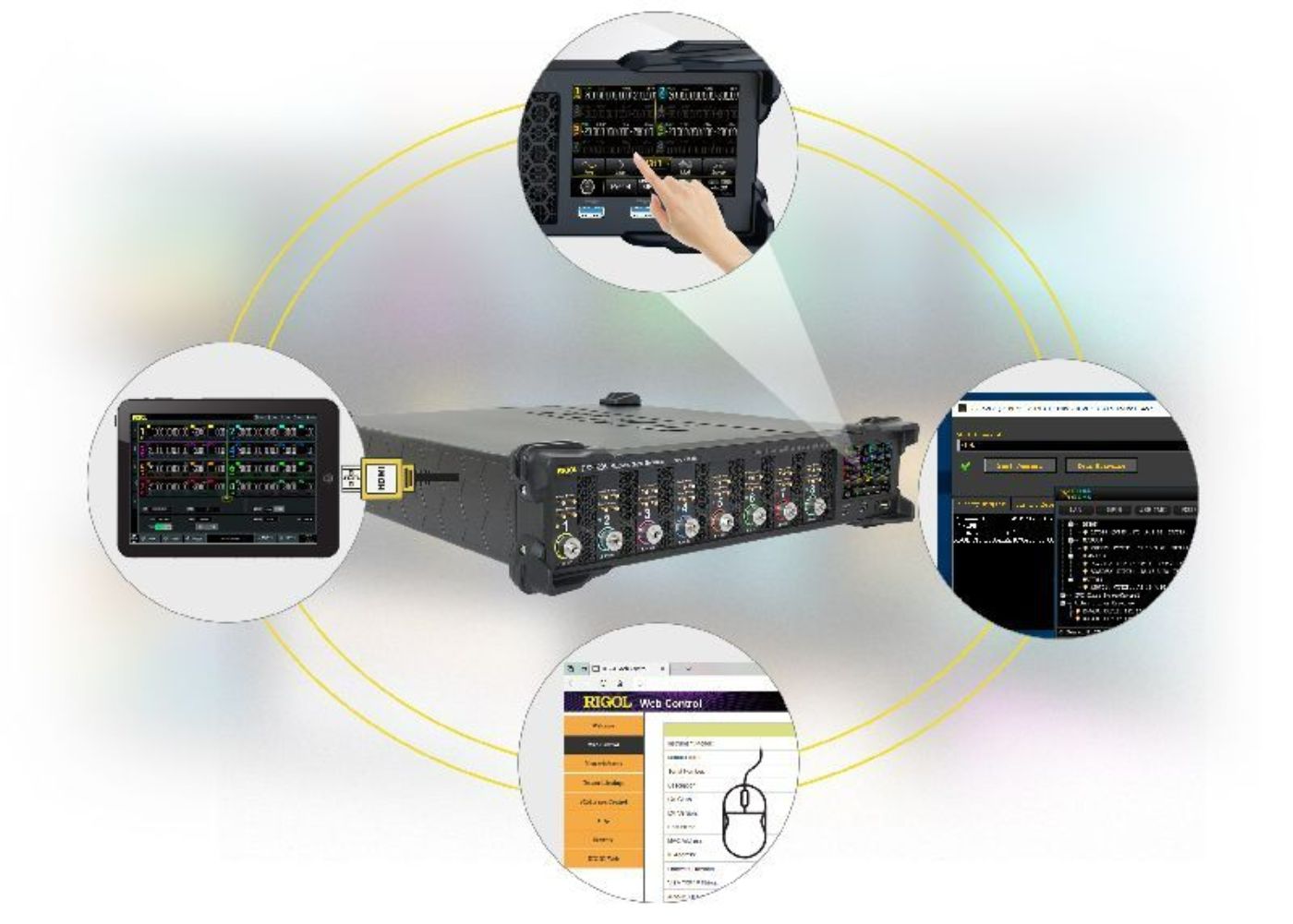

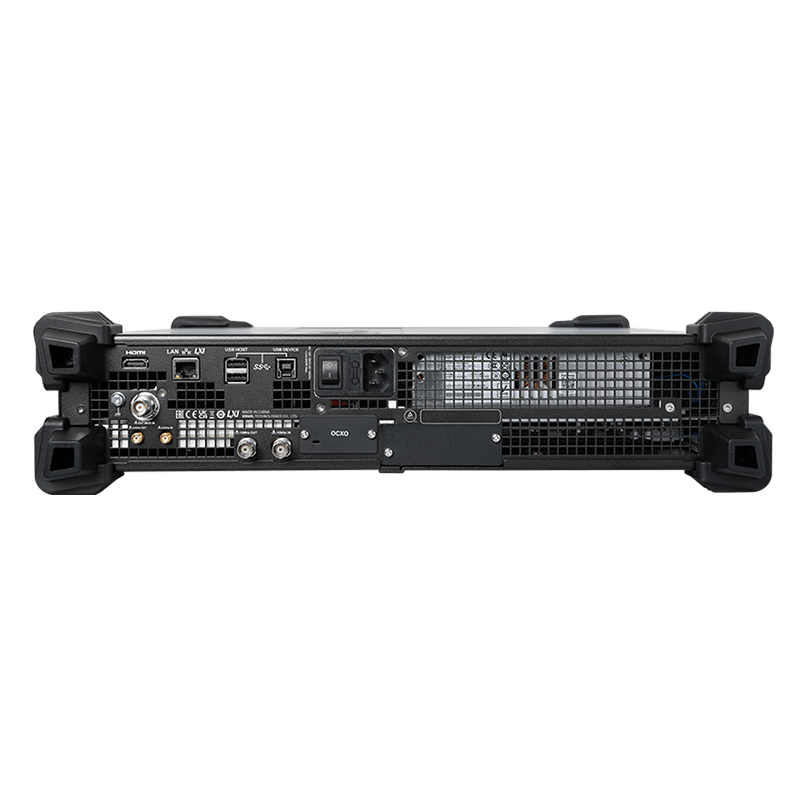

The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.
DSG5000
Model
Frequency Range
Amplitude Specification Range
SSB Phase Noise (Typ.)
Modulation Type
Price
DSG5208
9kHz~20GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5206
9kHz~20GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5204
9kHz~20GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5202
9kHz~20GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5128
9kHz~12GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5126
9kHz~12GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5124
9kHz~12GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
DSG5122
9kHz~12GHz
-30dBm~+25dBm
<-133dBc/Hz@1GHz,10kHz offset
AM/FM/ØM/Pulse
Function Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DSG5000-PUG | Pulse Train Generator | ₹ 257,440 | ₹ 303,779 |
| DSG5000-PUL | Pulse Modulation | ₹ 414,240 | ₹ 488,803 |
| DSG5000-AMD | Analog Modulation | ₹ 257,440 | ₹ 303,779 |
Optional accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM2031 | Rack Mount Kit | ₹ 41,850 | ₹ 49,383 |
| OCXO-D08 | High Stable Clock Reference | ₹ 146,850 | ₹ 173,283 |
