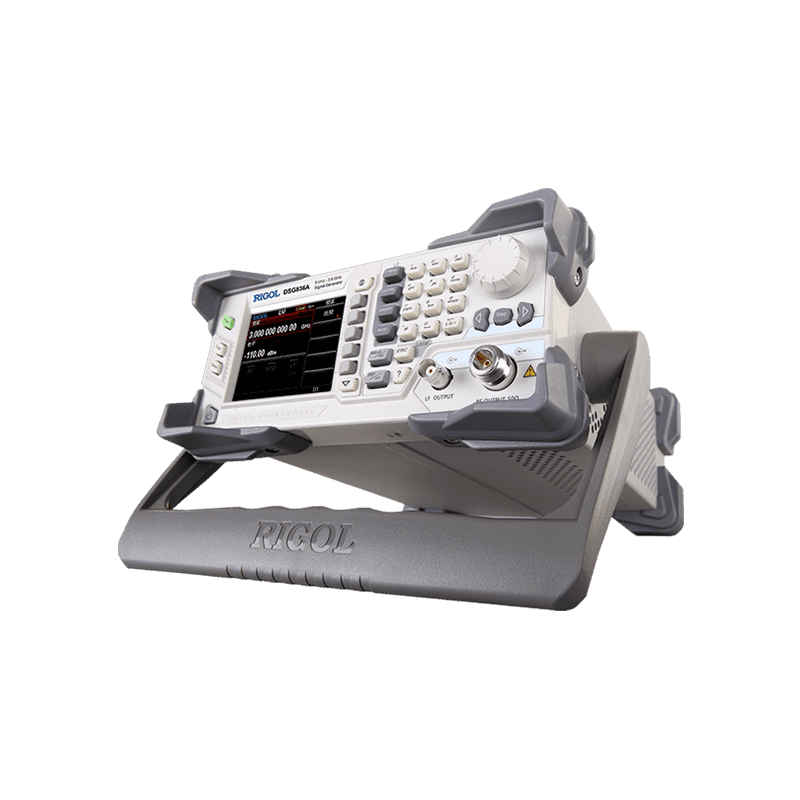

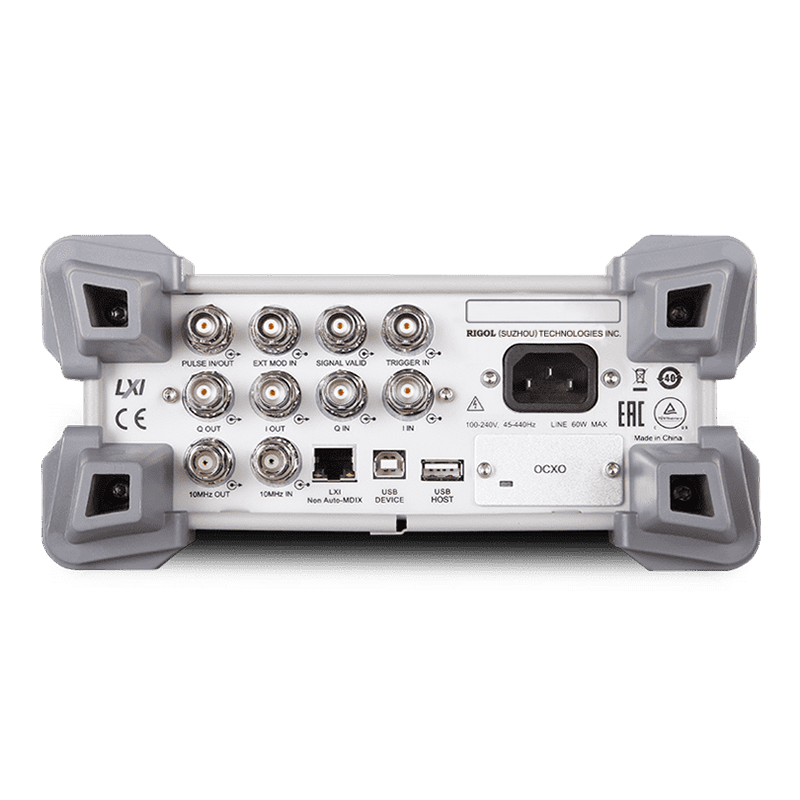

RF Signal Generators
DSG800
Frequency Range
9kHz~3.6GHz
Amplitude Specification Range
-110dBm~+13dBm
SSB Phase Noise (Typ.)
<-112dBc/Hz@1GHz,20kHz offset
Modulation Type
AM/FM/ØM/Pulse/IQ
Downloads
Downloads
Functions and Features

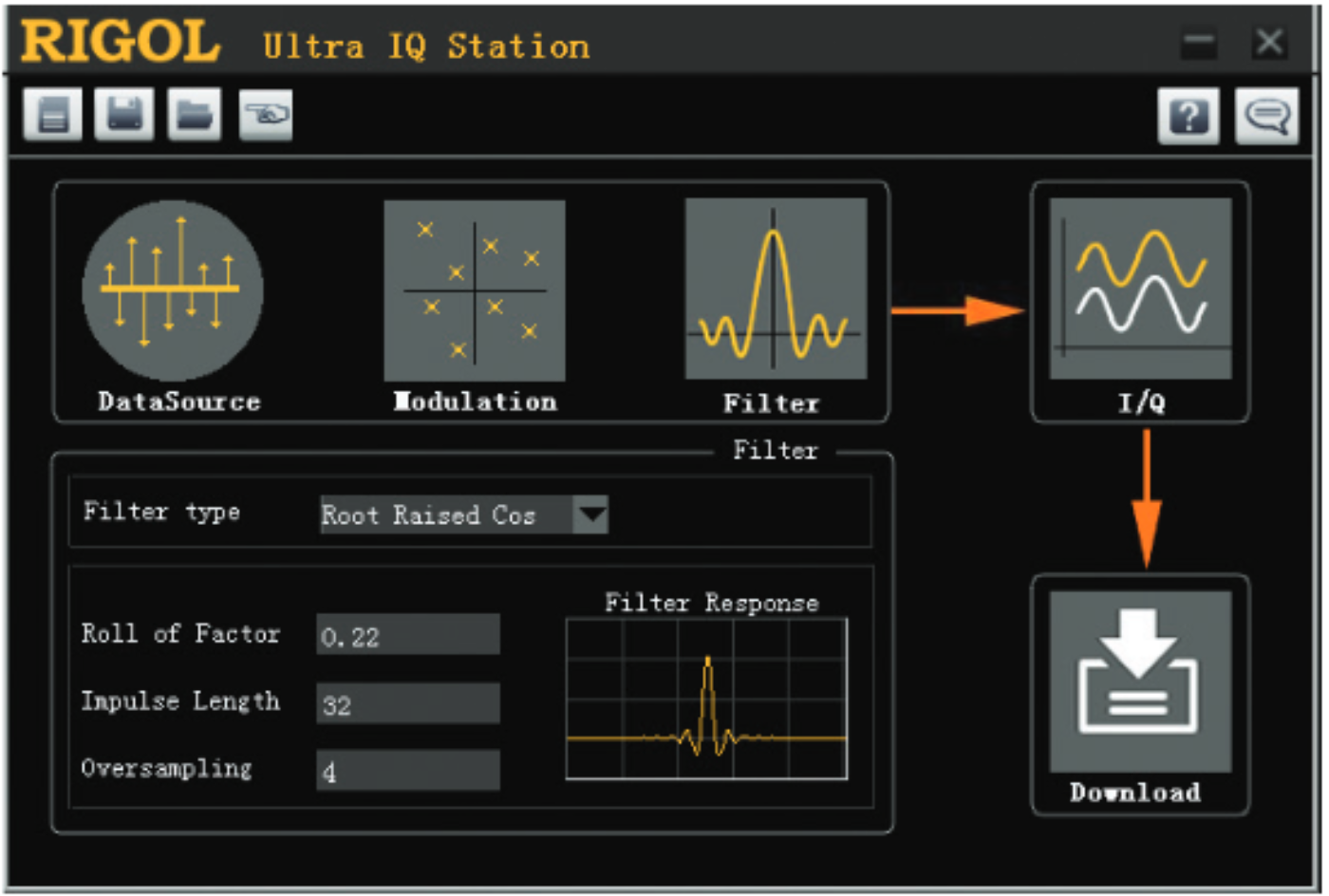

Complete AM/FM/ØM Analog Modulation
DSG800 provides a variety of analog modulation functions such as AM/FM/ØM, which is suitable for signal simulation requirements in various applications such as FM radio and wireless microphone.

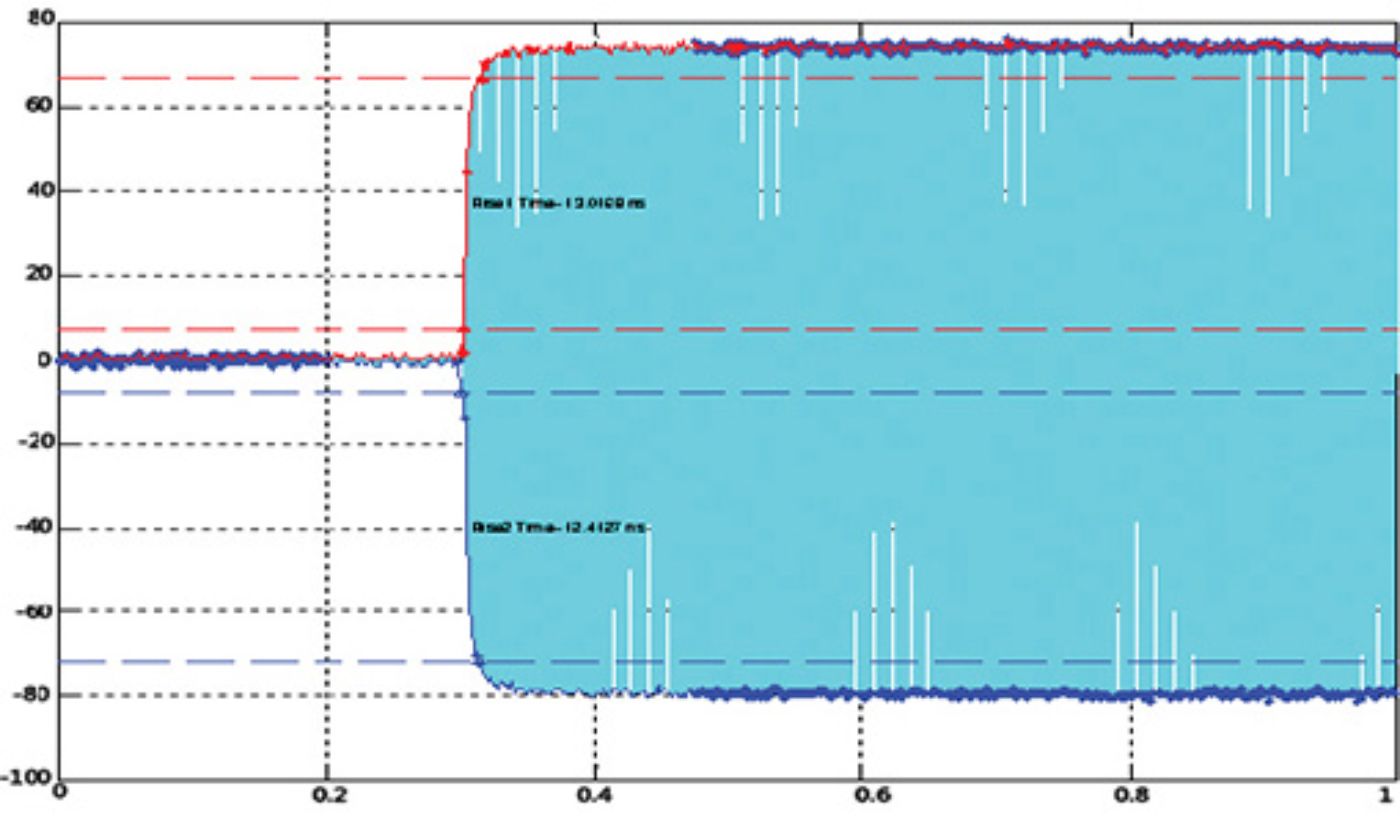

Pulse Modulation
It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator

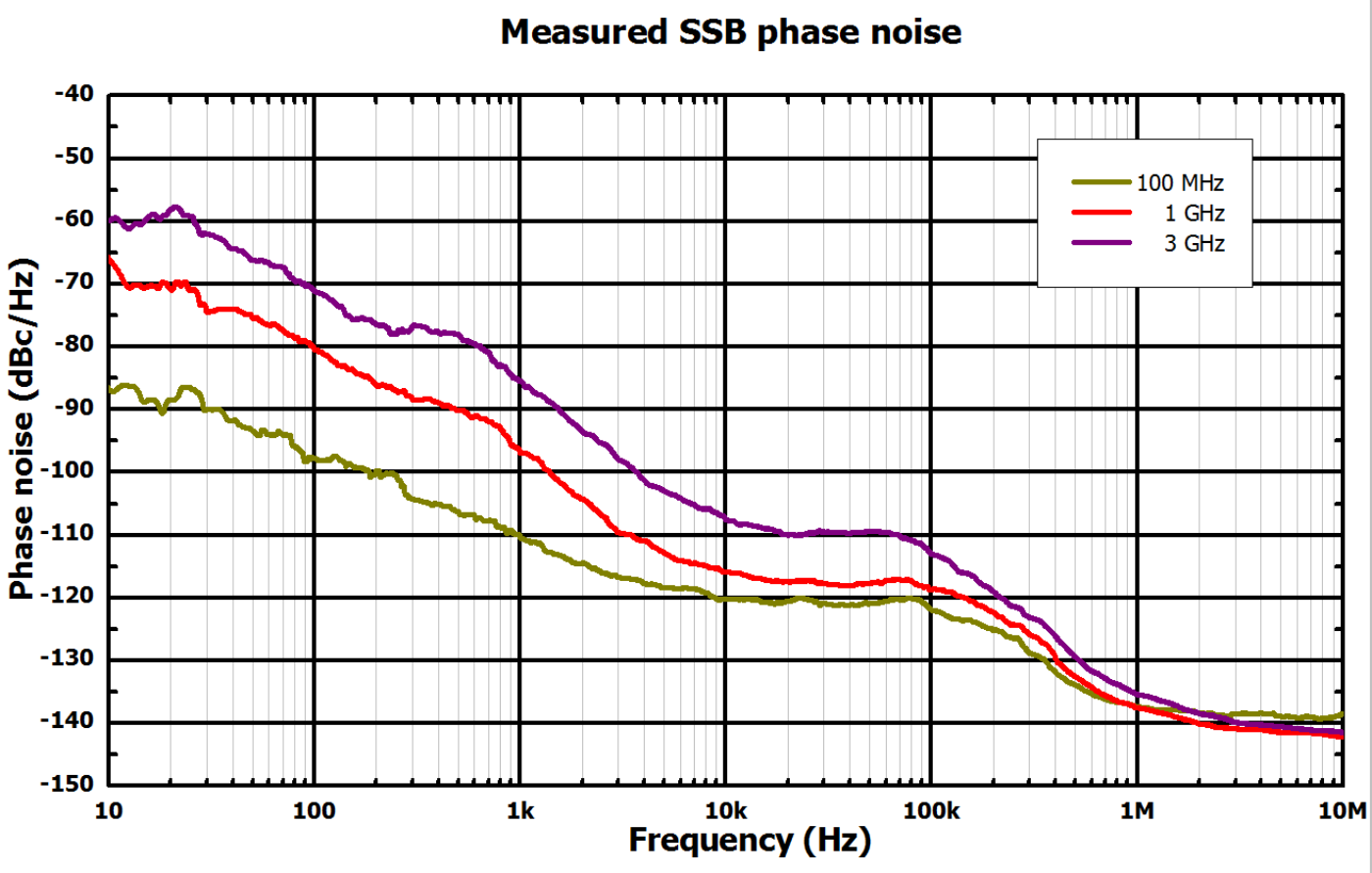

Low Phase Noise
High signal purity, phase noise typical value <-112dBc/Hz@20kHz; better high-stability clock reference with better near-phase noise capability.
High Amplitude Accuracy
The output amplitude accuracy is typically 0.5 dB, providing users with accurate excitation signals

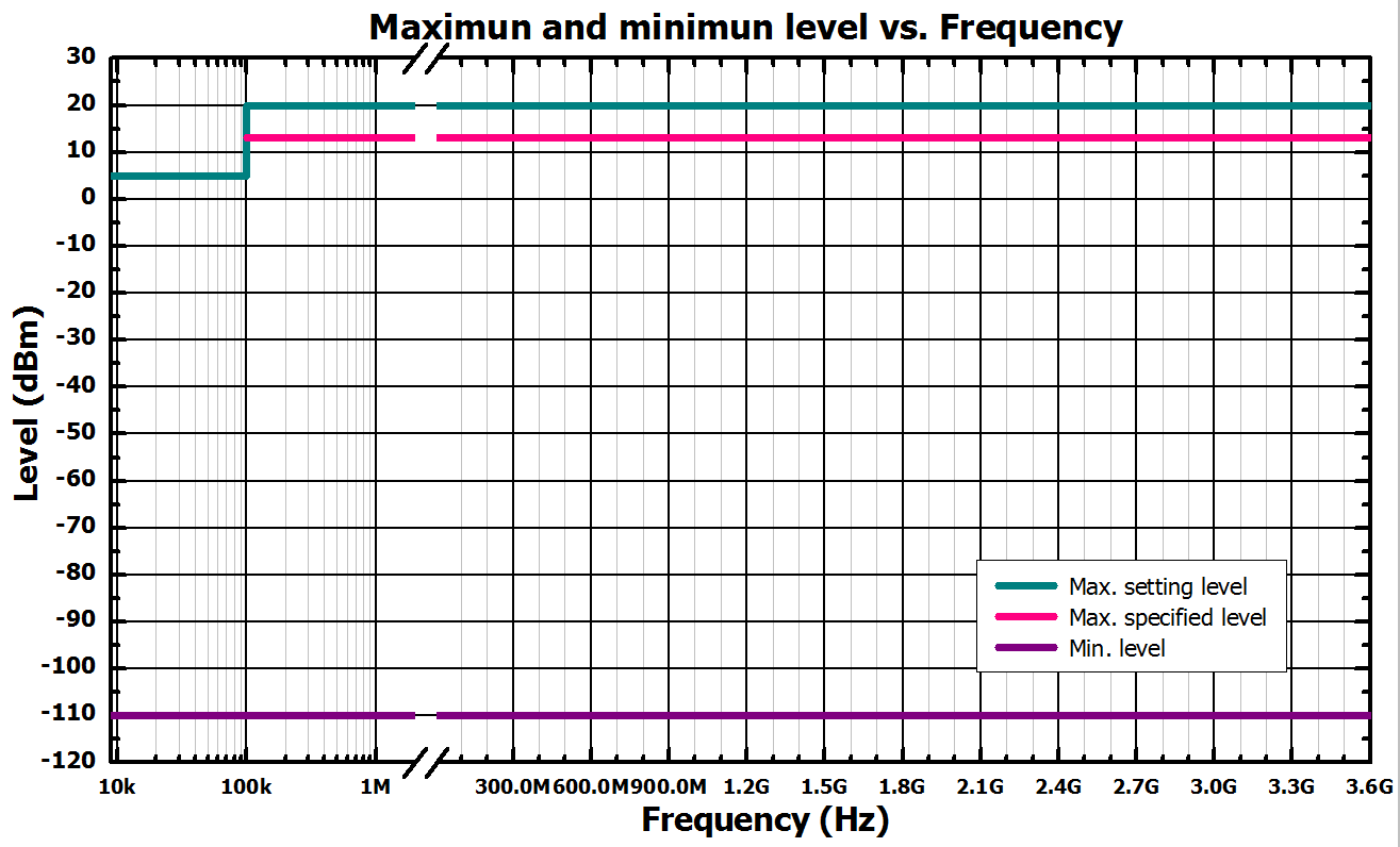

Wide Range of High Power Output
Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB

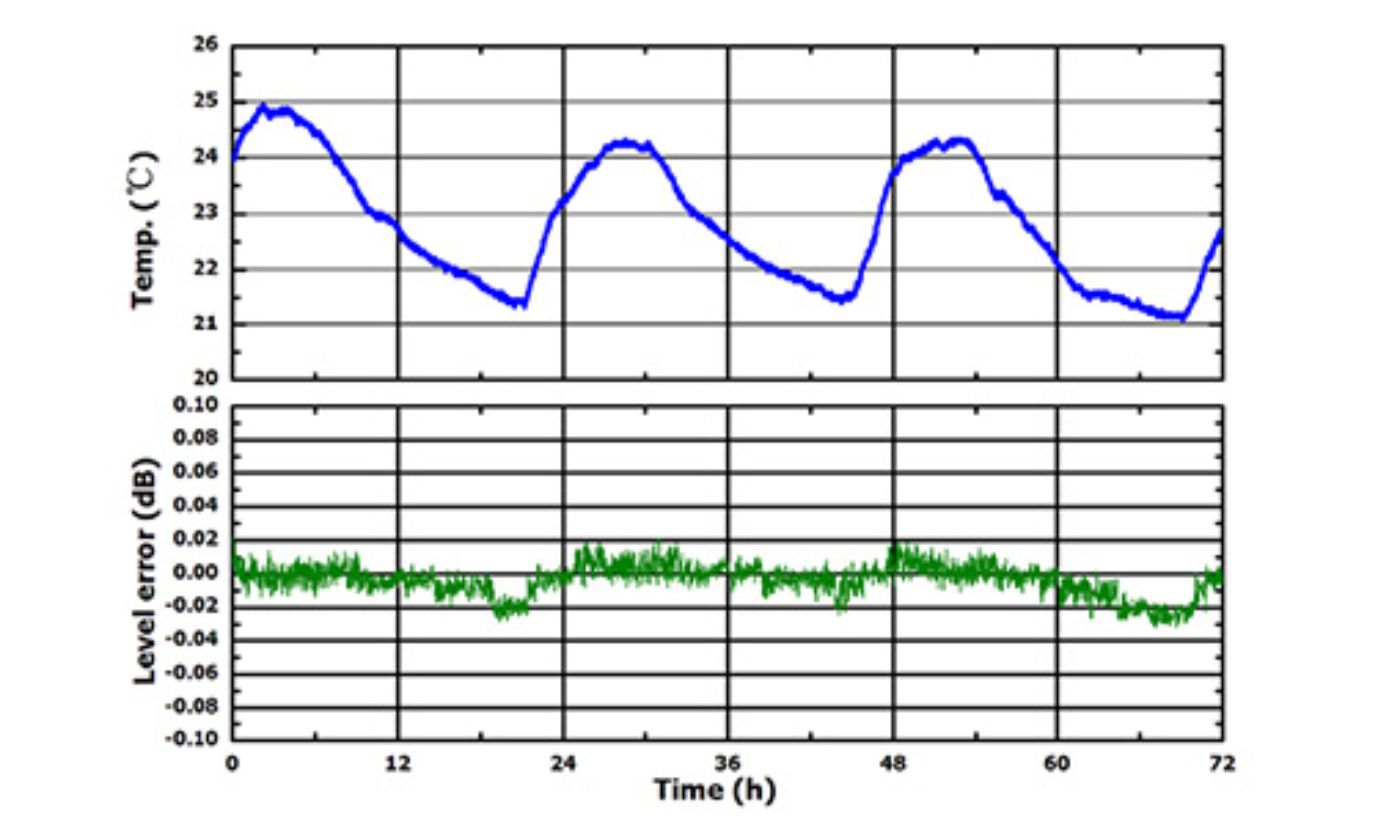

Amplitude Stability
Reliable repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB
DSG800
Model
Frequency Range
Amplitude Specification Range
SSB Phase Noise (Typ.)
Modulation Type
Price
DSG815
9kHz~1.5GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse
DSG830
9kHz~3GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse
DSG821
9kHz~2.1GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse
DSG836
9kHz~3.6GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse
DSG821A
9kHz~2.1GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse/IQ
DSG836A
9kHz~3.6GHz
-110dBm~+13dBm
<-112dBc/Hz@1GHz,20kHz offset
AM/FM/ØM/Pulse/IQ
Function Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DSG800-PUG | Pulse Train Generator option for the DSG800 Series RF signal sources. Includes DSG800-PUM license automatically. | ₹ 89,550 | ₹ 105,669 |
| DSG800-PUM | Pulse modulation option for the DSG800 Series RF signal sources | ₹ 66,900 | ₹ 78,942 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| CB-USBA-USBB-FF-150 | USB Data line，150cm | ₹ 2,250 | ₹ 2,655 |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| RM-1-DG1000Z | Stand-alone rack kit | ₹ 8,400 | ₹ 9,912 |
| RM-2-DG1000Z | 2-machine rack kit | ₹ 11,100 | ₹ 13,098 |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | ₹ 26,100 | ₹ 30,798 |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | ₹ 26,100 | ₹ 30,798 |
| ATT03301H | 30dB High Power Attenuator，Maximum power is 100W | ₹ 30,900 | ₹ 36,462 |
| RF Attenuator Kit | Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs） | ₹ 70,050 | ₹ 82,659 |
| RF Adaptor Kit | Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc) | ₹ 42,300 | ₹ 49,914 |
| OCXO-B08 | High stability timebase option for the DSG800 Series RF signal sources | ₹ 70,050 | ₹ 82,659 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DSG800 UserGuide | V1.0 | 2019-09-30 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DSG800 DateSheet | V1.0 | 2019-09-30 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DSG800 ProgrammingGuide | V1.0 | 2019-09-30 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DSG800 QuickGuide | V1.0 | 2021-12-04 |
