Data Acquisition
M300
Number of Slots
5
Module Type
8
Built-in Multimeter
6½ digits
Maximum Scan Speed
60 Ch/s
Maximum Channels per Unit
320
Downloads
Downloads
Explore the M300 series data acquisition and switching system

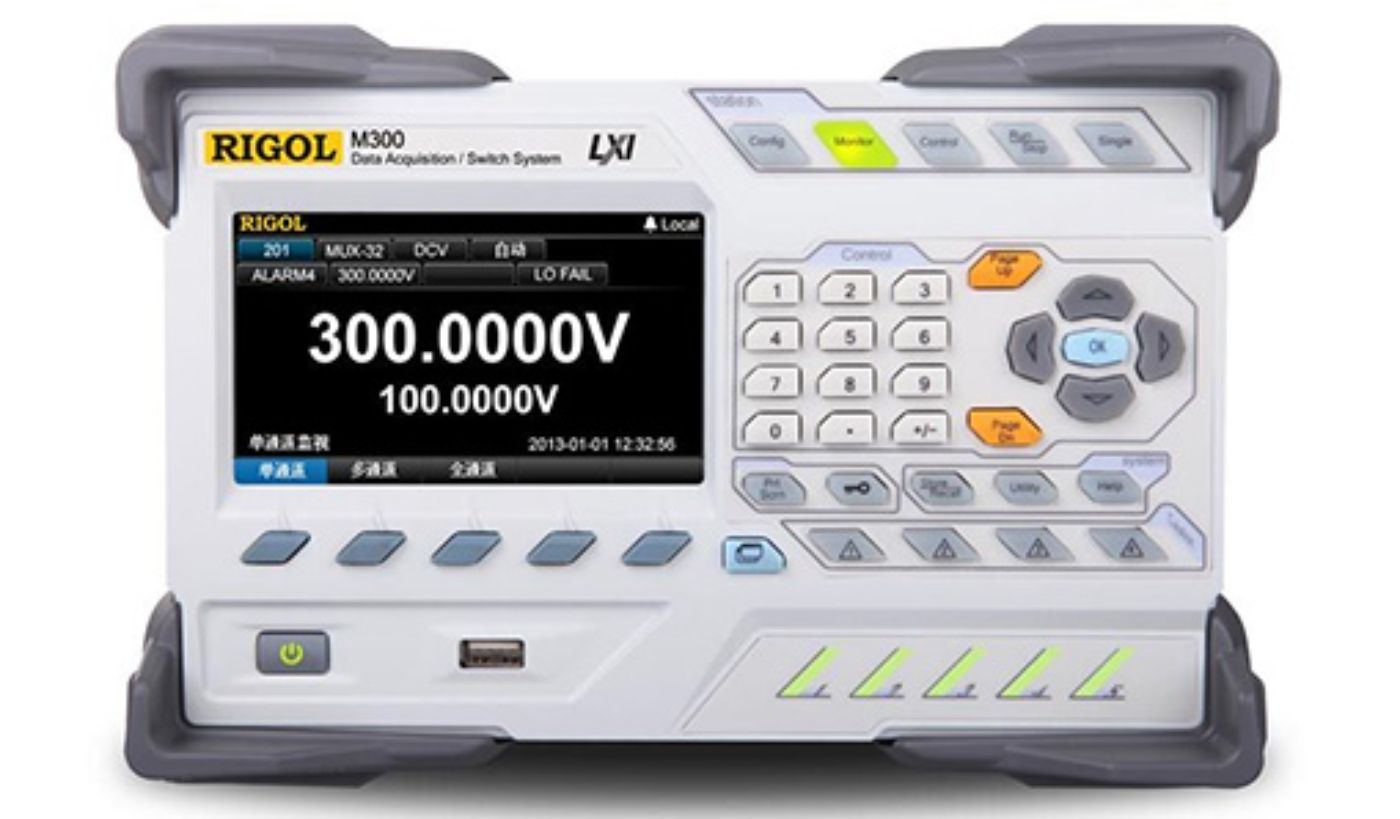

Large screen display & Easy to operate
4.3-inch color LCD screen. The function settings are simple and convenient. No PC is required, and the host can independently perform the collection function.

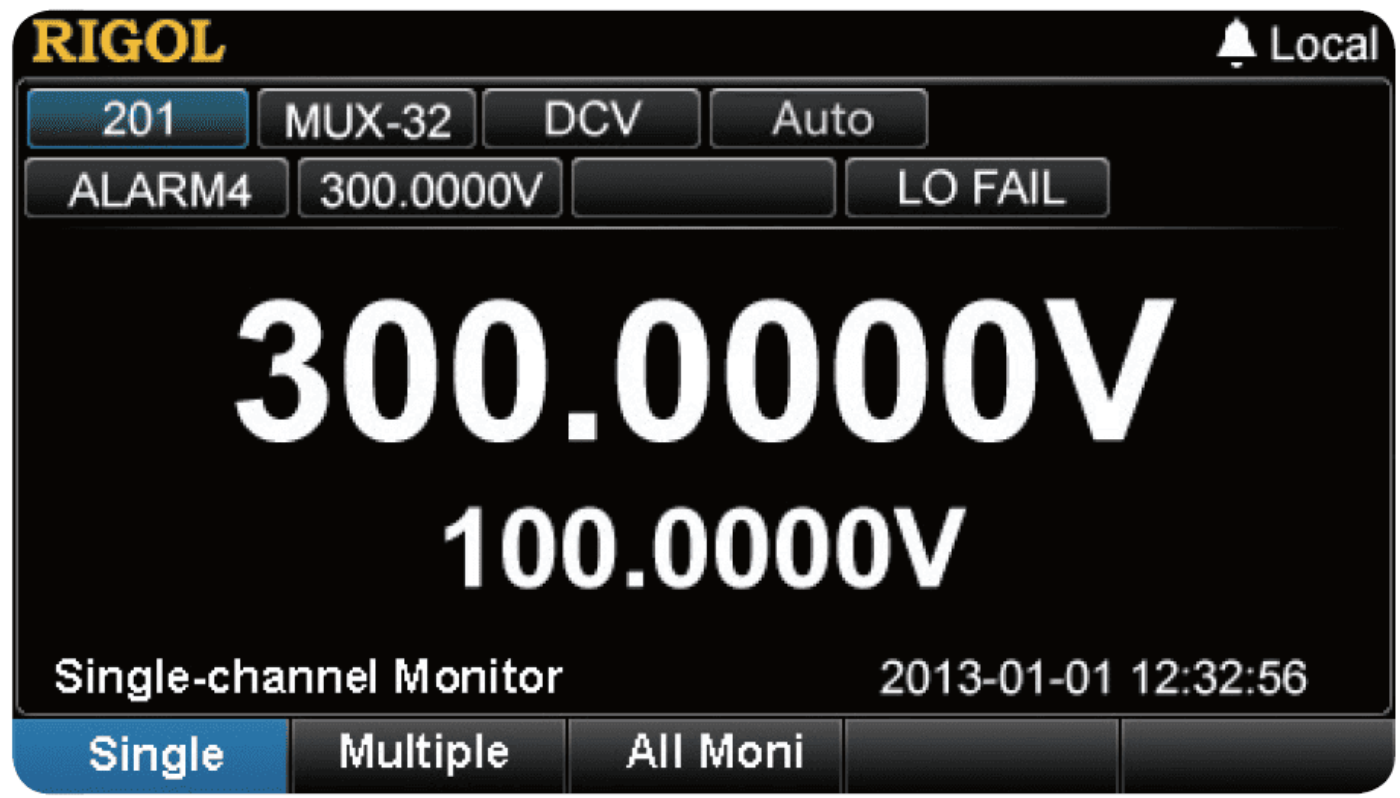

6.5-digit measurement accuracy
The measurement function of the data acquisition system is completed by a 6.5-digit multimeter module, which supports DCV, DCI, ACV, ACI, period, frequency, temperature (thermocouple, thermistor, and RTD), and arbitrary sensor measurement functions.

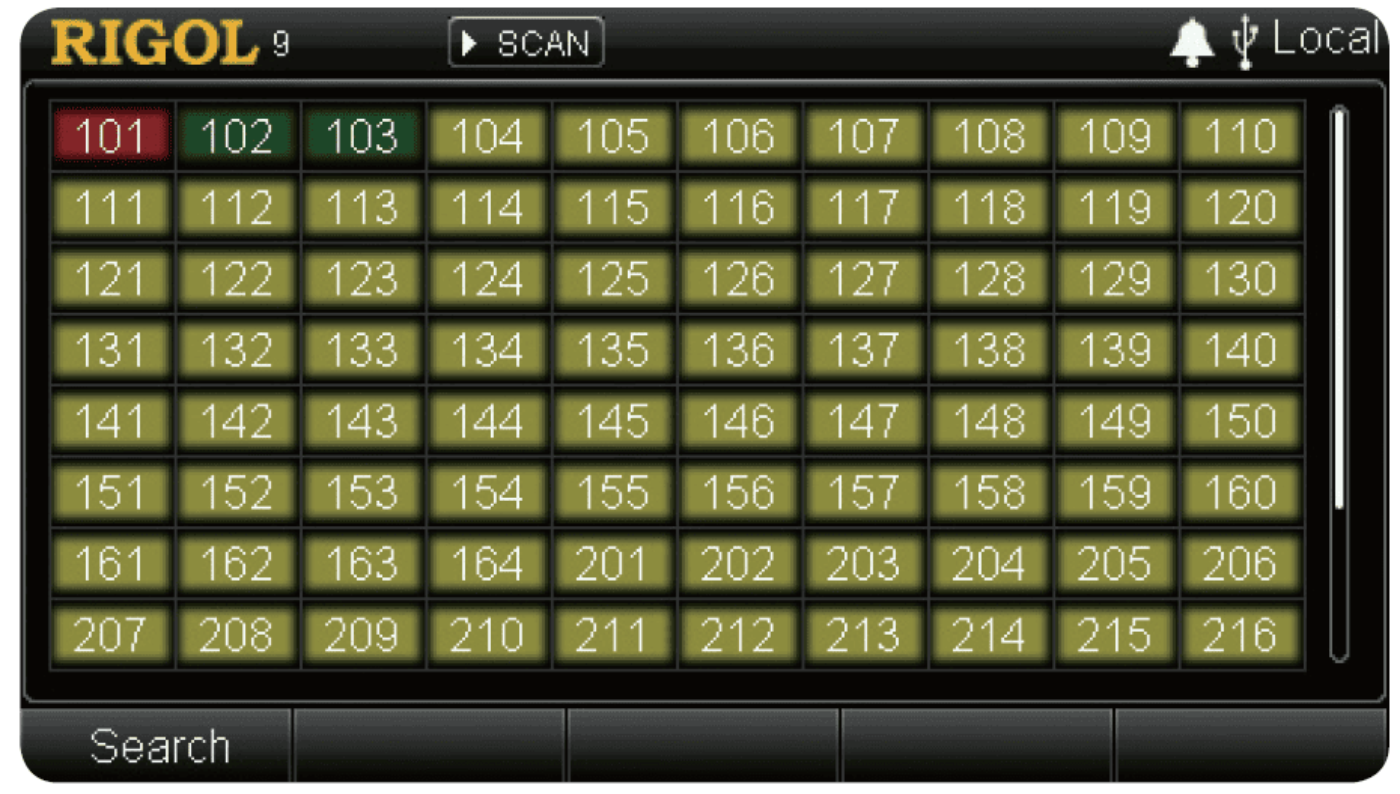

Up to 256 test channels
The M300 host has 5 module slots. One of the slots is generally used for the DMM measurement card, and the other 4 are used for measurement channels. Depending on the selected module, the slots can have up to 64 measurement channels, and each host can handle 256 measurement channels.

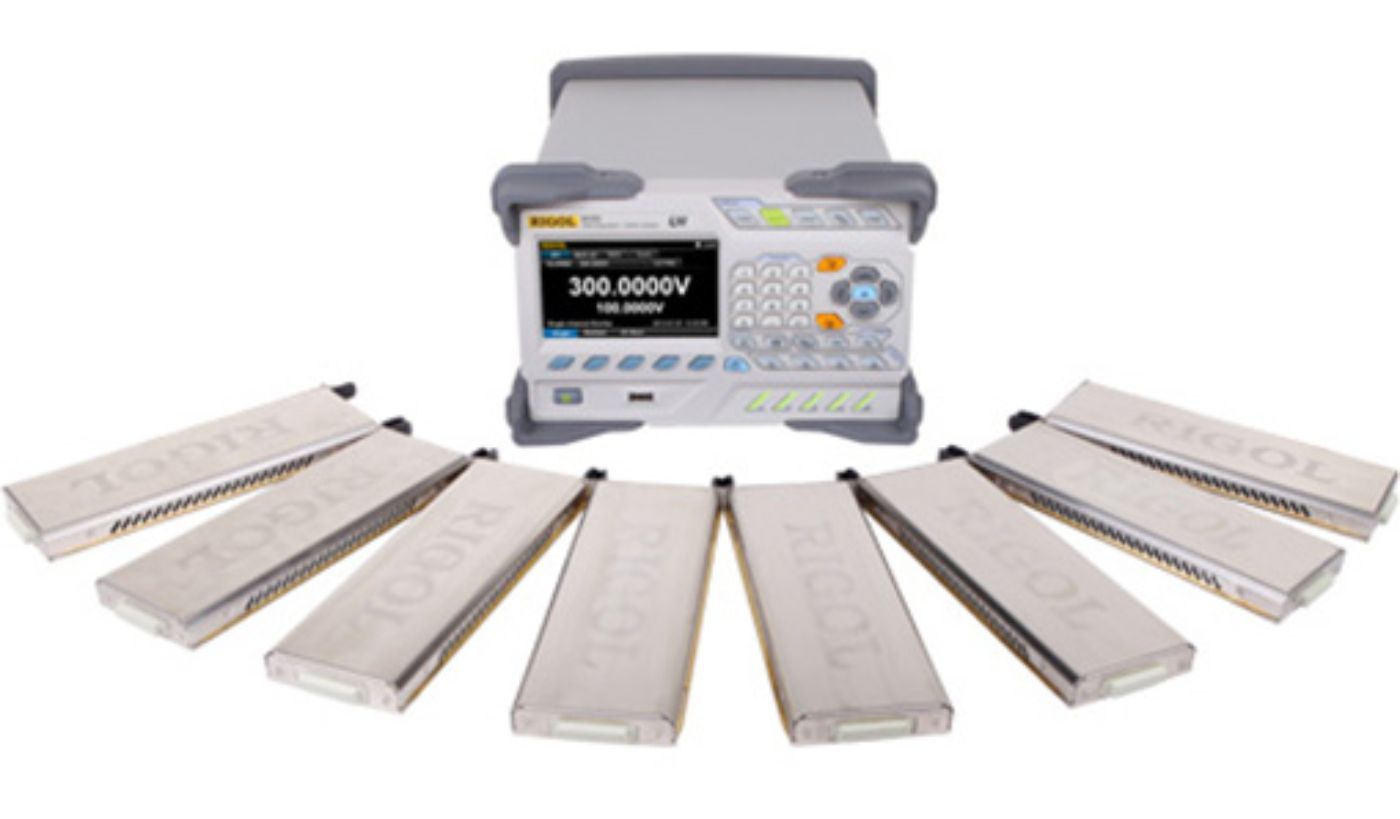

8 types of module cards are available
Supports up to 8 types of module cards, including various multiplexers, actuators, switch matrices, and hybrid test modules

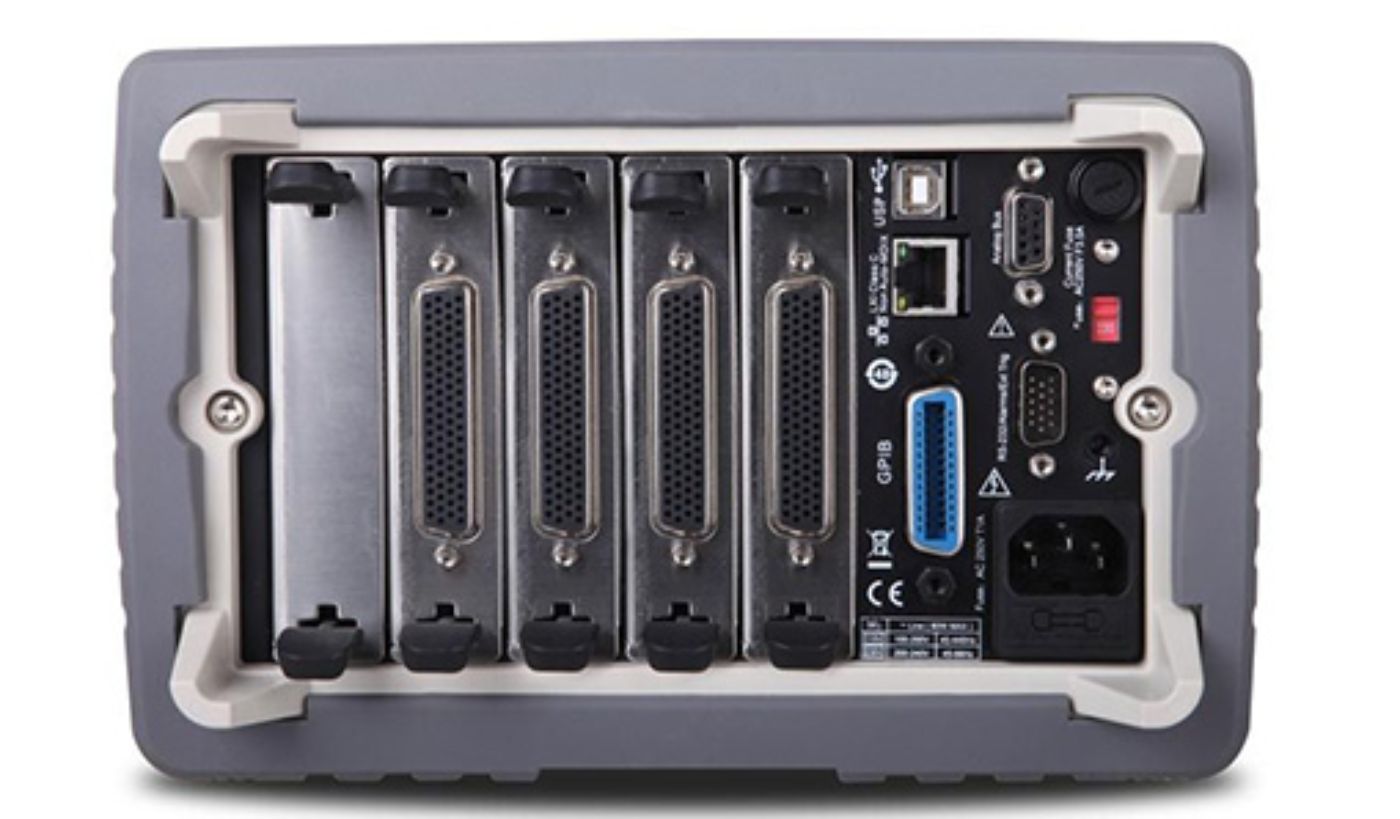

Provide multiple communication interfaces
The standard configuration provides multiple communication interfaces such as USB Host/Device, GPIB, LAN (LXI-C), and RS232.

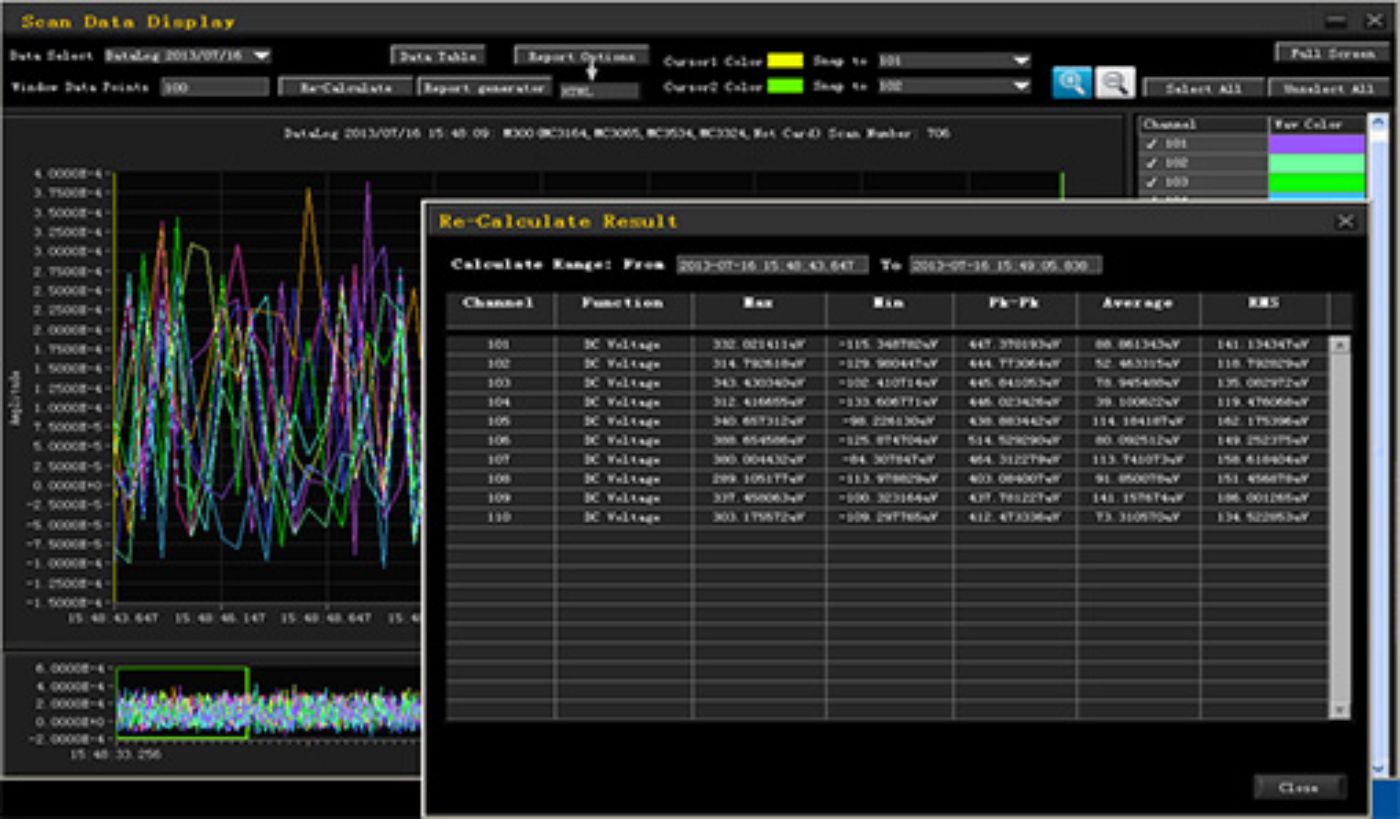

Supporting control analysis software
UltraAcquire can control up to 5 hosts to complete the configuration of complex systems. Record and plot data after each scan of a PC via Ethernet or USB. Users can also set limits, alarms, and triggers for advanced system monitoring. The software offers a variety of data display methods, one-click report generation, and data export functions.
M300
Model
Number of Slots
Module Type
Built-in Multimeter
Maximum Scan Speed
Maximum Channels per Unit
Price
M300
5
8
-
60 Ch/s
320
M301
5
8
6½ digits
60 Ch/s
320
M302
5
8
6½ digits
60 Ch/s
320
Optinal Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| M3TB32T | 32CHMultiplexer Junction Box，Thermocouple temperature measurement dedicated | $ 93 (VAT excl.) | ₹ 151,950 |
| DEMOKIT-M300 | M300 Demo board | ₹ 10,500 | ₹ 12,390 |
| RM-2-M300 | 2-machine rack kit | ₹ 78,150 | ₹ 92,217 |
| RM-1-M300 | Stand-alone rack kit | ₹ 34,200 | ₹ 40,356 |
| M3A2B | Analog bus flip connector | ₹ 29,250 | ₹ 34,515 |
| M3GPIB | GPIB flip connector | ₹ 2,550 | ₹ 3,009 |
| M3TB20 | 20CHMultiplexer Junction Box | ₹ 7,950 | ₹ 9,381 |
| MC3120 | 20CHMultiplexer（2/4wire） | ₹ 10,500 | ₹ 12,390 |
| MC3065 | 6.5 digit multimeter | ₹ 40,800 | ₹ 48,144 |
| MC3132 | 32CH Multiplexer（2/4wire） | ₹ 60,300 | ₹ 71,154 |
| MC3164 | 64CH Single-ended multiplexer | ₹ 50,550 | ₹ 59,649 |
| MC3324 | 24CHMultiplexer（2/4wire），With 4 current channels | ₹ 52,050 | ₹ 61,419 |
| MC3648 | 4x82 line matrix module | ₹ 61,950 | ₹ 73,101 |
| MC3416 | 16CH Actuator | ₹ 55,350 | ₹ 65,313 |
| MC3534 | Multi-function module：4CH COUNTER,4CH 16bit DAC,4 8bit DIO | ₹ 43,950 | ₹ 51,861 |
| M3TB34 | Multifunction Junction Box | ₹ 68,400 | ₹ 80,712 |
| M3TB32 | 32CH Multiplexer Junction Box | ₹ 10,500 | ₹ 12,390 |
| M3TB64 | 64CH Multiplexer Junction Box | ₹ 10,500 | ₹ 12,390 |
| M3TB24 | 24CH Multiplexer Junction Box | ₹ 10,500 | ₹ 12,390 |
| M3TB16 | 16CH Actuator Junction Box | ₹ 10,500 | ₹ 12,390 |
| M3TB48 | 4x82 line matrix module Junction Box | ₹ 10,500 | ₹ 12,390 |
Host computer Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| Ultra Acquire Pro | PC full-function software | ₹ 102,600 | ₹ 121,068 |
User Guide
| Name | Version | Release Time | Download |
|---|---|---|---|
| 📄 M300 UserGuide | v2.0 | 2025-07-09 | |
| 📄 M300 SelectionGuide | v1.0 | 2019-08-29 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 M300 DataSheet | DSC07105-5110 | 2026-04-14 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 M300 ProgrammingGuide | v2.0 | 2025-07-09 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 M300 QuickGuide | v2.0 | 2025-07-09 |
