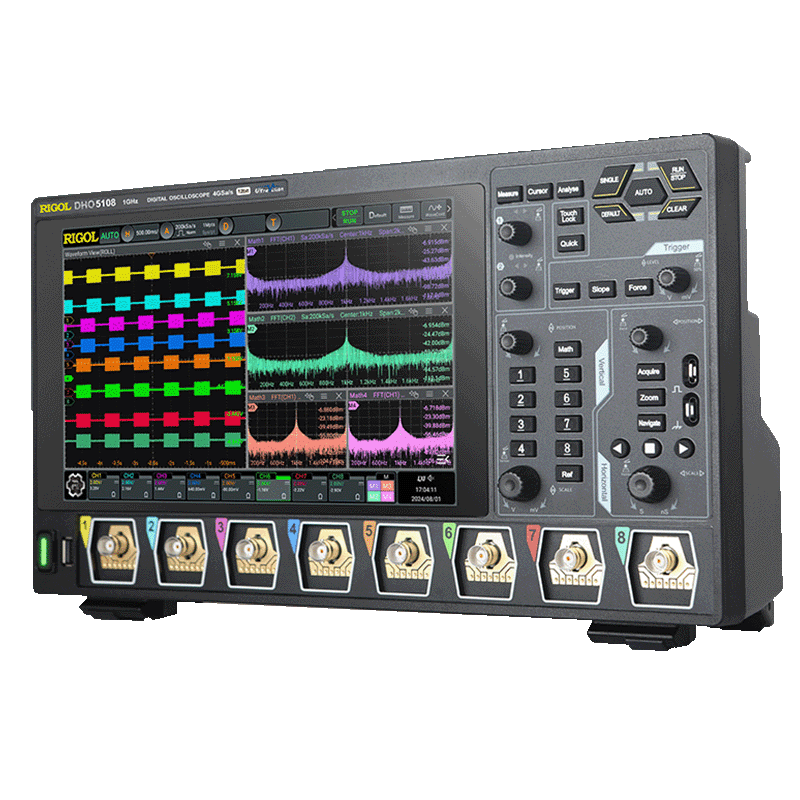

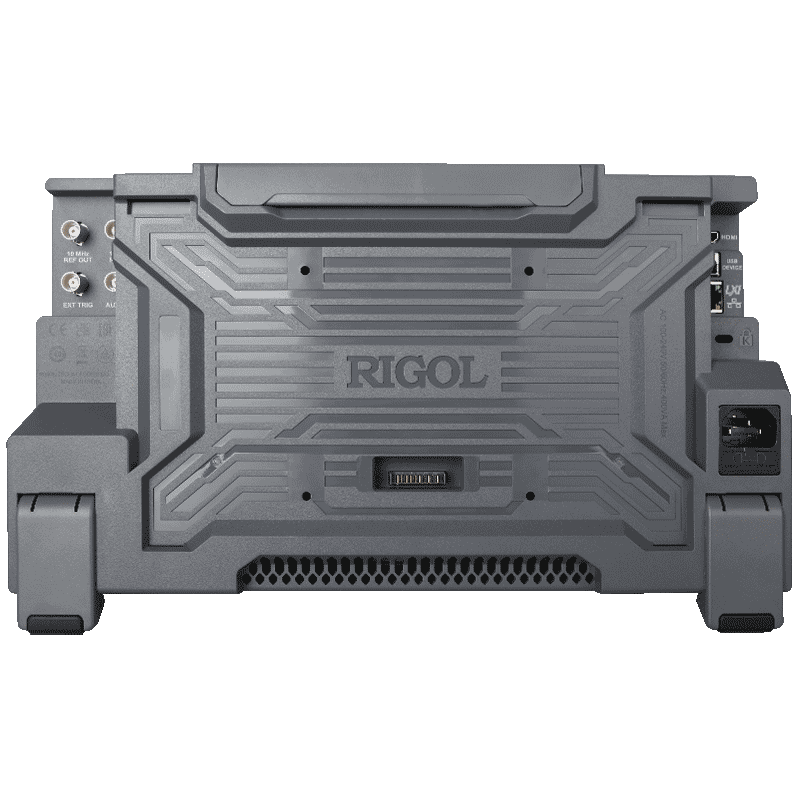

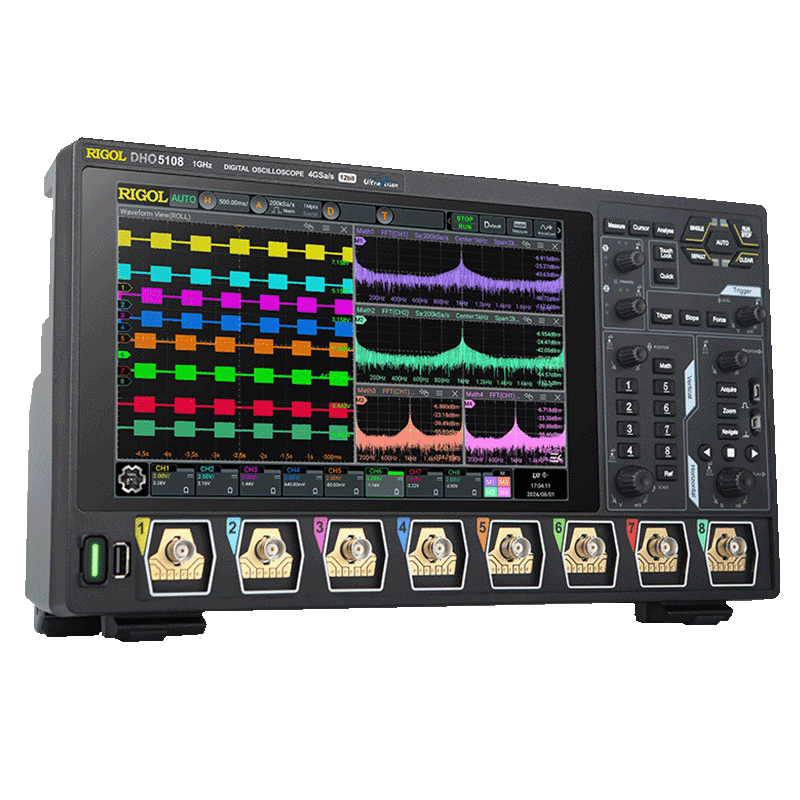

MHO/DHO5000

Oscilloscopes

The MHO/DHO5000 series high-resolution digital oscilloscopes support up to 8 analog channel inputs, with a maximum real-time bandwidth of 1 GHz, a maximum real-time sampling rate of 4 GSa/s, and a vertical resolution of 12 bits. They can help engineers solve testing problems in multiple fields such as embedded design, power semiconductor testing, and power rail testing.

Analog Bandwidth

1GHz

Analog Channels

8 Maximum Real-time Sample Rate

4GSa/s

Maximum Memory Depth

500Mpts

Maximum Waveform Capture Rate

1,000,000 wfms/s

Digital Channel

16(Probe opt.)

Downloads

UserGuide

Downloads

DataSheet

Select Model

Models

Clear

Qty:

Explore the DHO/MHO5000 Series High Resolution Digital Oscilloscopes

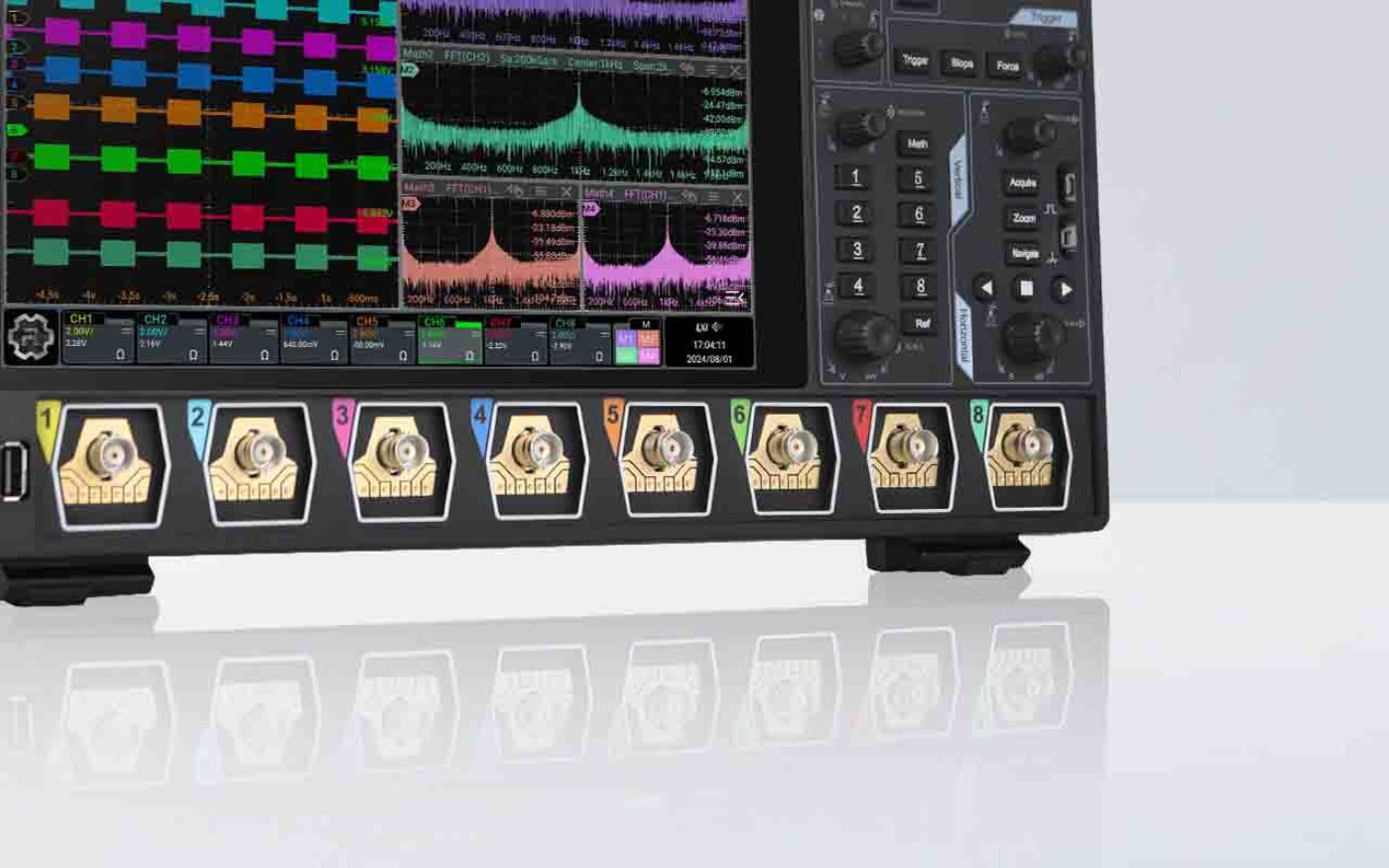

4/6/8 Analog Channel

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.

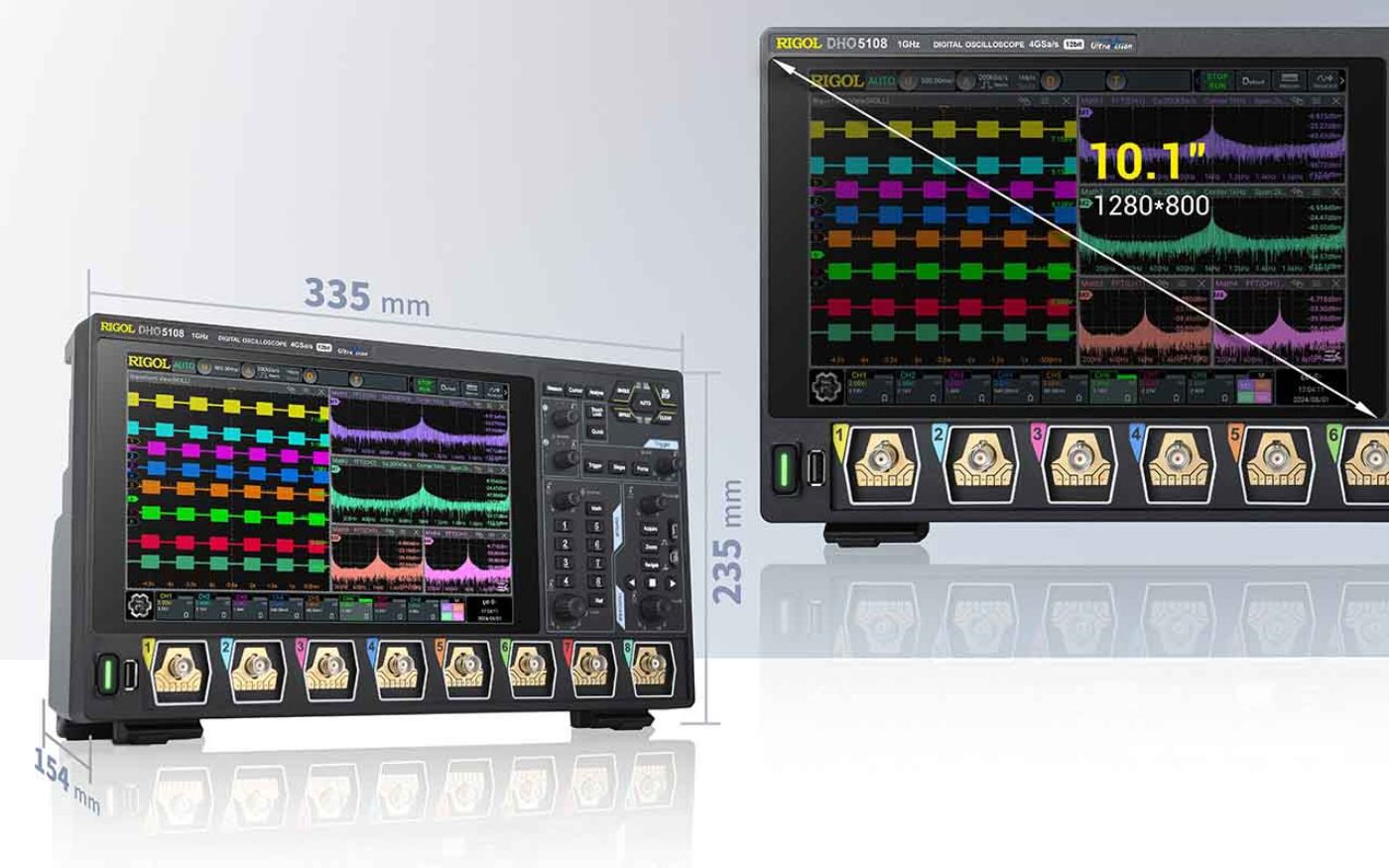

Compact Design

The DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness.

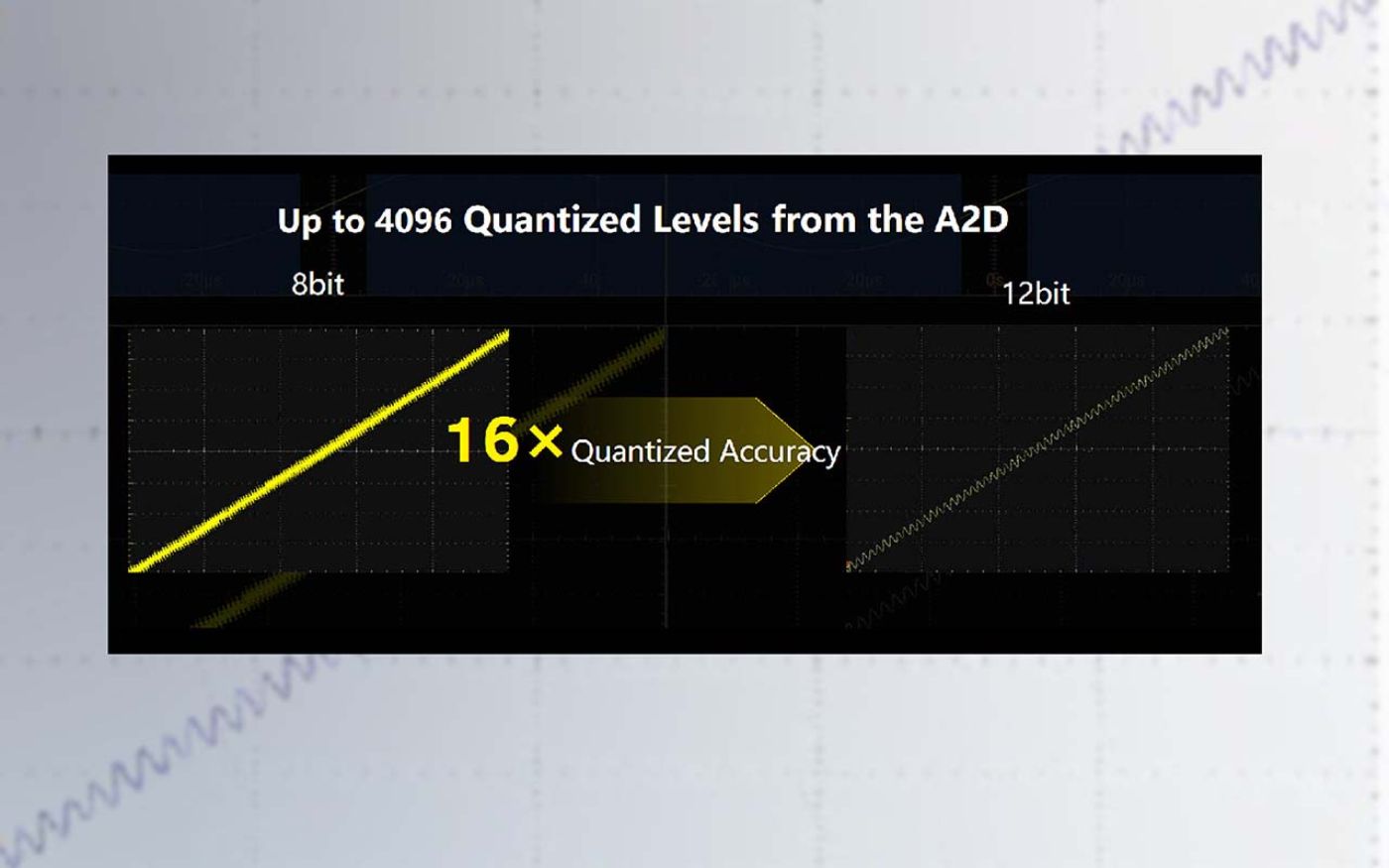

Outstanding Testing Accuracy

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.

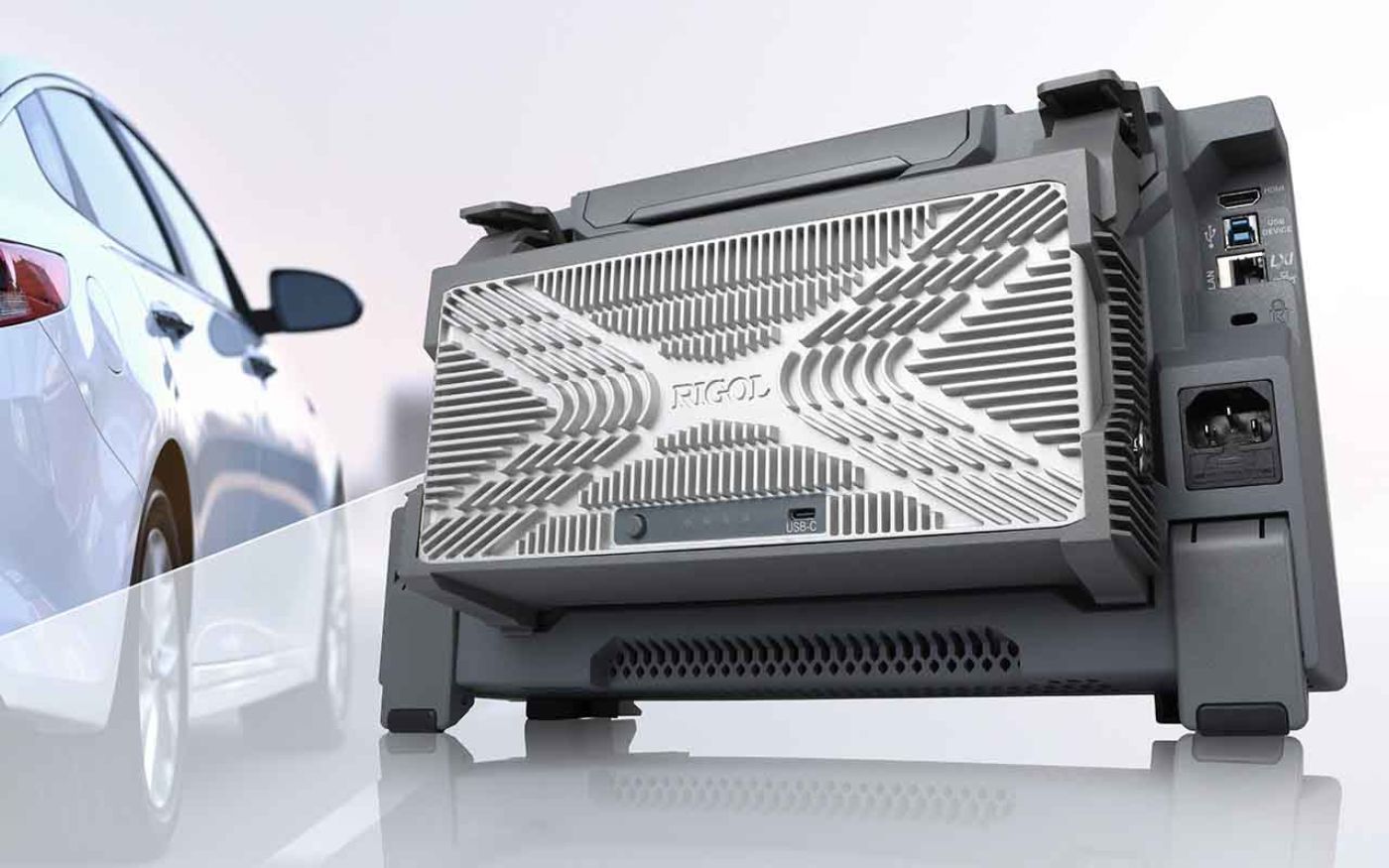

Battery Pack Support

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.

MHO2000

Model

Analog Bandwidth

Analog Channels

Real-time Sample Rate

Maximum memory depth

Highest waveform capture rate

Digital Channel

Built-in Signal Source

Price

DHO5108

1GHz

8 4GSa/s

500Mpts

1,000,000 wfms/s

-

MHO5106

1GHz

6 4GSa/s

500Mpts

1,000,000 wfms/s

16(Probe opt.)

-

DHO5058

500MHz

8 4GSa/s

500Mpts

1,000,000 wfms/s

-

MHO5056

500MHz

6 4GSa/s

500Mpts

1,000,000 wfms/s

16(Probe opt.)

-

DHO5104

1GHz

4 4GSa/s

500Mpts

1,000,000 wfms/s

-

DHO5054

500MHz

4 4GSa/s

500Mpts

1,000,000 wfms/s

-

MHO5104

1GHz

4 4GSa/s

500Mpts

1,000,000 wfms/s

16(Probe opt.)

50MHz, 2CH（opt.）

MHO5054

500MHz

4 4GSa/s

500Mpts

1,000,000 wfms/s

16(Probe opt.)

50MHz, 2CH（opt.）

Optical Isolated Probe

Single-ended Probes

Active Voltage Differential Probes

Current Probe

Logic Analyzer Probes

Passive Probe

High-Voltage Differential Probes

Bandwidth Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
DHO5004-BWU05T10	500MHz to 1GHz Bandwidth Upgrade Option	₹ 1,97,250	₹ 2,32,755
DHO5008-BWU05T10	500MHz to 1GHz Bandwidth Upgrade Option	₹ 3,78,900	₹ 4,47,102
MHO5004-BWU05T10	500MHz to 1GHz Bandwidth Upgrade Option	₹ 1,97,250	₹ 2,32,755
MHO5006-BWU05T10	500MHz to 1GHz Bandwidth Upgrade Option	₹ 3,78,900	₹ 4,47,102

Functional Options

Model	Description	INR List Price	INR (Inclusive of GST)
DHO5000-PWRA	Power Analysis Option	₹ 81,750	₹ 96,465
DHO5000-AUDIOA	I2S Audio Bus Trigger and Analysis Option	₹ 81,750	₹ 96,465
DHO5000-AUTOA	CAN/CAN-FD, LIN Bus Trigger and Decoding Option	₹ 81,750	₹ 96,465
DHO5000-FlexA	FlexRay Trigger and Decoding Option	₹ 81,750	₹ 96,465
DHO5000-BND	DHO5000, Bundle Option, includes all decoding options and power analysis option	₹ 2,46,600	₹ 2,90,988
DHO5000-AEROA	MIL-STD-1553 Bus Trigger and Decoding Option	₹ 81,750	₹ 96,465
MHO5000-PWRA	Power Analysis Option	₹ 81,750	₹ 96,465
MHO5000-AUDIOA	I2S Audio Bus Trigger and Analysis Option	₹ 81,750	₹ 96,465
MHO5000-AUTOA	CAN/CAN-FD, LIN Bus Trigger and Decoding Option	₹ 81,750	₹ 96,465
MHO5000-FlexA	FlexRay Trigger and Decoding Option	₹ 81,750	₹ 96,465
MHO5000-AEROA	MIL-STD-1553 Bus Trigger and Decoding Option	₹ 81,750	₹ 96,465
MHO5000-AWG	Built-in Dual-Channel 50MHz Function Signal Generator Option	₹ 66,000	₹ 77,880
MHO5006-BND	MHO5006, 6-channel model Bundle option, including all decoding options and power analysis option	₹ 2,64,300	₹ 3,11,874
MHO5004-BND	MHO5004, 4-channel model bundle option, including all decoding options, power analysis options, and built-in signal source	₹ 2,98,350	₹ 3,52,053

Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
BatHolder350	Battery compartment	₹ 1,12,350	₹ 1,32,573
RM6051	Thunderbird Platform Rack Mount Kit	₹ 28,050	₹ 33,099

Datasheet

Name	Version	Release time	Download
📄 MHODHO5000 DataSheet	DSA43103-1110	2025-12-08

User Guide

Name	Version	Release time
📄 MHODHO5000 UserGuide	UGA43103-1110	2025-12-12
📄 BatHolder350 UserGuide	UGN02100-1110	2025-07-30
📄 RM6051_RackmountKit_EN	202603	2026-03-31

Quick Guide

Name	Version	Release time	Download
📄 MHODHO5000 QuickGuide	QGA43100-1110	2024-12-23
📄 RIGOL Quick Guide to Safe Use of Battery Holder	V1.0	2025-09-30

Programming Guide

Name	Version	Release time	Download
📄 MHODHO5000 ProgrammingGuide	PGA43101-1110	2025-02-13

Performance Verification Manual

Name	Version	Release time	Download
📄 MHODHO5000 PerformanceVerification	PVA43101-1110	2025-12-08
