Oscilloscopes
MHO2000
Analog Bandwidth
350MHz
Analog Channels
4
Maximum Real-time Sample Rate
2GSa/s
Maximum Memory Depth
500Mpts
Maximum Waveform Capture Rate
1,000,000 wfms/s
Digital Channel
16(Probe opt.)
Downloads
Downloads
Select Model

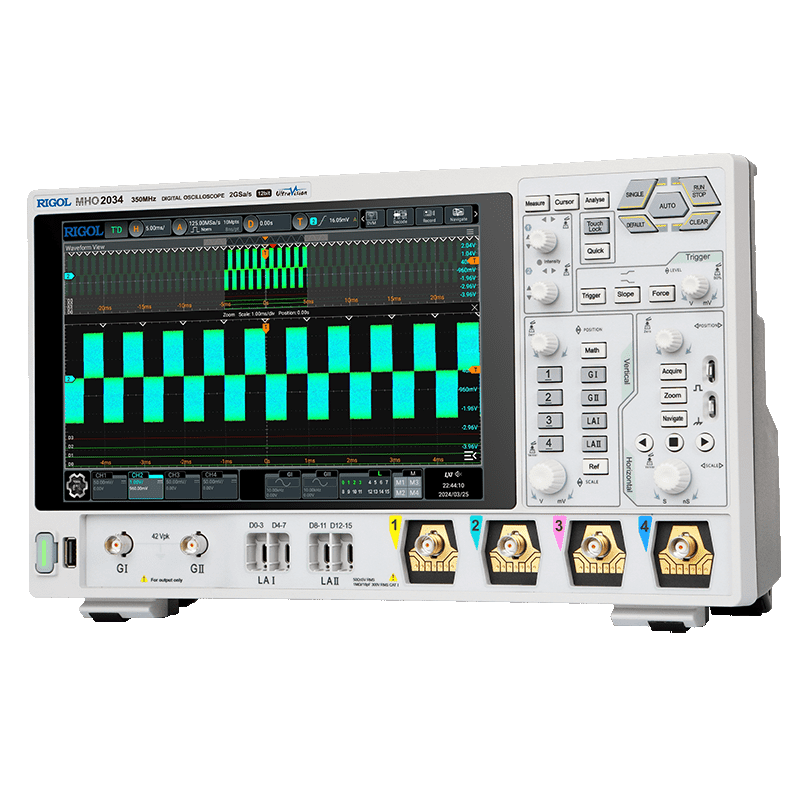

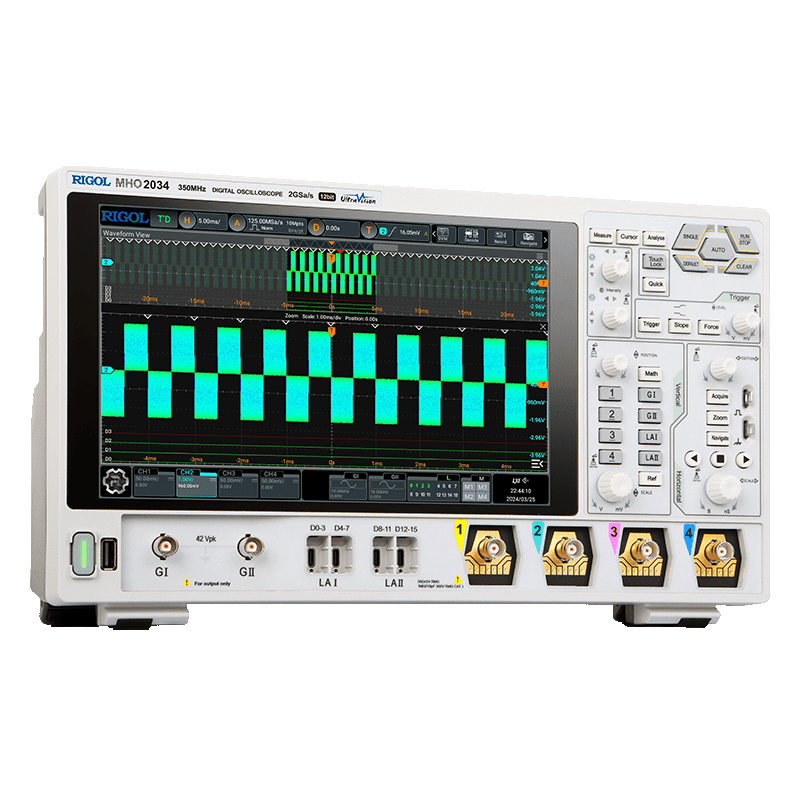

Explore the MHO2000 Series Digital Oscilloscopes

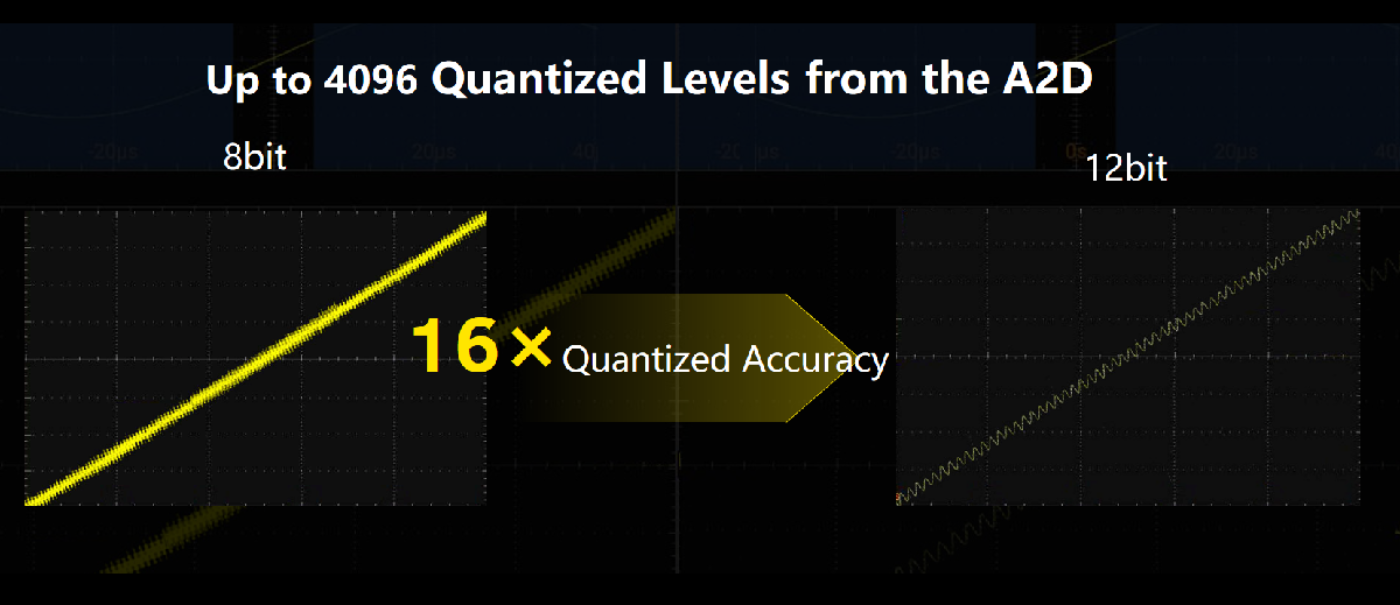

Ultra-high resolution capturing tiny details
The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

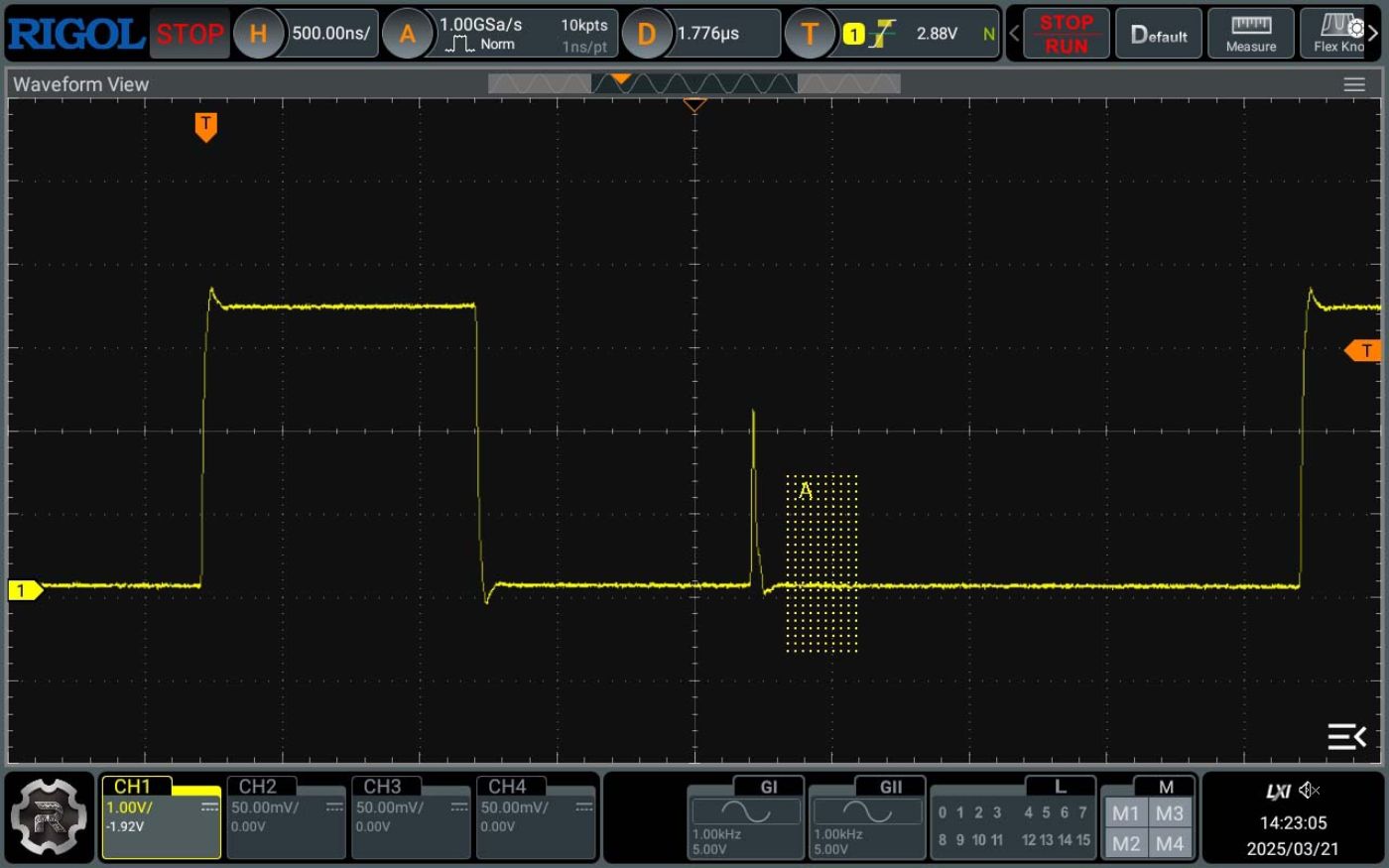

Versatile triggering and decoding for diverse industries
The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, and more, meeting bus testing needs across embedded, automotive, and computing industries.

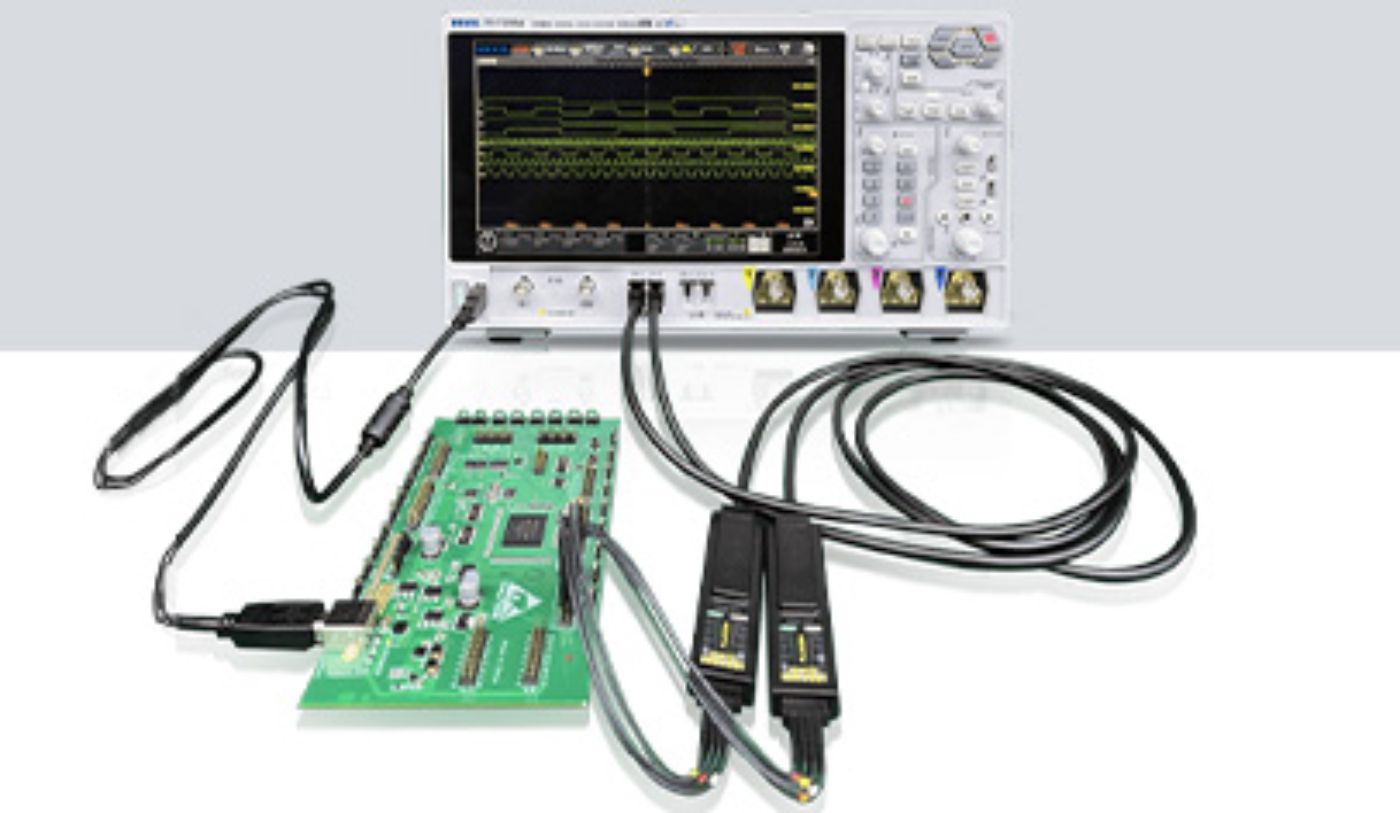

Standard digital channel, stable signal transmission
The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates

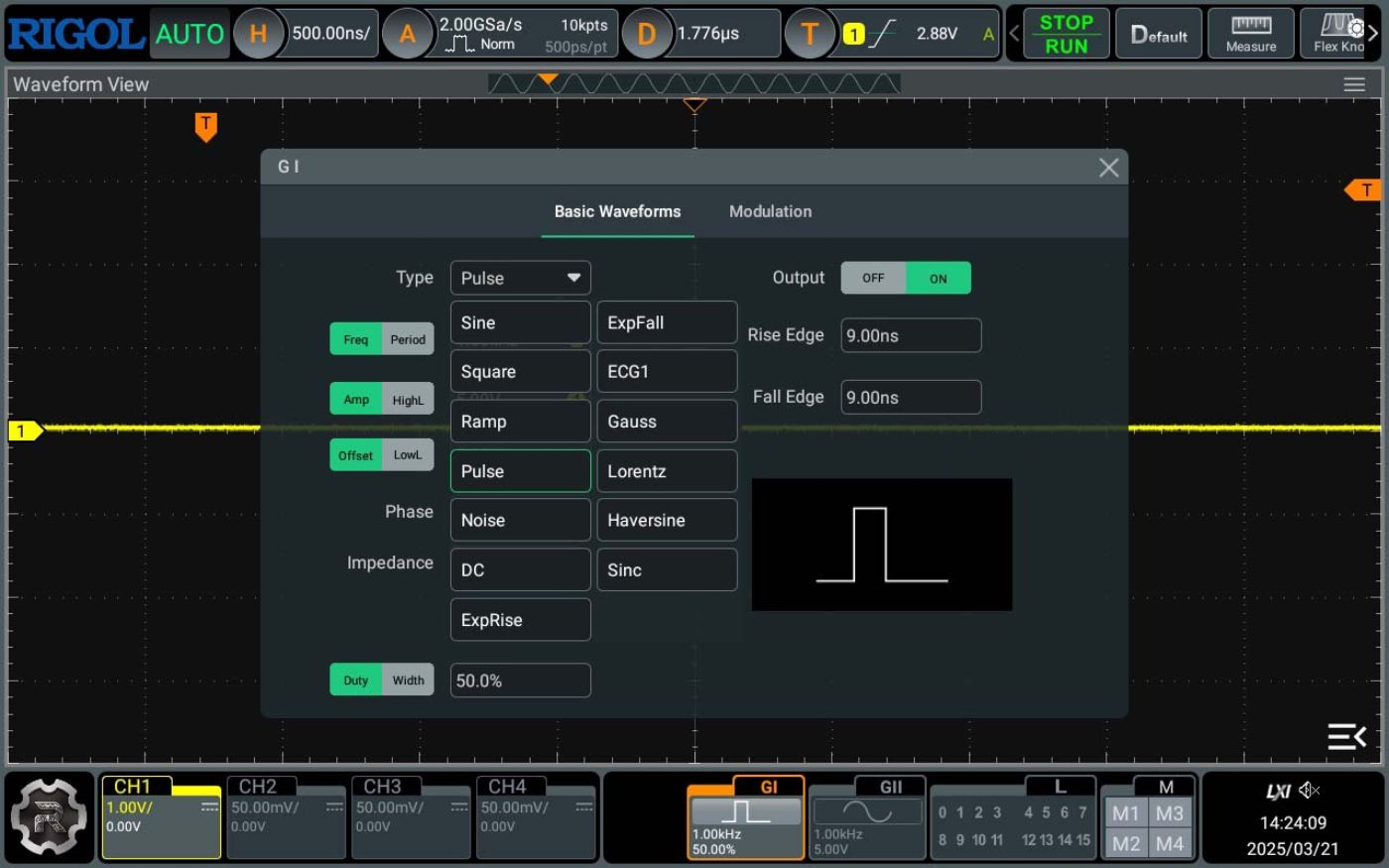

Built-in function generator for advanced analysis
The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields.
MHO2000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
MHO2034
350MHz
4
2GSa/s
500Mpts
1,000,000 wfms/s
16(Probe opt.)
50MHz, 2CH（opt.）
MHO2024
200MHz
4
2GSa/s
500Mpts
1,000,000 wfms/s
16(Probe opt.)
50MHz, 2CH（opt.）
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MHO2000-PWRA | Power Analyze option | ₹ 33,600 | ₹ 39,648 |
| MHO2000-AUDIOA | I2S Audio Bus Trigger and Analysis Option | ₹ 33,600 | ₹ 39,648 |
| MHO2000-AUTOA | CAN-FD, LIN Bus Trigger and Decode Option | ₹ 33,600 | ₹ 39,648 |
| MHO2000-FLEXA | FlexRay Trigger and Decode Option | ₹ 33,600 | ₹ 39,648 |
| MHO2000-AEROA | MIL-STD-1553 Bus Trigger and Decode Option | ₹ 33,600 | ₹ 39,648 |
| MHO2000-AWG | Built-in Dual-Channel 50MHz Function Signal Generator Option | ₹ 47,100 | ₹ 55,578 |
| MHO2000-BND | Package Option | ₹ 1,23,600 | ₹ 1,45,848 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| BatHolder350 | Battery compartment | ₹ 1,12,350 | ₹ 1,32,573 |
Universal Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM6051 | Thunderbird Platform Rack Mount Kit | ₹ 28,050 | ₹ 33,099 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO2000 Datasheet | DSA44100-1110 | 2025-05-08 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO2000 UserGuide | UGA44100-1110 | 2025-05-08 | |
| 📄 BatHolder350 UserGuide | UGN02100-1110 | 2025-07-30 | |
| 📄 RM6051_RackmountKit_EN | 202603 | 2026-03-31 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO2000 Programming Guide | PGA44100-1110 | 2025-05-13 |
