Oscilloscopes
MHO900
Analog Bandwidth
1GHz
Analog Channels
4
Maximum Real-time Sample Rate
4GSa/s
Maximum Memory Depth
500Mpts(opt.)
Maximum Waveform Capture Rate
1,000,000 wfms/s
Digital Channel
16(Probe opt.)
Downloads
Downloads
Select Model
Explore the MHO900 Series Oscilloscopes
Powerful Performance, Redefining the Entry-Level Standard

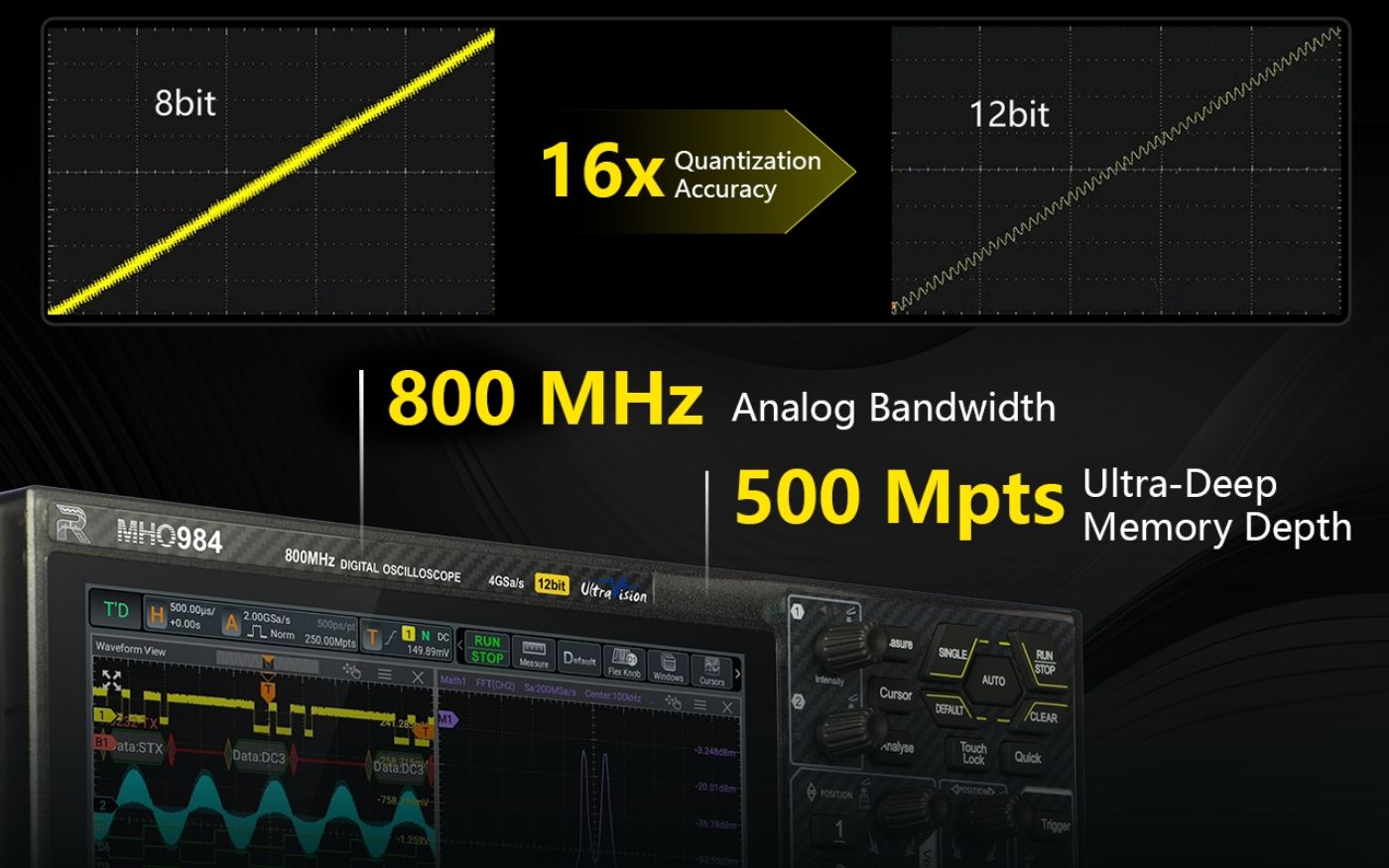

The MHO900 Series, with its unmatched performance in its class, completely reshapes the boundaries of entry-level oscilloscopes. It offers up to 800 MHz analog bandwidth to handle high-speed signal challenges with ease, and its standard 4 analog channels provide flexible support for complex system debugging. At its core is a 12-bit high-resolution ADC, delivering 16 times the detail of traditional 8-bit instruments—making even the faintest anomalies visible. Combined with an ultra-long 500 Mpts memory depth, it ensures long-duration capture and analysis of complex signals without missing a detail. With the MHO900, you can confidently tackle future testing challenges and achieve a true leap from “entry” to “mastery.”
All-in-One Power, An Integrated Efficiency Tool

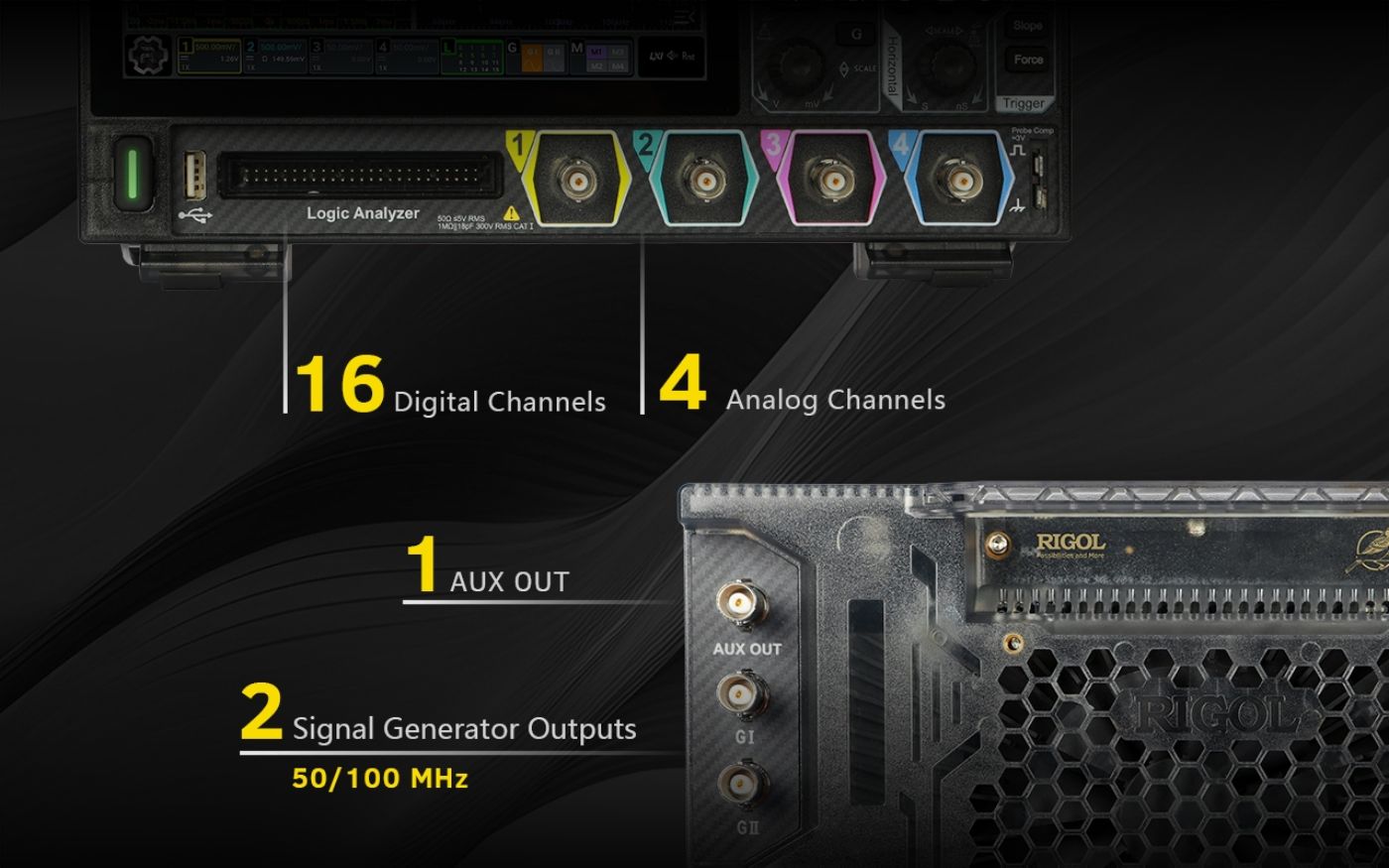

The MHO900 is far more than an oscilloscope—it is a powerful all-in-one time-domain workstation. With 16 digital channels standard, it allows perfect synchronization and analysis of analog and digital signals, giving you complete insight into mixed-signal systems. Additionally, you can opt for the built-in dual-channel signal generator, capable of outputting pure sine waves up to 100 MHz, seamlessly integrated with the powerful Bode Plot analysis function. This combination makes it an ideal solution for complex analysis and testing challenges such as power supply loop stability. By bringing multiple instrument functions together in one compact device, the MHO900 significantly boosts your efficiency.
Wireless Connectivity, Instant Access

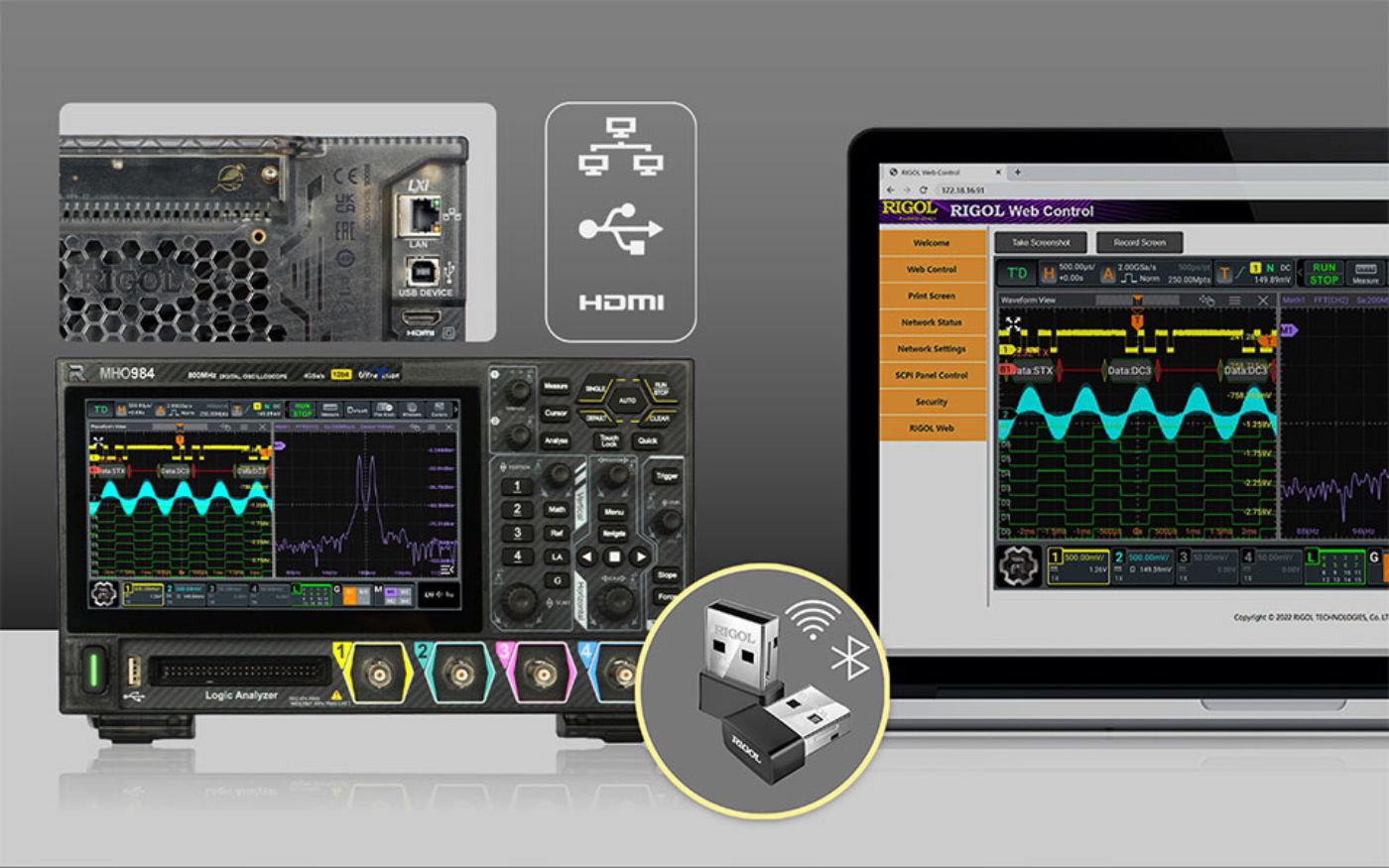

The MHO900, equipped with standard Bluetooth and Wi-Fi adapters, allows engineers full remote network access and control, enabling unattended automated testing or long-distance data monitoring—greatly improving efficiency and safety. Bluetooth connectivity expands the possibilities for peripheral devices without occupying any physical ports, eliminating cumbersome cables. This “out-of-the-box” wireless solution is designed to create a cleaner, modern testing environment, allowing you to focus more on data analysis and technological innovation.
MHO900
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
MHO984
800MHz
4
4GSa/s
500Mpts(opt.)
1,000,000 wfms/s
16(Probe opt.)
100MHz, 2CH(opt.)
MHO954
500MHz
4
4GSa/s
500Mpts(opt.)
1,000,000 wfms/s
16(Probe opt.)
100MHz, 2CH(opt.)
MHO934
350MHz
4
4GSa/s
500Mpts(opt.)
1,000,000 wfms/s
16(Probe opt.)
100MHz, 2CH(opt.)
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Performance Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MHO900-RLU-05 | MHO900-RLU-05 | ₹ 30,300 | ₹ 35,754 |
| MHO900-BWU03T05 | MHO900,350 MHz to 500 MHz Bandwidth Upgrade Option | ₹ 30,300 | ₹ 35,754 |
| MHO900-BWU03T08 | MHO900,350 MHz to 800 MHz Bandwidth Upgrade Option | ₹ 46,050 | ₹ 54,339 |
| MHO900-BWU05T08 | MHO900,500 MHz to 800 MHz Bandwidth Upgrade Option | ₹ 30,300 | ₹ 35,754 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MHO900-AFG50 | MHO900,2 Channel 50 MHz Arbitrary Function Generator Option, includes Bode-plot | ₹ 46,050 | ₹ 54,339 |
| MHO900-AFG100 | MHO900,2 Channel 100 MHz Arbitrary Function Generator Option, includes Bode-plot | ₹ 76,350 | ₹ 90,093 |
| MHO900-AUDIOA | MHO900,I2S Audio-Bus Trigger and Analysis Option | ₹ 14,550 | ₹ 17,169 |
| MHO900-AUTOA | MHO900, Automotive Serial Bus CAN-FD Decoding and Analysis Option | ₹ 14,550 | ₹ 17,169 |
| MHO900-FlexA | MHO900, Flexray Bus Trigger and Decode Option | ₹ 14,550 | ₹ 17,169 |
| MHO900-AEROA | MHO900, MIL-STD-1553 Bus Triggering and Decoding Analysis Option | ₹ 14,550 | ₹ 17,169 |
| MHO900-BND | MHO900, Functional Upgrade Package Option, includes: AFG100, AUDIOA, AUTOA, FlexA, AEROA | ₹ 91,050 | ₹ 1,07,439 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM5041 | Ultra-Portable Platform Rack Mount Kit | ₹ 17,850 | ₹ 21,063 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO900 DataSheet | DSA46102-1110 | 2025-10-13 | |
| 📄 MHO98 DataSheet | DSA45102-1110 | 2025-10-13 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO900_UserGuide_EN | UGA46102-1110 | 2026-06-04 | |
| 📄 MHO98 UserGuide | UGA45101-1110 | 2025-10-13 | |
| 📄 RM5041_RackmountKit_EN | 202603 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO900 QuickGuide | QGA46101-1110 | 2025-10-13 | |
| 📄 MHO98 QuickGuide | QGA45001-1110 | 2025-10-13 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MHO900 ProgrammingGuide | PGA461012-1110 | 2026-02-26 | |
| 📄 MHO98 ProgrammingGuide | PGA45102-1110 | 2026-02-26 |
