Oscilloscopes
MSO/DS1000Z
Analog Bandwidth
100MHz
Analog Channels
4
Maximum Real-time Sample Rate
1GSa/s
Maximum Memory Depth
24Mpts
Maximum Waveform Capture Rate
30,000wfm/s
Digital Channel
16(Probe opt.)
Downloads
Downloads
Select Model

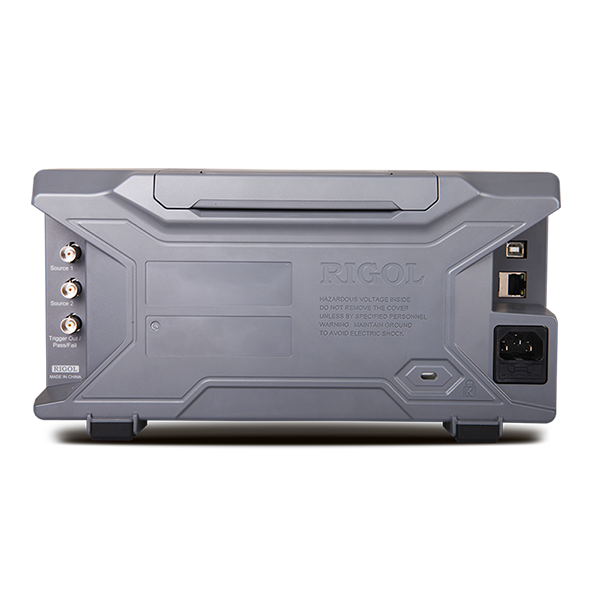

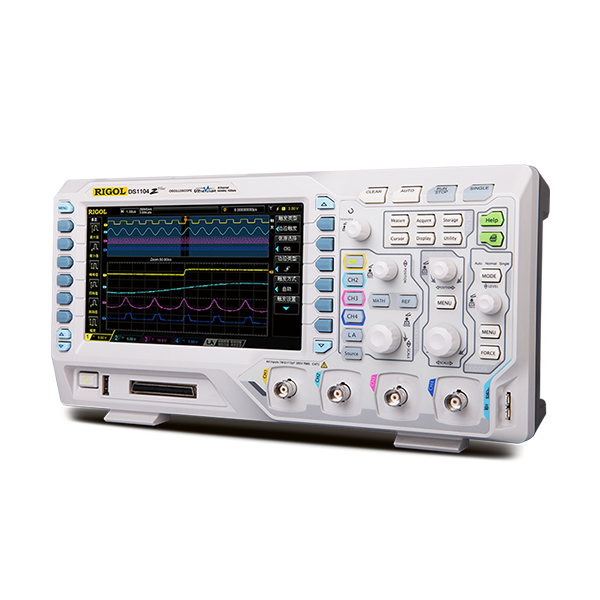

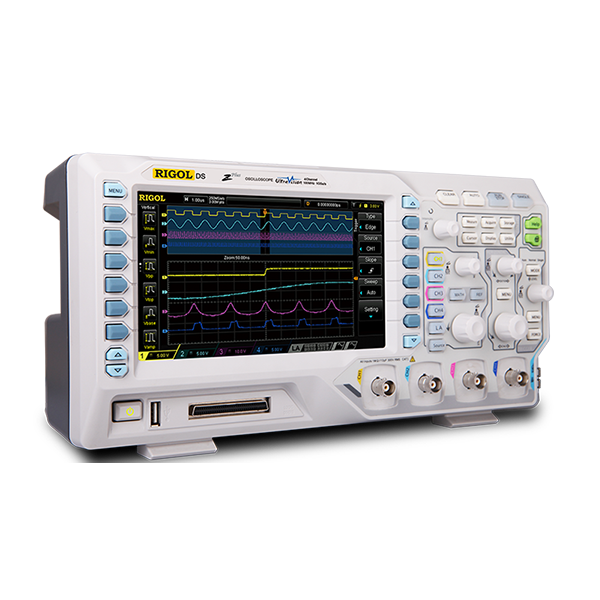

Explore the DS1000Z Series Digital Oscilloscopes
4 Channels As Standard
The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals
12Mpts Storage Depth
Standard with 12M, optional with 24m super long storage depth. (standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes
Hardware Waveform Recording and Playback Function
Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location
Serial Bus Triggering and Decoding
Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus
Digital Fluorescent Display
Gray level display capability, similar to fluorescent display effect, with minute change of waveform
Mixed Signal Analysis Capability
The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO

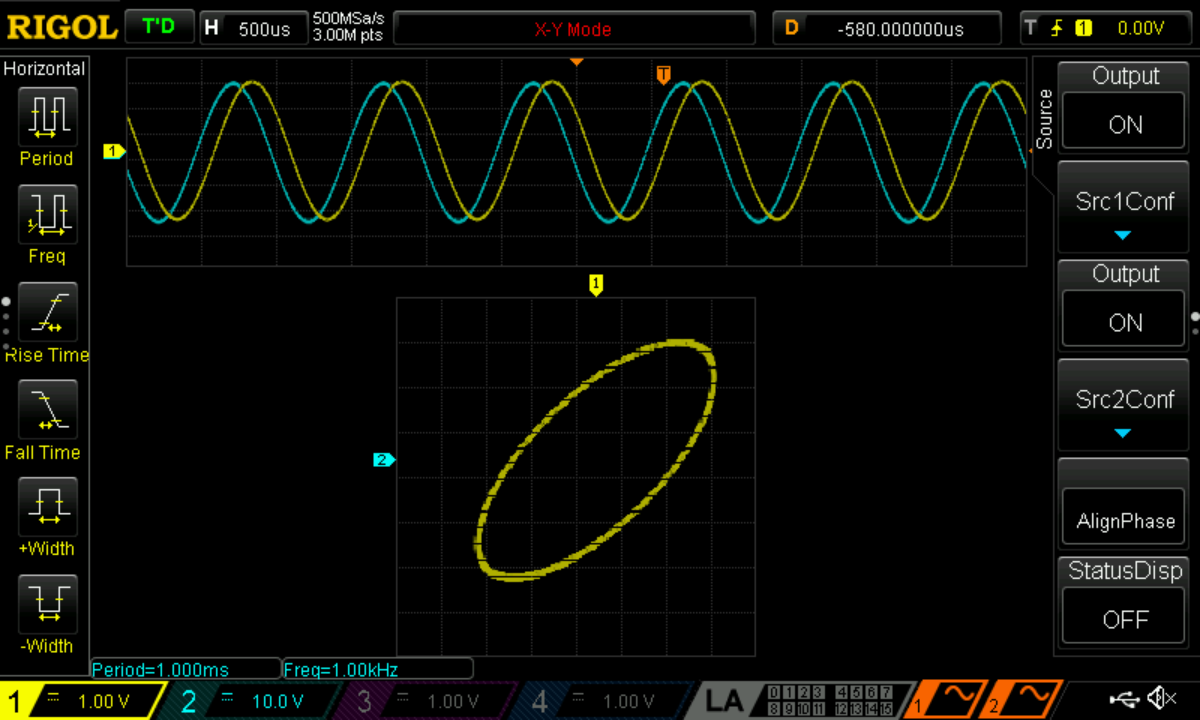

Two 25MHz Signal Sources
With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience
MSO/DS1000Z
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
DS1054Z
50MHz
4
1GSa/s
24Mpts
30,000wfm/s
-
-
DS1074Z-Plus
70MHz
4
1GSa/s
24Mpts
30,000wfm/s
16(Probe opt.)
-
DS1074Z-S-Plus
70MHz
4
1GSa/s
24Mpts
30,000wfm/s
16(Probe opt.)
2CH
DS1104Z-Plus
100MHz
4
1GSa/s
24Mpts
30,000wfm/s
16(Probe opt.)
-
DS1104Z-S-Plus
100MHz
4
1GSa/s
24Mpts
30,000wfm/s
16(Probe opt.)
2CH
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| BAG-DS1000 | Instrument packages | ₹ 6,600 | ₹ 7,788 |
| CB-USBA-USBB-FF-150 | USB Data line，150cm | ₹ 2,250 | ₹ 2,665 |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| RM-DG4000/DS1000Z | Rack options | ₹ 16,350 | ₹ 19,293 |
Software
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| UPA-DS | Power analysis software | ₹ 99,300 | ₹ 117,174 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS1000Z DataSheet | V1.0 | 2021-10-26 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS1000Z UserGuide | UGA19115-1110 | 2021-10-26 | |
| 📄 RM-DG4000 DS1000Z User Manual | V1.0 | 2021-11-19 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS1000Z QuickGuide | QGA19108-1110 | 2021-11-19 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS1000Z ProgrammingGuide | PGA19108-1110 | 2021-10-26 |
