Oscilloscopes
MSO/DS2000A
Analog Bandwidth
300MHz
Analog Channels
2
Maximum Real-time Sample Rate
2GSa/s
Maximum Memory Depth
56Mpts
Maximum Waveform Capture Rate
52,000wfms/s
Digital Channel
16
Downloads
Downloads
Select Model
Explore the MSO/DS2000A Series Digital Oscilloscopes

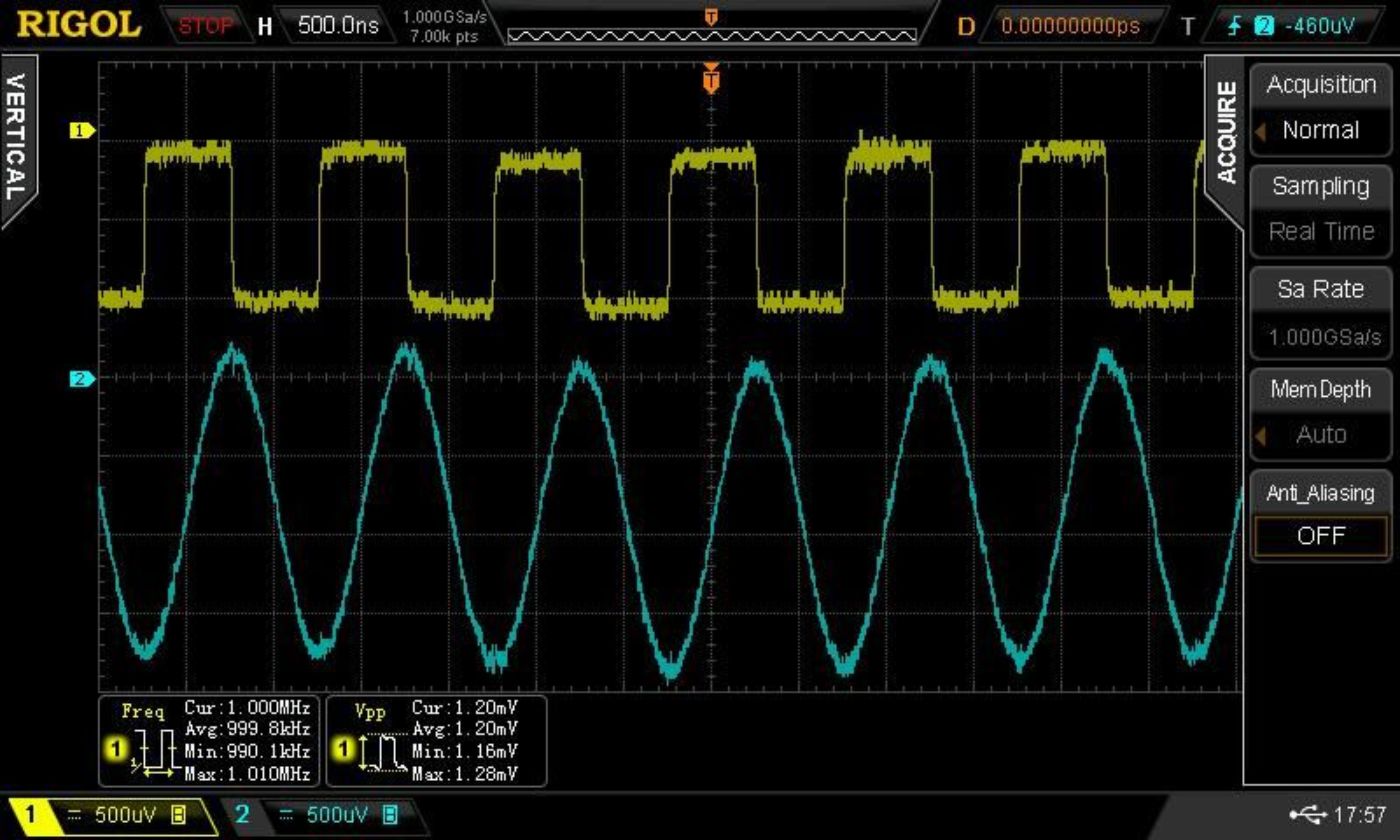

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)
With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.

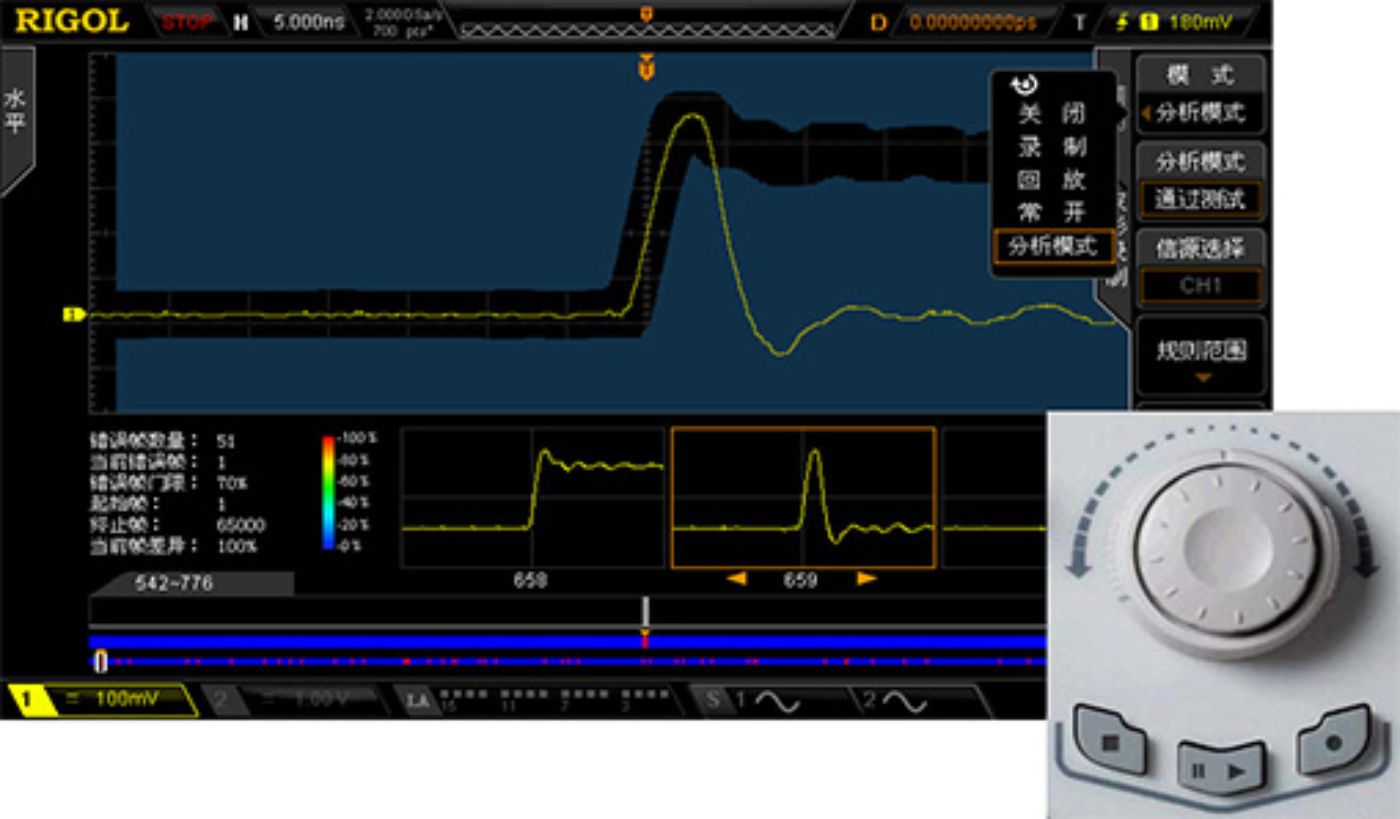

Waveform Record and Playback
Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

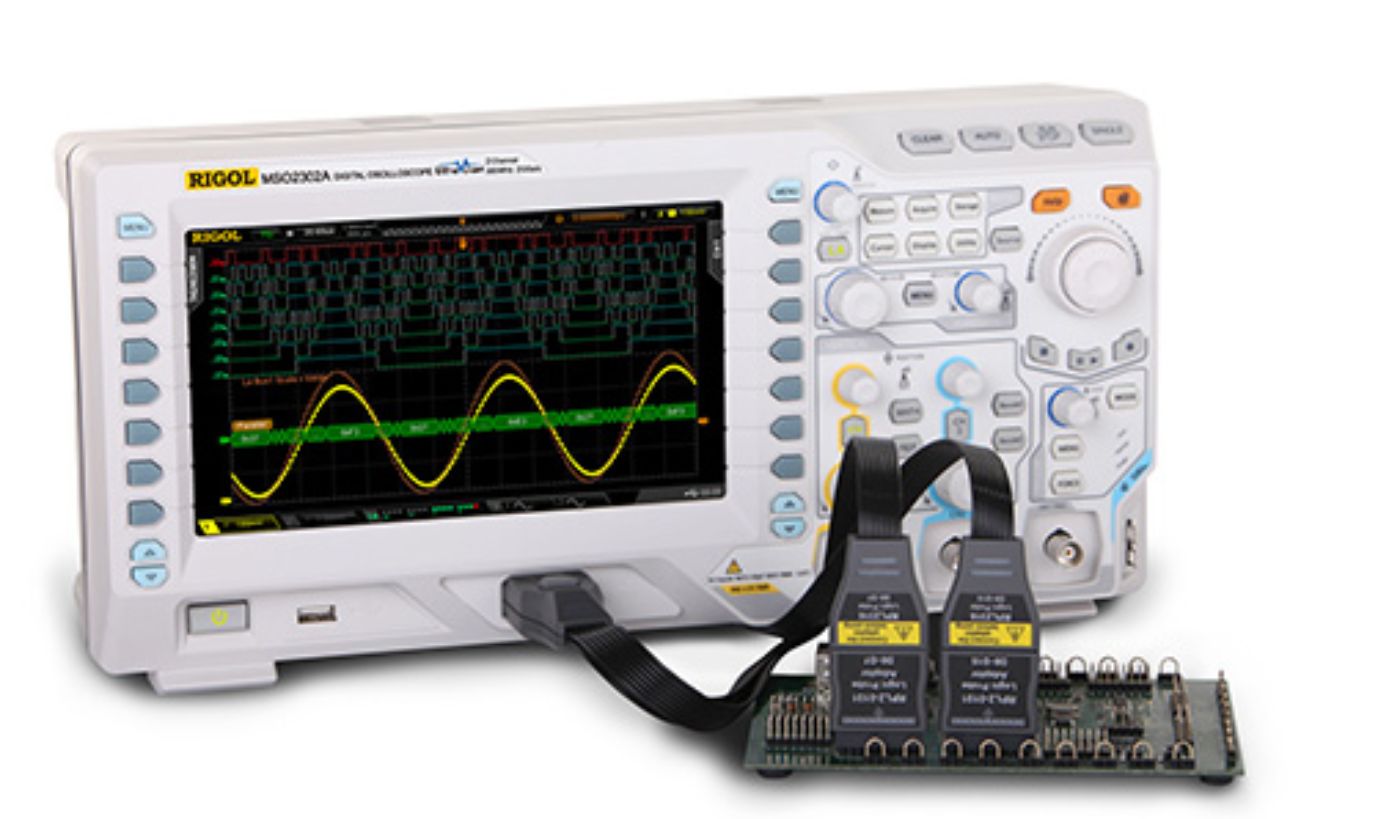

16 Digital Channels (MSO Models)
The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.

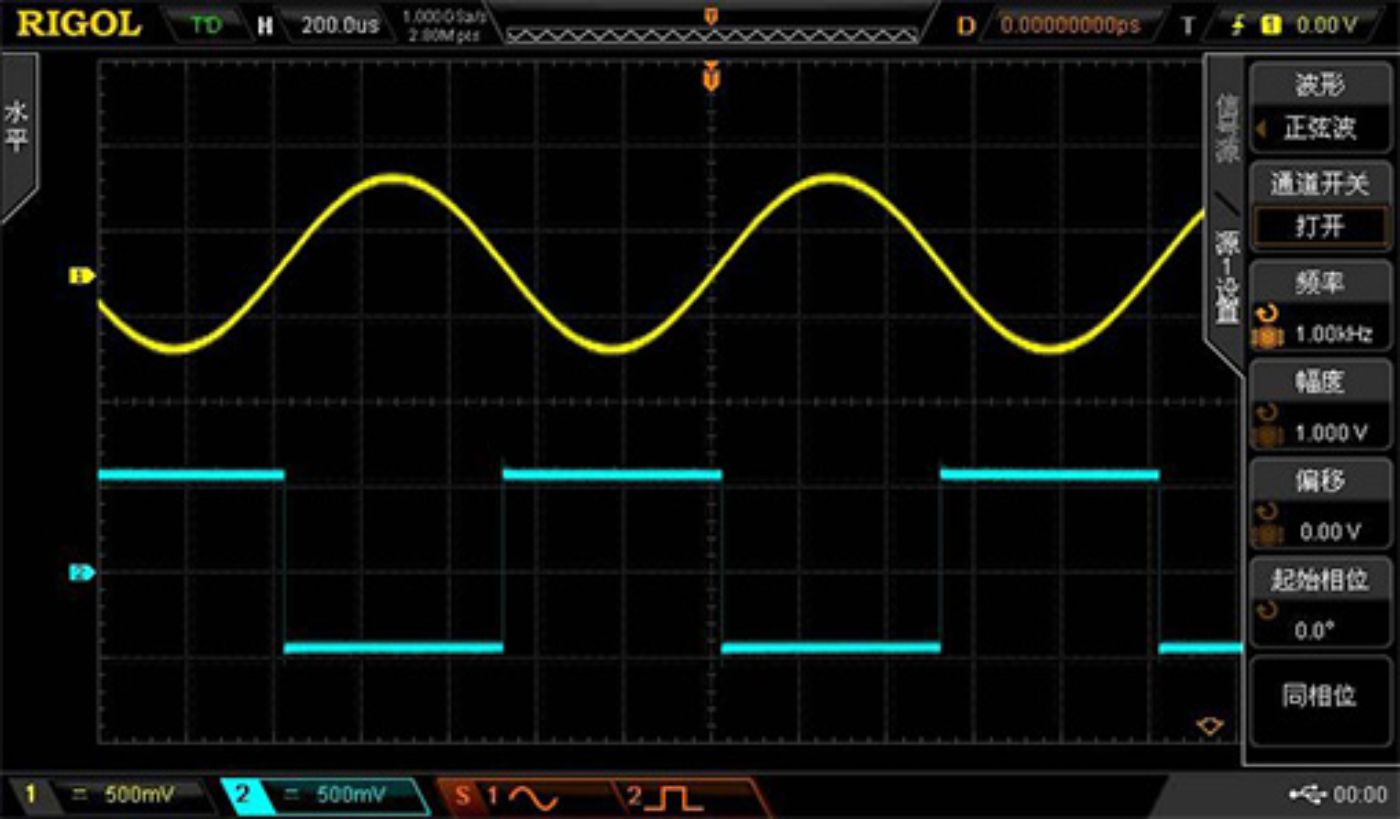

Integrated 2 Channel full function 25MHz generator
Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the “-S” models adds value and capability to the bench for a variety of applications.

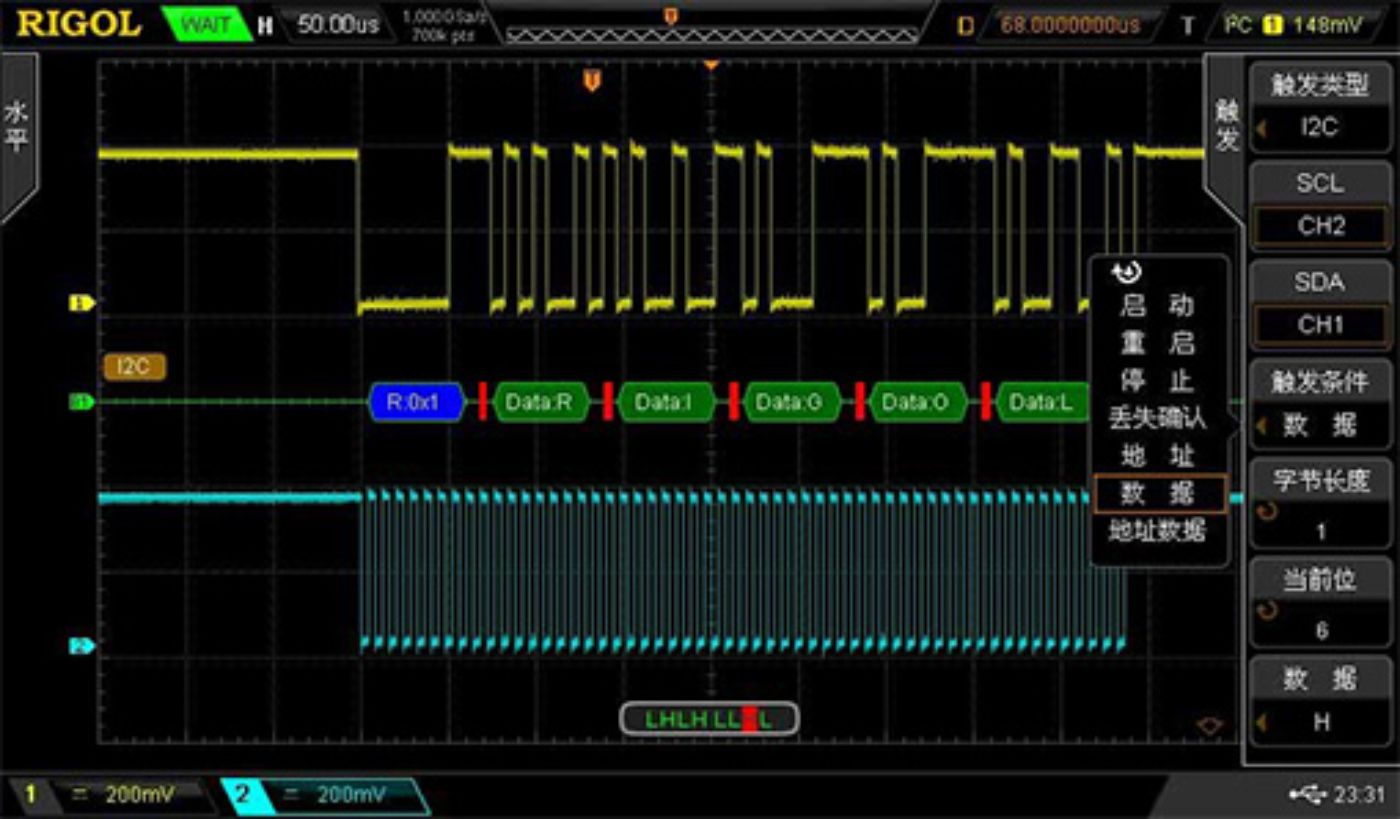

Serial bus triggering and decoding
Supports I2C, SPI, RS232/UART, CAN, LIN, FlexRay bus triggering and decoding as standard.
DHO4000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
DS2302A
300MHz
2
2GSa/s
56Mpts
52,000wfms/s
-
-
DS2202A
200MHz
2
2GSa/s
56Mpts
52,000wfms/s
-
-
DS2102A
100MHz
2
2GSa/s
56Mpts
52,000wfms/s
-
-
MSO2102A
100MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
-
MSO2102A-S
100MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
2CH
MSO2202A
200MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
-
MSO2202A-S
200MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
2CH
MSO2302A
300MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
-
MSO2302A-S
300MHz
2
2GSa/s
56Mpts
52,000wfms/s
16
2CH
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RM-DS2000 | Rack mount kit | ₹ 50,550 | ₹ 59,649 |
| CB-USBA-USBB-FF-150 | USB Data line，150cm | ₹ 2,250 | ₹ 2,655 |
| CB-DB9-DB9-FF-150 | RS232 Data line,2 Female，150cm | - | - |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| USB-GPIB | USB-GPIB adapter | ₹ 37,500 | ₹ 44,250 |
| DK-DS6000 | Demo board | ₹ 24,450 | ₹ 28,851 |
Software
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| UPA-DS | Power analysis software | ₹ 99,300 | ₹ 117,174 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSODS2000A Datasheet | V2.0 | 2025-08-27 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSODS2000A UserGuide | UGA18110-1110 | 2021-10-26 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSODS2000A QuickGuide | QGA18104-1110 | 2021-10-26 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSODS2000A ProgrammingGuide | PGA18106-1110 | 2021-10-26 |
