MSO5000

Oscilloscopes

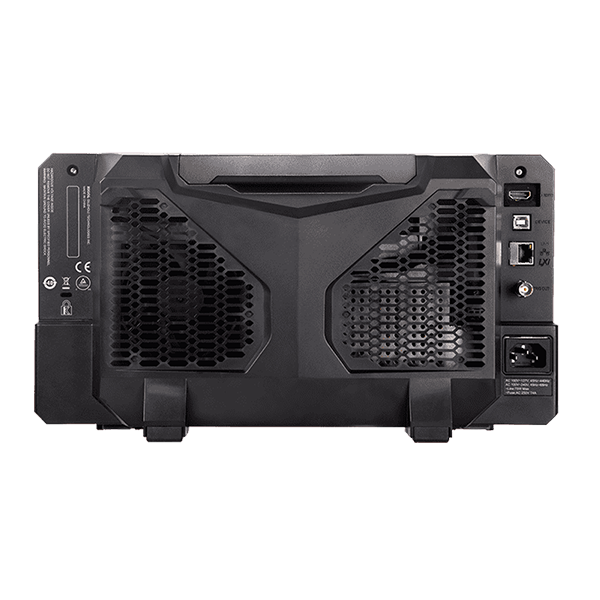

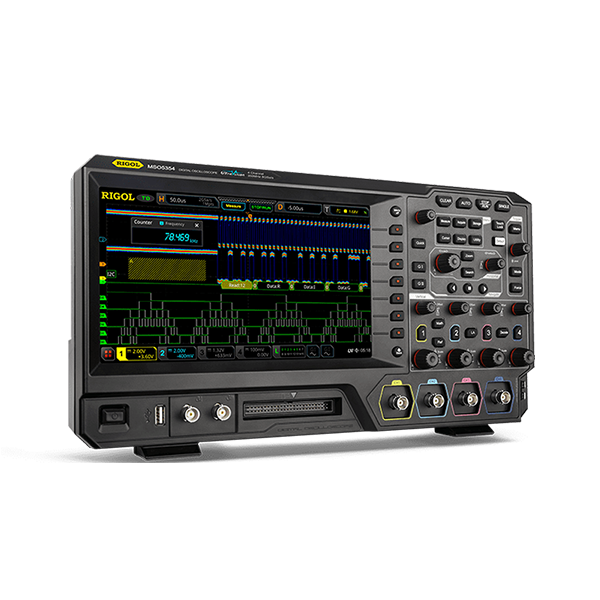

MSO5000 series digital oscilloscope is a high performance and economical digital oscilloscope based on the technology of RIGOL ultravision II generation.

Analog Bandwidth

350MHz

Analog Channels

4 Maximum Real-time Sample Rate

8GSa/s

Maximum Memory Depth

200Mpts(opt.)

Maximum Waveform Capture Rate

500,000 wfms/s

Digital Channel

16 Downloads

Downloads

Select Model

Models

Clear

Qty:

Explore the MSO5000 Series Digital Oscilloscopes

Bode Plot: Switching Power Supply Loop Analysis

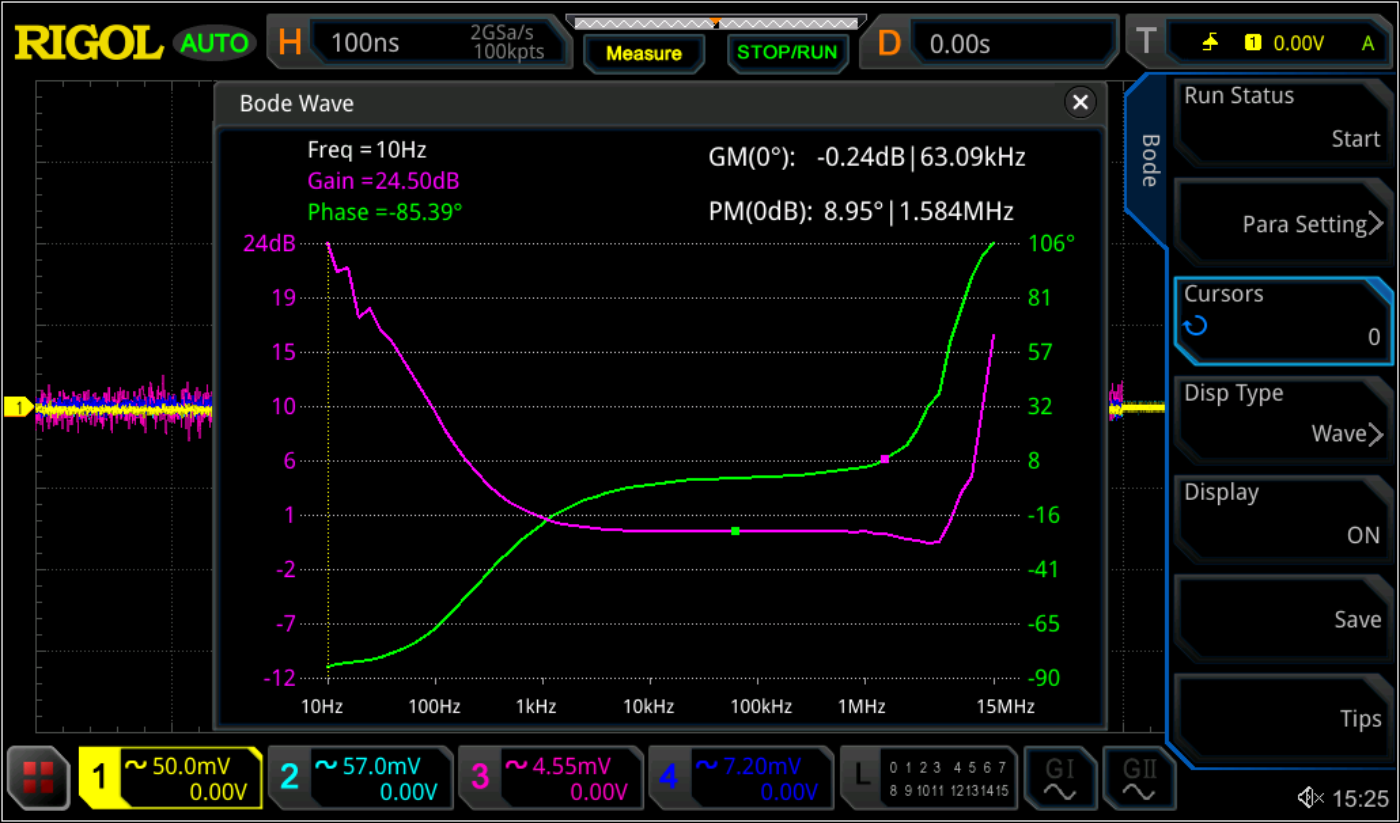

The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.

7 in 1 Product Design

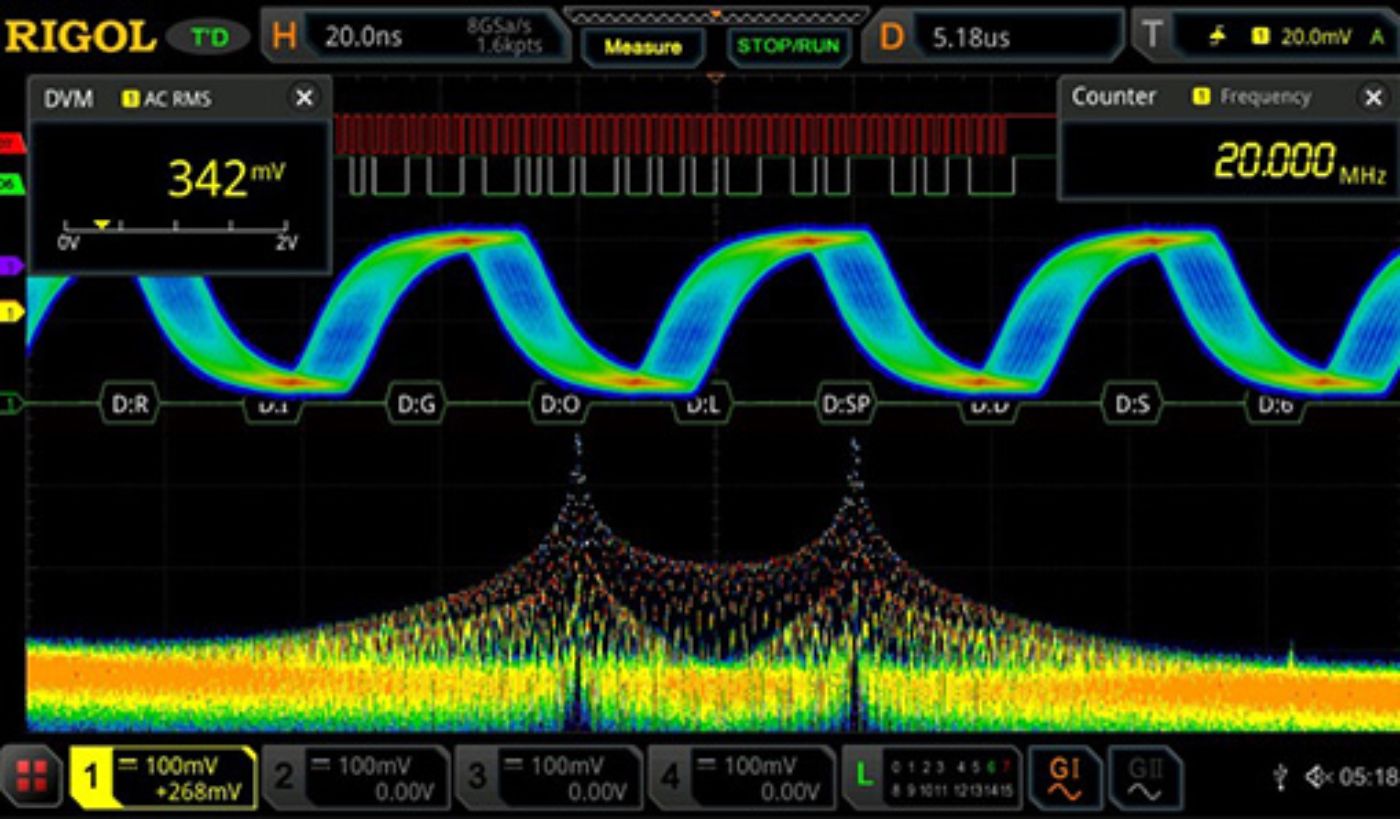

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

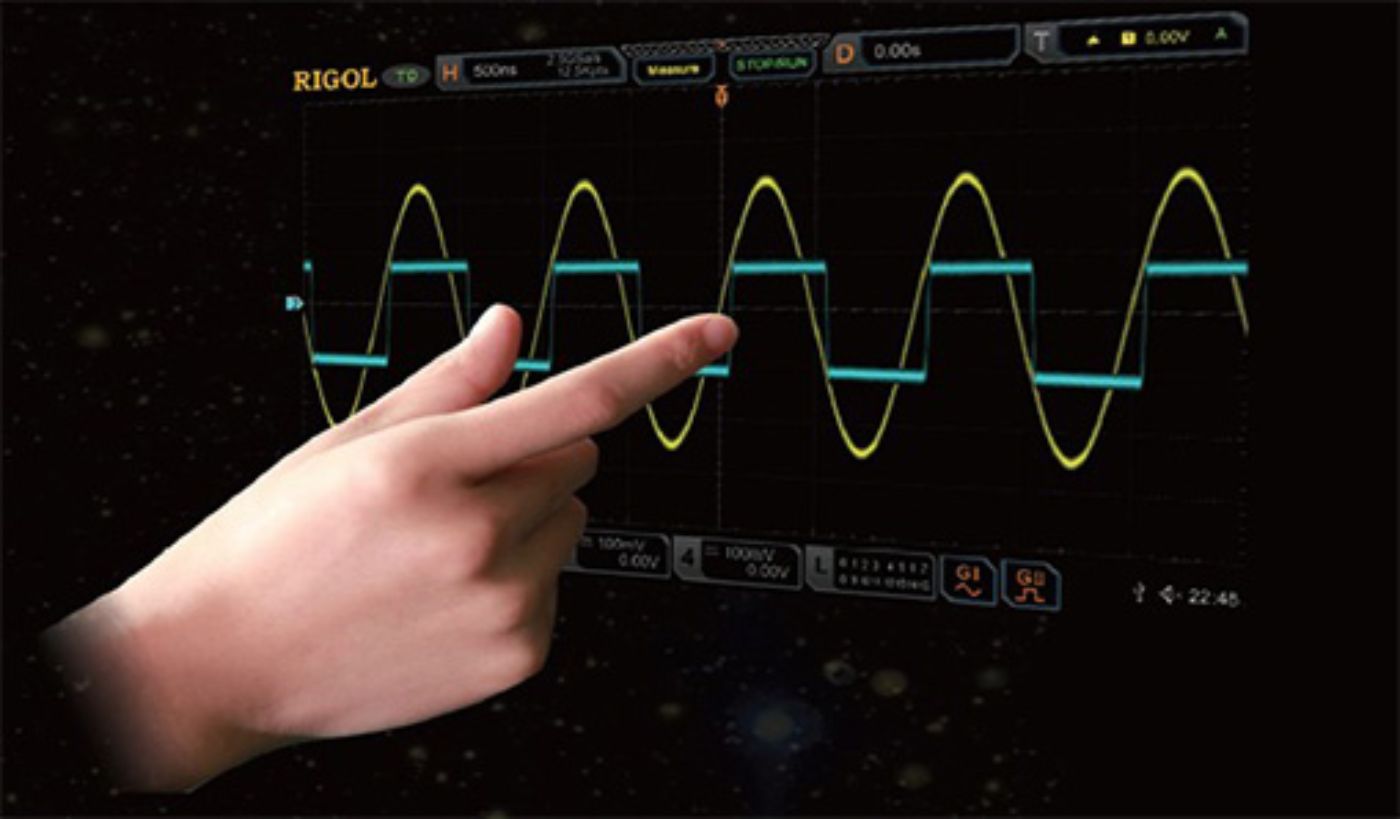

9 "multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience

Convenient Web Control Remote Control

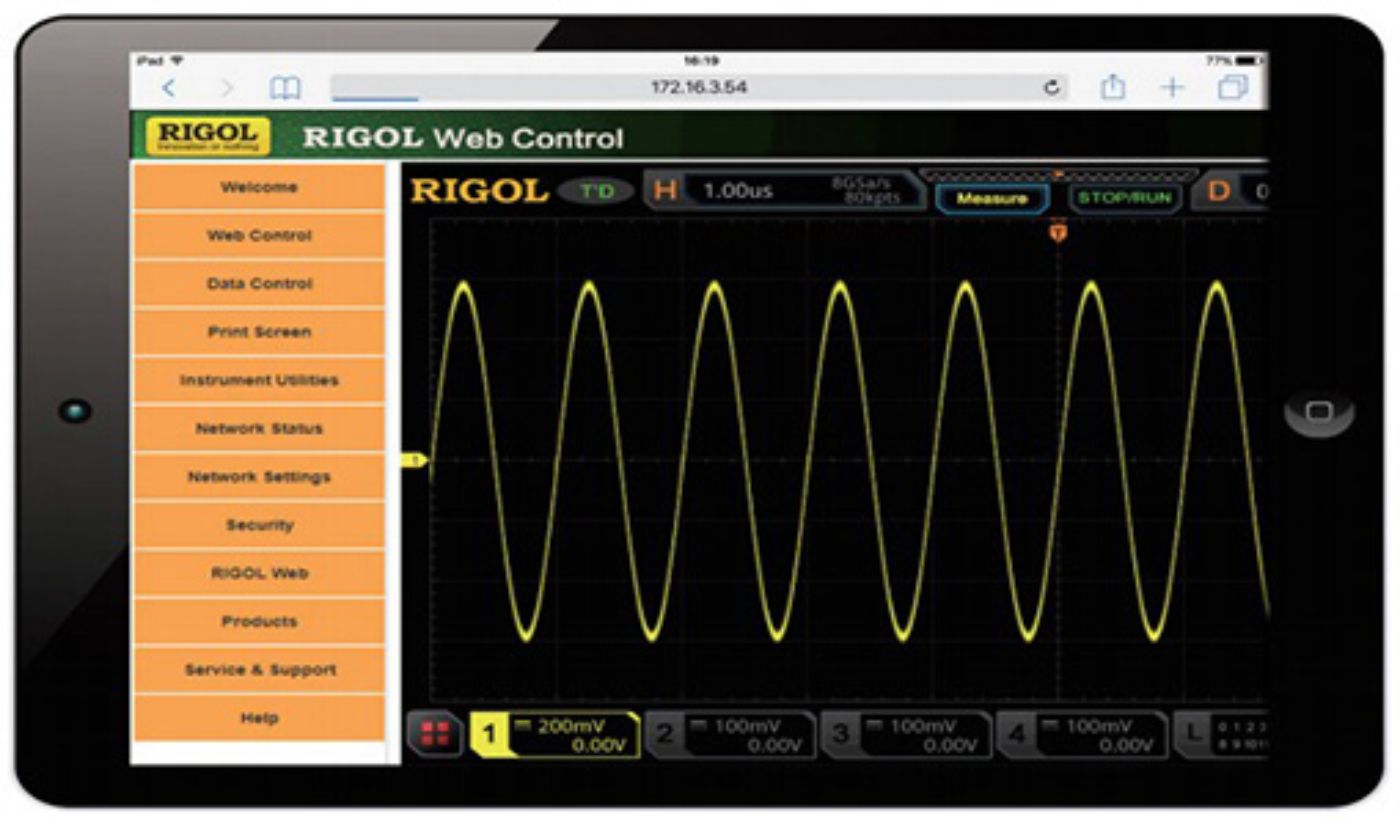

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

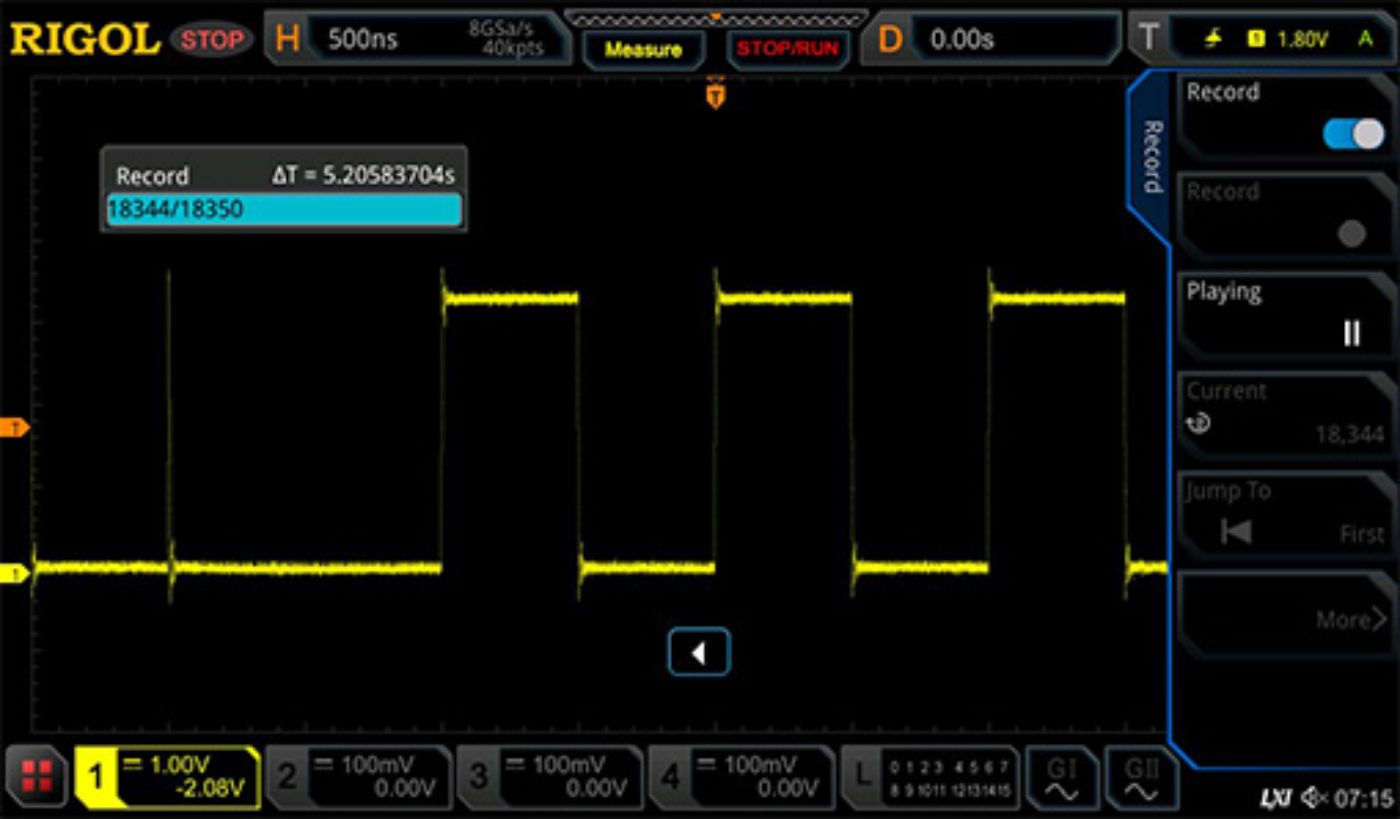

Support Up to 450000 Frames of Hardware Waveform Recording

The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user’s concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.

Waveform Capture Rate Up to 500000 Times Per Second

With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers

Super High Sampling Bandwidth Ratio

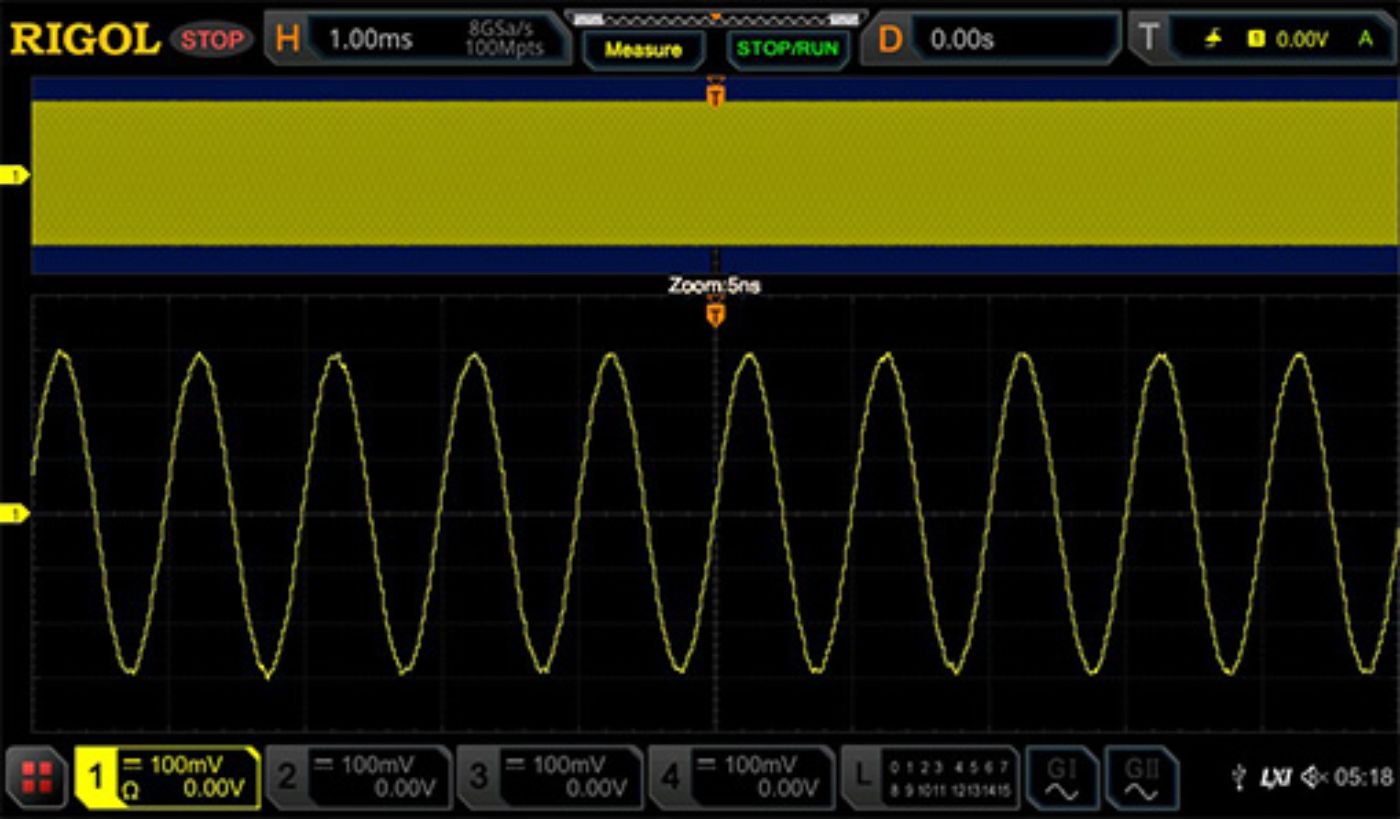

The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.

Full Memory Hardware Measurement

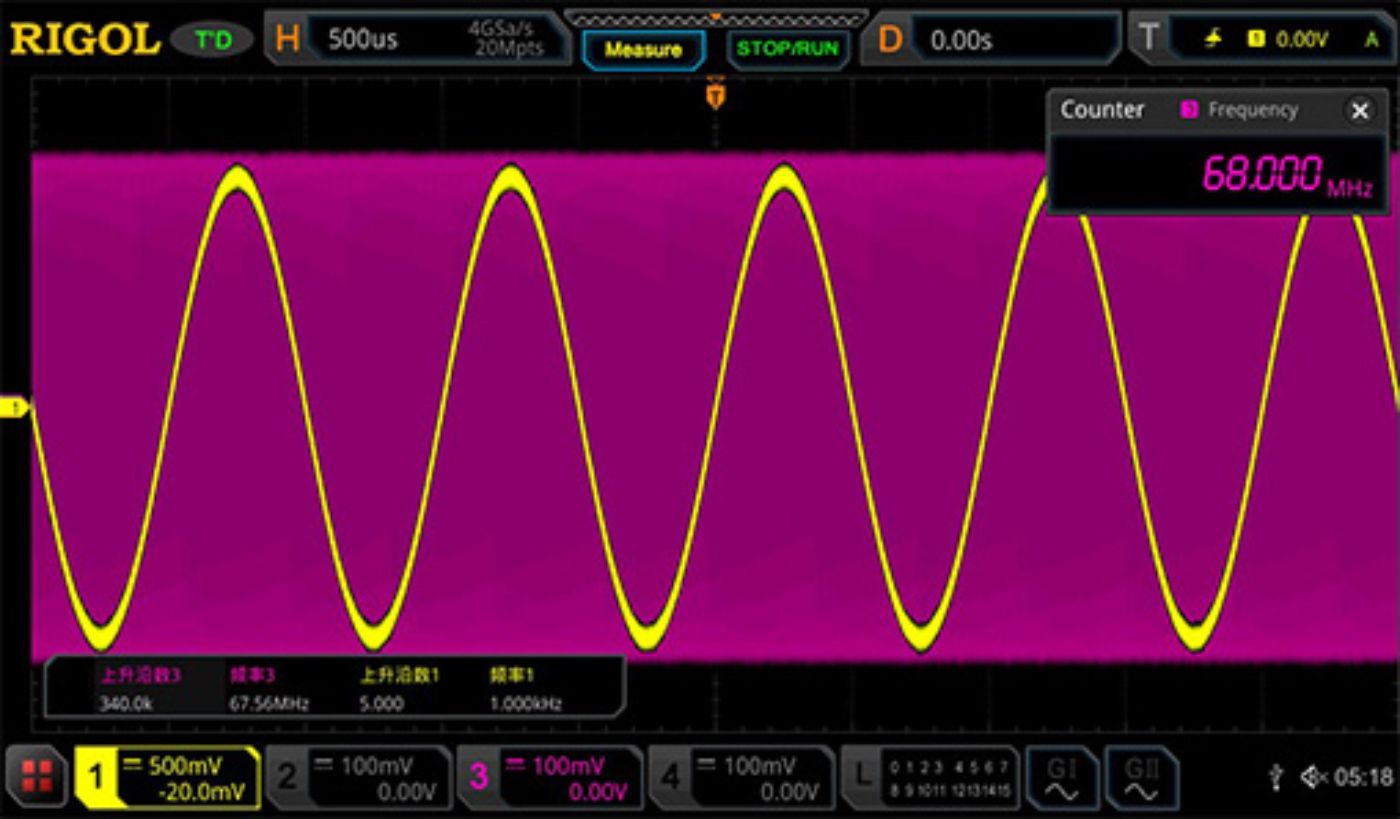

At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edgesn accurate frequency values from a waveform with 340k rising edges.

MSO5000

Model

Analog Bandwidth

Analog Channels

Real-time Sample Rate

Maximum memory depth

Highest waveform capture rate

Digital Channel

Built-in Signal Source

Price

MSO5074

70MHz

4 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

MSO5072

70MHz

2 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

MSO5354

350MHz

4 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

MSO5204

200MHz

4 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

MSO5104

100MHz

4 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

MSO5102

100MHz

2 8GSa/s

200Mpts(opt.)

500,000 wfms/s

16 25MHz, 2CH（opt.）

Optical Isolated Probe

Single-ended Probes

Active Voltage Differential Probes

Current Probe

Logic Analyzer Probes

Passive Probe

High-Voltage Differential Probes

Bandwidth Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
MSO5000-BW1T2	100MHz upgrade to 200MHzBandwidth Upgrade option(Only For MSO5104)	₹ 134,850	₹ 159,123
MSO5000-BW1T3	100MHz upgrade to 350MHzBandwidth Upgrade option(Only for MSO5104)	₹ 258,600	₹ 305,148
MSO5000-BW2T3	200MHz upgrade to 350MHzBandwidth Upgrade option(Only for MSO5204)	₹ 146,100	₹ 172,398

Channel Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
MSO5000-4CH	2 channels upgrade 4 channels	₹ 45,600	₹ 53,808

Functional Options

Model	Description	INR List Price	INR (Inclusive of GST)
MSO5000-PWR	Built-in power analysis software	₹ 34,200	₹ 40,356
MSO5000-FLEX	Automotive serial bus triggering and analysis(FlexRay)	₹ 34,200	₹ 40,356
MSO5000-EMBD	Embedded serial bus triggering and analysis(I2C/SPI)	₹ 34,200	₹ 40,356
MSO5000-COMP	Computer serial bus triggering and analysis(RS232/UART)	₹ 34,200	₹ 40,356
MSO5000-BND	Bundle options	₹ 78,150	₹ 92,217
MSO5000-AWG	2CH 25MHz AWG	₹ 30,900	₹ 36,462
MSO5000-AUTO	Automotive serial bus triggering and analysis(CAN/LIN)	₹ 34,200	₹ 40,356
MSO5000-AUDIO	Audio serial bus triggering and analysis(I2S)	₹ 34,200	₹ 40,356
MSO5000-AERO	MIL-STD1553 bus trigger and analysis	₹ 34,200	₹ 40,356
MSO5000-2RL	200Mpts Record length option	₹ 45,600	₹ 53,808

Accessories

Model	Description	INR List Price	INR (Inclusive of GST)
PLA2216	16-channel logic analyzer probe	₹ 45,600	₹ 53,808
MSO5000-RM	Rack mount kit	₹ 34,200	₹ 40,356
MSO5000-FPC	Front panel protective shell	₹ 9,000	₹ 10,620
CB-USBA-USBB-FF-150	USB Data line，150cm	₹ 2,250	₹ 2,655
CB-DB9-DB9-F-F-150	RS232 Data line，2 Female，150cm	₹ 1,650	₹ 1,947
CB-BNC-BNC-MM-100	BNC Coaxial line，100cm	₹ 2,100	₹ 2,478
NFP-3	Near field probe，Frequency range: 30 MHz to 3 GHz	₹ 56,100	₹ 66,198
DK-DS6000	Demo board	₹ 24,450	₹ 28,851

Software

Model	Description	INR List Price	INR (Inclusive of GST)
UPA-DS	Power analysis software	₹ 99,300	₹ 117,174
