Oscilloscopes
MSO7000
Analog Bandwidth
500MHz
Analog Channels
4
Maximum Real-time Sample Rate
10GSa/s
Maximum Memory Depth
500Mpts(opt.)
Maximum Waveform Capture Rate
600,000 wfms/s
Digital Channel
16
Downloads
Downloads
Select Model

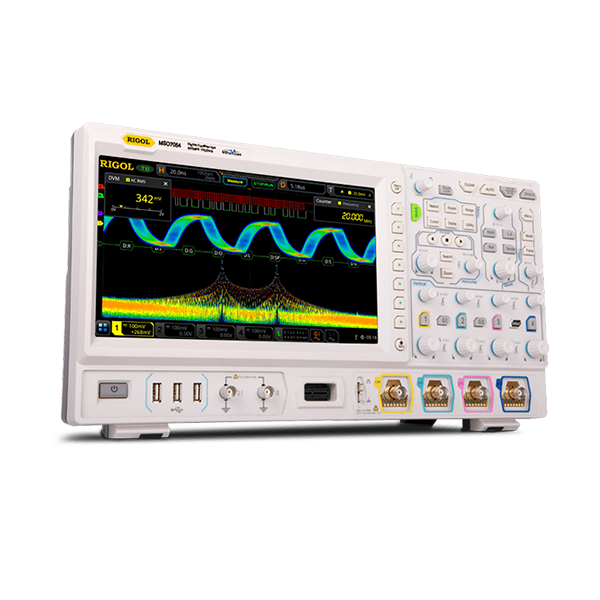

Explore the MSO7000 series digital oscilloscopes
7 instruments in 1
Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Long Record Length (100M std/500M opt)
Find elusive problems in complex digital streams with long acquisitions at high sample rates.
Flexible user interface
With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.

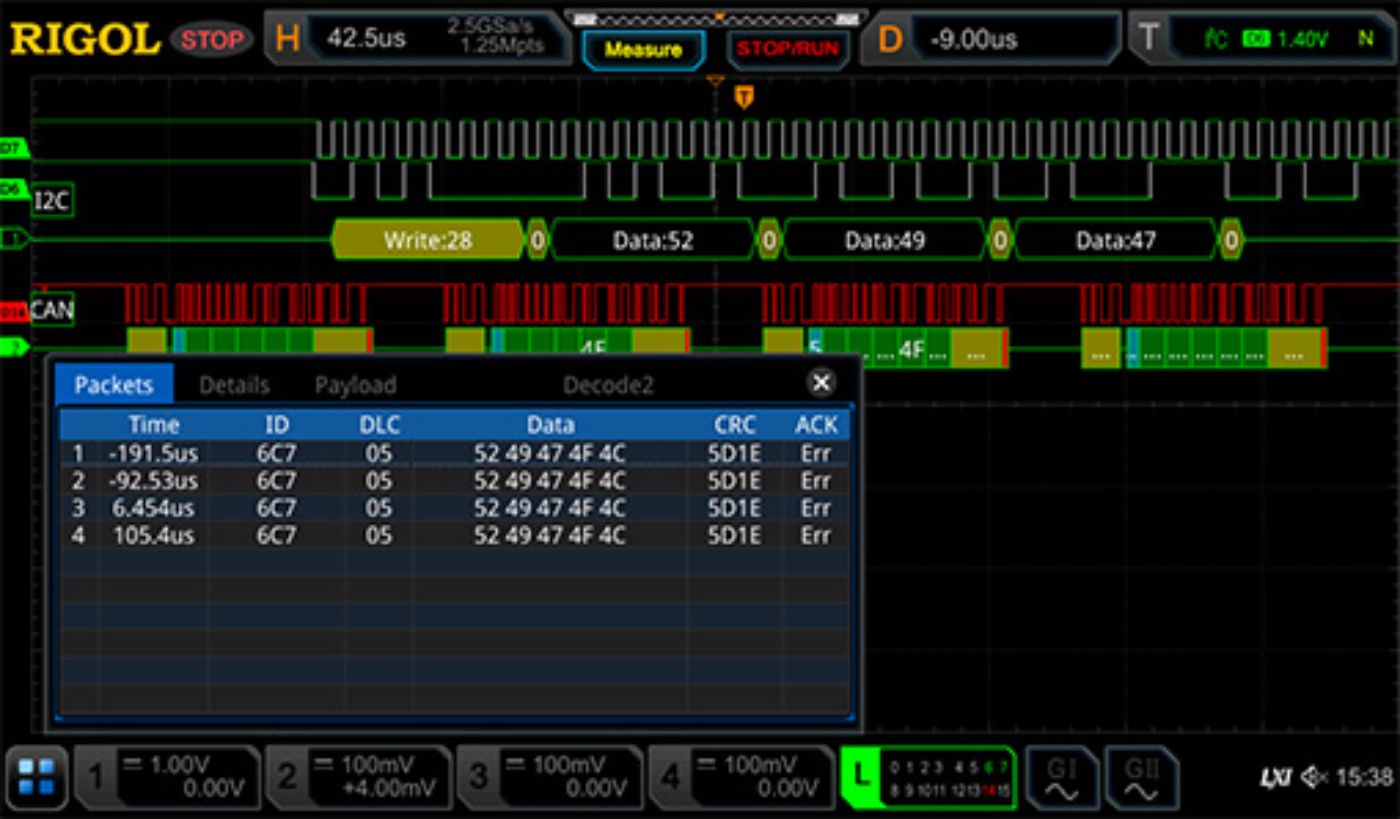

Protocol Analysis for today’s common serial communication
Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

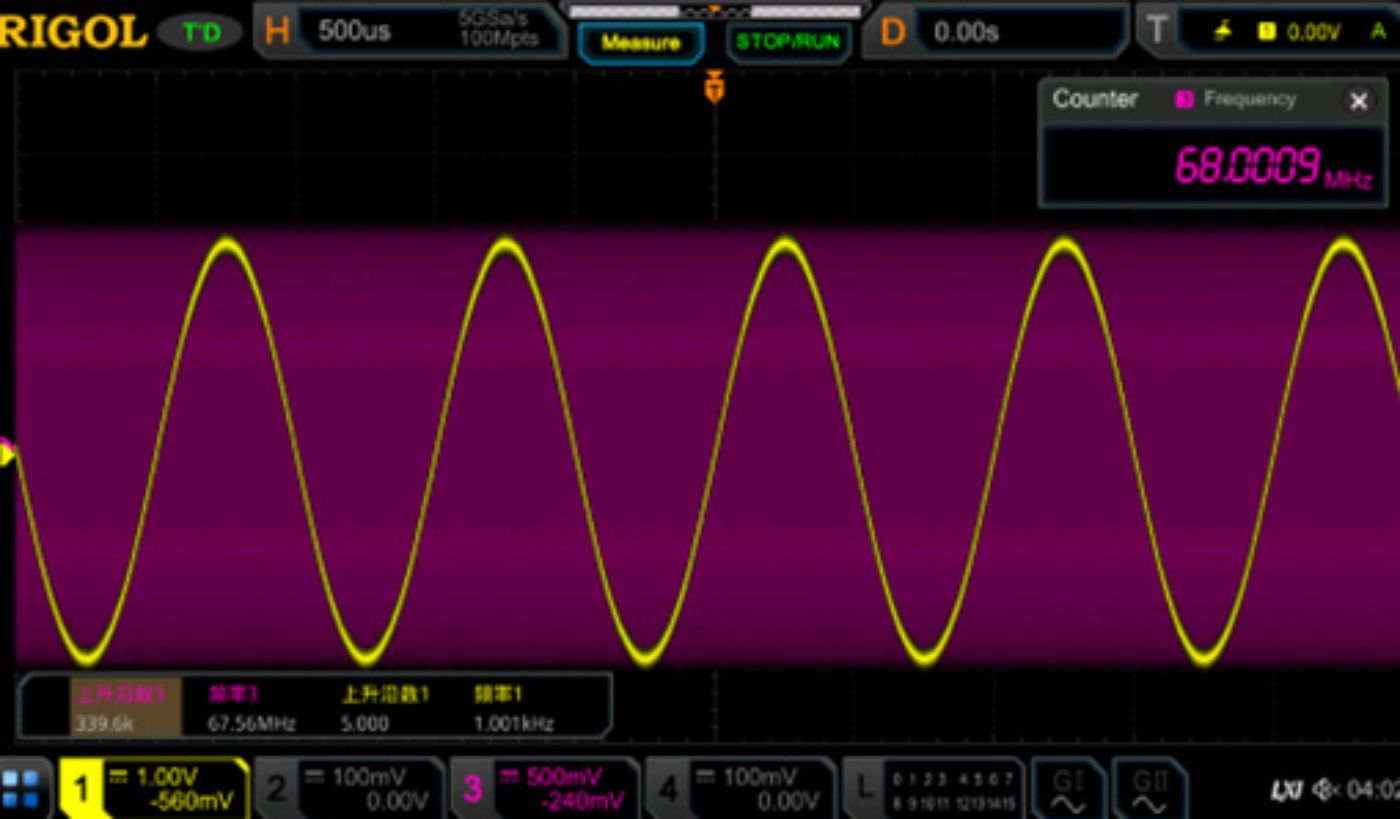

Full Memory Hardware Measurement
No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.
Over 600K wfms/s Waveform Capture rate
Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Enhanced Color FFT
The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.
DHO4000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
MSO7054
500MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
16
2CH
MSO7034
350MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
16
2CH
MSO7024
200MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
16
2CH
MSO7014
100MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
16
2CH
DS7054
500MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
-
-
DS7034
350MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
-
-
DS7024
200MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
-
-
DS7014
100MHz
4
10GSa/s
500Mpts(opt.)
600,000 wfms/s
-
-
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS7000-BW2T5 | 200MHz upgrade to 500MHzBandwidth Upgrade options | ₹ 4,07,840 | ₹ 4,81,251 |
| DS7000-BW3T5 | 350MHz upgrade to 500MHzBandwidth Upgrade options | ₹ 2,03,840 | ₹ 2,40,531 |
| DS7000-BW2T3 | 200MHz upgrade to 350MHzBandwidth Upgrade options | ₹ 2,15,840 | ₹ 2,54,691 |
| DS7000-BW1T5 | 100MHz upgrade to 500MHzBandwidth Upgrade options | ₹ 5,51,840 | ₹ 6,51,171 |
| DS7000-BW1T3 | 100MHz upgrade to 350MHzBandwidth Upgrade options | ₹ 3,59,840 | ₹ 4,24,611 |
| DS7000-BW1T2 | 100MHz upgrade to 200MHzBandwidth Upgrade options | ₹ 1,43,840 | ₹ 1,69,731 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| DS7000-BND | Bundle options, including all serial protocol analysis options and measurement application options | ₹ 2,87,840 | ₹ 3,39,651 |
| MSO7000-AWG | 2CH 25MHz Arbitrary wave generator | ₹ 76,350 | ₹ 90,093 |
| DS7000-AUDIO | Audio serial bus triggering and analysis(I2S) | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-AERO | MIL-STD1553 bus trigger and analysis | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-PWR | Built-in power analysis software | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-FLEX | Automotive serial bus triggering and analysis(FlexRay) | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-AUTO | Automotive serial bus triggering and analysis(CAN/LIN) | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-EMBD | Embedded serial bus triggering and analysis(I2C/SPI) | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-COMP | Computer serial bus triggering and analysis(RS232/UART) | ₹ 1,31,840 | ₹ 1,55,571 |
| DS7000-5RL | 500Mpts Record length option | ₹ 2,03,840 | ₹ 2,40,531 |
| DS7000-2RL | 250Mpts Record length option | ₹ 1,31,840 | ₹ 1,55,571 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| CB-USBA-USBB-FF-150 | USB Data line，150cm | ₹ 2,250 | ₹ 2,655 |
| CB-DB9-DB9-F-F-150 | RS232 Data line，2 Female，150cm | ₹ 1,650 | ₹ 1,947 |
| CB-BNC-BNC-MM-100 | BNC Coaxial line，100cm | ₹ 2,100 | ₹ 2,478 |
| NFP-3 | Near field probe，Frequency range: 30 MHz to 3 GHz | ₹ 56,100 | ₹ 66,198 |
| RM6041 | Rack mount kit | ₹ 34,200 | ₹ 40,356 |
| DK-DS6000 | Demo board | ₹ 24,450 | ₹ 28,851 |
| T2R1000 | T2R1000 probe interface adapter | ₹ 35,850 | ₹ 42,303 |
Software
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| UPA-DS | Power analysis software | ₹ 99,300 | ₹ 1,17,174 |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO7000&DS7000 DataSheet | PGA22103-1110 | 2025-05-20 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS7000 UserGuide | UGA22104-1110 | 2021-11-01 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO7000&DS7000 QuickGuide | QGA29101-1110 | 2024-11-26 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DS70000 ProgrammingGuide | PGA29105-1110 | 2024-11-26 |
Open source statement
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO5000&MSO&DS7000&MSO8000(A)&DS8000-R Open Source Acknowledgment | 202512 | 2025-12-24 |
