Oscilloscopes
MSO8000
Analog Bandwidth
2GHz
Analog Channels
4
Maximum Real-time Sample Rate
10GSa/s
Maximum Memory Depth
500Mpts
Maximum Waveform Capture Rate
600,000 wfms/s
Digital Channel
16(Probe opt.)
Downloads
Downloads
Select Model

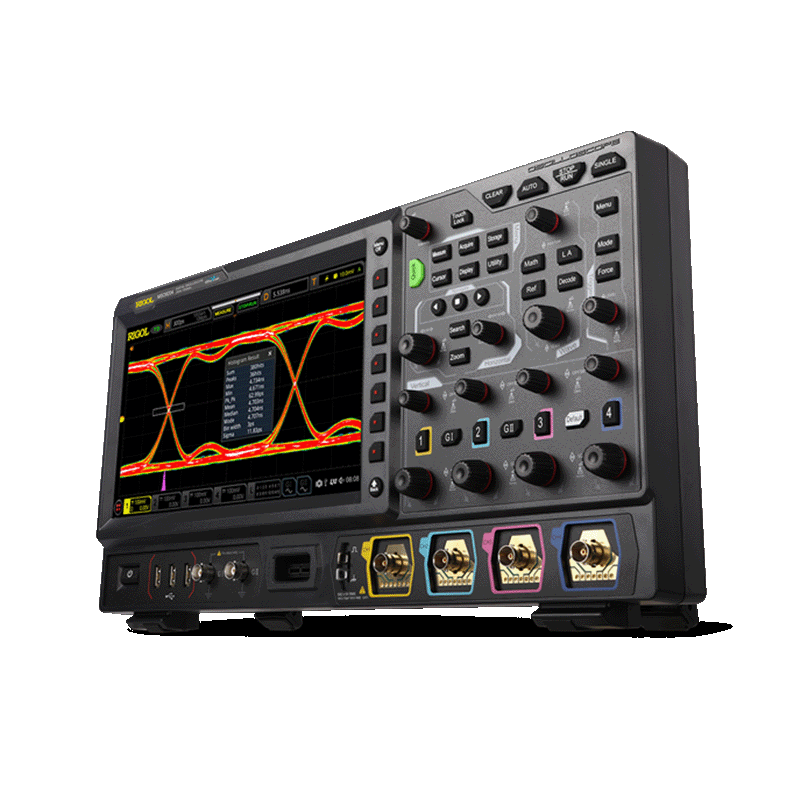

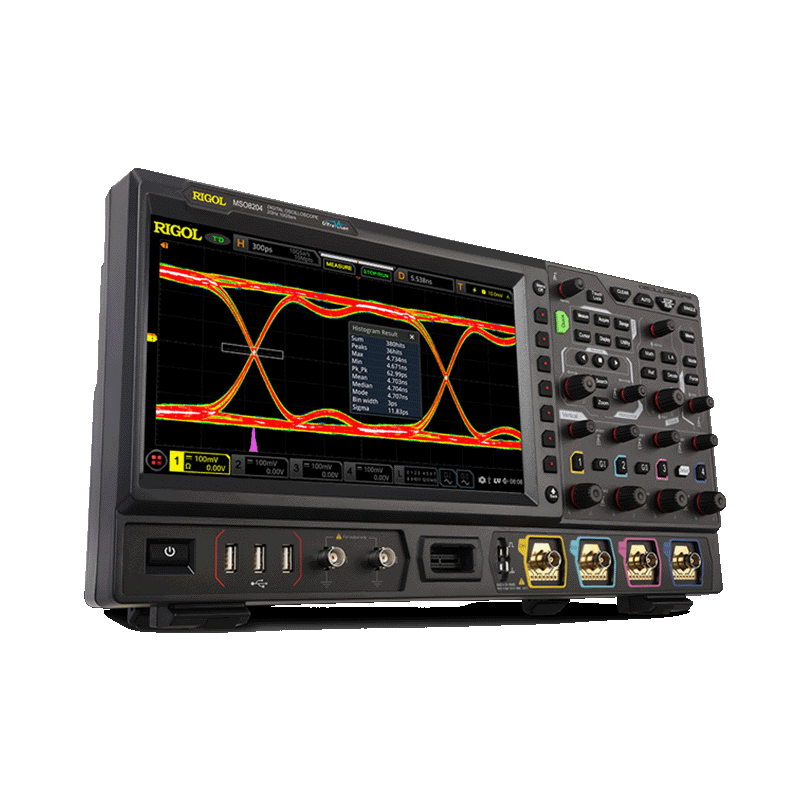

Explore the MSO8000 Series Digital Oscilloscopes
Excellent bandwidth and sampling rate
The MSO8000 series digital oscilloscopes offer you a maximum analog bandwidth of 2 GHz and a sampling rate of 10 GSa/s. Low-bandwidth models can have their bandwidth upgraded to 2 GHz (single-channel and half-channel modes) at any time via software, ensuring that you have higher signal fidelity and a resolution as low as 100 ps (up to 2 ps at the smallest time base) to view tiny waveform details.
12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail
Jitter analysis supporting diversified display
Through the jitter analysis function of the oscilloscope, multiple consecutive bits can be measured and statistically analyzed at once, efficiently completing the jitter analysis of large amounts of data.
The capture rate is as high as 600 kwfms/s
With a waveform capture rate of up to 600,000 wfms/s, the dead time can be reduced, making it easier to detect glitches and other sporadic events in the signal, thus greatly improving the debugging efficiency of engineers.
Full memory hardware measurement
No longer limited to the waveform effects visible on the screen, it can still accurately obtain results for multi-cycle high-frequency signal testing.
500Mpts deep storage, up to 450,000 frames of hardware waveform recording
The MSO8000 series comes standard with a memory depth of 500 Mpts. The hardware waveform recording function uses segmented storage technology, which can selectively capture and store the signals that users are concerned about by setting trigger conditions and mark the time on the signals. This not only ensures the efficiency of capture but also further extends the total time for waveform observation.
MSO8000
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
MSO8064
600MHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
25MHz, 2CH（opt.）
MSO8204
2GHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
25MHz, 2CH（opt.）
MSO8104
1GHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
25MHz, 2CH（opt.）
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MSO8000-BW6T20 | MSO8000 600MHz upgrade to 2GHzBandwidth Upgrade options | ₹ 7,30,240 | ₹ 8,61,683 |
| MSO8000-BW6T10 | MSO8000 600MHz upgrade to 1GHzBandwidth Upgrade options | ₹ 3,24,480 | ₹ 3,82,886 |
| MSO8000-BW10T20 | MSO8000 1GHz upgrade to 2GHzBandwidth Upgrade options | ₹ 4,38,080 | ₹ 5,16,934 |
Functional Options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MSO8000-JITTER | Eye diagram and jitter analysis | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-PWR | Built-in power analysis software | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-AWG | 2CH 25MHz Arbitrary wave generator | ₹ 80,960 | ₹ 95,533 |
| MSO8000-AERO | MIL-STD1553 bus trigger and analysis | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-AUDIO | Audio serial bus triggering and analysis(I2S) | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-AUTO | Automotive serial bus triggering and analysis(CAN/LIN) | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-EMBD | Embedded serial bus triggering and analysis(I2C/SPI) | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-COMP | Computer serial bus triggering and analysis(RS232/UART) | ₹ 1,29,760 | ₹ 1,53,117 |
| MSO8000-BND | Bundle options, including all serial protocol analysis options and measurement application options | ₹ 2,75,680 | ₹ 3,25,302 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| NFP-3 | Near field probe，Frequency range: 30 MHz to 3 GHz | ₹ 56,100 | ₹ 66,198 |
| RM6041 | Rack mount kit | ₹ 34,200 | ₹ 40,356 |
| DK-DS6000 | Demo board | ₹ 24,450 | ₹ 28,851 |
