Oscilloscopes
MSO8000A
Analog Bandwidth
1.5GHz
Analog Channels
4
Maximum Real-time Sample Rate
10GSa/s
Maximum Memory Depth
500Mpts
Maximum Waveform Capture Rate
600,000 wfms/s
Digital Channel
-
Downloads
Downloads
Select Model
Explore the MSO8000A Series of Digital Oscilloscopes

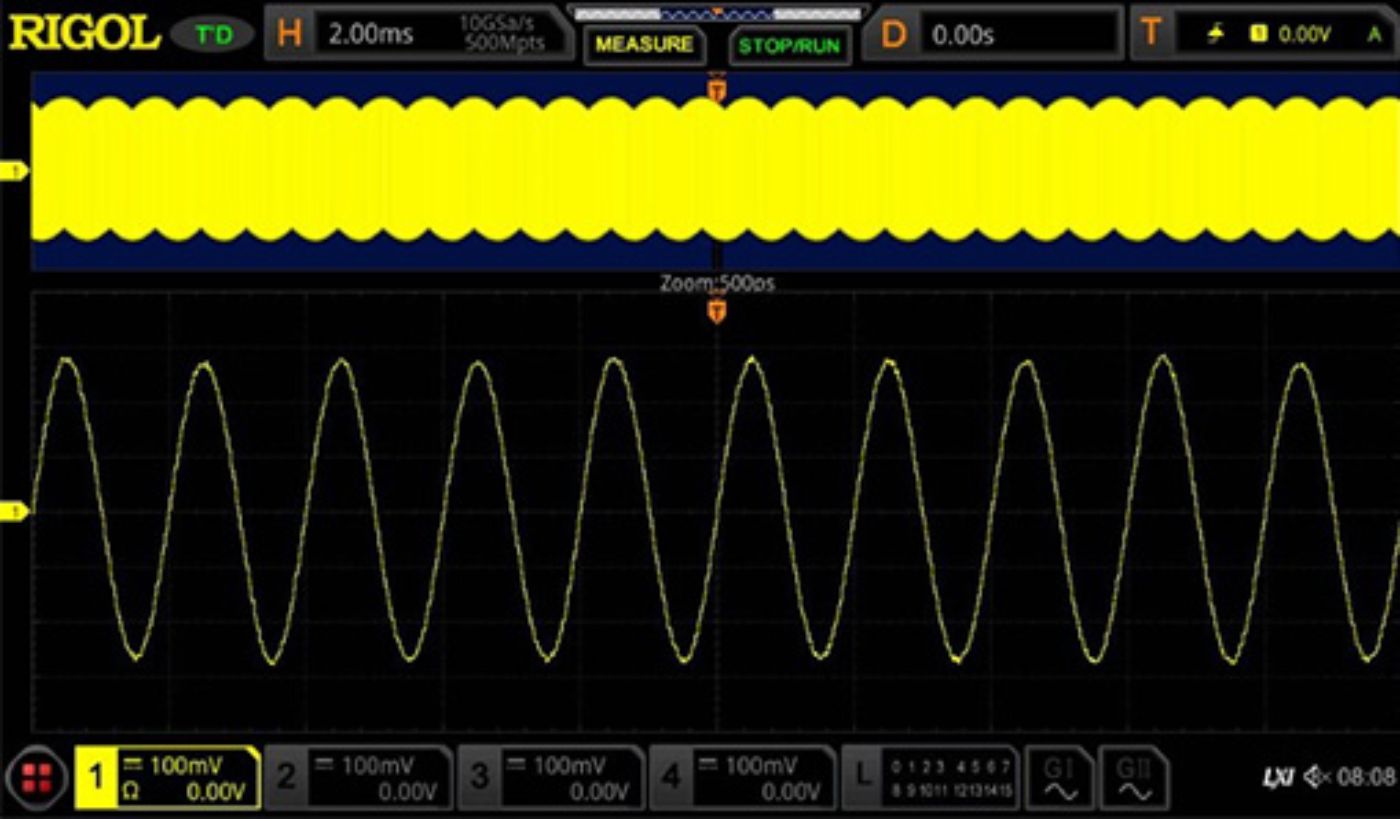

Excellent bandwidth and sampling rate
The MSO8000A series digital oscilloscopes offer you a maximum analog bandwidth of 3 GHz and a sampling rate of 10 GSa/s. Low-bandwidth models can be easily upgraded to 3 GHz bandwidth (single-channel mode) via software at any time, ensuring higher signal fidelity and a resolution as low as 100 ps (up to 2 ps at the smallest timebase) to view tiny waveform details.
12-bit vertical resolution
12-bit resolution (212=4096) to see the most signal detail

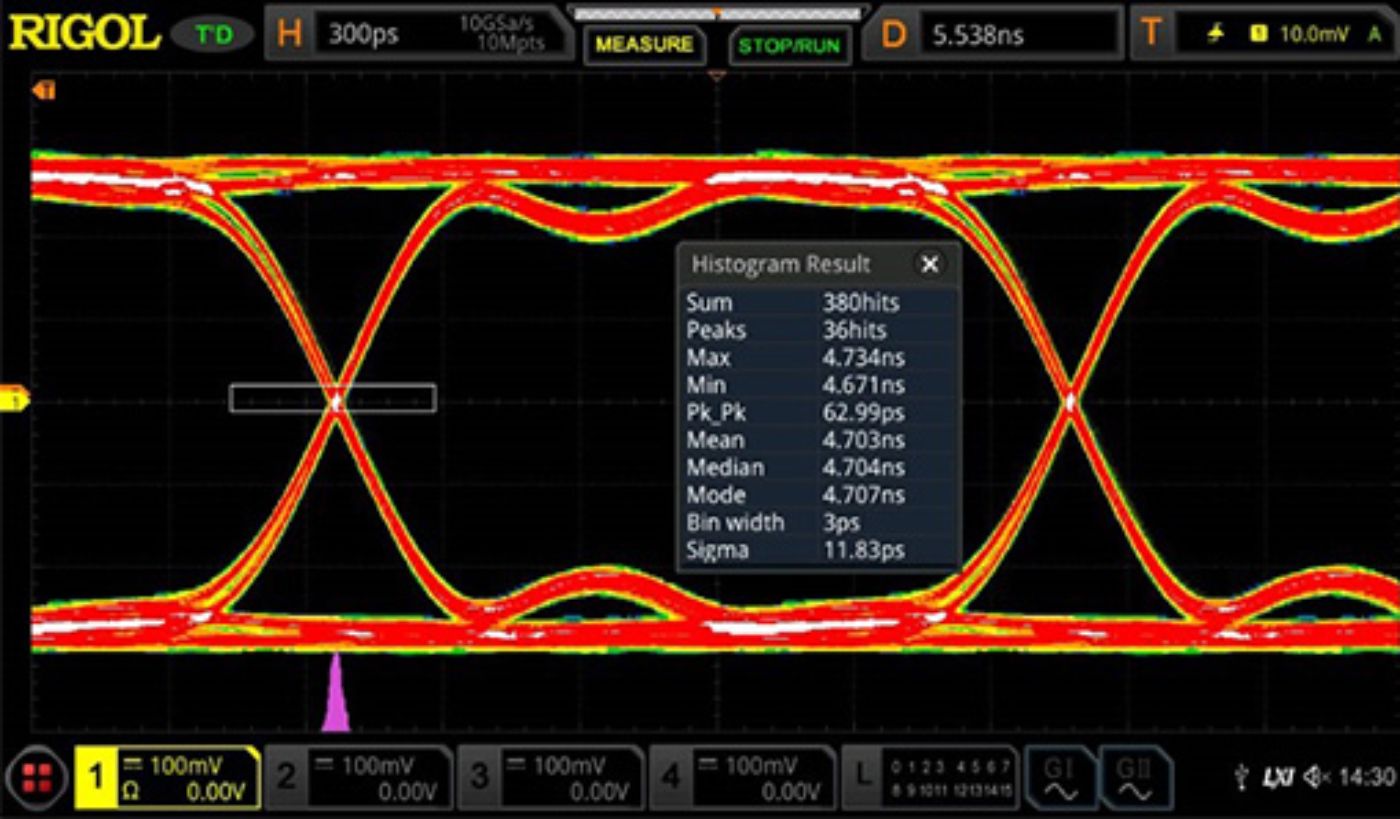

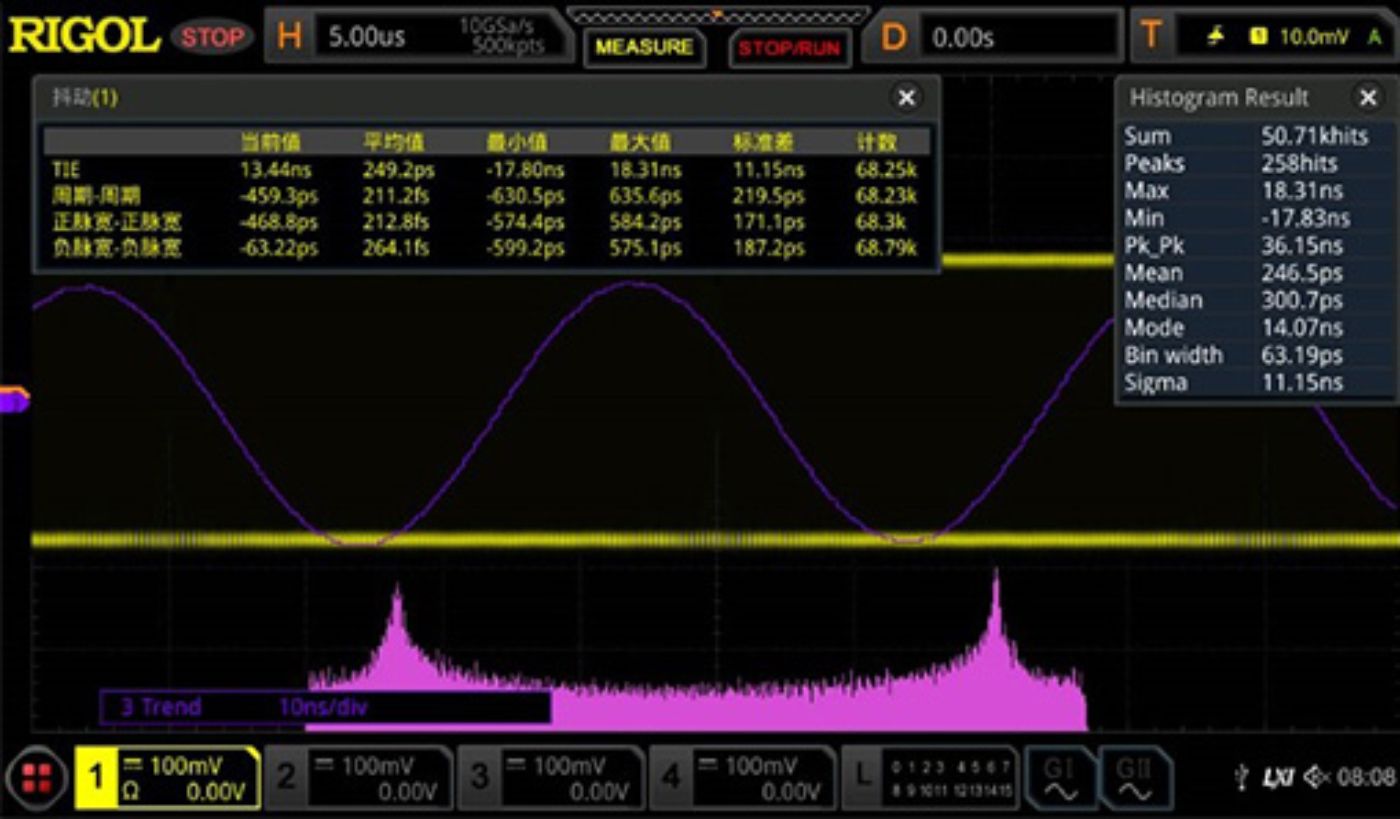

Jitter analysis supporting diversified display
Through the jitter analysis function of the oscilloscope, multiple consecutive bits can be measured and statistically analyzed at once, efficiently completing the jitter analysis of large amounts of data.

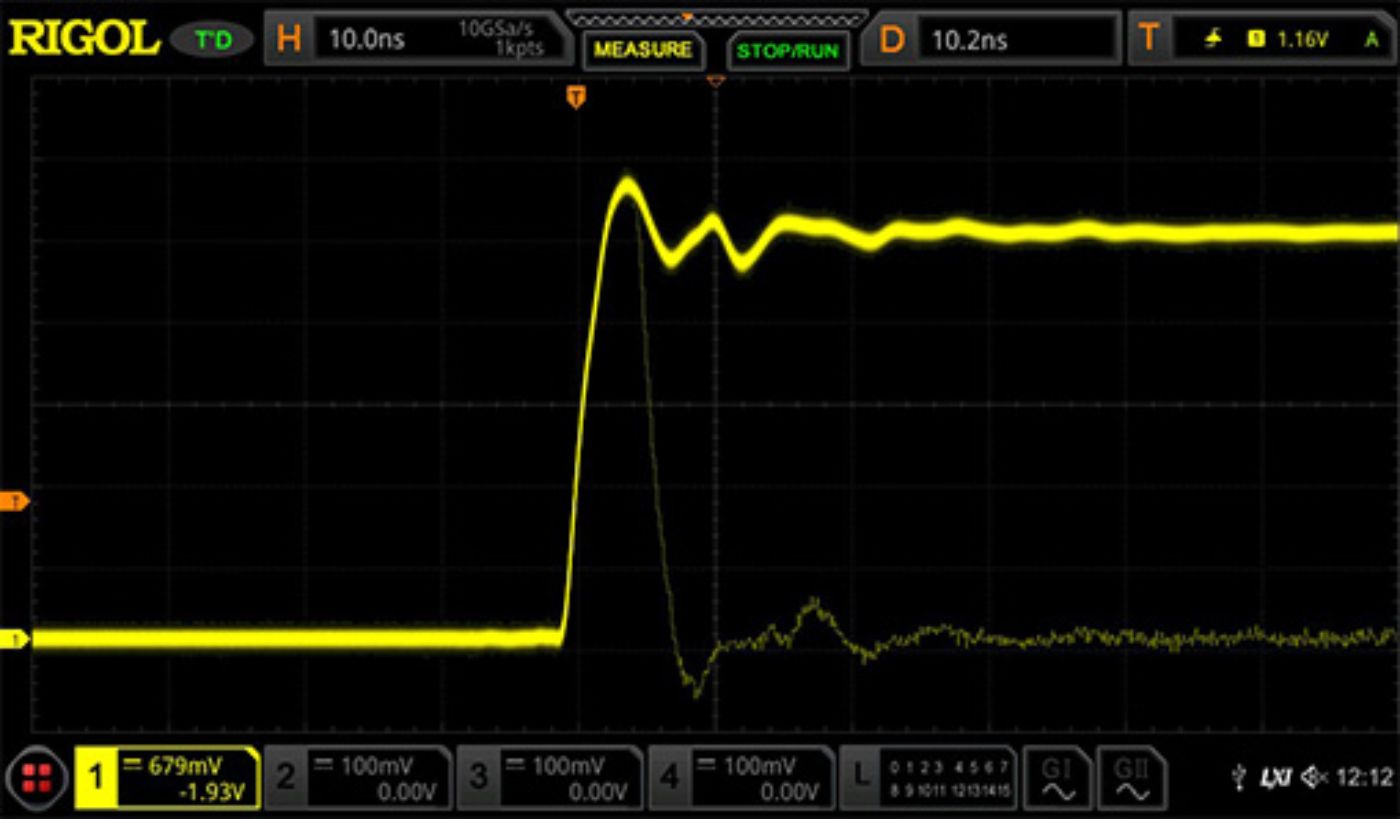

The capture rate is as high as 600 kwfms/s
With a waveform capture rate of up to 600,000 wfms/s, the dead time can be reduced, making it easier to detect glitches and other sporadic events in the signal, thus greatly improving the debugging efficiency of engineers.

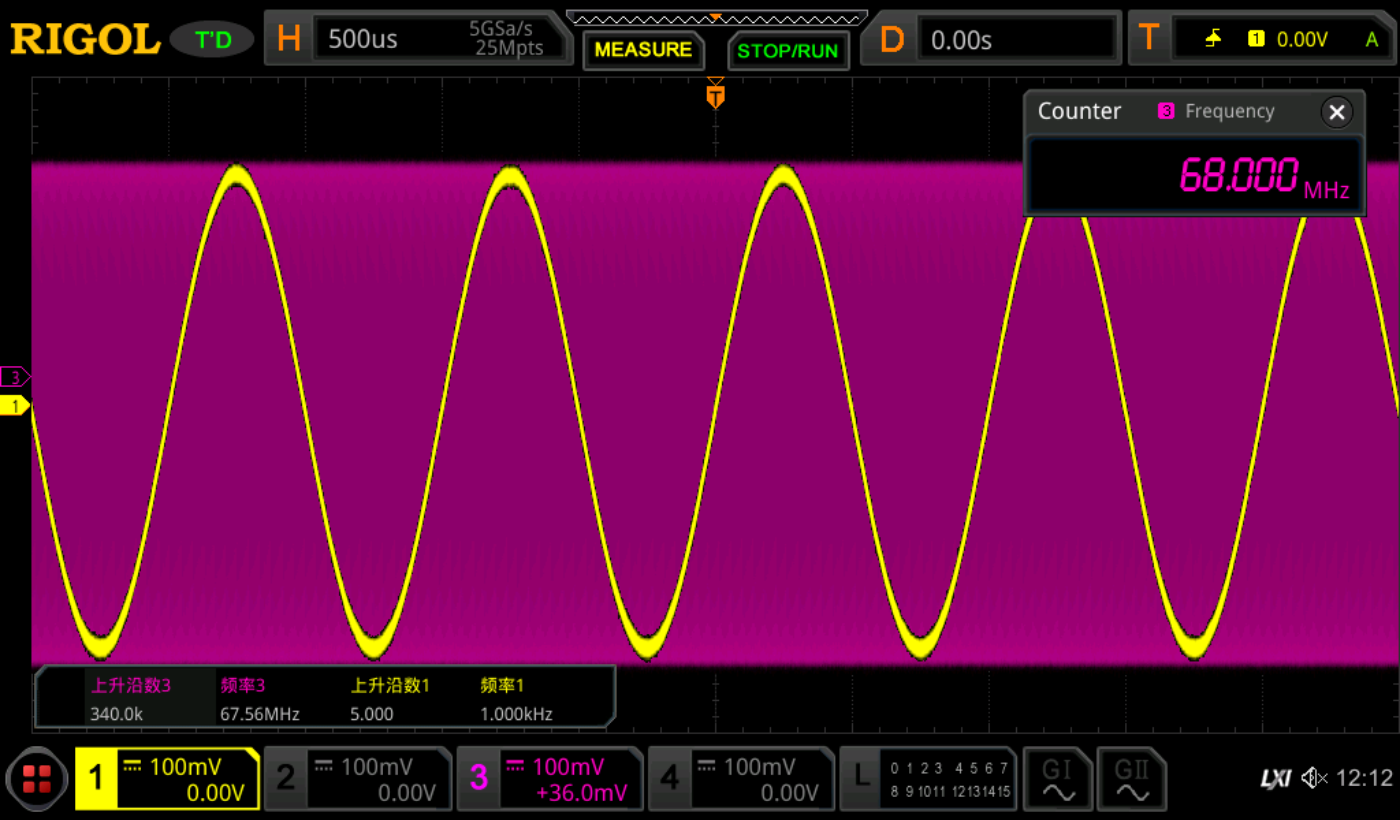

Full memory hardware measurement
No longer limited to the waveform effects visible on the screen, it can still accurately obtain results for multi-cycle high-frequency signal testing.

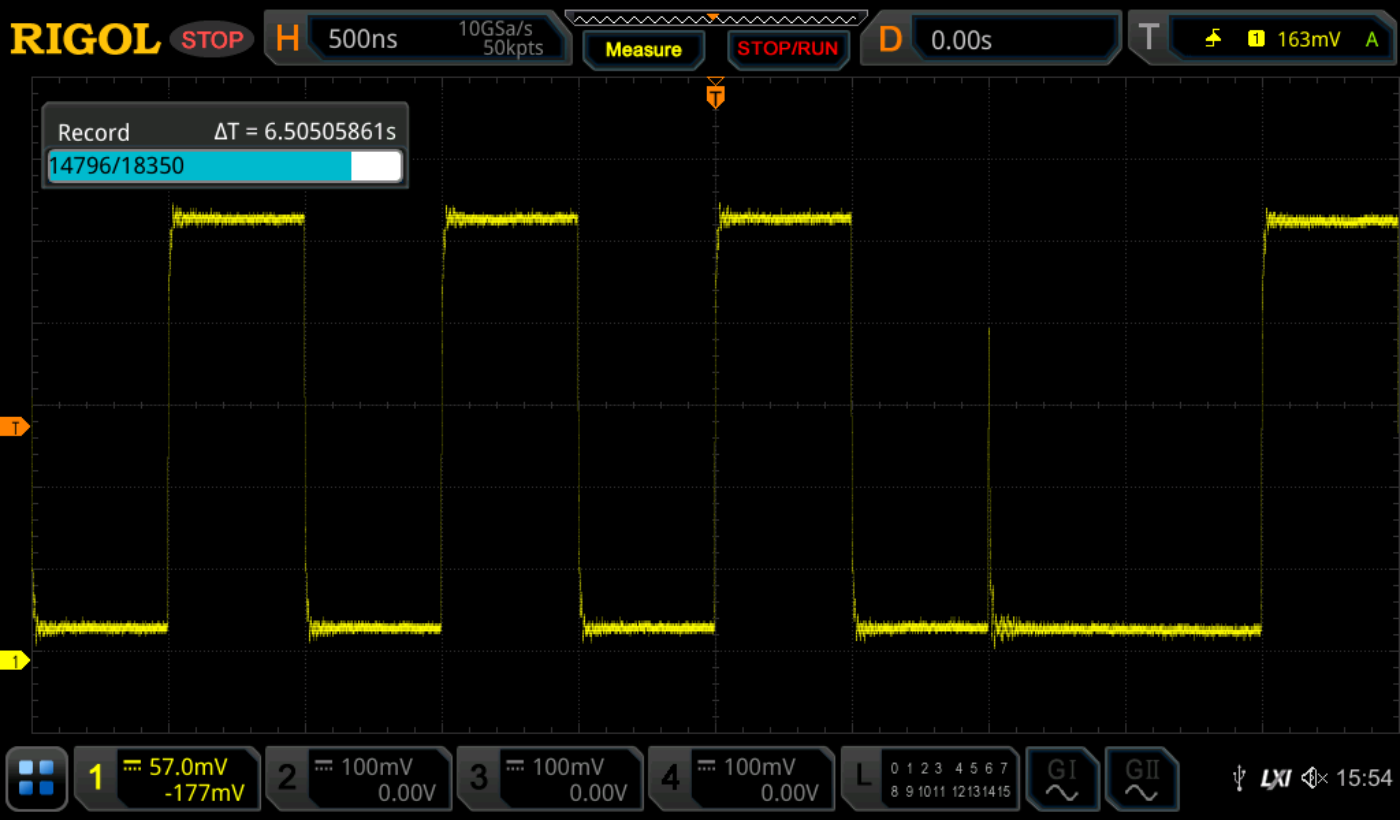

500Mpts deep storage, up to 450,000 frames of hardware waveform recording
The MSO8000A series comes standard with a memory depth of 500 Mpts. The hardware waveform recording function uses segmented storage technology, which can selectively capture and store the signals that users are concerned about by setting trigger conditions and mark the time on the signals. This not only ensures the efficiency of capture but also further extends the total time for waveform observation.
MSO8000A
Model
Analog Bandwidth
Analog Channels
Real-time Sample Rate
Maximum memory depth
Highest waveform capture rate
Digital Channel
Built-in Signal Source
Price
MSO8154A
1.5GHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
Built-in Signal Source
MSO8074A
750MHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
Built-in Signal Source
MSO8204A
2GHz
4
10GSa/s
500Mpts
600,000 wfms/s
16(Probe opt.)
Built-in Signal Source
Optical Isolated Probe
Single-ended Probes
Active Voltage Differential Probes
Current Probe
Logic Analyzer Probes
Passive Probe
High-Voltage Differential Probes
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| MSO8000A-BW7T15 | MSO8000A 750MHz to 1.5GHz Bandwidth upgrade option | ₹ 4,17,600 | ₹ 4,92,768 |
| MSO8000A-BW7T30 | MSO8000A 750MHz to 3GHz Bandwidth upgrade option | - | - |
| MSO8000A-BW15T30 | MSO8000A 1.5GHz to 3GHz Bandwidth upgrade option | - | - |
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO8000A DataSheet | DSA31101-1110 | 2025-05-20 |
User Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO8000A UserGuide | UGA31100-1110 | 2024-02-29 | |
| 📄 RM6041RackmountKit | V1.0 | 2024-02-29 |
Performance Verification Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO8000 PerformanceVerificationGuide | PVA26102-1110 | 2024-02-29 |
Programming Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO8000A ProgrammingGuide | PGA31100-1110 | 2024-02-29 |
Open source statement
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 MSO5000&MSO&DS7000&MSO8000(A)&DS8000-R Open Source Acknowledgment | 202512 | 2025-12-24 |
