RSA3000E

Spectrum Analyzer

The RSA3000E is a 5-in-1 spectrum analyzer with sweep spectrum, real-time spectrum, scalar network analyzer (-TG model), EMI receiver and digital demodulation. Its frequency range is 9kHz to 1.5/3GHz, and it is available with the tracking source “-TG” model, which can be widely used in enterprise R&D, factory production, education and teaching.

Frequency Range

9kHz~3GHz

Resolution Bandwidth (RBW)

1Hz~3MHz

Phase Noise (Typ.)

-102dBc/Hz@10kHz

Displayed Average Noise Level (DANL)

-161dBm

Tracking Generator

Yes

Analysis Function

-

Downloads

User Guide

Downloads

DataSheet

Select Model

Models

Clear

Qty:

Explore the RSA3000E Series of Real-time Spectrum Analyzers

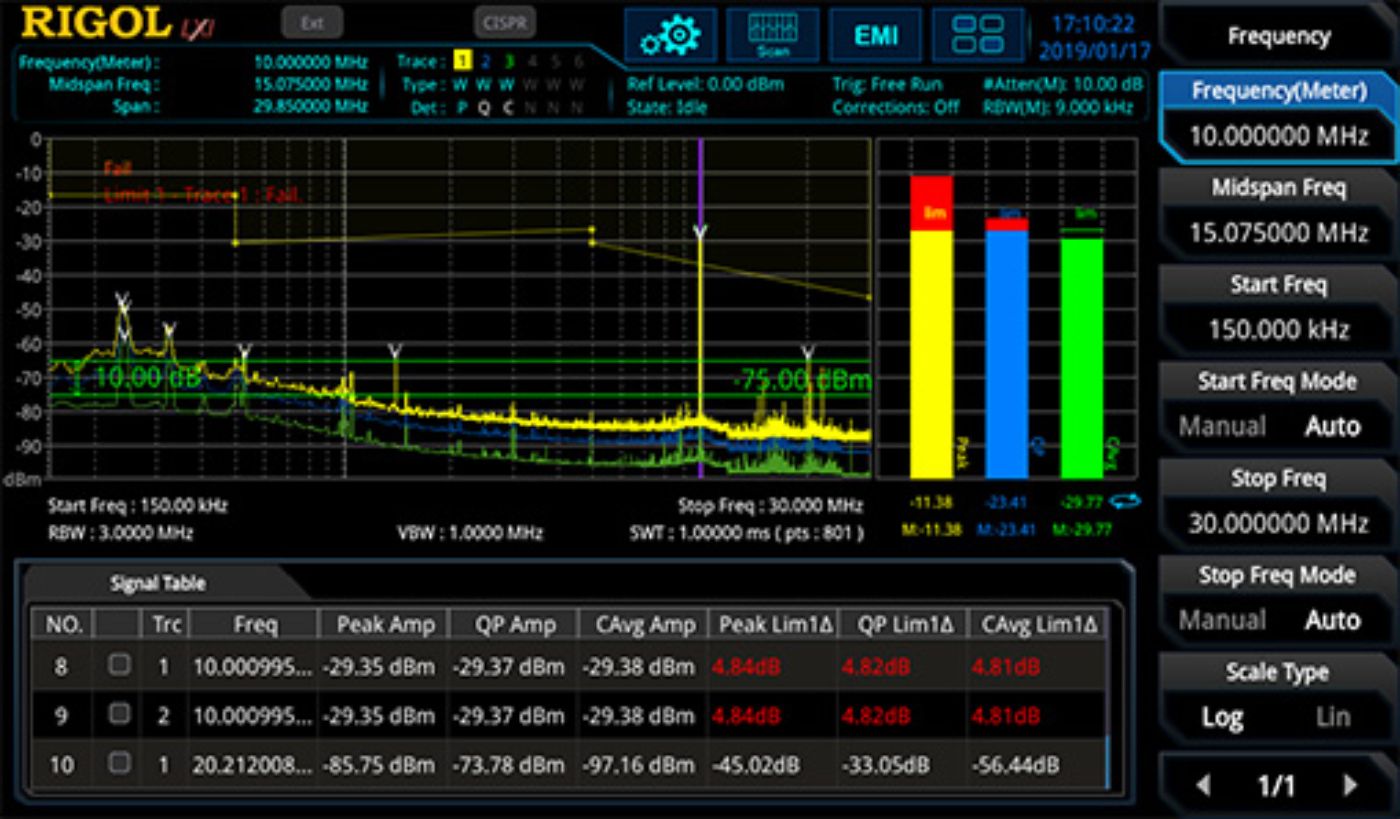

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000E’s built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

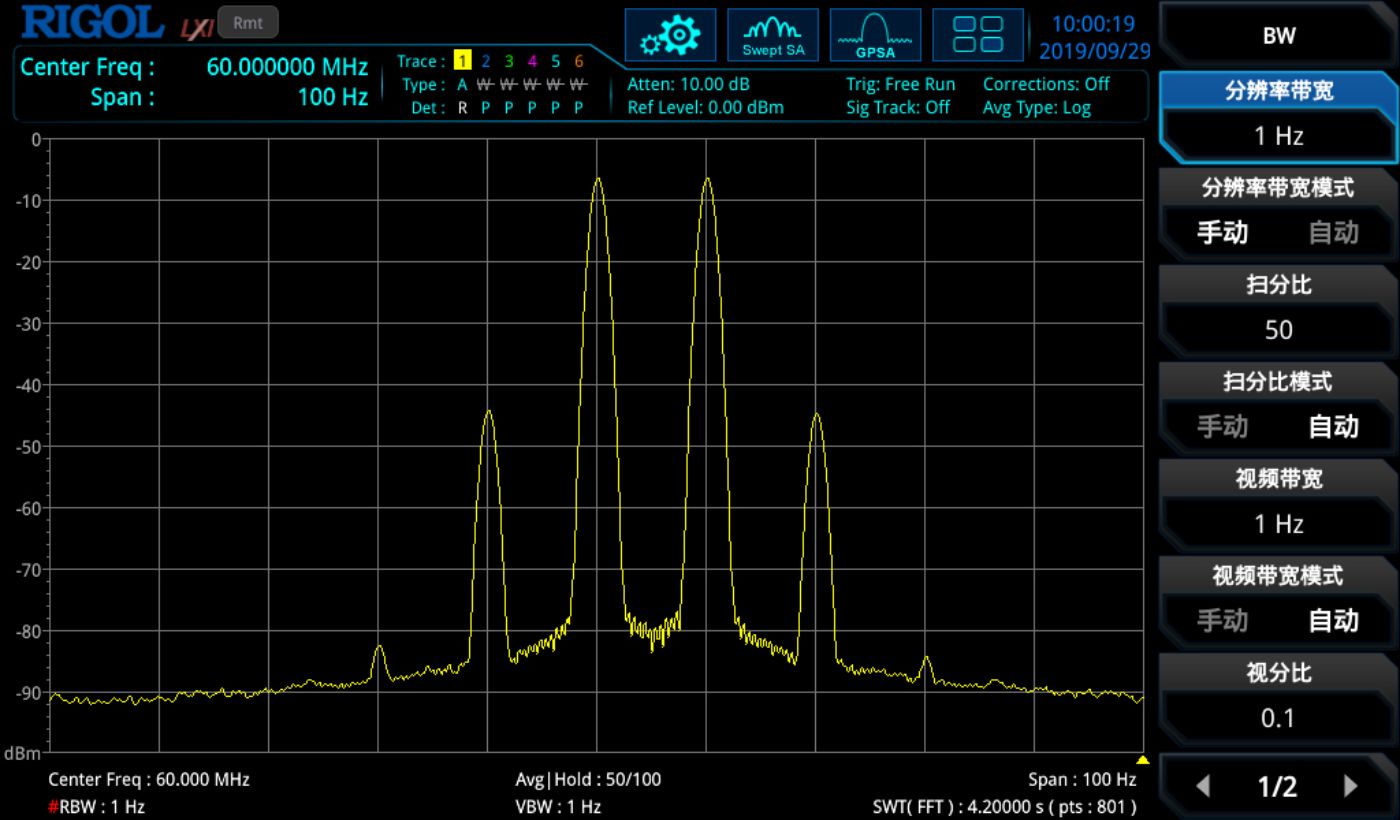

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000E, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

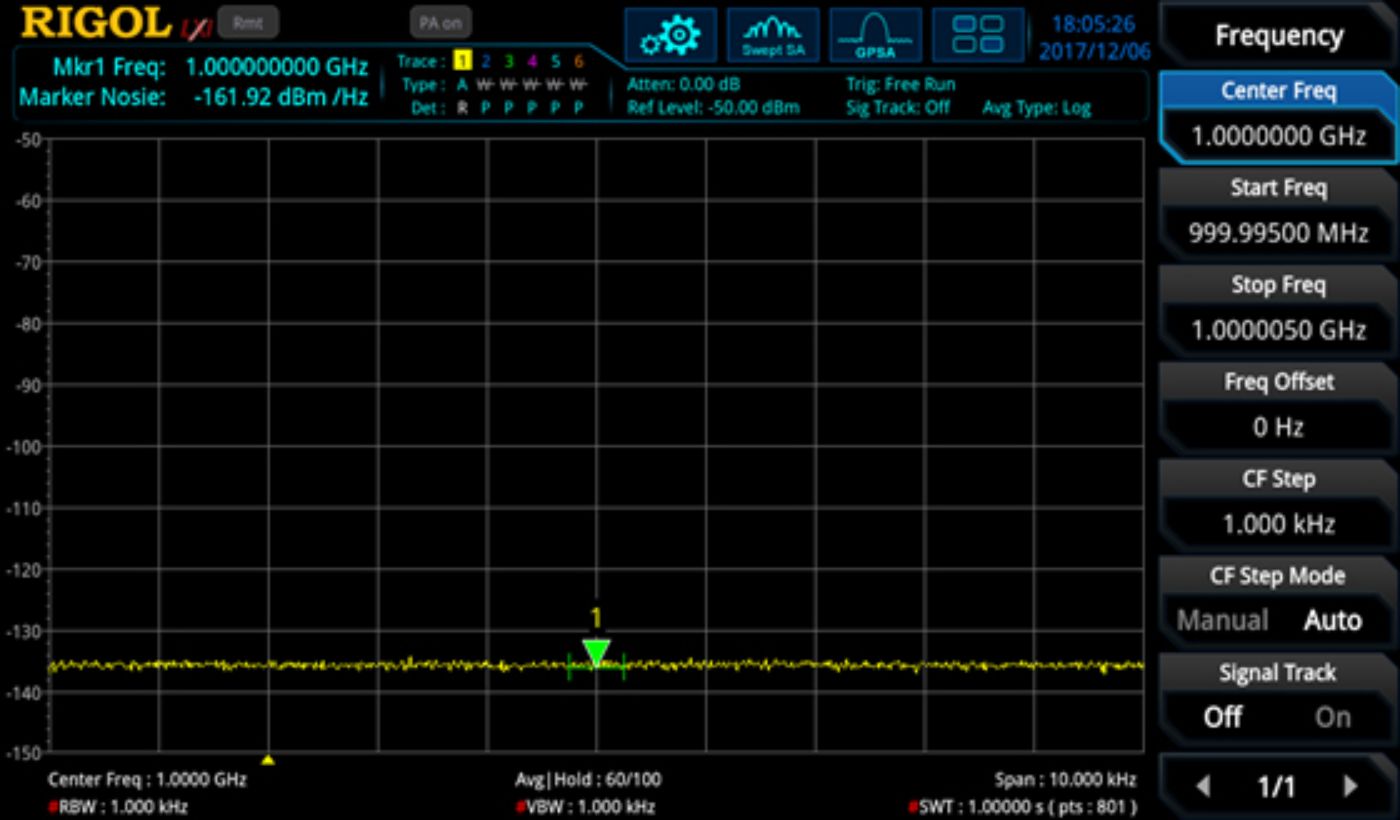

Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

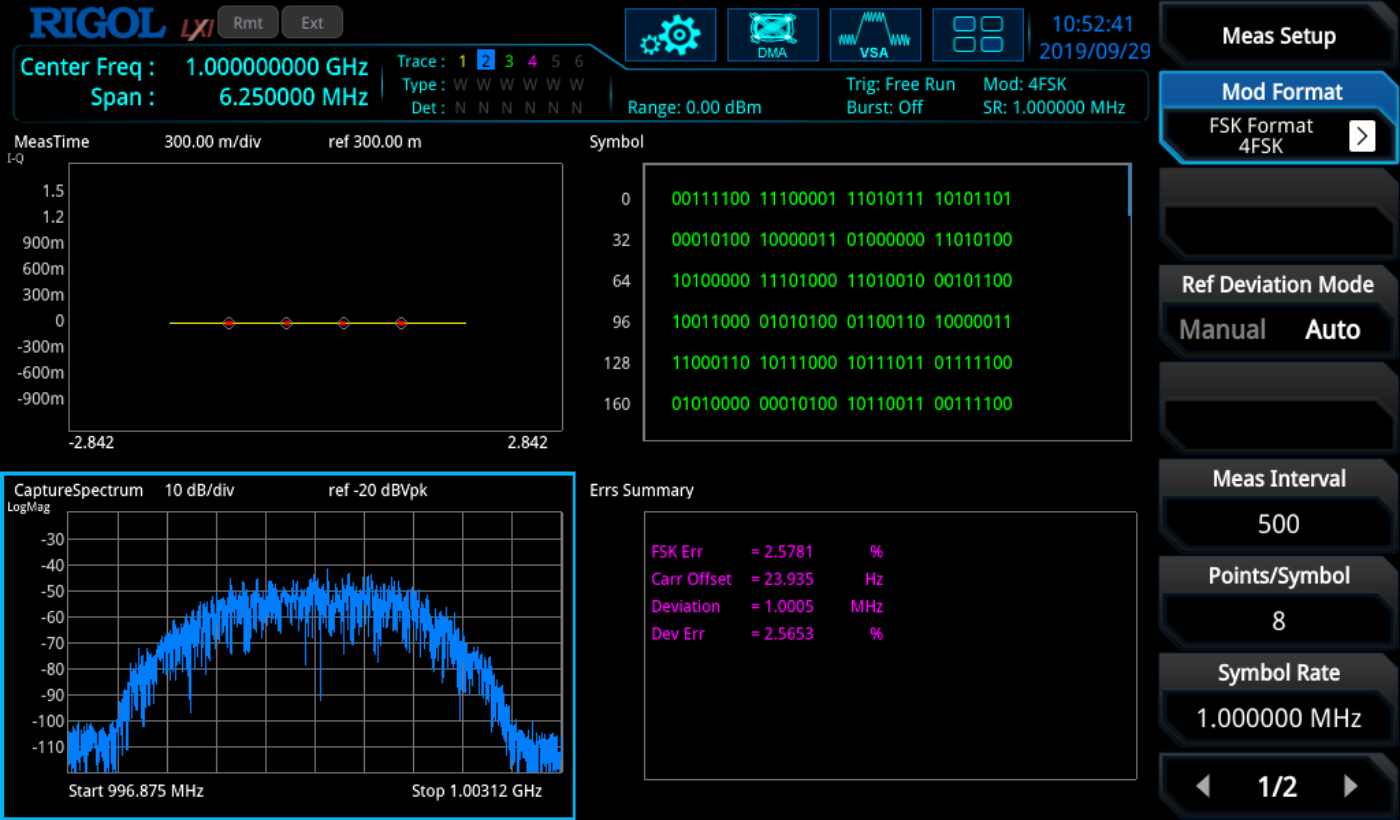

ASK/FSK Demodulation Analysis

ASK/FSK demodulation analysis software can help engineers demodulate and analyze signals such as TPMS, PKE/RKE, and obtain parameters of signal modulation quality to help products get listed quickly.

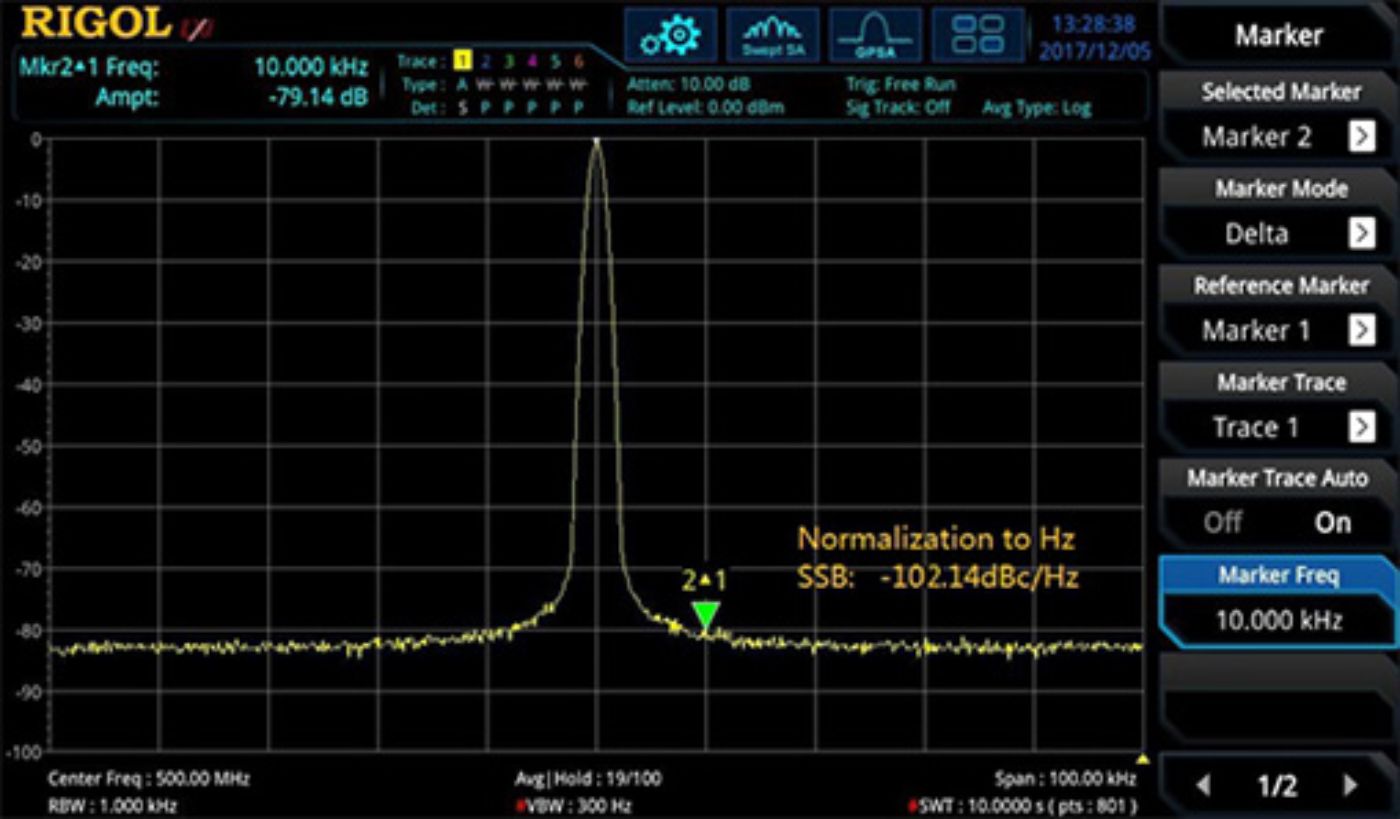

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz

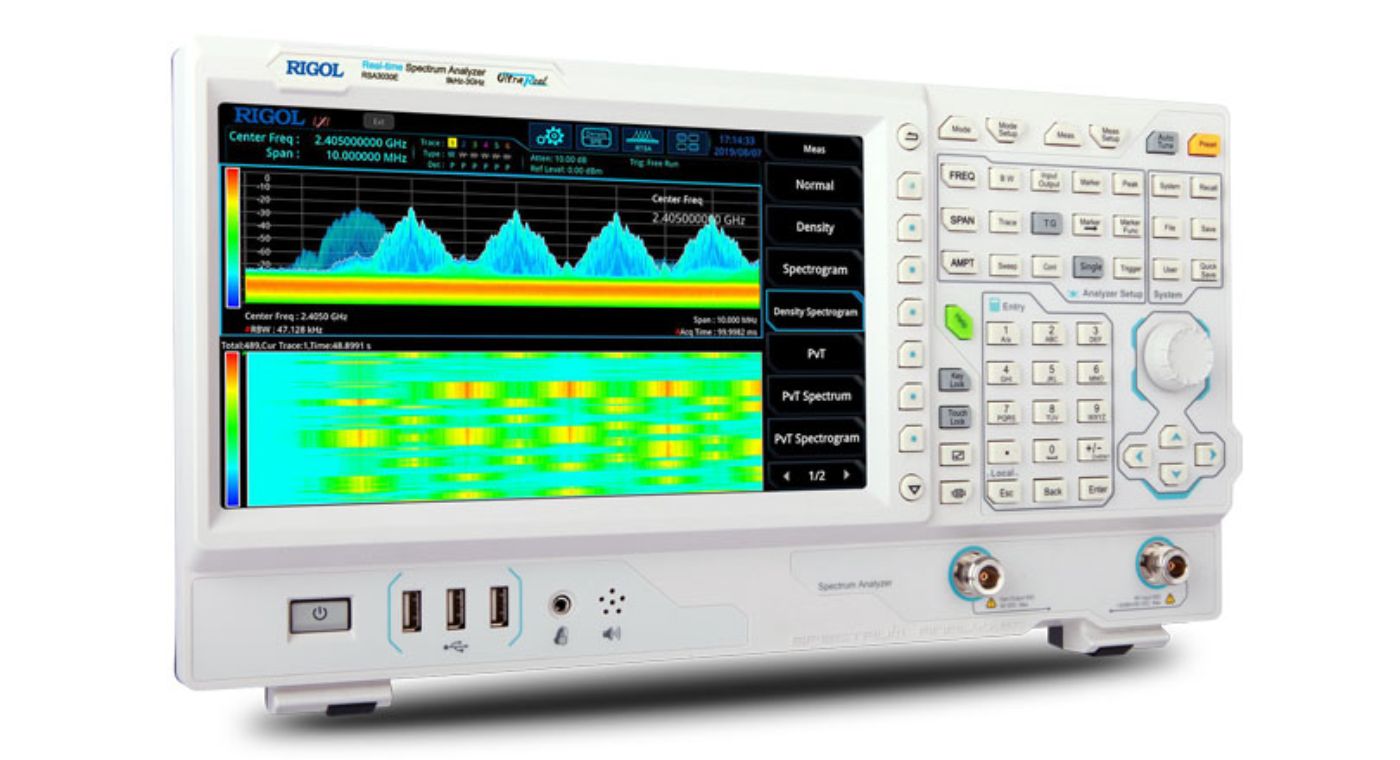

Complete Operations with a Multi-touch Screen

RSA3000E with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

RSA3000E

Model

Frequency Range

Resolution Bandwidth (RBW)

Phase Noise (Typ.)

Displayed Average Noise Level (DANL)

Tracking Generator

Price

RSA3015E

9kHz~1.5GHz

1Hz~3MHz

-102dBc/Hz@10kHz

-161dBm

-

RSA3015E-TG

9kHz~1.5GHz

1Hz~3MHz

-102dBc/Hz@10kHz

-161dBm

Yes

RSA3030E-TG

9kHz~3GHz

1Hz~3MHz

-102dBc/Hz@10kHz

-161dBm

Yes

RSA3030E

9kHz~3GHz

1Hz~3MHz

-102dBc/Hz@10kHz

-161dBm

-

Function Upgrade

Model	Description	INR List Price	INR (Inclusive of GST)
RSA3000E-EMC	EMC filter and quasi-peak detector kit (for RSA3000E)	₹ 44,850	₹ 52,923
RSA3000E-ASK/FSK	ASK/FSK Demodulation option(for RSA3000E)	₹ 67,350	₹ 79,473
RSA3000E-AMK	Advanced Measurement kit(for RSA3000E)	₹ 67,350	₹ 79,473
RSA3000E-EMI	EMI pre-compatibility test mode(for RSA3000E)	₹ 101,100	₹ 119,298
RSA3000E-PA	RSA3000EPA	₹ 33,600	₹ 39,648

Optional accessories

Model	Description	INR List Price	INR (Inclusive of GST)
VB1032	VSWR bridge with VSWR-DSA800, 1 MHz to 3.2 GHz, typical directivity ≥ 30 dB	₹ 74,100	₹ 87,438
USB-GPIB	USB-GPIB adapter	₹ 37,500	₹ 44,250
ATT03301H	30dB High Power Attenuator，Maximum power is 100W	₹ 30,900	₹ 36,462
RF CATV Kit	Include：50Ω to 75Ωadapter（2pcs）	₹ 55,350	₹ 65,313
RF Attenuator Kit	Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）	₹ 70,050	₹ 82,659
RF Adaptor Kit	Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)	₹ 42,300	₹ 49,914
RM6041	Rack mount kit	₹34,200	₹ 40,356
NFP-3	Near field probe，Frequency range: 30 MHz to 3 GHz	₹ 56,100	₹ 66,198
DSA Utility Kit	Include：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna（2pcs）	₹ 89,550	₹ 105,669
VB1080	VSWR bridge with VSWR-DSA800，2 Ghz to 8 GHz	₹ 82,650	₹ 97,527
OCXO-C08	High stability clock reference	₹ 89,550	₹ 105,669

Host computer options

Model	Description	INR List Price	INR (Inclusive of GST)
Ultra Spectrum	DSAPC software	₹27,750	₹ 32,745

User Guide

Name	Version	Release time
📄 RSA5000 EMI UserGuide	UGD23101-1110	2021-10-26
📄 RSA3000E UserGuide	UGD24100-1110	2021-10-26
📄 RSA5000 RackmountKit	V1.0	2021-10-26
📄 NFP-3 UserGuide	V1.0	2021-10-26

Datasheet

Name	Version	Release time	Download
📄 RSA3000E Datasheet	V2.0	2025-02-07

Programming Guide

Name	Version	Release time	Download
📄 RSA3000E ProgrammingGuide	PGD24102-1110	2024-12-03
📄 EMI ProgrammingGuide	PGD23100-1110	2021-10-26

Quick Guide

Name	Version	Release time	Download
📄 RSA3000E QuickGuide	QGD24100-1110	2024-01-31

Open Source Acknowledge

Name	Version	Release time	Download
📄 RSA30003000E5000 OpenSourceAcknowledgment	202512	2025-12-12
