RSA3000
RSA3000 - Image 2
RSA3000 - Image 3
RSA3000 - Image 4

Spectrum Analyzer

RSA3000

The RSA3000 real-time spectrum analyzer with real-time analysis and sweep analysis capabilities, optional EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 3.2GHz, and it is available with the tracking source “-TG” model, which can be widely used in enterprise R&D, factory production, education and teaching.

Frequency Range

9kHz～4.5GHz

Resolution Bandwidth (RBW)

1Hz~3MHz(10MHz opt.)

Phase Noise (Typ.)

-102dBc/Hz@10kHz

Displayed Average Noise Level (DANL)

-161dBm

Tracking Generator

Yes

Analysis Function

RTSA/EMI/VNA

Downloads

User Guide

Downloads

DataSheet

Demo Request
Get a Quote

Select Model

Explore the RSA3000 Series Real-time Spectrum Analyzers

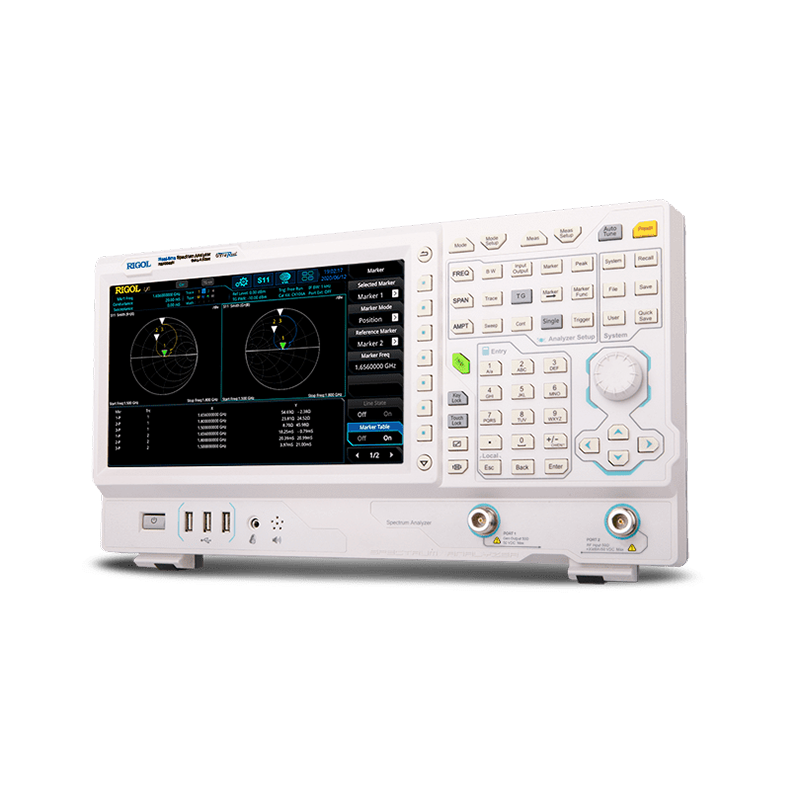

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000’s built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

Signal Triggering and Monitoring Via Fmt Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.

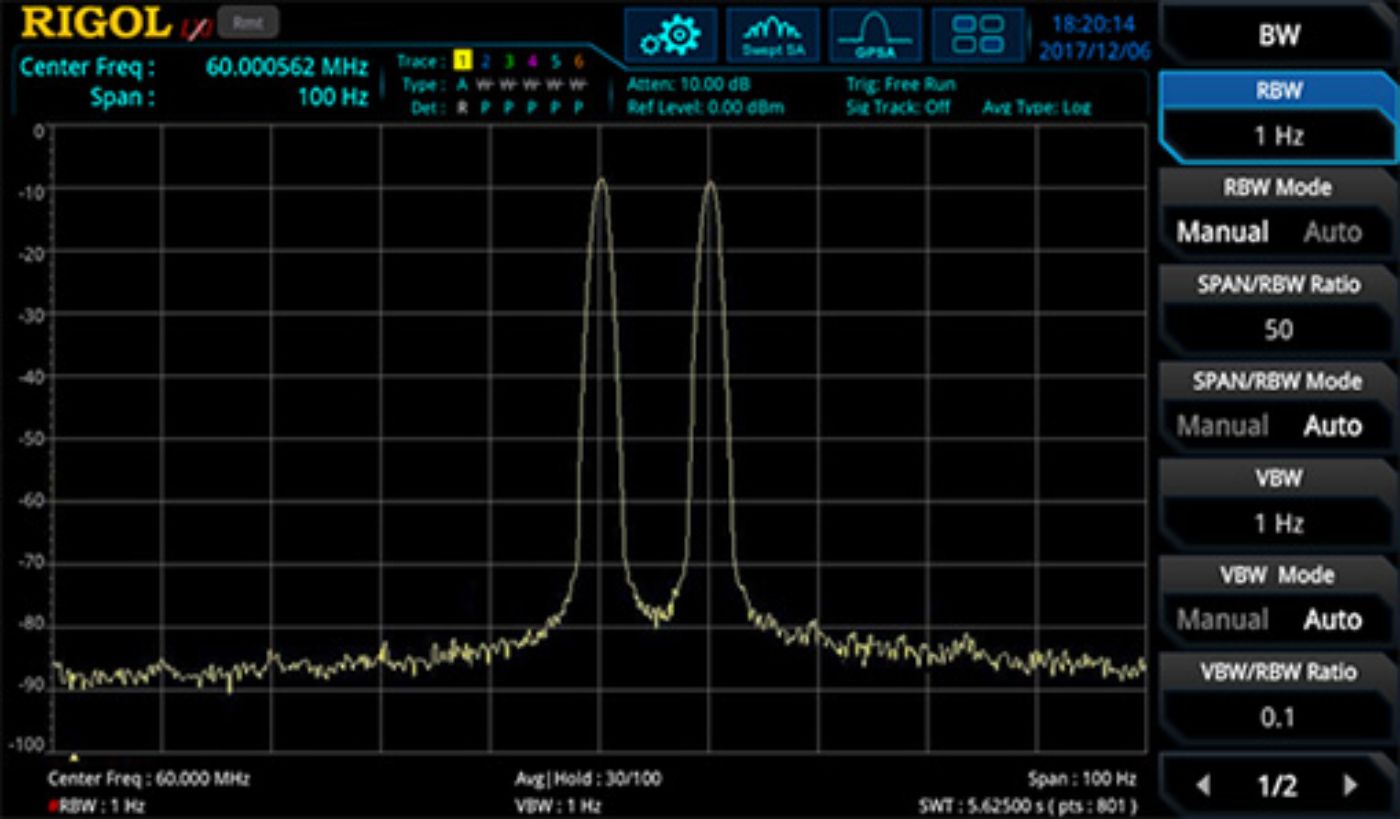

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

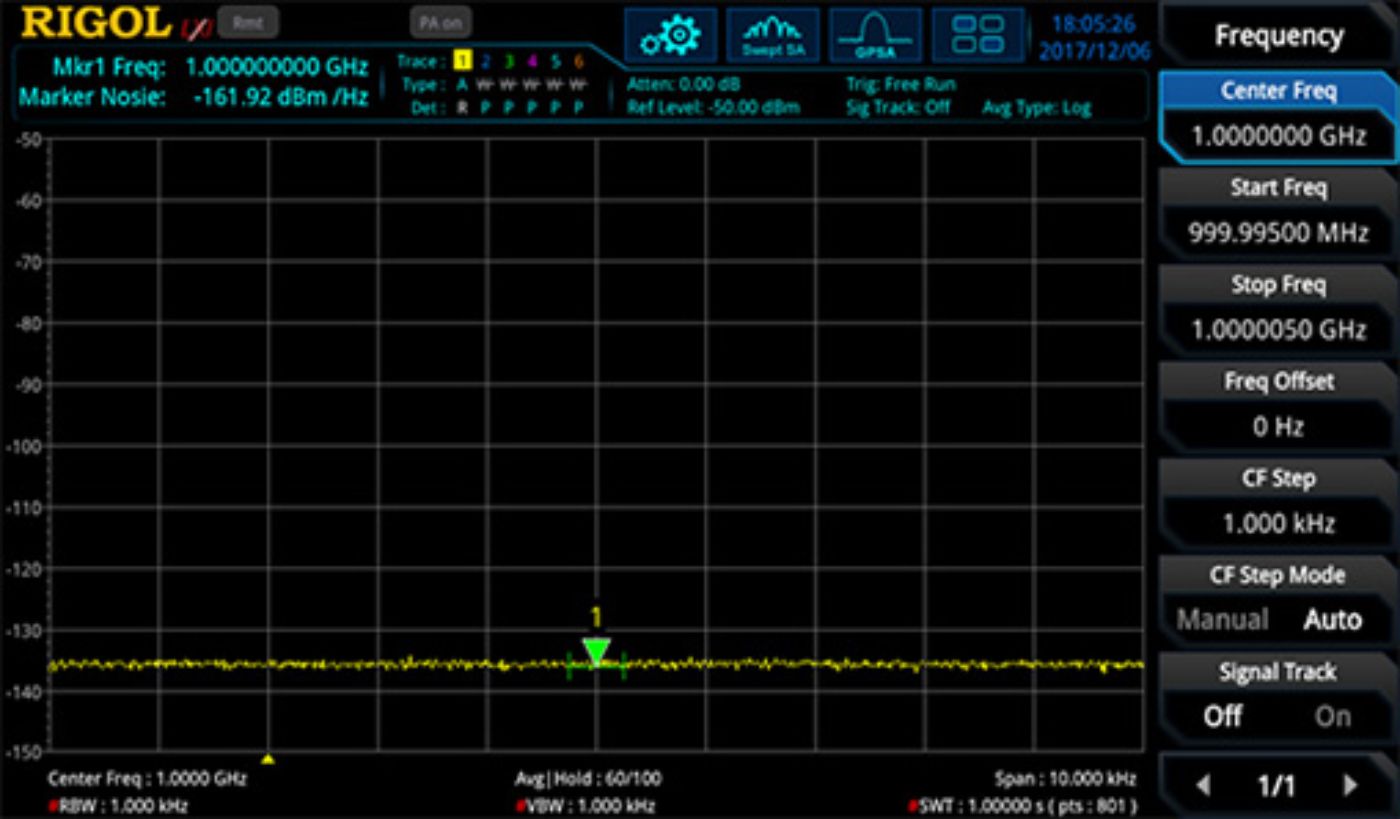

Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

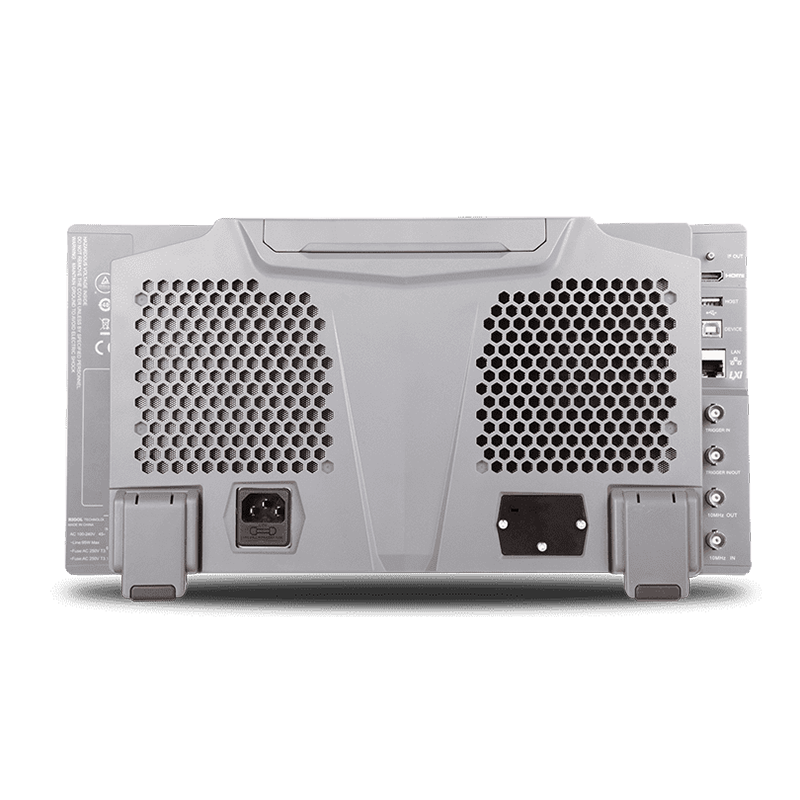

Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.

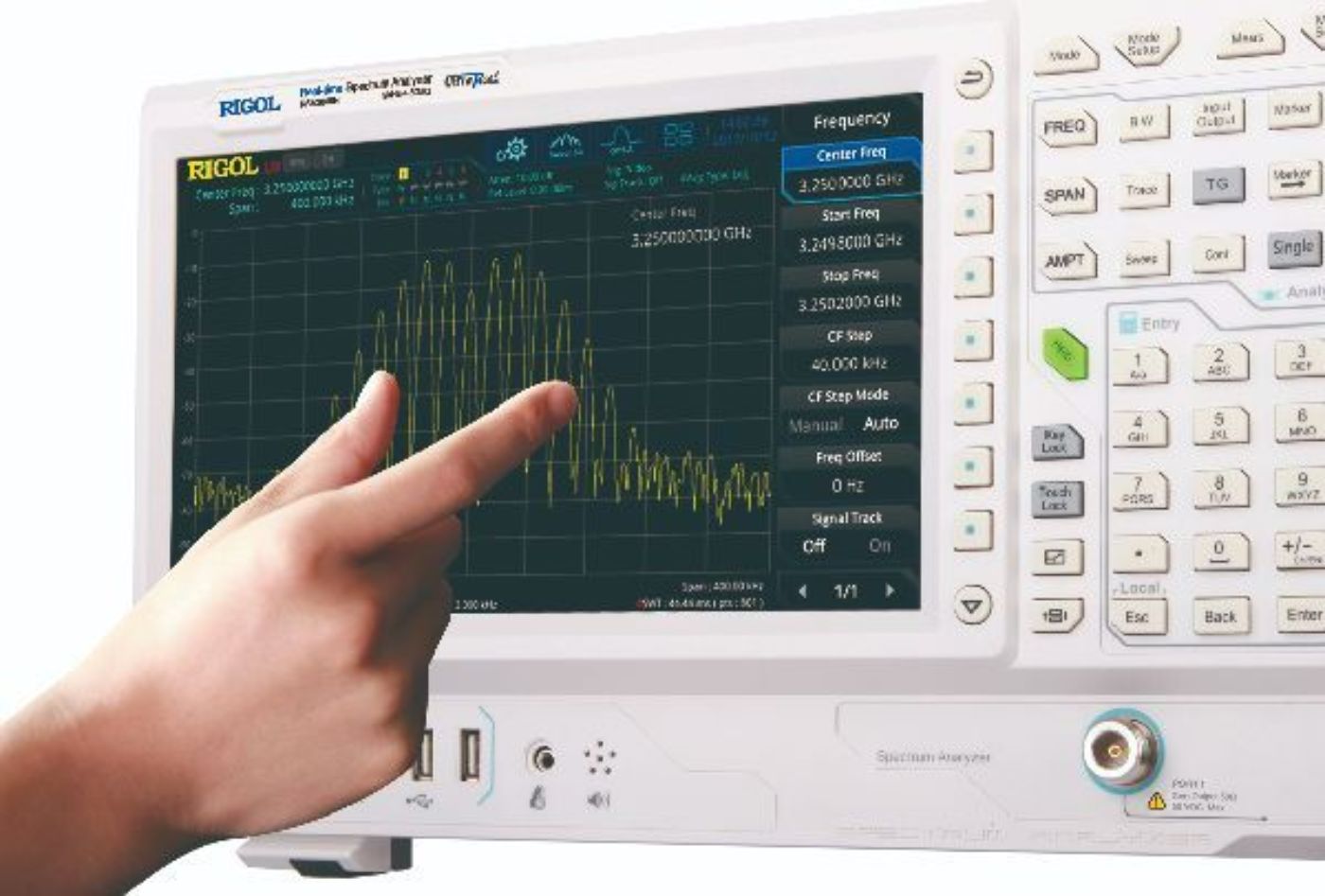

Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz.

RSA3000

Model

Frequency Range

Resolution Bandwidth (RBW)

Phase Noise (Typ.)

Displayed Average Noise Level (DANL)

Tracking Generator

Price

RSA3015N

9kHz~1.5GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

Yes

Get a Quote

RSA3030N

9kHz~3GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

Yes

Get a Quote

RSA3045N

9kHz～4.5GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

Yes

Get a Quote

RSA3045

9kHz～4.5GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

-

Get a Quote

RSA3045-TG

9kHz～4.5GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

Yes

Get a Quote

RSA3030

9kHz~3GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

-

Get a Quote

RSA3030-TG

9kHz~3GHz

1Hz~3MHz(10MHz opt.)

-102dBc/Hz@10kHz

-161dBm

Yes

Get a Quote

Bandwidth Upgrade

ModelDescriptionINR List PriceINR (Inclusive of GST)
RSA3000-B2525MHz Analysis Bandwidth₹ 94,350₹ 111,333
RSA3000-B4040MHz Analysis Bandwidth₹ 151,950₹ 179,301

Function Upgrade

ModelDescriptionINR List PriceINR (Inclusive of GST)
RSA3000-EMIEMI measurement application software₹ 104,850₹ 123,723
RSA3000-EMCEMCFilter and quasi-peak detector kit₹ 51,600₹ 60,888
RSA3000-AMKAdvanced Measurement kit₹ 62,400₹ 73,632
RSA3000-BW1Resolution Bandwidth1 Hz upgrade to 10 MHz₹ 42,600₹ 50,268
RSA3000-PAPA₹ 27,300₹ 32,214

Accessories

ModelDescriptionINR List PriceINR (Inclusive of GST)
CK106AVNA Calibration kit, DC to 6.5GHz₹ 112,350₹ 132,573
CK106EVNA Calibration kit, DC to 1.5GHz₹ 39,300₹ 46,374
VB1032VSWR bridge with VSWR-DSA800, 1 MHz to 3.2 GHz, typical directivity ≥ 30 dB₹ 74,100₹ 87,438
USB-GPIBUSB-GPIB adapter₹ 39,000₹ 46,020
ATT03301H30dB High Power Attenuator，Maximum power is 100W₹ 151,950₹ 151,950
RF CATV KitInclude：50Ω to 75Ωadapter（2pcs）₹ 30,900₹ 36,462
RF Attenuator KitInclude：6dBAttenuator（1pcs），10dBAttenuator（2pcs）₹ 55,350₹ 62,313
RF Adaptor KitInclude: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc)₹ 70,050₹ 82,659
RM6041Rack mount kit₹ 34,400₹ 40,365
NFP-3Near field probe，Frequency range: 30 MHz to 3 GHz₹ 56,100₹ 66,198
DSA Utility KitInclude：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna（2pcs）₹ 89,550₹ 105,669
VB1080VSWR bridge with VSWR-DSA800，2 Ghz to 8 GHz₹ 82,650₹ 97,527
OCXO-C08High stability clock reference₹ 89,550₹ 105,669

Host computer options

ModelDescriptionINR List PriceINR (Inclusive of GST)
S1210EMI pre-test software₹ 56,100₹ 66,198
Ultra SpectrumDSAPC software₹ 27,750₹ 32,745
