Spectrum Analyzer

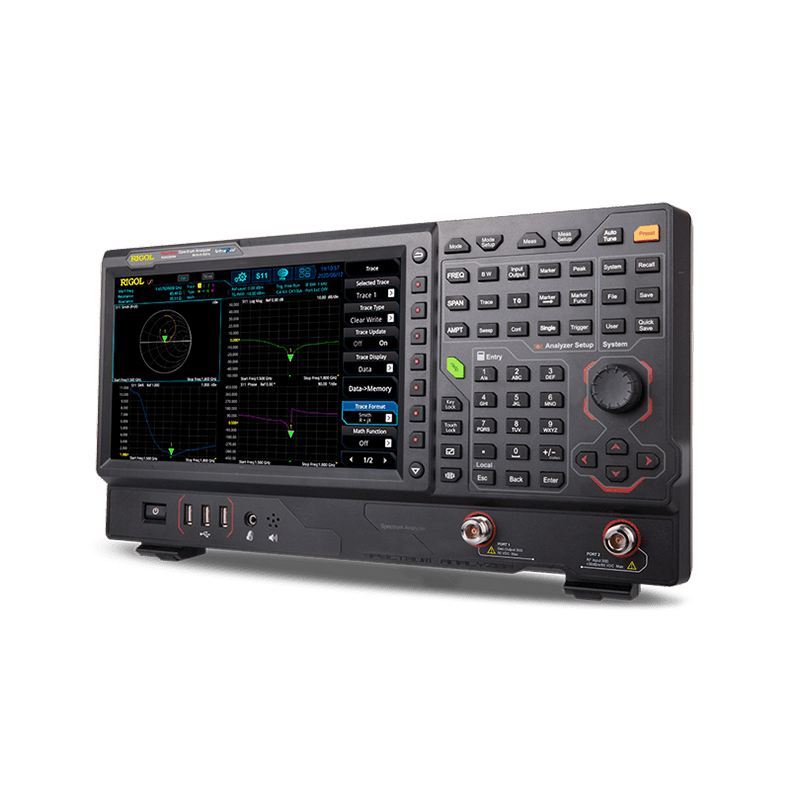

RSA5000
Frequency Range
9kHz~6.5GHz
Resolution Bandwidth (RBW)
1Hz~10MHz
Phase Noise (Typ.)
-108dBc/Hz@10kHz
Displayed Average Noise Level (DANL)
-165dBm
Tracking Generator
Yes
Analysis Function
RTSA/EMI/VNA/VSA
Downloads
Downloads
Select Model
Explore the RSA5000 series spectrum analyzers
Built-in VNA vector network analysis mode (N model)

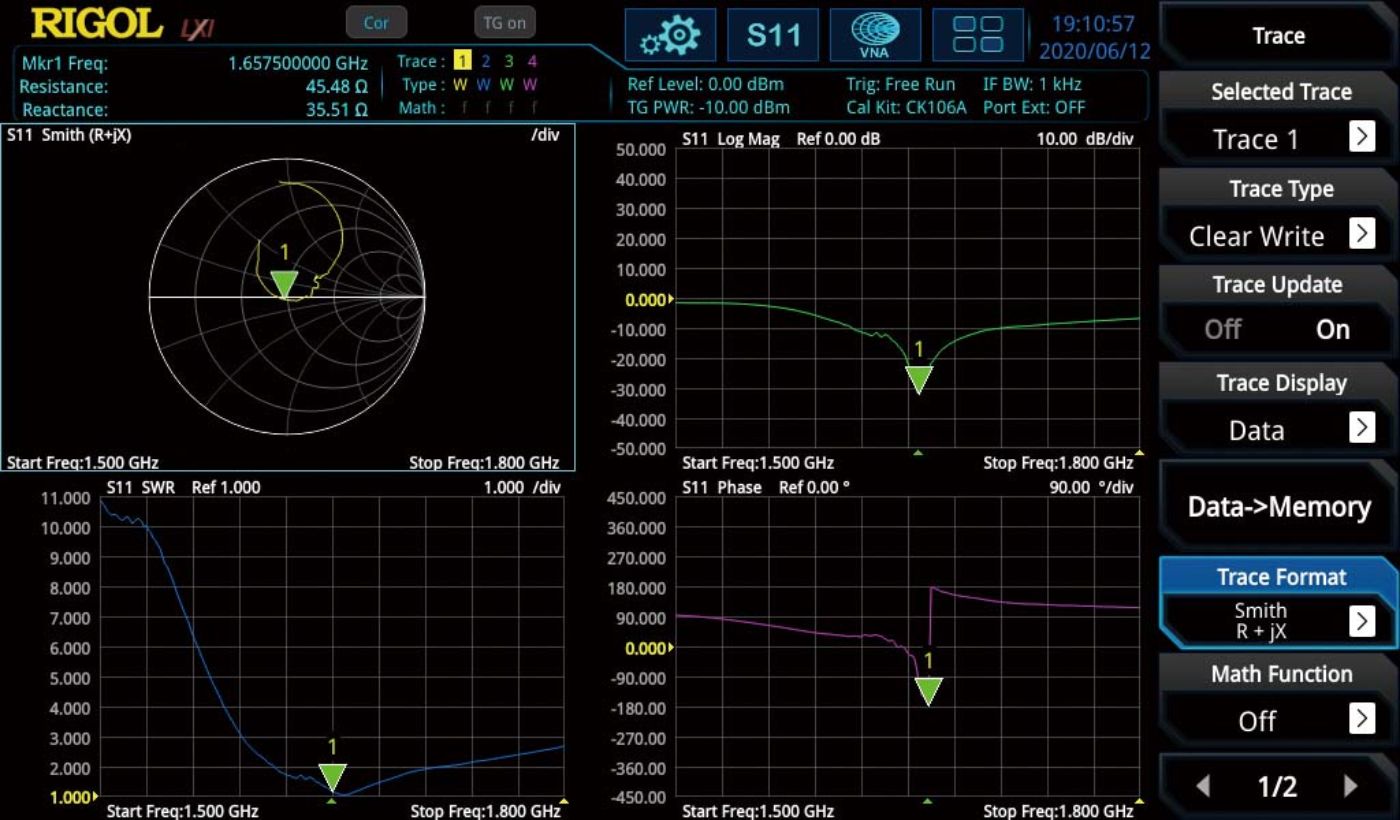

The VNA mode can measure the S11, S21 of components and circuit networks and locate fault points. It can more accurately characterize the network characteristics of the device under test through various displays such as Smith charts and polar coordinates.
Detect transient abnormal signals through UltraReal technology

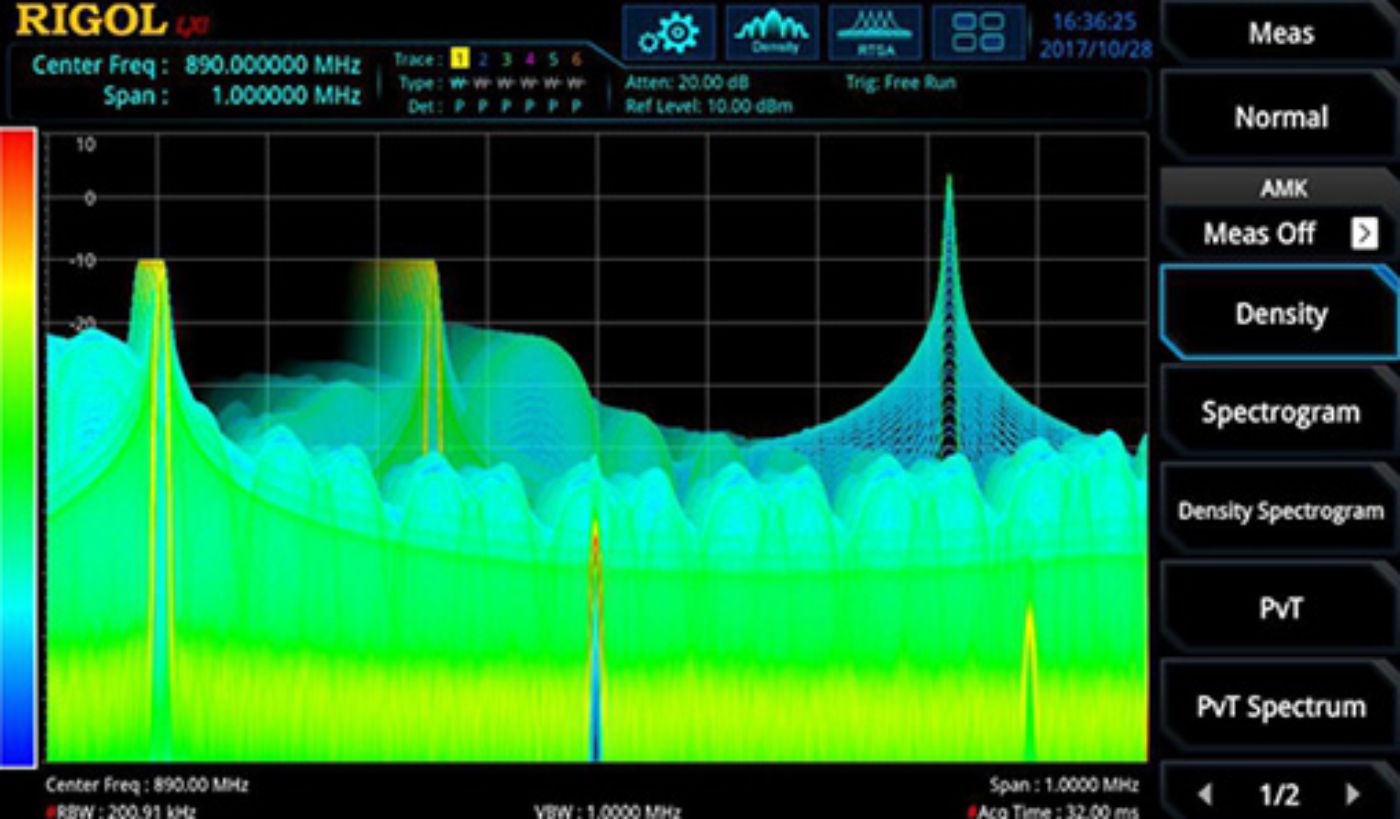

The RSA5000 uses UltraReal technology to provide a real-time bandwidth of up to 40 MHz. Within the real-time bandwidth range, it can ensure that transient signals with a duration of more than 7.45 μs can be captured 100% and accurately measured.
Find problems in the design through the vector analysis function

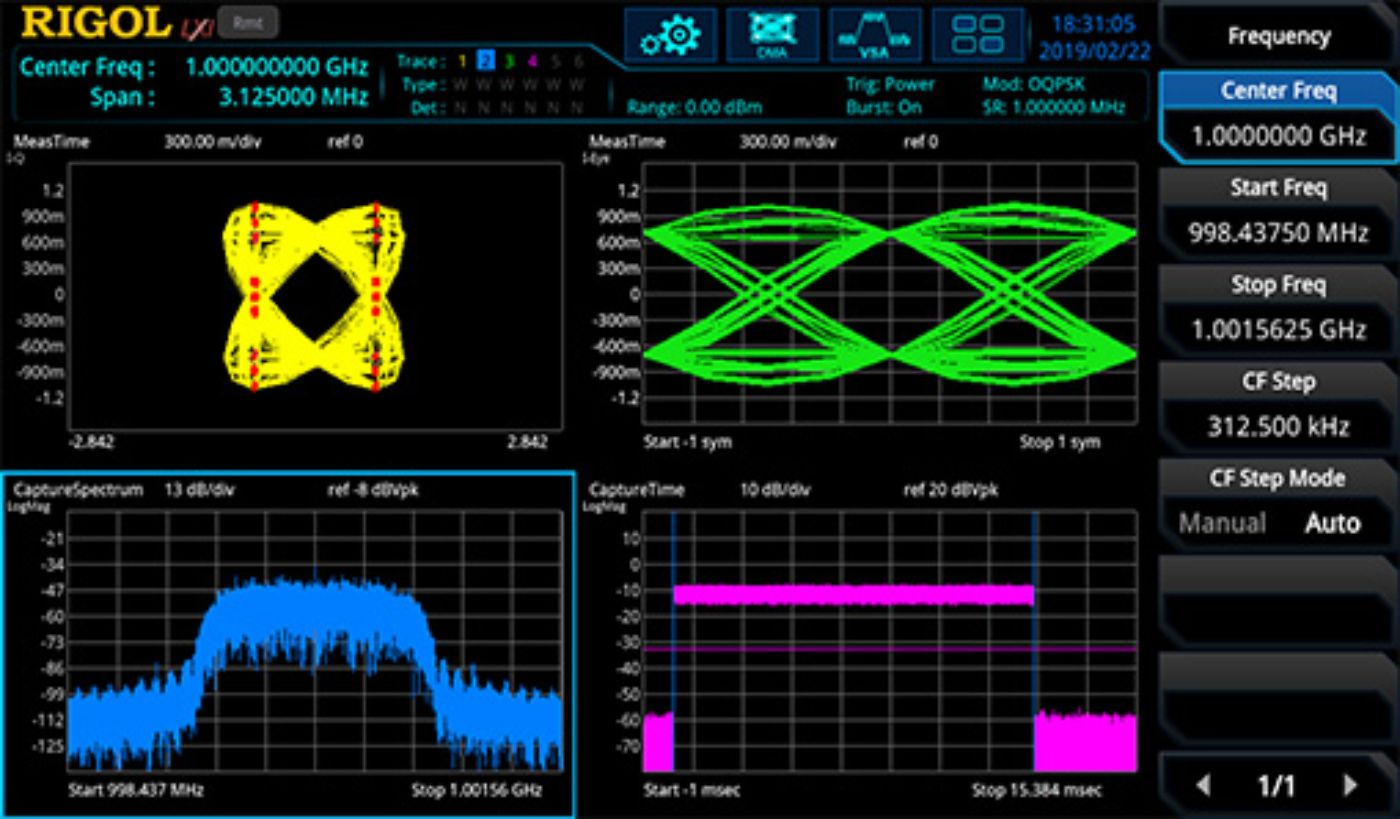

The vector signal analysis function VSA supports a variety of digital modulation formats, such as QAM, PSK, MSK, ASK, FSK, etc. Through this function, rapid demodulation is carried out to display multi – dimensional data such as constellation diagrams, eye diagrams (baseband signals), spectrograms, and demodulated data, so as to discover problems in the design.
Complete the pre-test of conduction/radiation through the built-in EMI test software.
The RSA5000 is built-in with EMI pre-test application software. Combined with the filter that complies with the CISPR standard, it conducts pre-tests on the product for conduction and radiation, thereby identifying the sources of conduction/radiation interference and making improvements to accelerate the product’s market entry.
Trigger and monitor signals through the FMT template

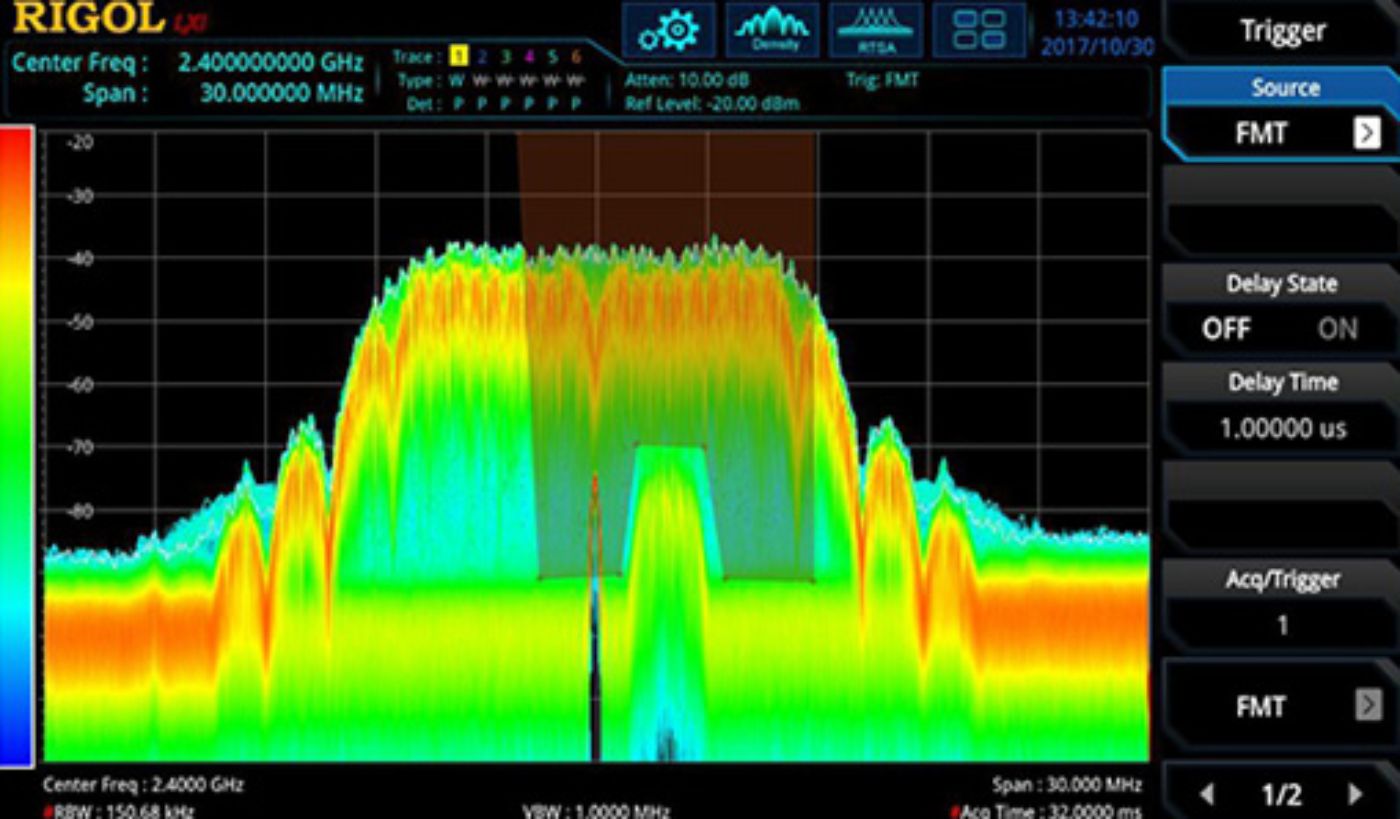

FMT frequency template triggering is a triggering mode unique to real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that meet the template rules, thereby discovering occasional abnormal signals within the monitoring range.

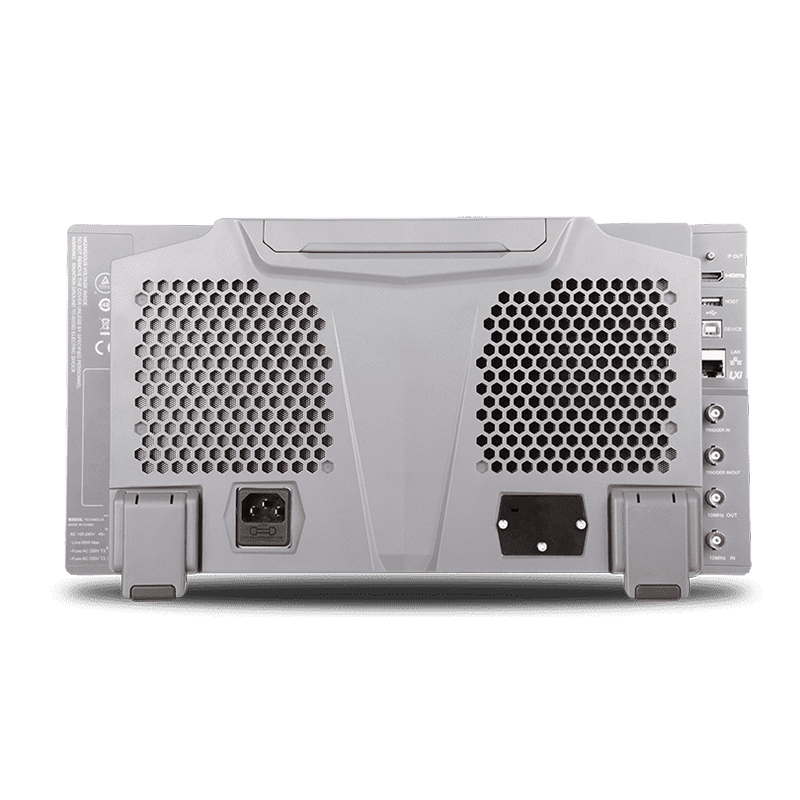

Provide multiple interfaces to enhance the connectivity of instruments and equipment.

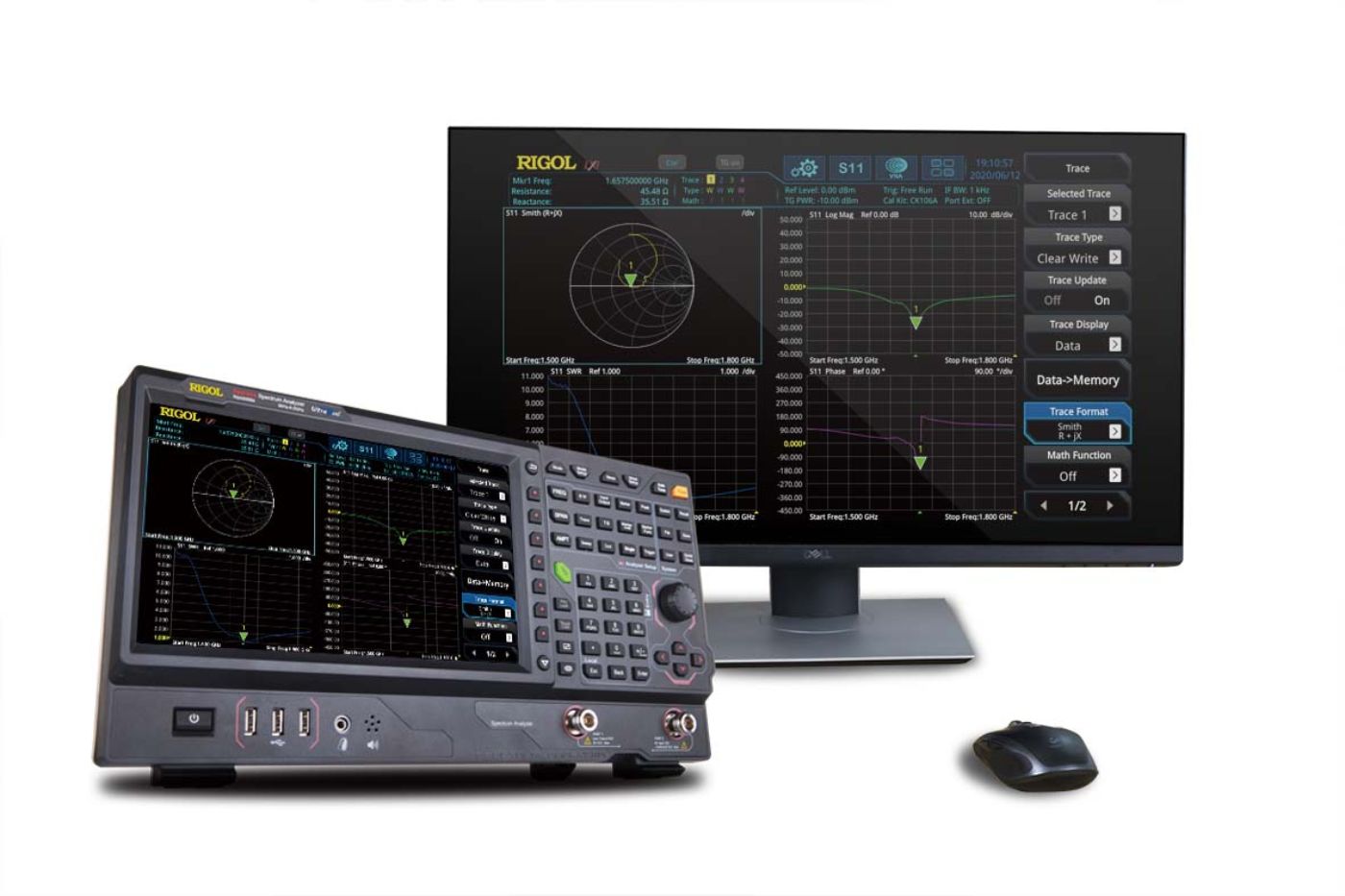

It supports casting the display content of the device to a larger monitor through the HDMI interface. It provides the Web Control function, allowing users to directly control the device by accessing the device’s IP address, thus enhancing the experience of remote control.
Use the multi-touch screen to complete operations quickly.

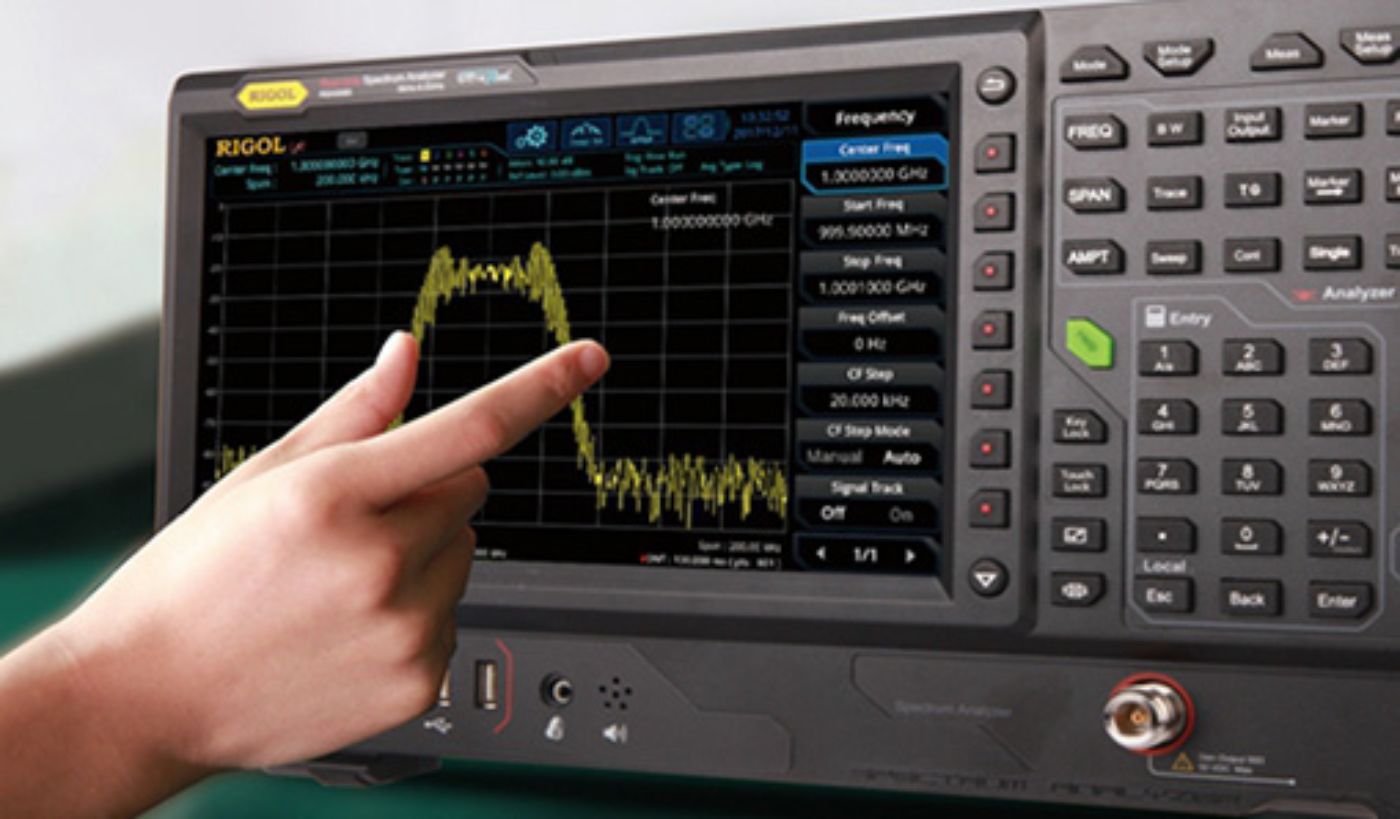

You can use the 10.1-inch multi-touch capacitive screen provided by RSA5000 for quick settings. It supports various gesture operations such as dragging, expanding, and zooming on the waveform, providing a user-friendly interactive experience.
7 real-time display modes

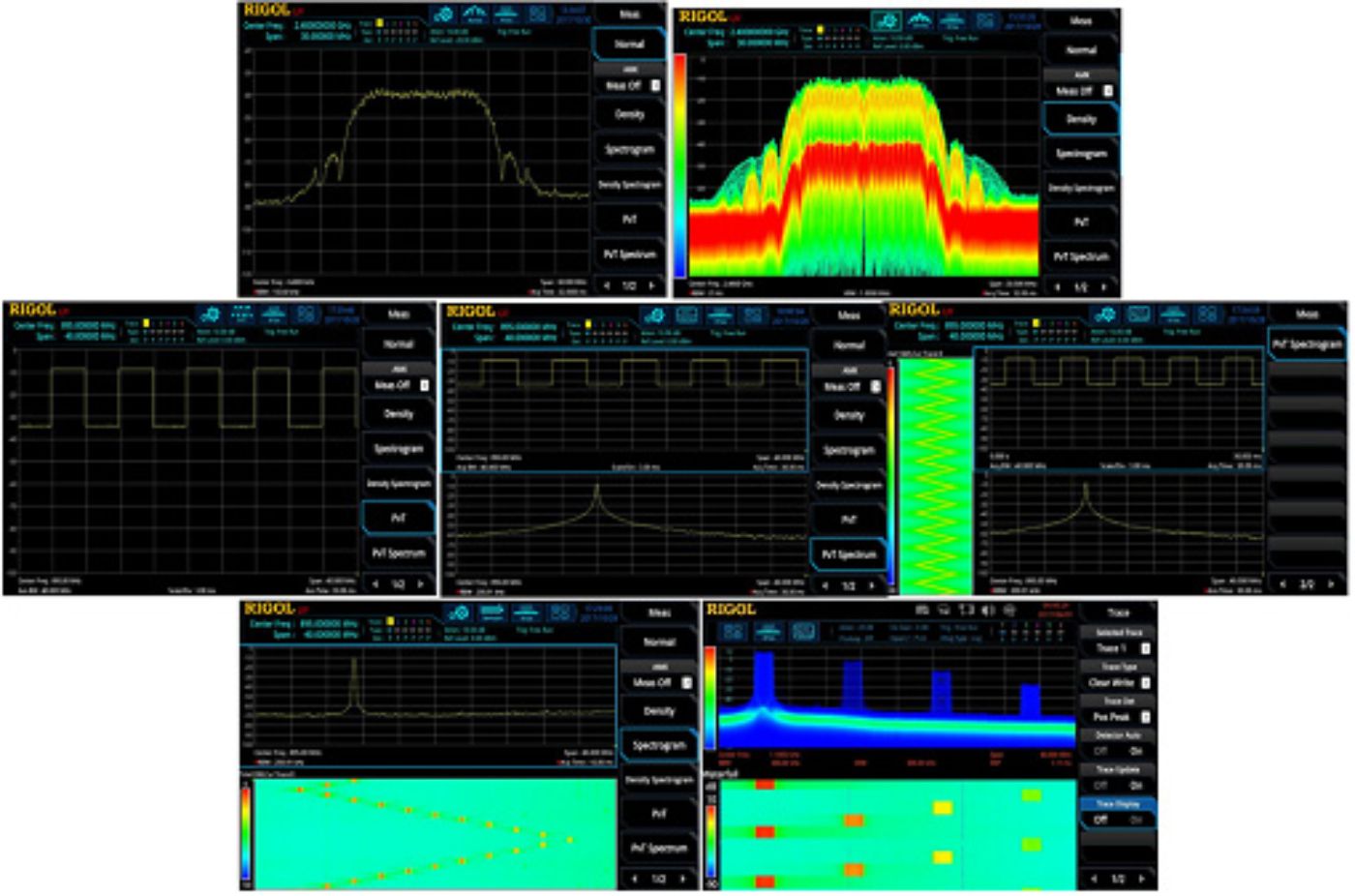

The seven real-time signal display modes of the RSA5000 make it easier to capture, isolate, and analyze RF signals and systems. The relationship between power and time, as well as the spectrogram, shows how the signal changes with the acquisition time or continuous acquisition time. Combining these presentations and using markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.
Excellent phase noise indicators

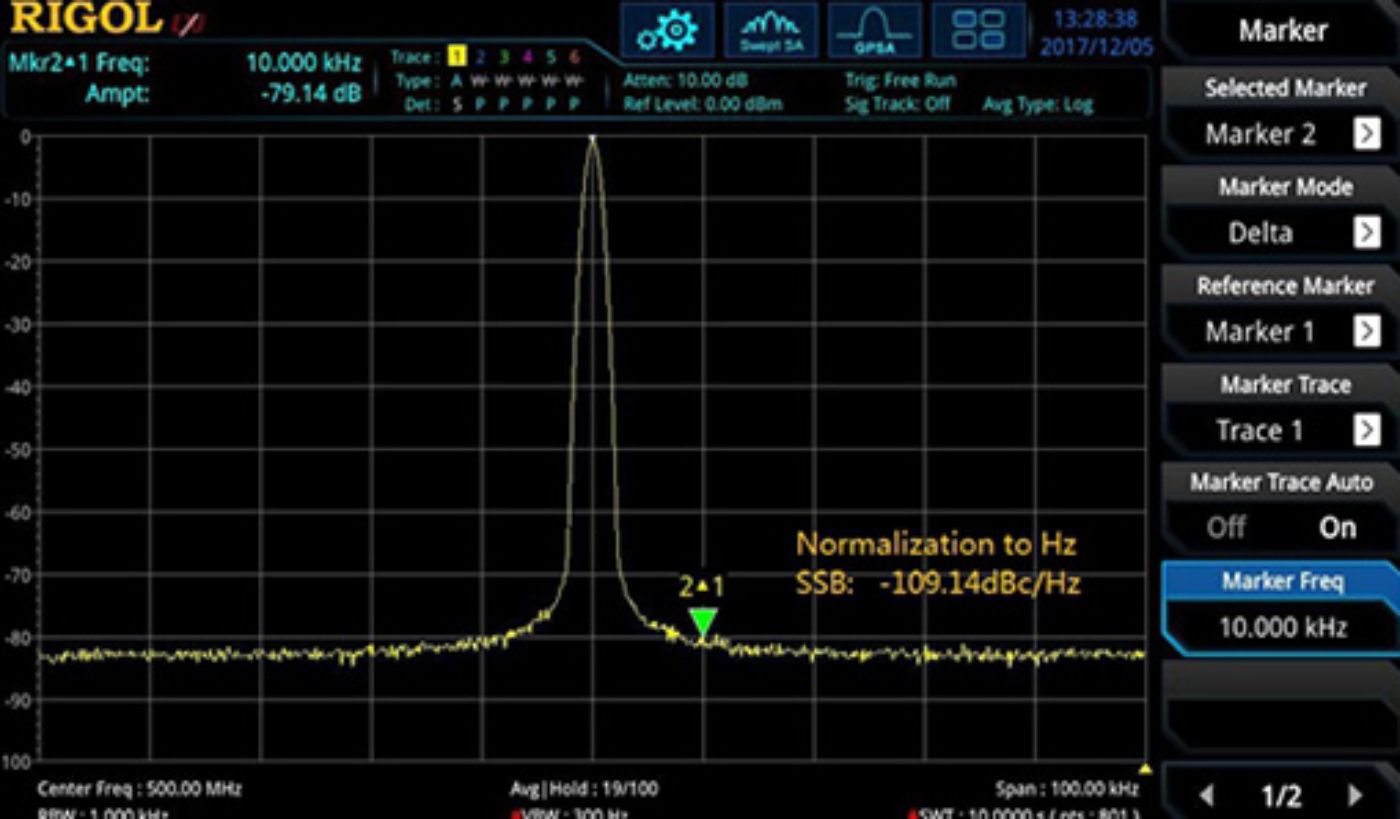

Excellent sweep frequency performance indicators, with phase noise as low as -108dBc/Hz.
RSA5000
Model
Frequency Range
Resolution Bandwidth (RBW)
Phase Noise (Typ.)
Displayed Average Noise Level (DANL)
Tracking Generator
Analysis Function
Price
RSA5065
9kHz~6.5GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
-
RTSA/EMI/VSA
RSA5065-TG
9kHz~6.5GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
Yes
RTSA/EMI/VSA
RSA5032
9kHz~3.2GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
-
RTSA/EMI/VSA
RSA5032-TG
9kHz~3.2GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
Yes
RTSA/EMI/VSA
RSA5032N
9kHz~3.2GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
Yes
RTSA/EMI/VNA/VSA
RSA5065N
9kHz~6.5GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-165dBm
Yes
RTSA/EMI/VNA/VSA
Bandwidth Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RSA5000-B40 | 40MHz Real-time Analysis Bandwidth | ₹ 151,950 | ₹ 179,301 |
Function Upgrade
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| RSA5000-VSA | Vector signal analysis software | ₹ 212,700 | ₹ 250,986 |
| RSA5000-EMI | EMI measurement application software | ₹ 104,850 | ₹ 123,723 |
| RSA5000-AMK | Advanced Measurement kit | ₹ 62,400 | ₹ 73,632 |
| RSA5000-PA | PA | ₹ 42,600 | ₹ 50,268 |
Accessories
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| CK106A | VNA Calibration kit, DC to 6.5GHz | ₹ 112,350 | ₹ 132,573 |
| CK106E | VNA Calibration kit, DC to 1.5GHz | ₹ 39,300 | ₹ 46,374 |
| VB1032 | VSWR bridge with VSWR-DSA800, 1 MHz to 3.2 GHz, typical directivity ≥ 30 dB | ₹ 74,100 | ₹ 87,438 |
| VB1080 | VSWR bridge with VSWR-DSA800，2 Ghz to 8 GHz | ₹ 82,650 | ₹ 97,527 |
| USB-GPIB | USB-GPIB adapter | ₹ 37,500 | ₹ 44,250 |
| ATT03301H | 30dB High Power Attenuator，Maximum power is 100W | ₹ 30,900 | ₹ 36,462 |
| RF CATV Kit | Include：50Ω to 75Ωadapter（2pcs） | ₹ 55,350 | ₹ 65,313 |
| RF Attenuator Kit | Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs） | ₹ 70,050 | ₹ 82,659 |
| RF Adaptor Kit | Include: N (F)-N (F) adapter (1pc)，N (M) - N (M) adapter (1pc)，N (M) - SMA (F) adapter (2pcs)，N (M) - BNC (F) adapter (2pcs)，SMA (F) - SMA (F) adapter (1pc)，SMA (M) - SMA (M) adapter (1pc)，BNC T-type adapter (1pc)，50Ω SMA load (1pc)，50Ω BNC iadapter (1pc) | ₹ 42,300 | ₹49,914 |
| CB-NM-SMAM-75-L-12G | N(M)-SMA(M) RF Cable | ₹ 26,100 | ₹ 30,798 |
| CB-NM-NM-75-L-12G | N(M)-N(M) RF Cable | ₹26,100 | ₹ 30,798 |
| RM6041 | Rack mount kit | ₹ 34,200 | ₹ 40,356 |
| NFP-3 | Near field probe，Frequency range: 30 MHz to 3 GHz | ₹ 89,550 | ₹ 105,669 |
| DSA Utility Kit | Include：N-SMA Cable，BNC-BNC Cable，N-BNC adapter，N-SMA adapter，75Ω-50Ωadapter，900 MHz/1.8 GHz antenna（2pcs），2.4GHz antenna（2pcs） | ₹105,900 | ₹ 124,962 |
| TX1000 | RF demonstration kit (transmitter) | ₹ 16,53,600 | ₹ 16,53,600 |
| OCXO-C08 | High stability clock reference | ₹ 89,550 | ₹ 105,669 |
Host computer options
| Model | Description | INR List Price | INR (Inclusive of GST) |
|---|---|---|---|
| S1210 | EMI pre-test software | ₹ 56,100 | ₹ 66,198 |
| Ultra Spectrum | DSAPC software | ₹ 27,750 | ₹ 32,745 |
User Guide
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA5000 DataSheet | V3.0 | 2025-02-07 |
Programming Guide
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 DG70000 QuickGuide | QGB13100-1110 | 2023-01-30 |
Open Source Acknowledge
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA30003000E5000 OpenSourceAcknowledgment | 202512 | 2025-12-12 |
Performance Verification
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA5000_PerformanceVerificationGuide_EN | PVD20104-1110 | 2025-12-04 |
