Spectrum Analyzer
RSA6000
Frequency Range
5 kHz ~ 26.5 GHz
Resolution Bandwidth (RBW)
1Hz~10MHz
Phase Noise (Typ.)
-108dBc/Hz@10kHz
Displayed Average Noise Level (DANL)
-163dBm
Tracking Generator
Yes
Analysis Function
-
Downloads
Downloads
Select Model
Explore the RSA6000 Series Spectrum Analyzer

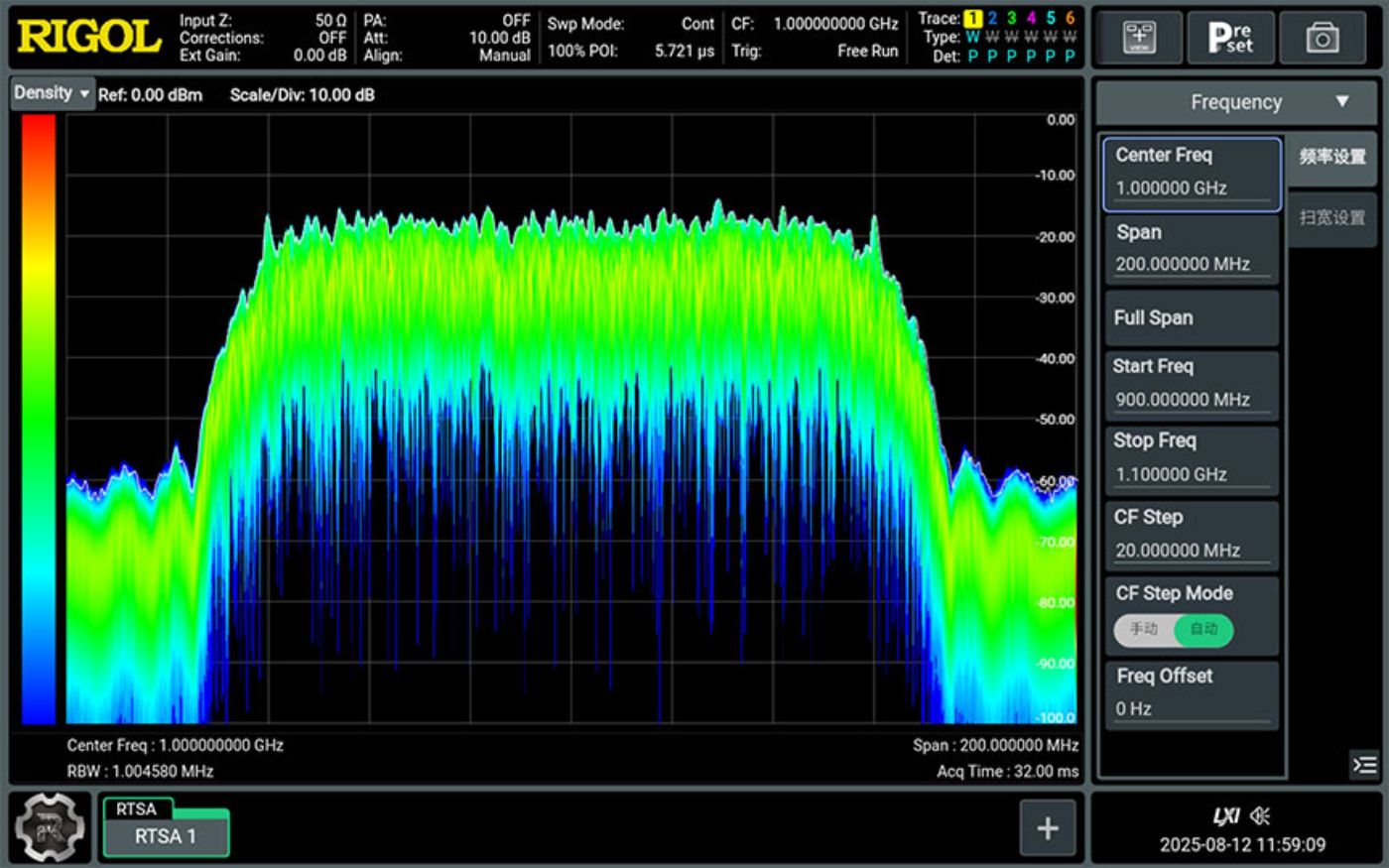

Class-leading 200MHz real-time spectrum analysis
Supports signal capture in complex environments, easily handles challenges such as multiple signals and instantaneous interference, quickly locks in abnormal signals, and improves the efficiency of R & D and troubleshooting.

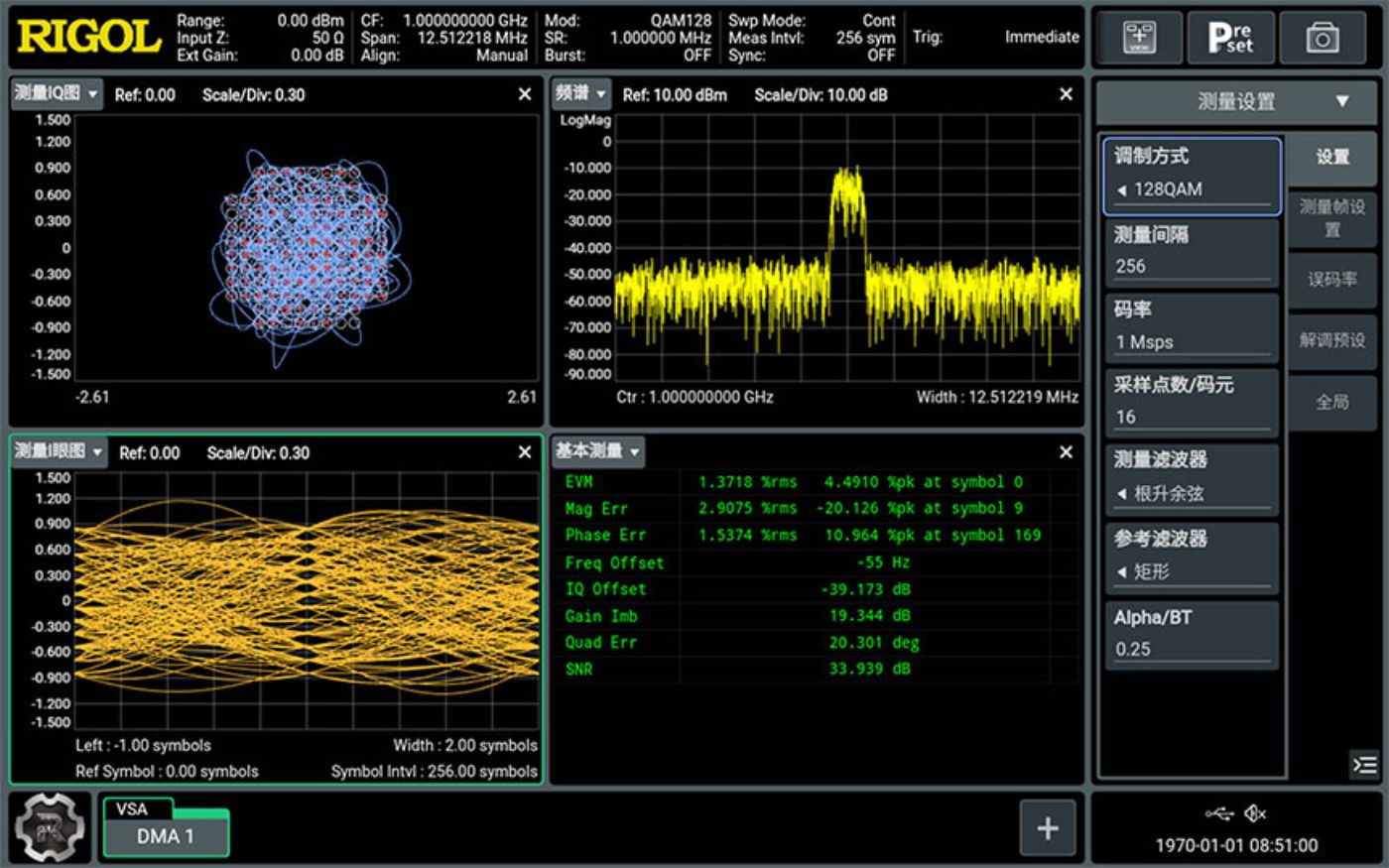

Completely upgraded demodulation analysis bandwidth of 200MHz
200MHz vector demodulation bandwidth: Easily handle in-depth analysis and performance evaluation of various broadband communication signals.

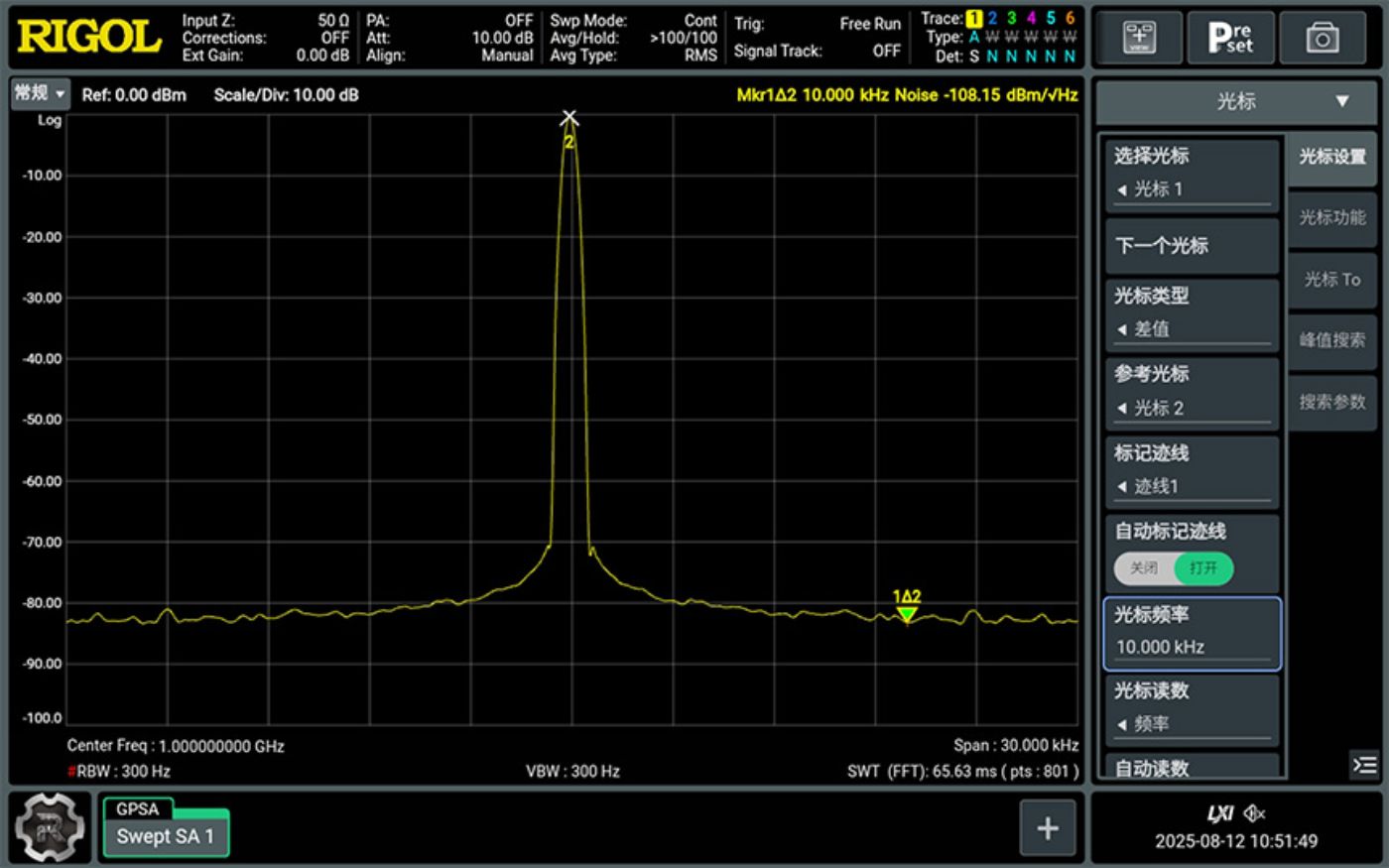

Phase noise -108dBc/Hz@1GHz, 10kHz offset
Excellent phase noise performance provides a pure local oscillator for high-demand tests, ensuring accurate and reliable measurement results.

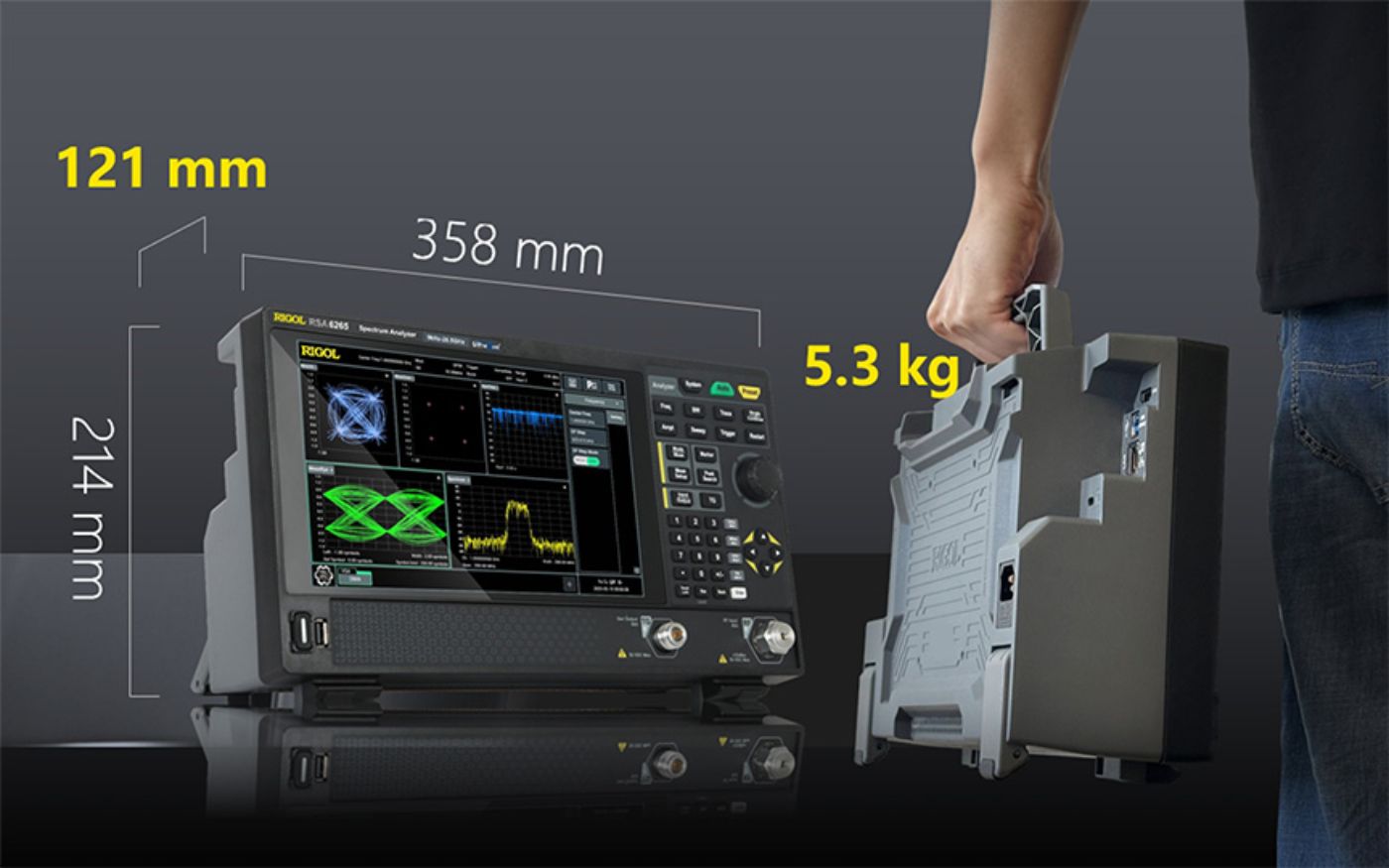

Compact size, portable design
The compact and portable body design can easily handle the crowded laboratory bench and complex outdoor environment, making high-performance testing feasible anywhere.

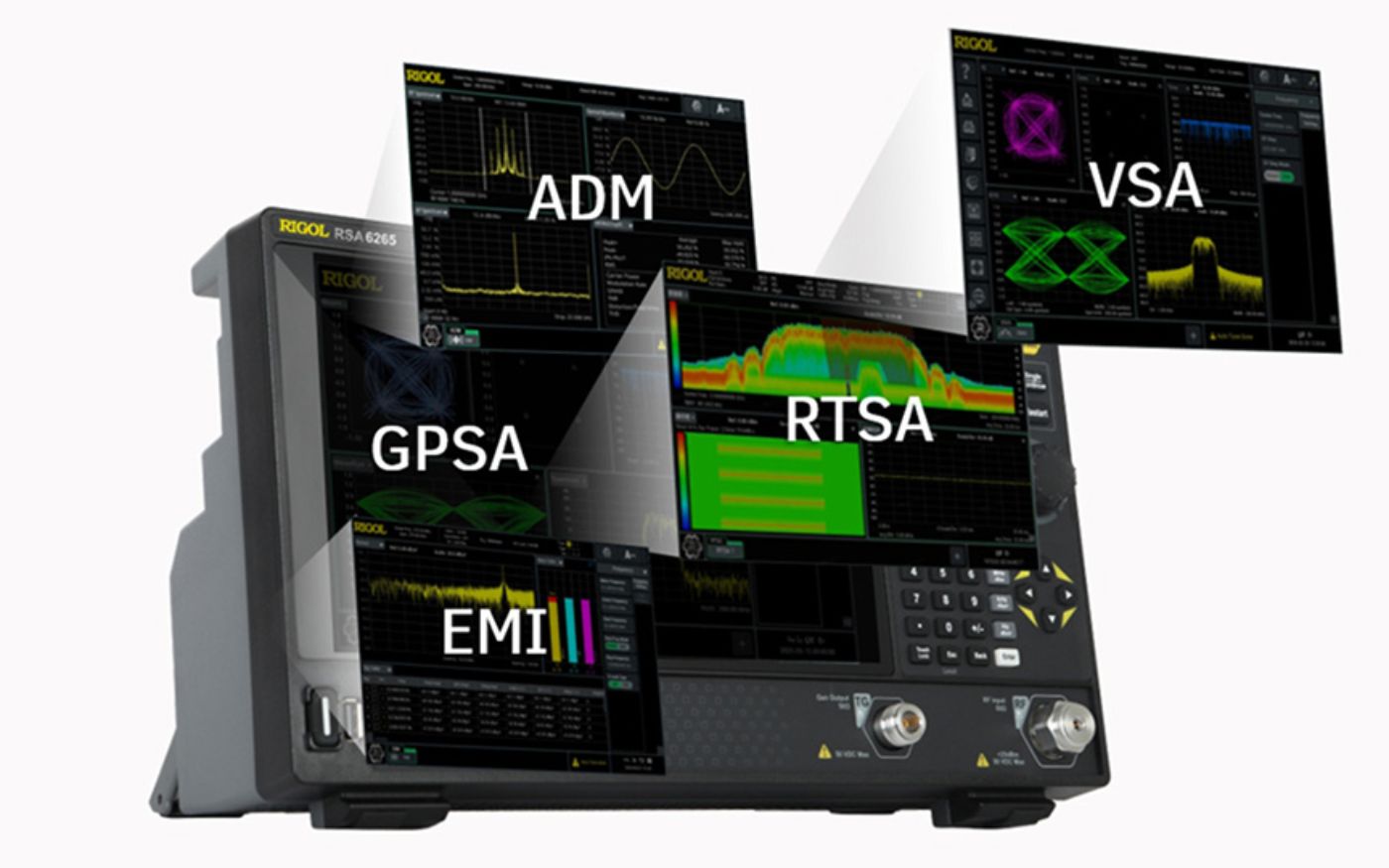

5-in-1 multi-function
One machine serves five purposes, highly integrating five core functions. It greatly saves testing space and investment costs, and comprehensively enhances the value of comprehensive testing.

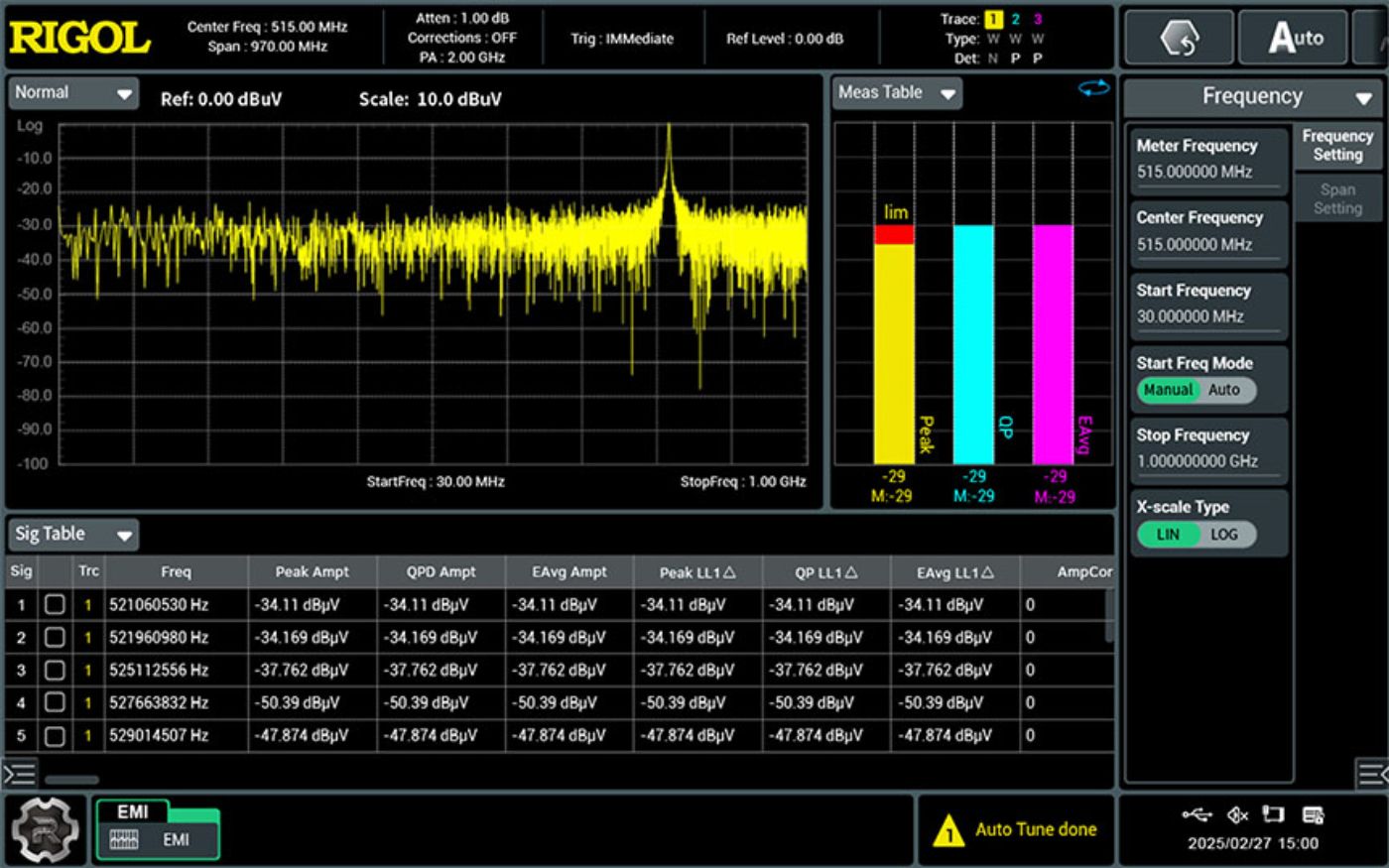

Complete the pre-test of conduction/radiation through the built-in EMI test software.
The built-in EMI pre-test application software, combined with a filter that meets the CISPR standard, conducts pre-tests on the product’s conduction and radiation to identify and improve the sources of conduction/radiation interference, thereby accelerating the product’s market entry.

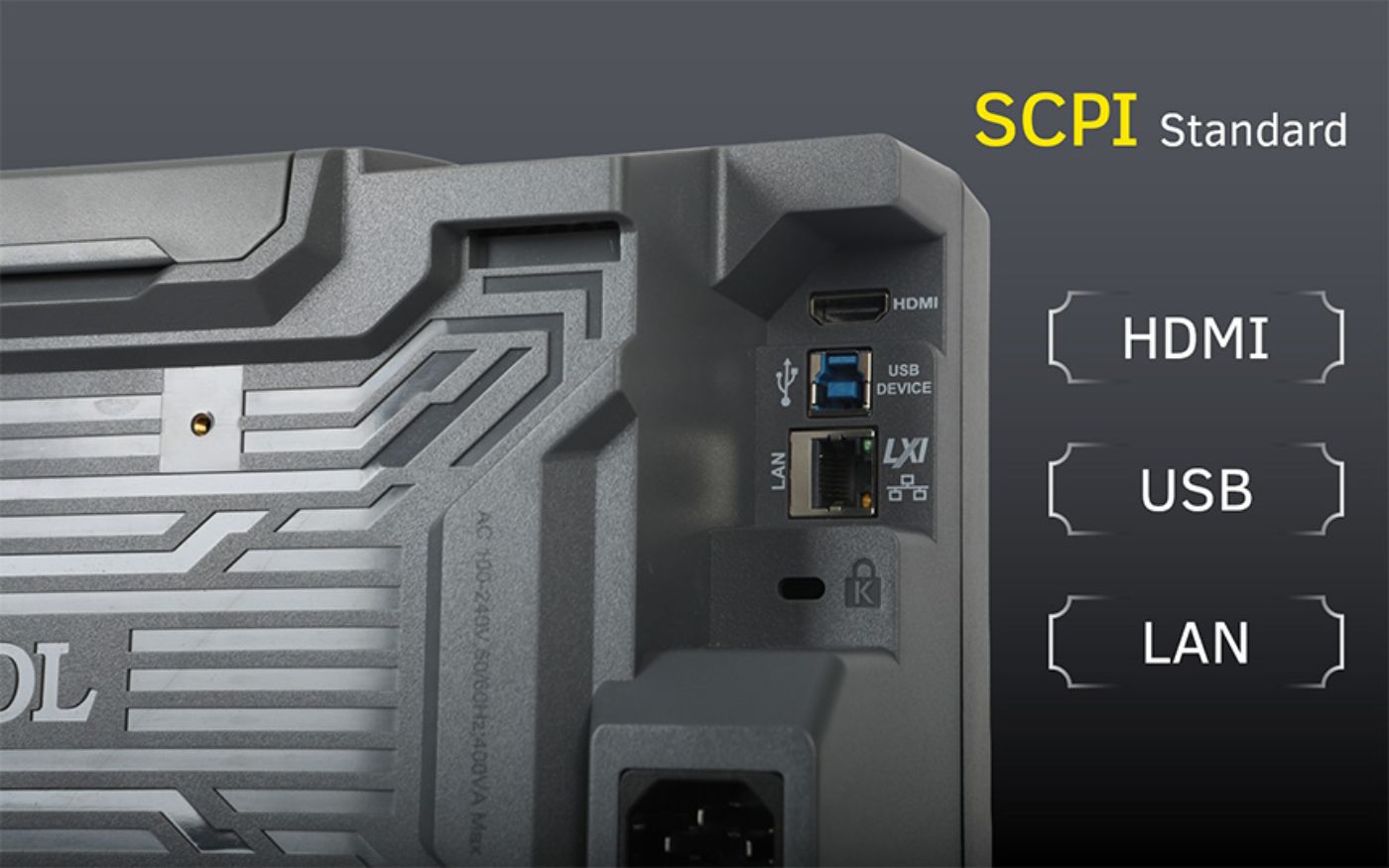

Provide multiple interfaces and support the standard SCPI instruction set
Integrate multiple remote interfaces such as USB, LAN, and HDMI, support standard SCPI commands, easily build an automated test system, and accelerate your product development process.
UI design that is more suitable for touch operations
The brand-new touch UI offers a smooth experience like that of a tablet, making complex spectrum measurements intuitive, efficient, and effortless.
RSA6000
Model
Frequency Range
Resolution Bandwidth (RBW)
Phase Noise (Typ.)
Displayed Average Noise Level (DANL)
Tracking Generator
Price
RSA6265
5 kHz ~ 26.5 GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-163dBm
Yes
RSA6140
5 kHz ~ 14 GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-163dBm
Yes
RSA6085
5 kHz ~ 8.5 GHz
1Hz~10MHz
-108dBc/Hz@10kHz
-163dBm
Yes
Performance Upgrade
| Model | Description | Price |
|---|---|---|
| RSA6000-P08 | Preamplifier (PA), 8.5 GHz | $ 899 (VAT excl.) |
| RSA6000-P14 | Preamplifier (PA), 14 GHz | $ 1,599 (VAT excl.) |
| RSA6000-P26 | Preamplifier (PA), 26.5 GHz | $ 2,199 (VAT excl.) |
| RSA6000-T08 | 8.5 GHz Tracking Generator Output | $ 1,099 (VAT excl.) |
| RSA6000-B200 | 200 MHz Analysis Bandwidth | $ 2,199 (VAT excl.) |
| RSA6000-RB200 | 200 MHz Real-time Bandwidth | $ 3,299 (VAT excl.) |
Functional Options
| Model | Description | Price |
|---|---|---|
| RSA6000-VSA | Vector Signal Analysis Application Software | $ 2,199 (VAT excl.) |
| RSA6000-EMI | EMI Measurement Application Software | $ 1,099 (VAT excl.) |
| RSA6000-ADM | Analog Demodulation Application Software | $ 1,099 (VAT excl.) |
| RSA6000-AMK | Advanced Measurement Kit | $ 699 (VAT excl.) |
General Accessories
| Model | Description |
|---|---|
| RM6051 | Thunderbird Platform Rack Mount Kit |
Application Options
| Model | Description |
|---|---|
| RSA6000-LORA | LORA Measurement |
| RSA6000-ZGB | ZIGBEE Measurement |
| RSA6000-BTX | Bluetooth LE TX Measurement |
| RSA6000-PULSE | Pulse Measurement |
| RSA6000-PNOISE | Phase Noise Measurement |
User Guide
Datasheet
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA6000 DataSheet | DSD27102-1110 | 2026-03-31 |
Quick Guide
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA6000 QuickGuide | QGD27100-1110 | 2025-09-15 |
Programming Manual
Performance Verification Manual
| Name | Version | Release time | Download |
|---|---|---|---|
| 📄 RSA6000 PerformanceVerification | PVD27100-1110 | 2025-09-15 |
